Nissan Versa Sedan. Manual - part 45

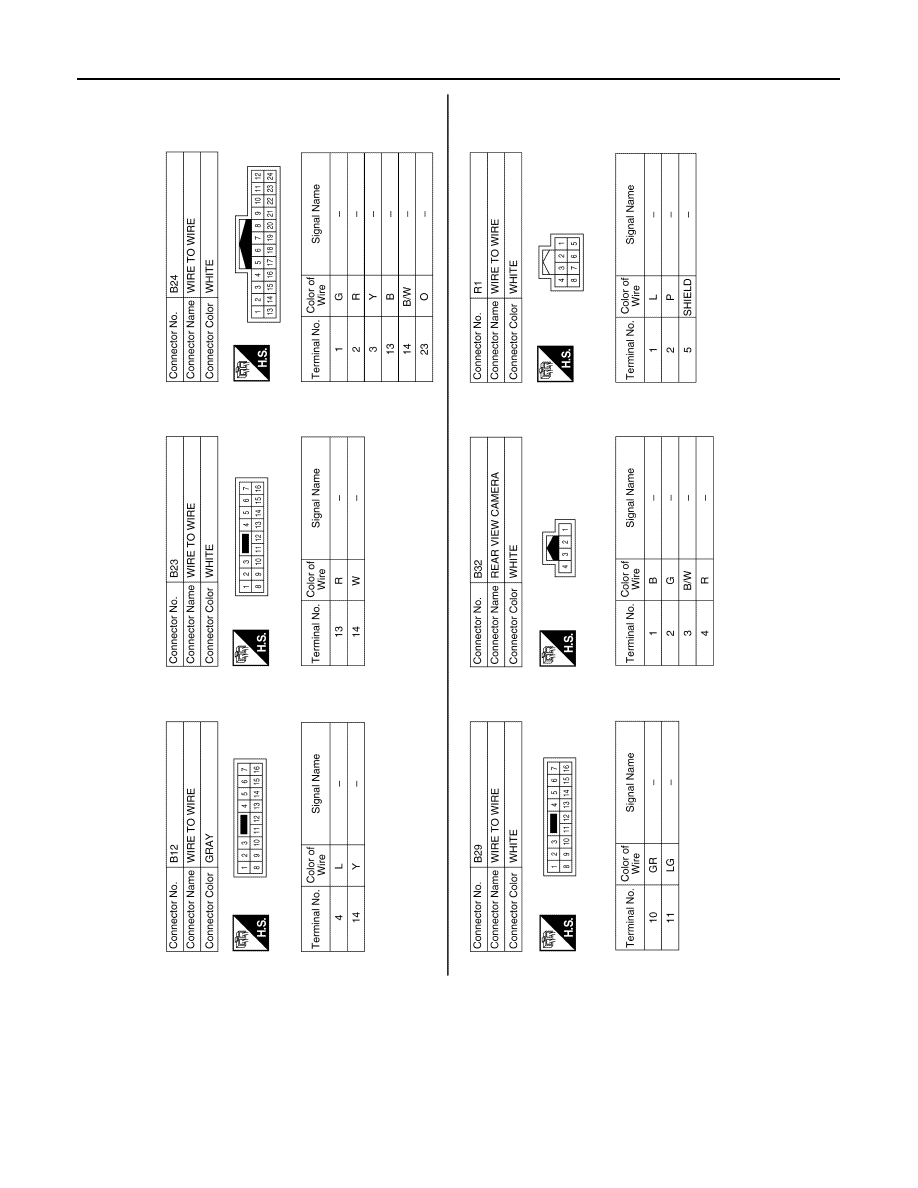

AV-172

< WIRING DIAGRAM >

[NAVIGATION]

NAVIGATION SYSTEM

ABNIA4565GB

AV

NAVIGATION SYSTEM

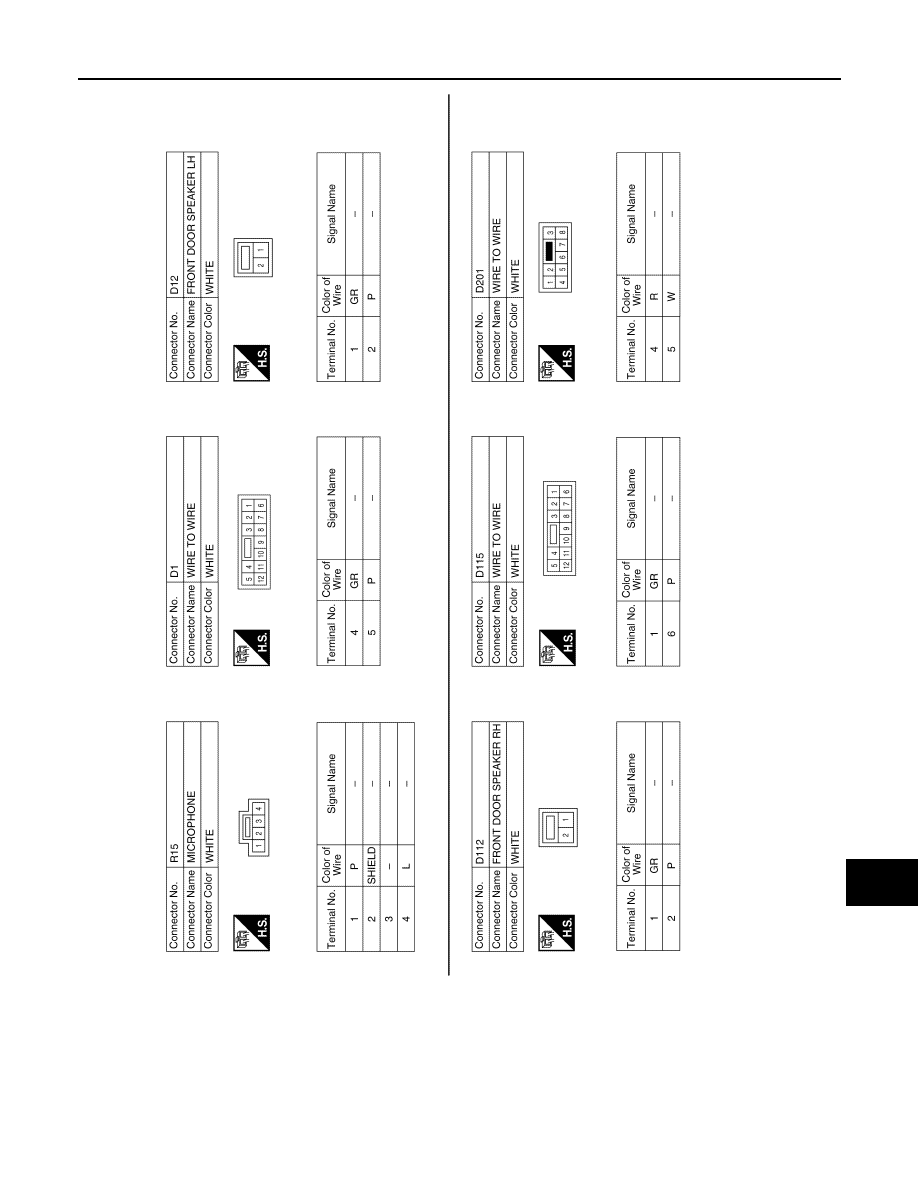

AV-173

< WIRING DIAGRAM >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA4566GB

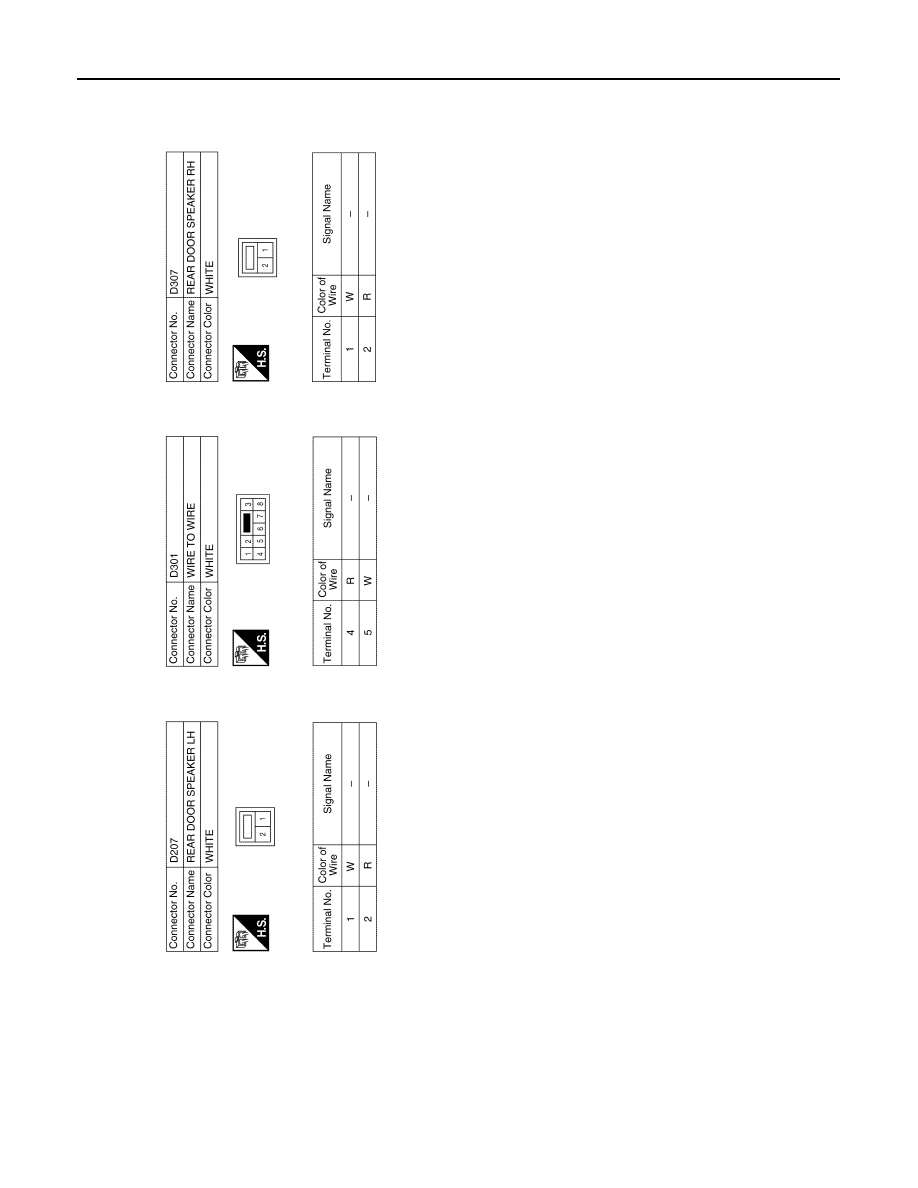

AV-174

< WIRING DIAGRAM >

[NAVIGATION]

NAVIGATION SYSTEM

ABNIA4588GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-175

< BASIC INSPECTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009375151

OVERALL SEQUENCE

DETAILED FLOW

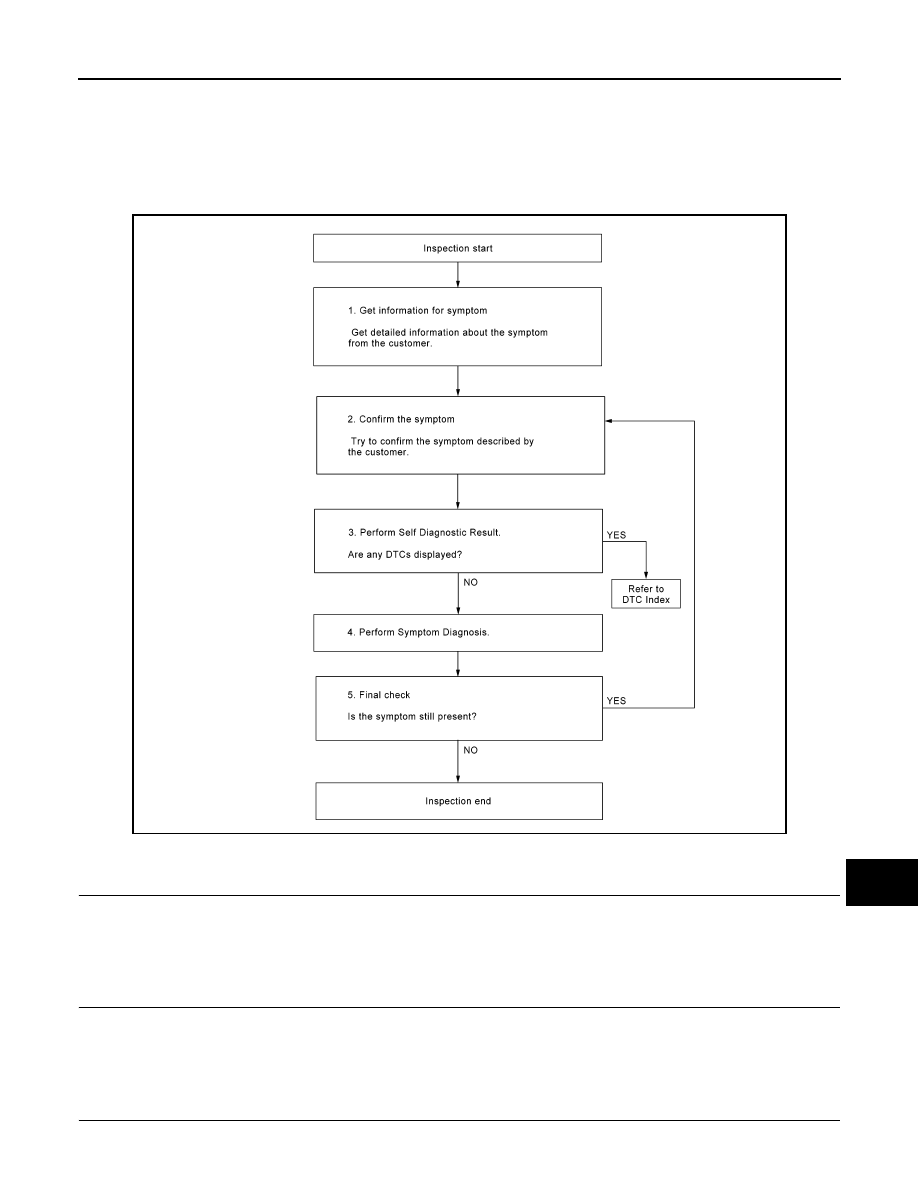

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2.

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected.

>> GO TO 3.

3.

PERFORM SELF DIAGNOSTIC RESULT

1. Turn ignition switch ON and wait for 2 seconds or more.

AWNIA2982GB
