Nissan Note E12. Manual - part 615





TM-18

< REMOVAL AND INSTALLATION >

[5MT: RS5F91R]

POSITION SWITCH

POSITION SWITCH

Removal and Installation

INFOID:0000000009417592

REMOVAL

1. Drain gear oil. Refer to

TM-16, "Draining"

.

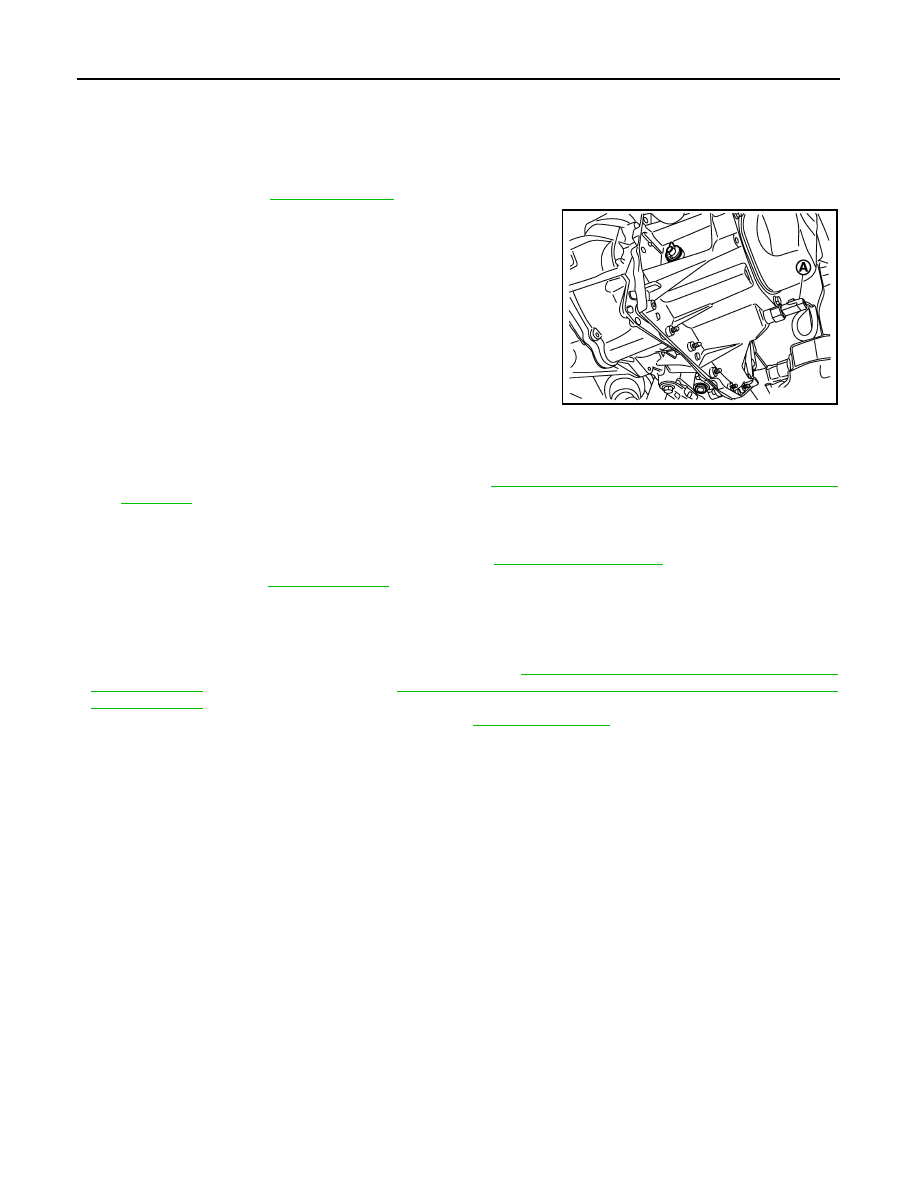

2. Disconnect the harness connector (A) from position switch.
3. Remove position switch from transaxle case.

INSTALLATION

1. Apply recommended sealant to threads of position switch.

CAUTION:

• Use Genuine Silicone RTV or equivalent. Refer to

GI-22, "Recommended Chemical Products and

Sealants"

.

• Remove old sealant and gear oil adhering to threads.

2. Install position switch to transaxle case.
3. Tighten position switch to the specified torque. Refer to

TM-25, "Exploded View"

.

4. Refill gear oil. Refer to

TM-16, "Refilling"

.

Inspection

INFOID:0000000009417593

INSPECTION AFTER INSTALLATION

• Check continuity between position switch terminals. Refer to

TM-14, "BACK-UP LAMP SWITCH : Compo-

nent Inspection"

 (Back-up lamp switch) and

TM-14, "PARK/NEUTRAL POSITION (PNP) SWITCH : Compo-

nent Inspection"

 (PNP switch).

• Check the gear oil level and for gear oil leaks. Refer to

TM-16, "Inspection"

.

JPDIC0733ZZ

CONTROL LINKAGE

TM-19

< REMOVAL AND INSTALLATION >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CONTROL LINKAGE

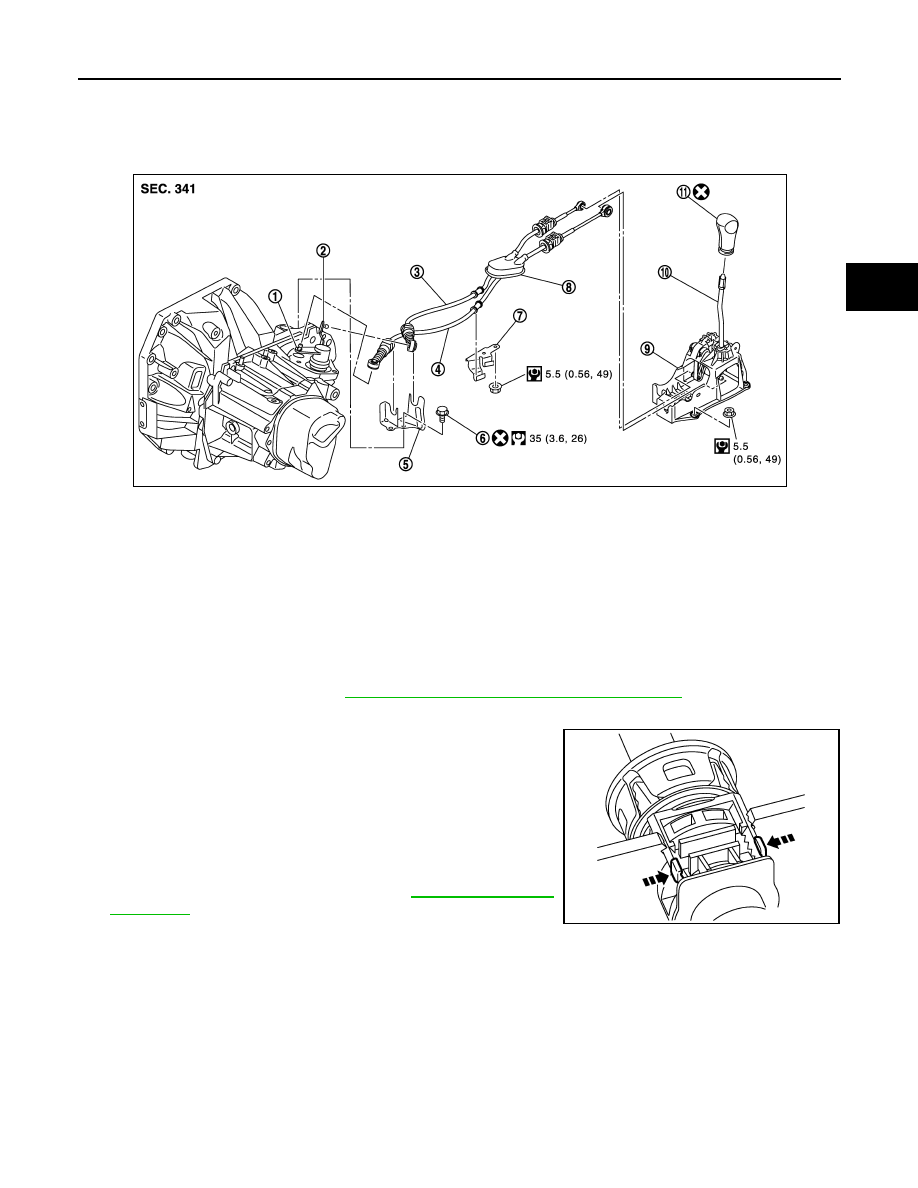

Exploded View

INFOID:0000000009417594

Removal and Installation

INFOID:0000000009417595

REMOVAL

1. Move the shift selector to the neutral position.
2. Remove the battery tray. Refer to

PG-70, "Removal and Installation (Battery Tray)"

.

3. Pull out and disconnect cables from shifter lever A and selector lever, using a suitable tool.
4. While pressing the lock of the selector cable in the direction of

the arrows shown, remove the selector cable from the cable

mounting bracket.

5. While pressing the lock of the shifter cable in the direction of the

arrows shown, remove the shifter cable from the cable mounting

bracket.

6. Remove cable mounting bracket from clutch housing.
7. Pull the shift selector handle upward to remove.
8. Remove center console assembly. Refer to

IP-18, "Removal and

Installation"

.

9. Pull out and disconnect each cable from the shift selector

assembly, using a suitable tool.

1.

Shifter lever A

2.

Selector lever

3.

Selector cable

4.

Shifter cable

5.

Cable mounting bracket

6.

Tapping bolt

7.

Bracket

8.

Grommet

9.

Shift selector assembly

10. Shift selector

11. Shift selector handle

JPDIC0789GB

JPDIC0793ZZ

TM-20

< REMOVAL AND INSTALLATION >

[5MT: RS5F91R]

CONTROL LINKAGE

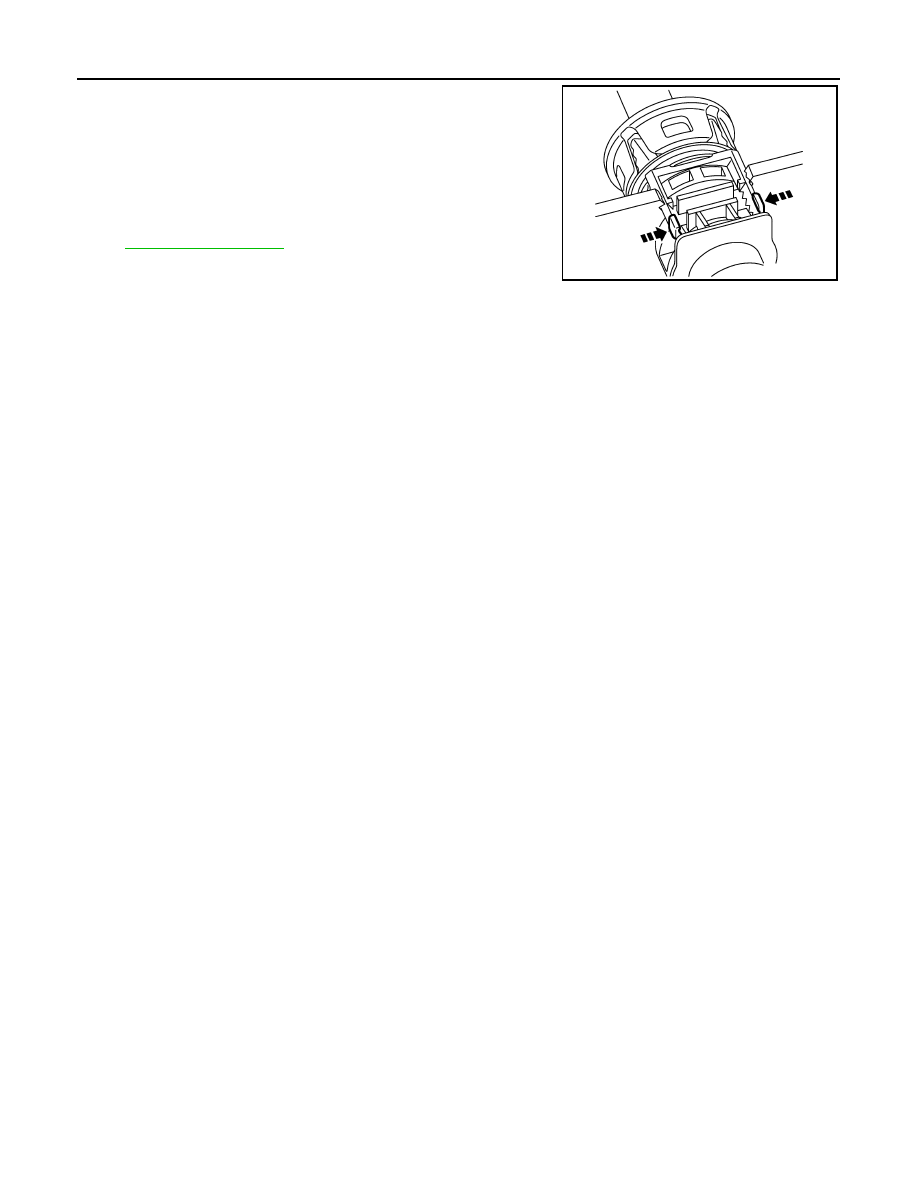

a. While pressing the lock of the selector cable in the direction of

the arrows shown, remove the selector cable from the shift

selector assembly.

b. While pressing the lock of the shifter cable in the direction of the

arrows shown, remove the shifter cable from the shift selector

assembly.

10. Remove the shift selector assembly.
11. Remove center muffler, exhaust front tube, and heat plate. Refer

to

EX-5, "Exploded View"

.

12. Remove the bracket from the vehicle.
13. Remove the grommet and then remove the shifter cable and

selector cable from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Install each cable without causing interference with other parts. Do not allow cable to bend less than

120 mm (4.72 in), or exceed 180 degree twist.

• Install boot of each cable without causing interference with other parts. Do not exceed 90 degree

twist.

• Fit boot to center console assembly and the groove on shift selector handle.

• To install the shift selector handle, press it onto the shift selector.

CAUTION:

• Do not reuse shift selector handle.

• Be careful with orientation of shift selector handle.

• Bolt hole is not threaded on new clutch housing. Self-tapping bolt is used to attach lock plate to clutch hous-

ing.

CAUTION:

Do not reuse self-tapping bolt.

• Insert each cable until it reaches the cable mounting bracket and shift selector assembly.

• Insert each cable until it reaches the shifter lever A and the selector lever.

• Move the shift selector to the neutral position.

Inspection

INFOID:0000000009417596

INSPECTION AFTER INSTALLATION

Shift Selector Handle

Check that the shift selector handle is installed in the right position.

Shifter Cable and Selector Cable

• Pull each cable in the removal direction to check that it does not disconnect from the cable mounting

bracket.

• Pull each cable in the removal direction to check that it does not disconnect from the shift selector assembly.

• Pull grommet in the removal direction to check that it does not disconnect from the vehicle.

Shift Selector Assembly and Shift Selector

• Check that there is no unusual noise, binding, bending, looseness, and interference when the shift selector

is moved to each position. If there is a malfunction, then repair or replace the malfunctioning part.

• Check that the shift selector smoothly returns to the neutral position after moving the shift selector from 1st

to 2nd gear and releasing it. If there is a malfunction, then repair or replace the malfunctioning part.

• Check that the shift selector smoothly returns to the neutral position after moving the shift selector from 5th

to the reverse gear position and releasing it. If there is a malfunction, then repair or replace the malfunction-

ing part.

JPDIC0793ZZ

AIR BREATHER HOSE

TM-21

< REMOVAL AND INSTALLATION >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

AIR BREATHER HOSE

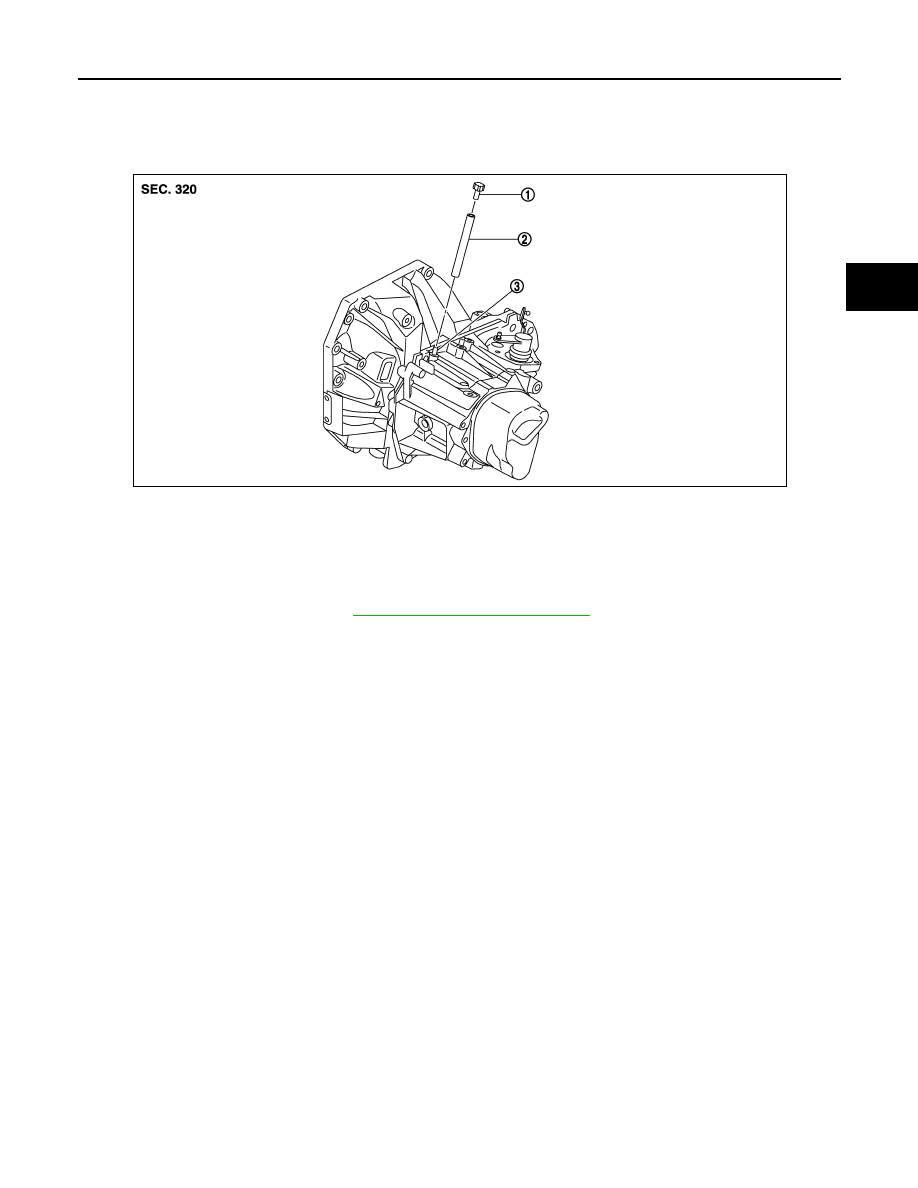

Exploded View

INFOID:0000000009417597

Removal and Installation

INFOID:0000000009417598

REMOVAL

1. Remove air cleaner case. Refer to

EM-26, "Removal and Installation"

.

2. Remove air breather hose from the 2-way connector.

CAUTION:

When removing air breather hose, be sure to hold 2-way connector securely.

3. Remove cap from air breather hose.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Install air breather hose. Do not bend hose tightly, which may result in pinching or clogging.

• Insert the air breather hose to the base of the 2-way connector.

1.

Cap

2.

Air breather hose

3.

2-way connector

JPDIC0788ZZ
