STR-22

< SYMPTOM DIAGNOSIS >

STARTING SYSTEM

SYMPTOM DIAGNOSIS

STARTING SYSTEM

Symptom Table

INFOID:0000000009385574

Symptom

Reference

No normal cranking

Refer to

STR-13, "Work Flow (With GR8-1200 NI)"

 or

STR-16,

"Work Flow (Without GR8-1200 NI)"

.

Starter motor does not rotate

STARTER MOTOR

STR-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

REMOVAL AND INSTALLATION

STARTER MOTOR

Exploded View

INFOID:0000000009385575

REMOVAL AND INSTALLATION

Removal and Installation

INFOID:0000000009385576

REMOVAL

1. Disconnect the battery cable from the negative terminal. Refer to

PG-69, "Exploded View"

.

2. Remove the radiator core support upper.

DLK-122, "RADIATOR CORE SUPPORT UPPER : Removal

and Installation"

.

3. Remove “S” terminal nut and “S” terminal harness.
4. Remove “B” terminal nut and disconnect “B” terminal harness.
5. Remove the starter motor bolts.
6. Remove the starter motor.

CAUTION:

Be careful to not damage surrounding parts when removing starter motor from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

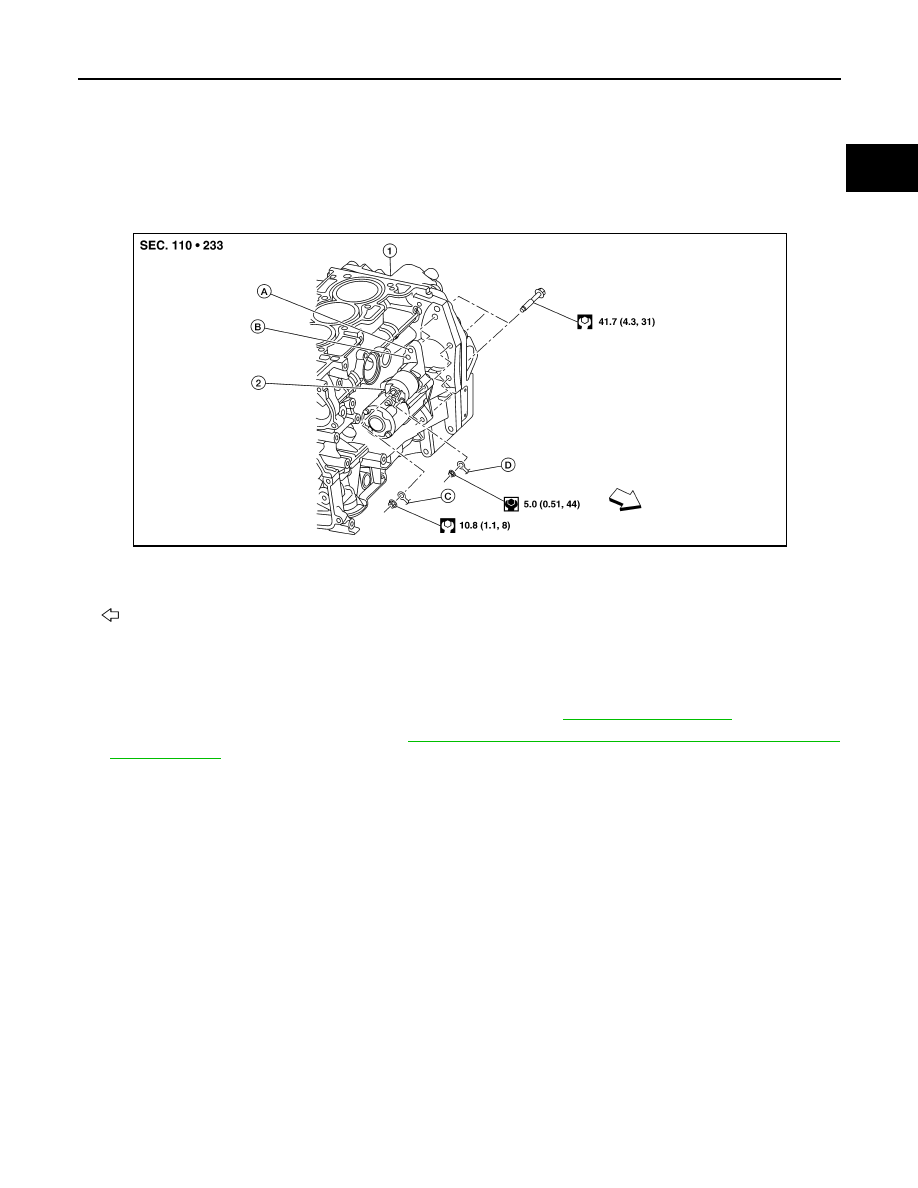

1.

Cylinder block

2.

Starter motor

A.

Mounting hole for CVT

B.

Mounting hole for M/T

C.

“B” terminal harness

D.

“S” terminal harness

Front

AWGIA0291ZZ

STR-24

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Starter Motor

INFOID:0000000009385578

*: Always check with the Parts Department for the latest parts information.

Manufacturer

Mitsubishi

Model number*

M000T32175ZC

Type

Reduction gear type

System voltage

12V

No-load

Terminal voltage

11V

Current

Less than 95A

Revolution

More than 3,000 rpm

TM-1
