STR-6

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

System Description

INFOID:0000000009385565

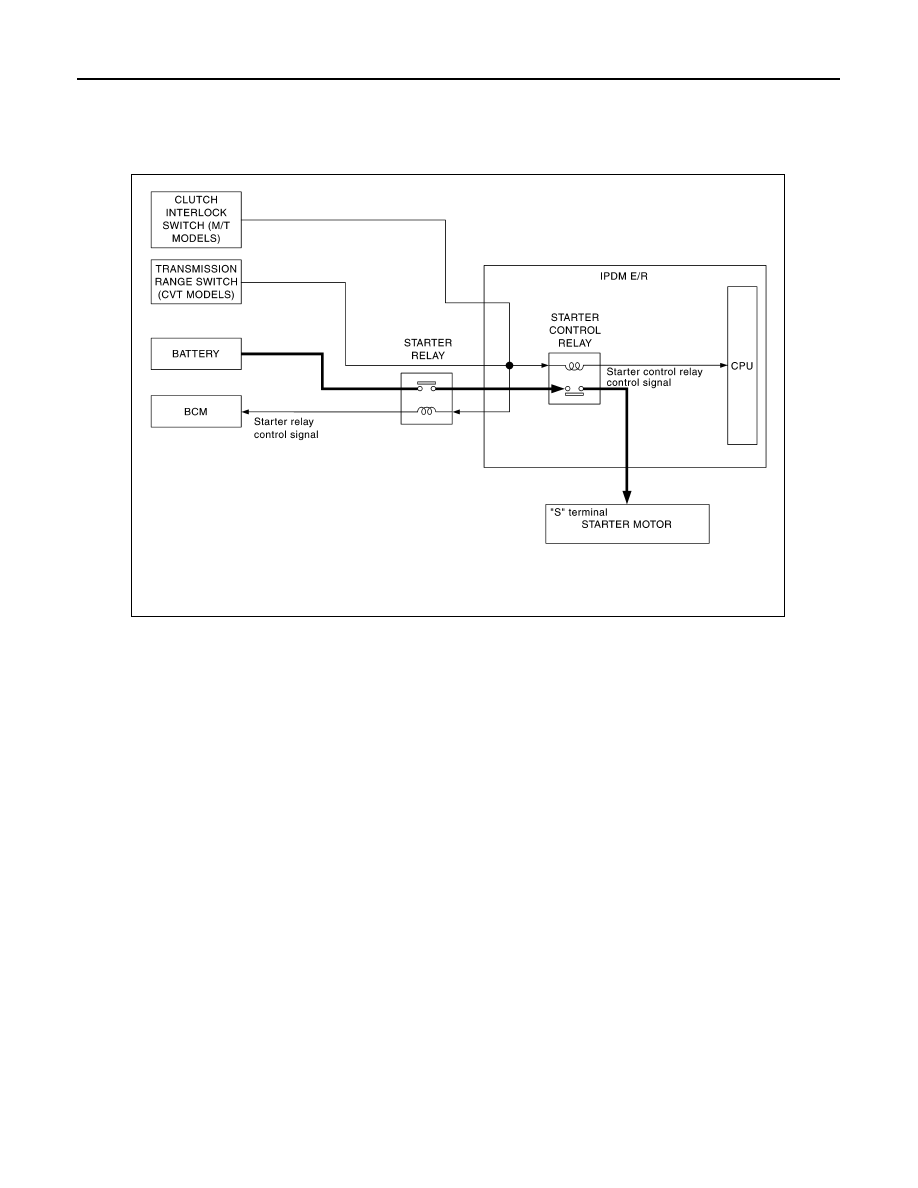

System Diagram

The starter motor plunger closes and provides a closed circuit between the battery and starter motor. The

starter motor is grounded to the cylinder block. With power and ground supplied, the starter motor operates.

ALBIA1145GB

STARTING SYSTEM

STR-7

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

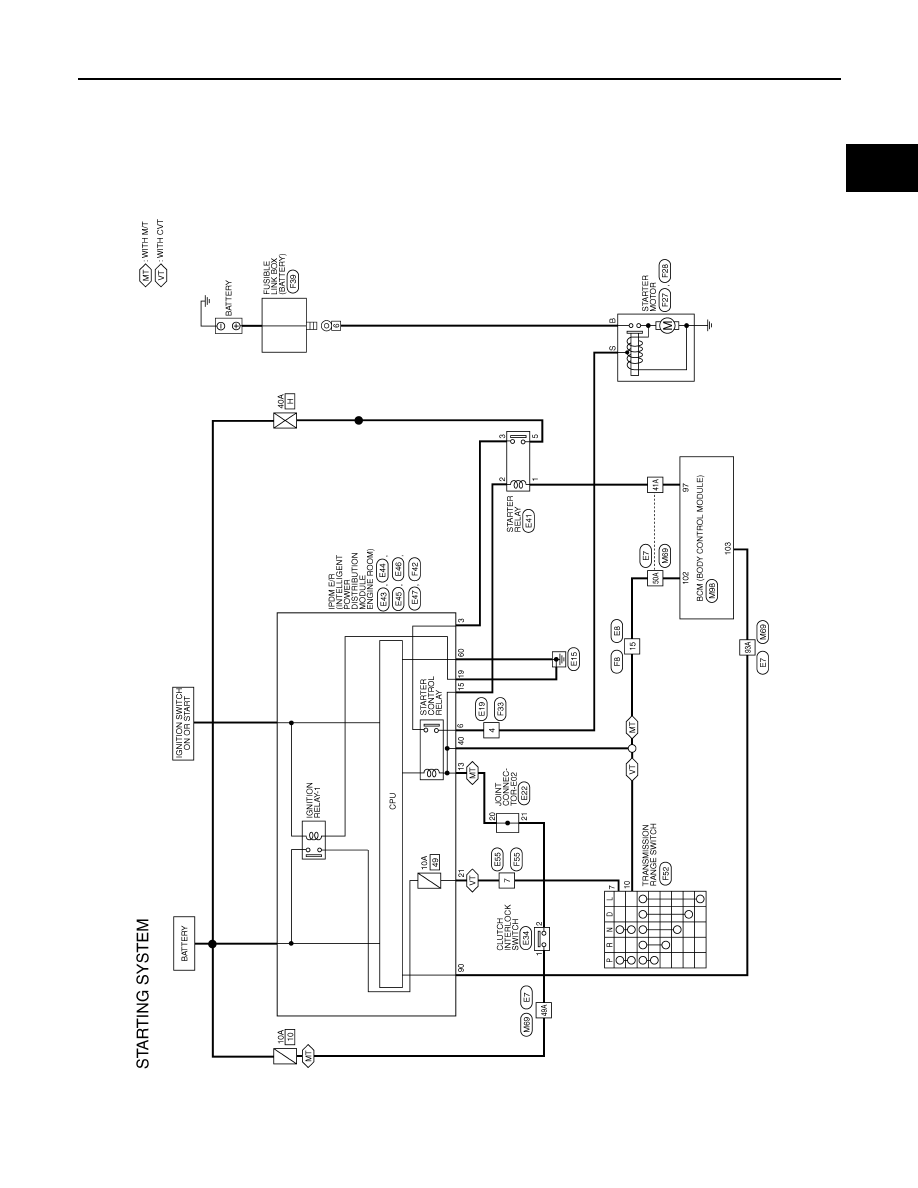

WIRING DIAGRAM

STARTING SYSTEM

Wiring Diagram

INFOID:0000000009385566

AABWA0822GB

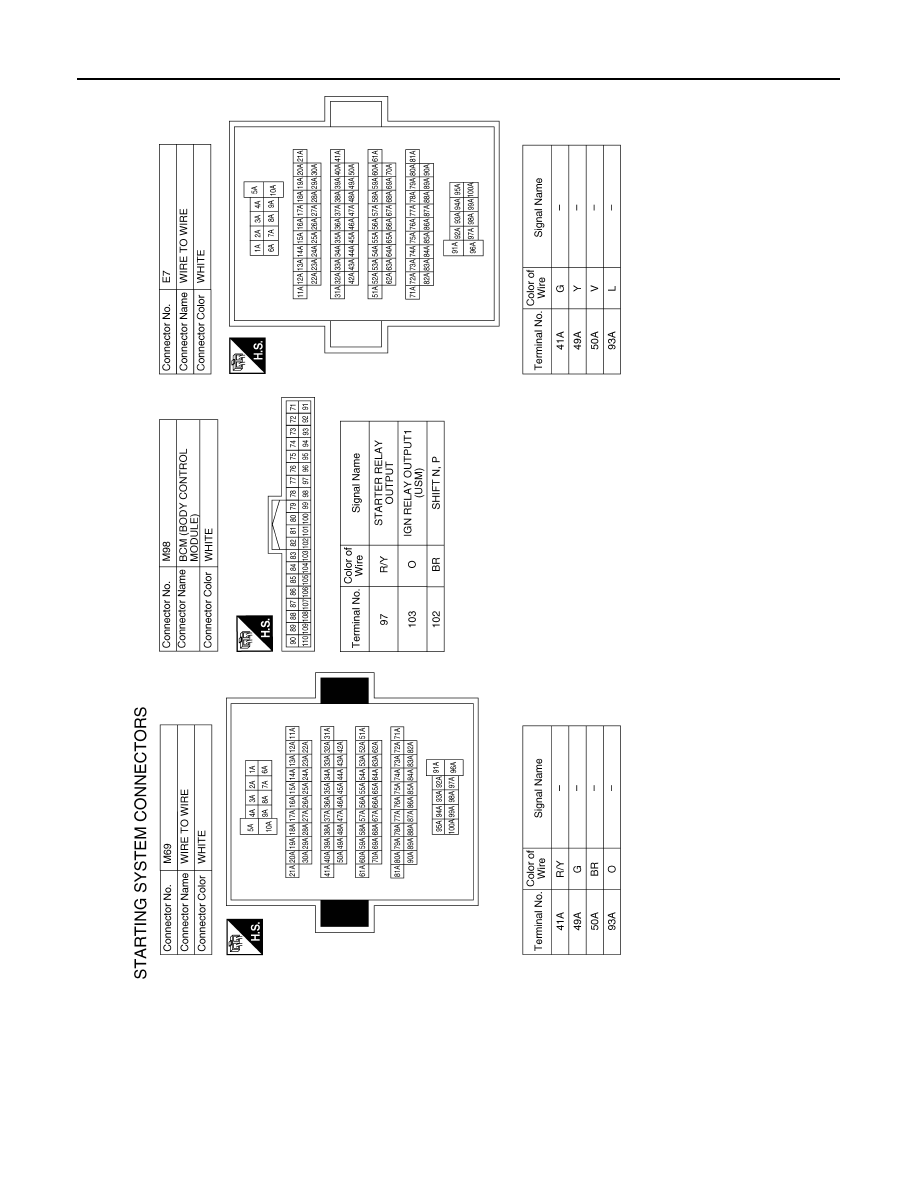

STR-8

< WIRING DIAGRAM >

STARTING SYSTEM

AABIA1098GB

STARTING SYSTEM

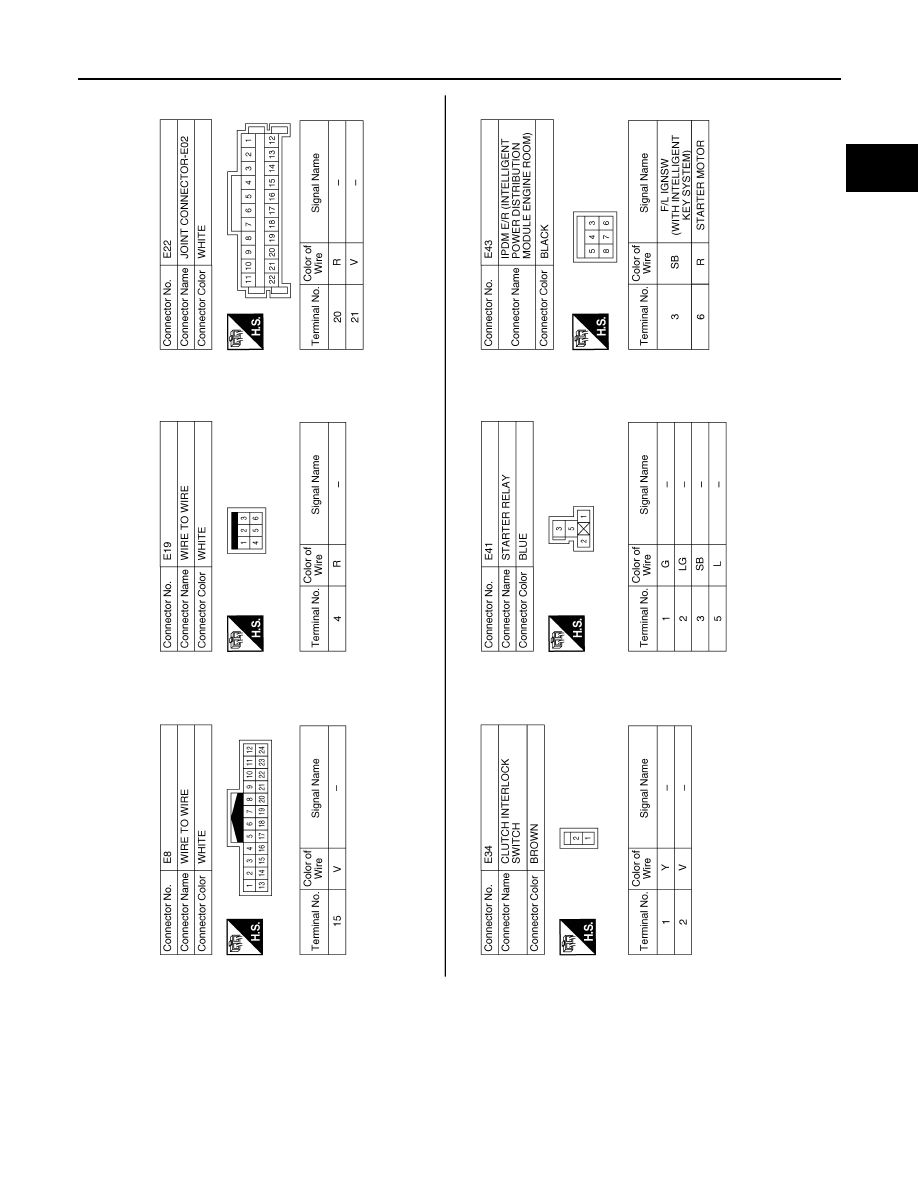

STR-9

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

AABIA1099GB
