STEERING COLUMN

ST-11

< REMOVAL AND INSTALLATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

• Check the steering wheel play, neutral position steering wheel, steering wheel turning force, and front wheel

turning angle. Refer to

ST-5, "Inspection"

.

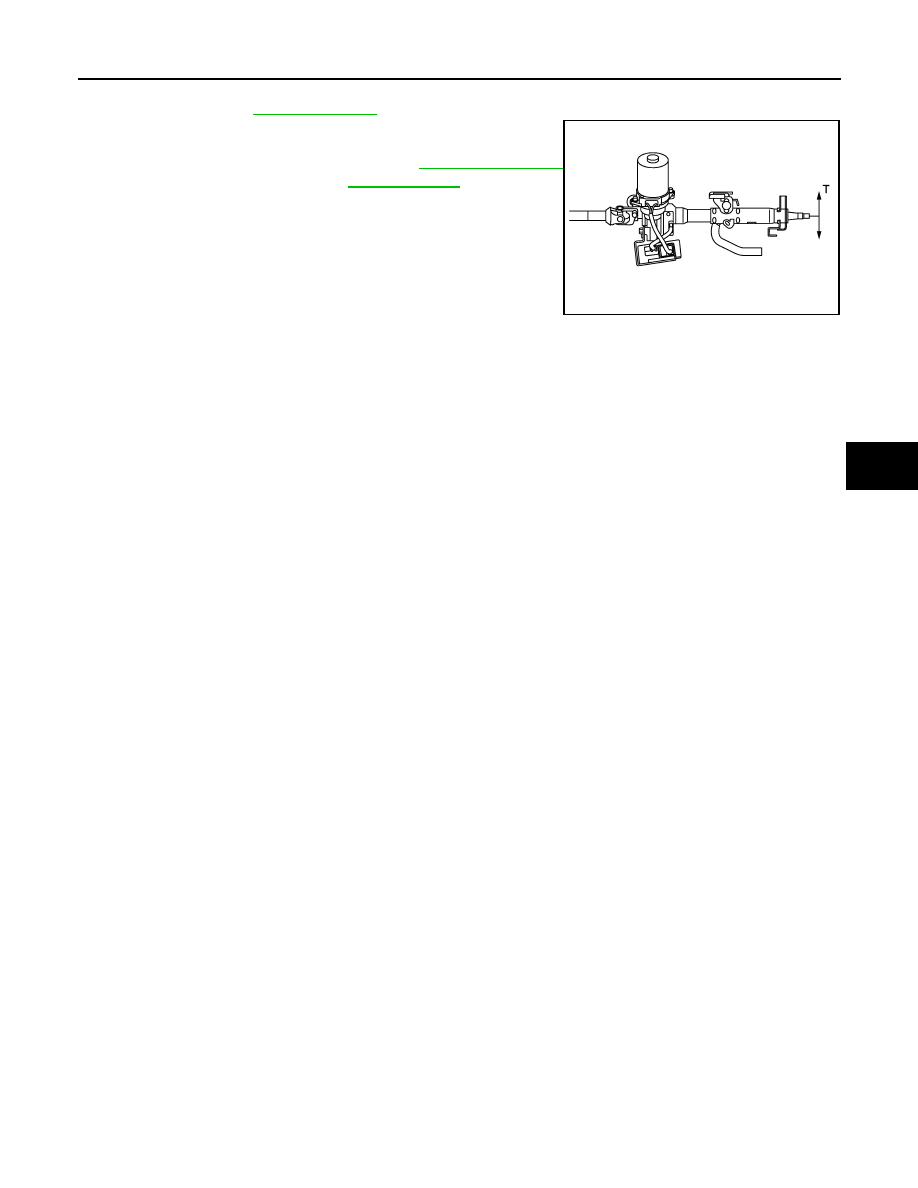

• Check tilt mechanism operating range (T) as shown.

Tilt operating range (T)

: Refer to

ST-19, "Steering Column Op-

erating Range"

.

JPGIA0043ZZ

ST-12

< REMOVAL AND INSTALLATION >

STEERING SHAFT

STEERING SHAFT

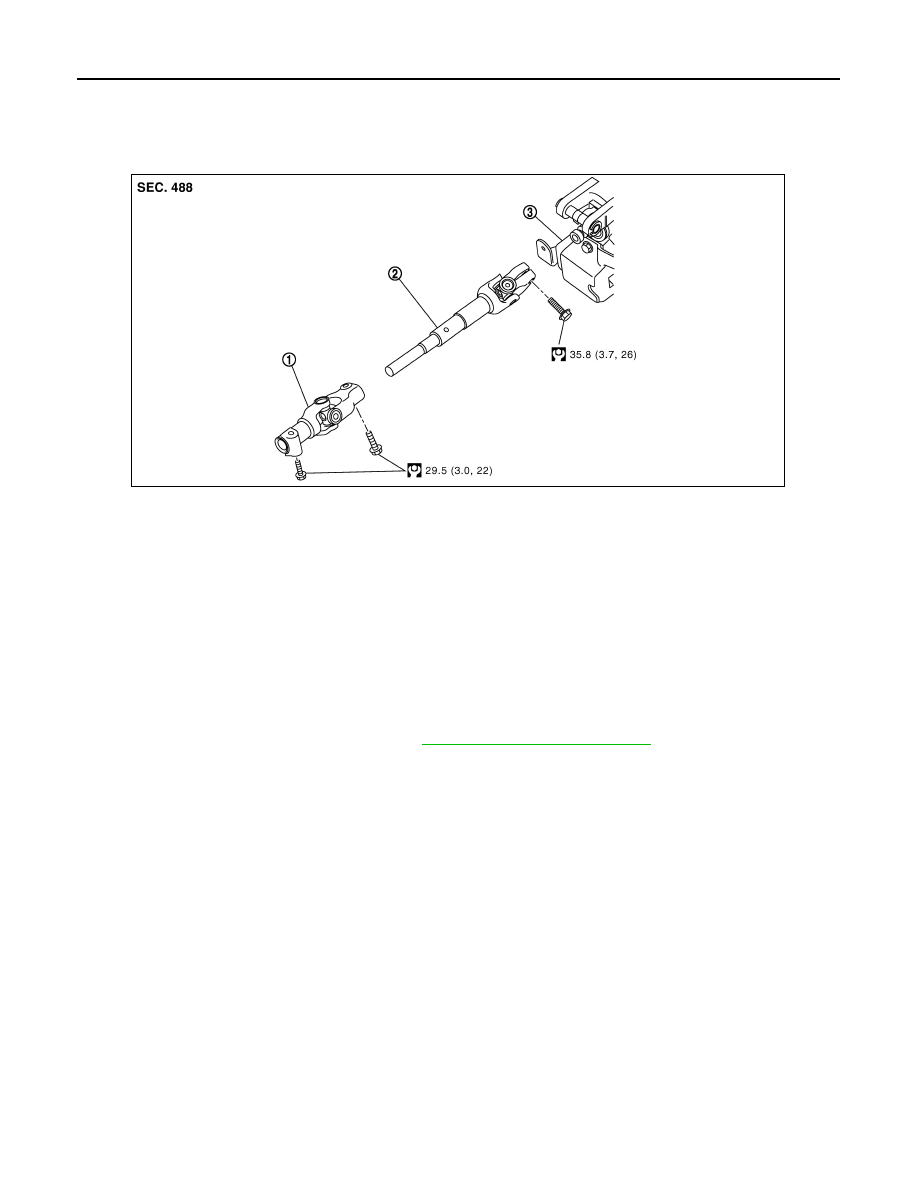

Exploded View

INFOID:0000000009385590

Removal and Installation

INFOID:0000000009385591

REMOVAL

CAUTION:

Spiral cable may be cut if steering wheel turns while separating steering column and steering gear. Be

sure to secure steering wheel using string to avoid turning.
1. Set the front wheels and tires in the straight-ahead position.
2. Set the steering column tilt to the middle position.

CAUTION:

Securely lock the tilt lever.

3. Remove instrument lower panel LH. Refer to

IP-24, "Removal and Installation"

.

4. Loosen lower joint upper bolt.
5. Remove lower joint lower bolt and separate lower joint from the steering gear lower shaft.

CAUTION:

• Place a matching mark on both lower joint and steering gear lower shaft before removing lower

joint.

• When removing lower joint, do not insert any tool into the yoke groove to pull out the lower joint.

Replace the lower joint if damaged.

6. Remove lower joint from steering intermediate shaft.
7. Remove the steering intermediate shaft bolt, from steering column, and remove steering intermediate

shaft from steering column.

CAUTION:

• Place a matching mark on both steering intermediate shaft and steering column before removing

steering intermediate shaft.

• When removing the steering intermediate shaft, do not insert any tool into the yoke groove to

pull out the steering intermediate shaft or damage could occur. Replace the steering intermedi-

ate shaft if damaged.

INSTALLATION

CAUTION:

During installation, finger-tighten all of the bracket and joint retaining bolts; then tighten them to spec-

ification. Do not apply undue stress to the steering column.

Installation is in the reverse order of removal.

1.

Lower joint

2.

Steering intermediate shaft

3.

Steering column

JPGIA0112GB

STEERING SHAFT

ST-13

< REMOVAL AND INSTALLATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

• Before installation, check that steering column tilt is in the middle position.

• For intermediate shaft bolt, and lower joint bolt direction, refer to

ST-12, "Exploded View"

.

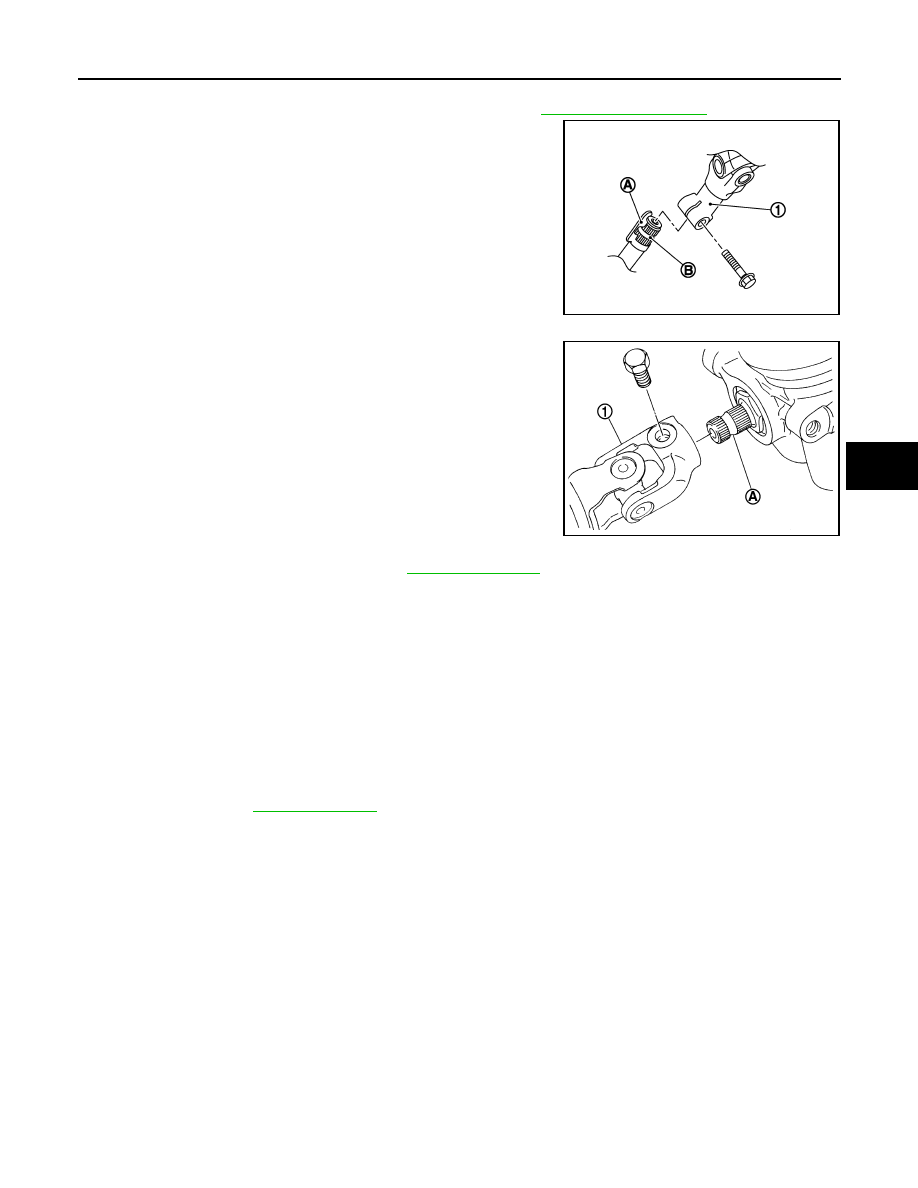

• To install align the steering gear guide protrusion (A) with the

groove of lower joint (1), make sure the bolt is securely seated in

groove (B) of steering gear before final tightening.

CAUTION:

If a guide protrusion is not included, align with the matching

mark placed at the removal step.

• When tightening lower joint bolt to the steering gear lower shaft,

temporarily tighten it and make sure there is no sticking or galling

before final tightening.

• When connecting intermediate shaft upper side (1) and column

shaft, make sure the bolt is securely seated in groove (A) of col-

umn shaft before final tightening.

• Perform inspection after installation. Refer to

ST-13, "Inspection"

.

Inspection

INFOID:0000000009385592

INSPECTION AFTER REMOVAL

• Check each part of steering intermediate shaft, lower joint, and steering column for damage or other mal-

functions. Replace if there are any abnormal conditions.

INSPECTION AFTER INSTALLATION

• Rotate steering wheel to make sure it is centered and there is no binding, noise or excessive steering effort.

• Make sure that the number of turns are the same from the straight-ahead position to the left and right locks.

• Check each part of steering intermediate shaft, lower joint, and steering column for damage or other mal-

functions. Replace if there are any abnormal conditions.

• Check the steering wheel play, neutral position steering wheel, steering wheel turning force, and front wheel

turning angle. Refer to

ST-5, "Inspection"

.

JPGIA0041ZZ

SGIA1295E

ST-14

< REMOVAL AND INSTALLATION >

STEERING GEAR AND LINKAGE

STEERING GEAR AND LINKAGE

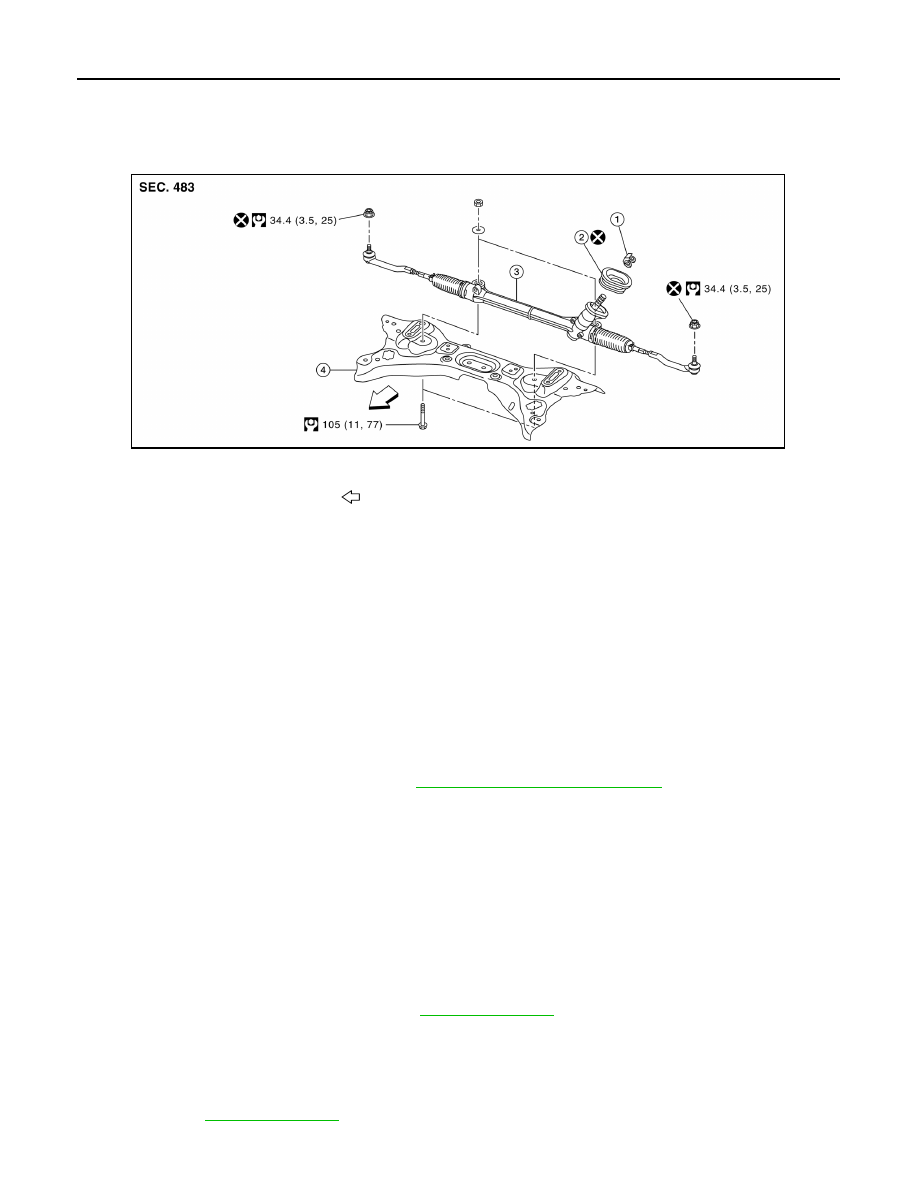

Exploded View

INFOID:0000000009385593

Removal and Installation

INFOID:0000000009385594

CAUTION:

• Spiral cable may be cut if steering wheel turns while separating steering column and steering gear;

Always secure the steering wheel using string to avoid turning.

• Place a matching mark on both lower joint and steering gear before removing lower joint.

• When removing lower joint, do not place any tool into the yoke groove to pull out the lower joint.

Replace the lower joint if damaged.

REMOVAL

1. Set the front wheels and tires in the straight-ahead position.
2. Set the steering column tilt to the middle position.

CAUTION:

Securely lock the tilt lever.

3. Remove front suspension member. Refer to

FSU-14, "Removal and Installation"

.

4. Remove the steering gear bolts and nuts and separate the steering gear from the front suspension mem-

ber.

5. Separate cowl seal from steering gear if necessary.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• During installation, finger-tighten all of the bracket and joint retaining bolts; then tighten them to

specification. Do not apply undue stress to the steering column.

• The guide protrusion is not required to be reinstalled.

• Before installation, check that the steering column tilt is in the middle position.

• Clean mating surface on the body side of cowl seal when installing steering gear assembly.

• Inspect steering gear after installation. Refer to

ST-14, "Inspection"

.

Inspection

INFOID:0000000009385595

INSPECTION AFTER REMOVAL

• Check each part of steering gear for damage or other malfunctions. Replace if there are any abnormal con-

ditions. Refer to

ST-14, "Inspection"

.

1.

Guide

2.

Cowl seal

3.

Steering gear

4.

Front suspension member

Front

AWGIA0236ZZ
