Nissan Note E12. Manual - part 544

SEC-28

< WIRING DIAGRAM >

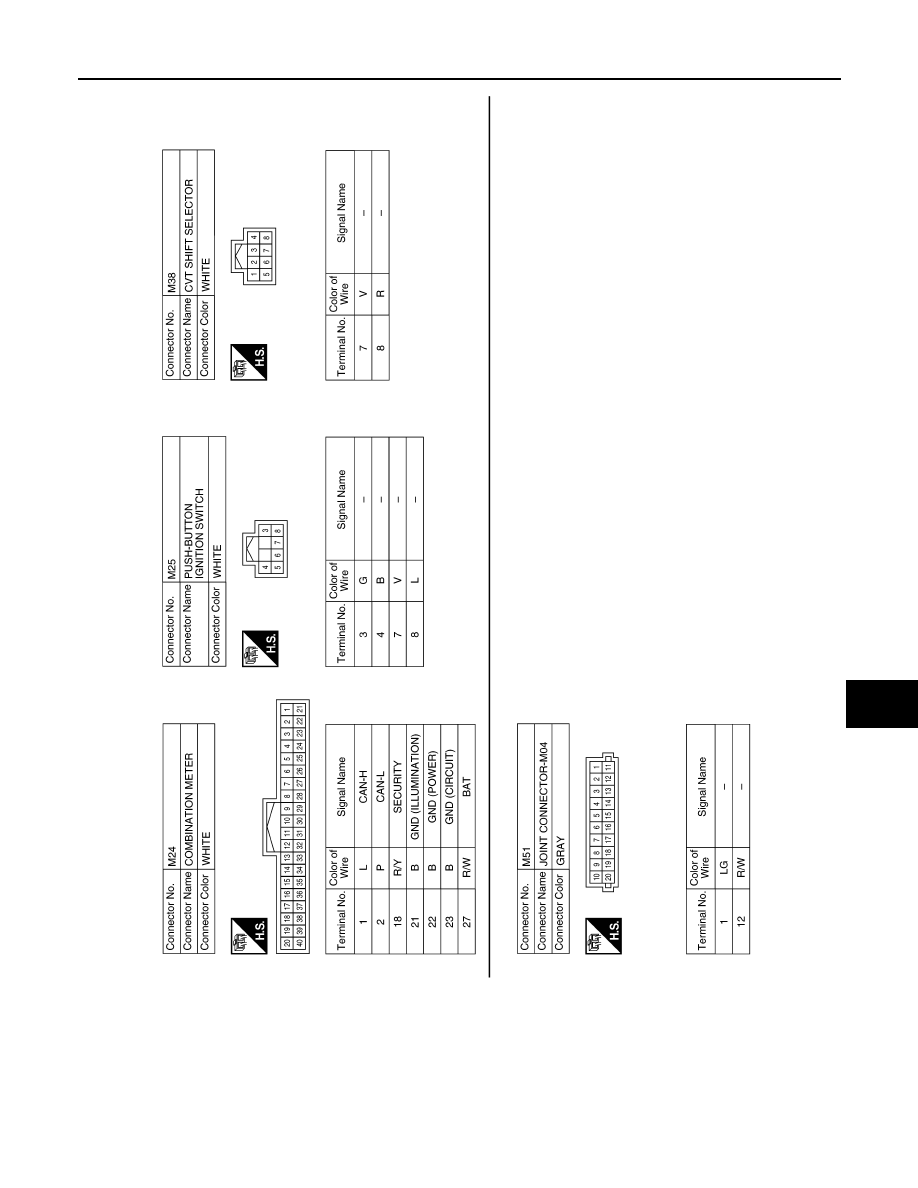

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

AAKIA1265GB

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-29

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKIA1266GB

SEC-30

< WIRING DIAGRAM >

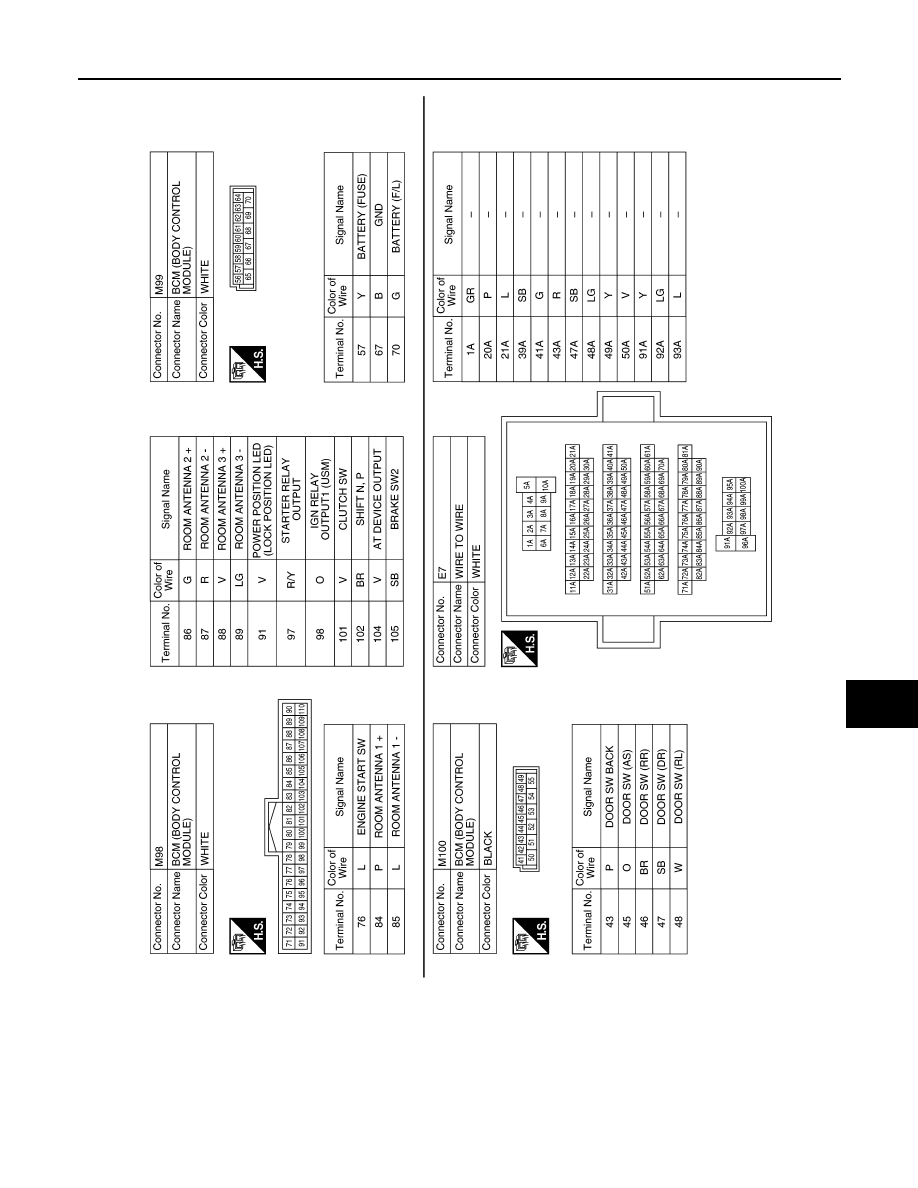

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

AAKIA1267GB

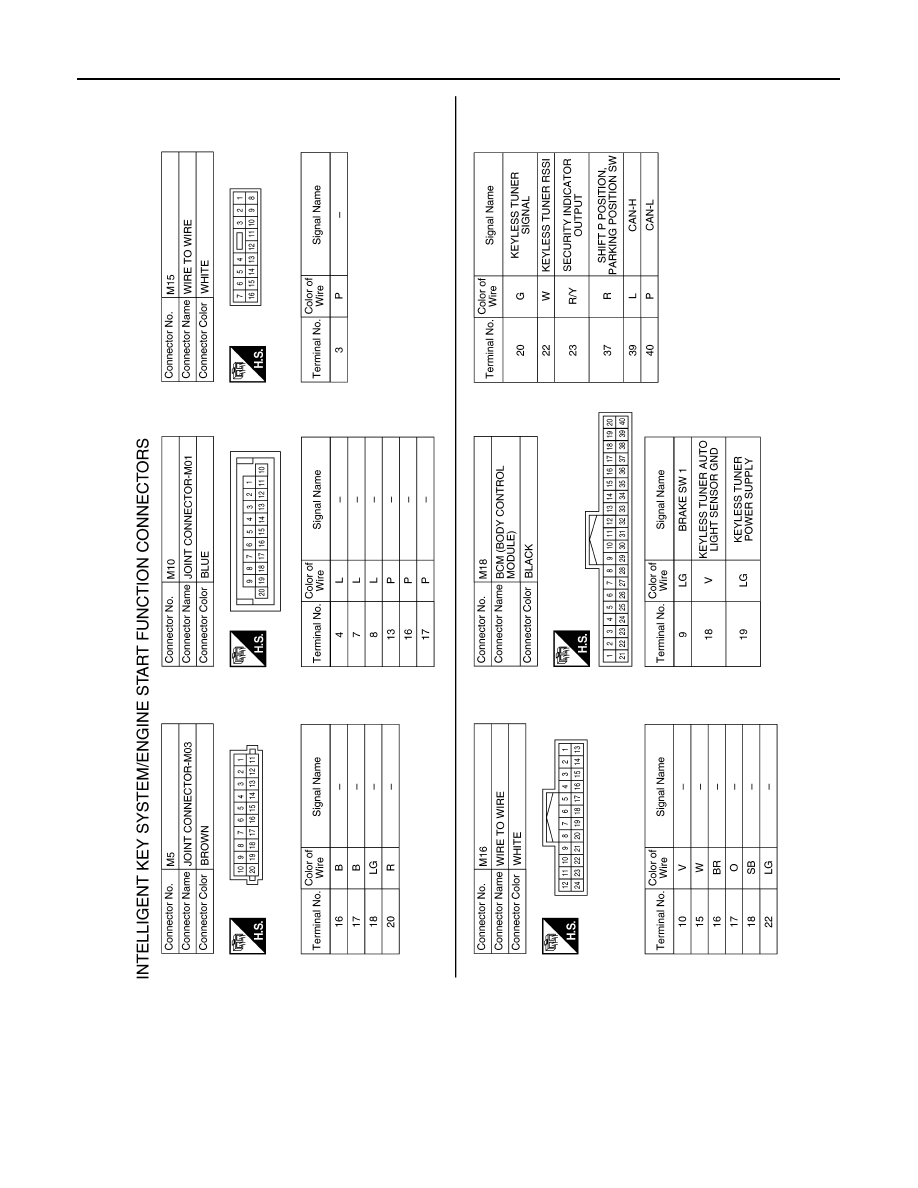

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-31

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKIA1268GB
