FRONT SEAT BELT

SB-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

Before removing the D-ring anchor bolt, note the positions of washers and spacers for correct

installation.

4. Remove center pillar upper finisher. Refer to

INT-23, "CENTER PILLAR UPPER FINISHER : Removal

and Installation"

.

5. Remove seat belt height adjuster bolts and the seat belt height adjuster.

CAUTION:

Before removing the seat belt height adjuster bolts, note the positions of washers and spacers for

correct installation.

INSTALLATION

Installation is in the reverse order of removal.

• Make sure that the seat belt height adjuster is locked in the lowest position during installation.

• Make sure both the D-ring anchor and seat belt height adjuster operate freely.

• Tighten the D-ring anchor bolt and seat belt height adjuster bolts to specification. Refer to

SB-8, "Exploded

View"

.

• Always perform an inspection after repair to make sure the system is functioning within specifications. Refer

to

SB-5, "Inspection"

.

SB-12

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

REAR SEAT BELT

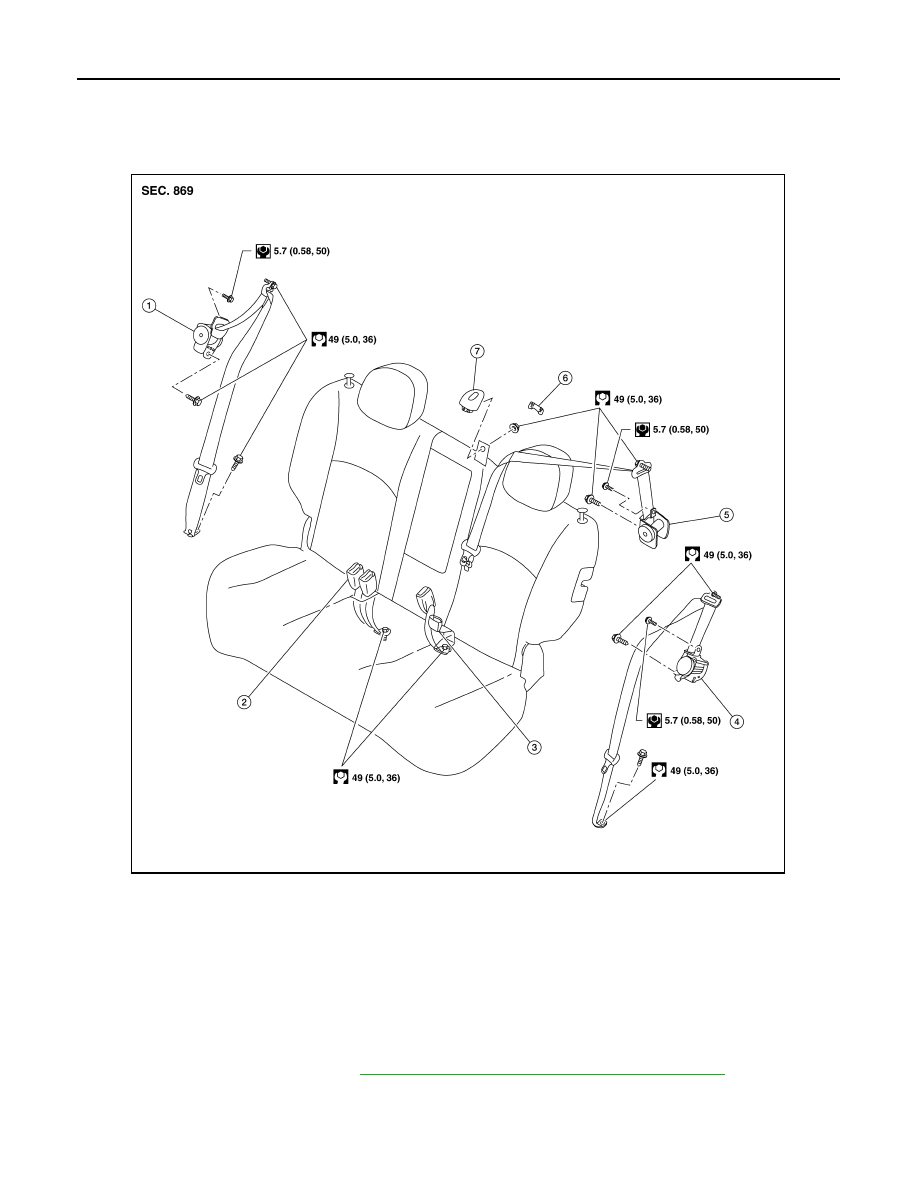

Exploded View

INFOID:0000000009561092

REAR SEAT BELT BUCKLE
REAR SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000009561093

REMOVAL - Seat Belt Buckle (LH)

1. Remove rear seat cushion. Refer to

SE-19, "SEAT CUSHION : Removal and Installation"

.

1.

Seat belt retractor (RH)

2.

Seat belt buckle (RH/center)

3.

Seat belt buckle (LH)

4.

Seat belt retractor (LH)

5.

Seat belt retractor (center)

6.

Seat belt guide finisher

7.

Seat belt guide

ALHIA0314ZZ

REAR SEAT BELT

SB-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

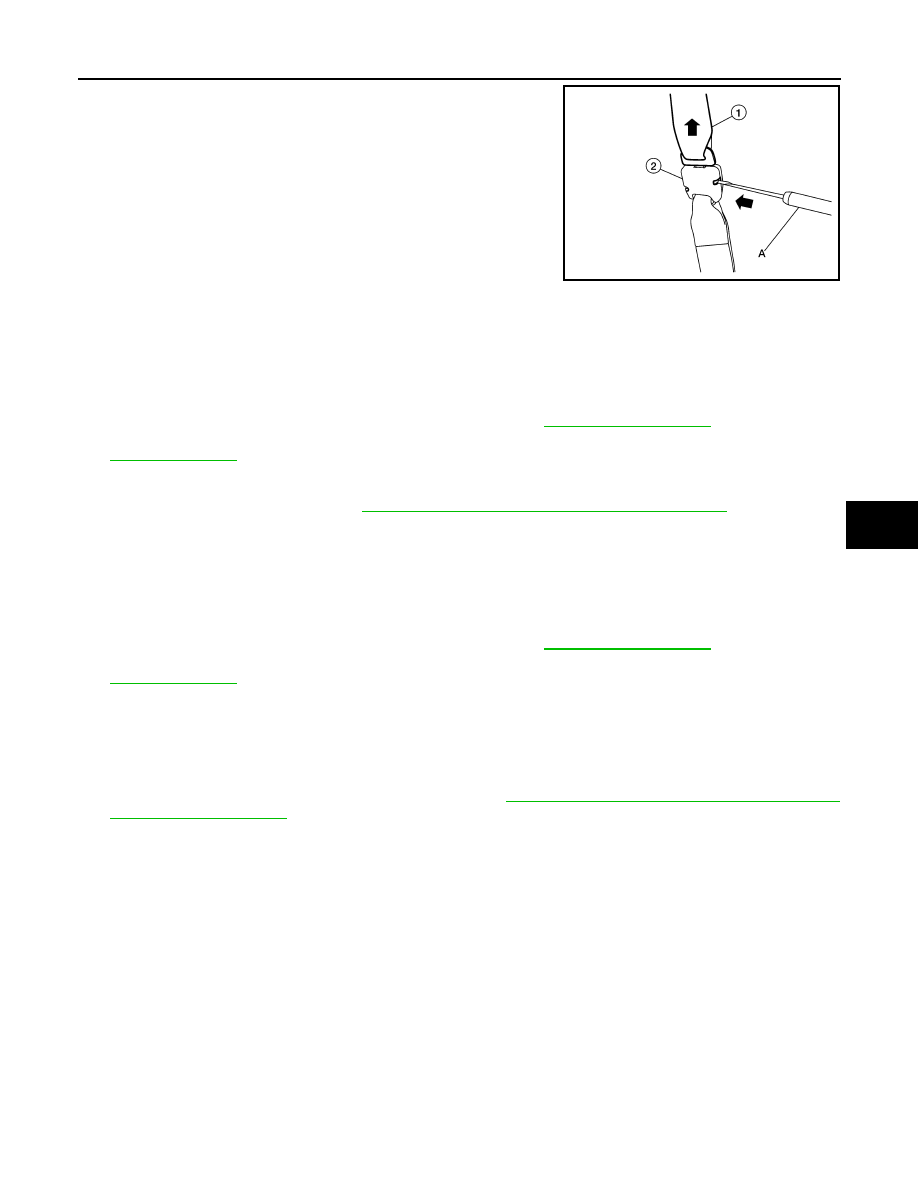

2. Release seat belt retractor (center) (1) from seat belt buckle

(LH) (2) using a suitable tool (A) as shown.

3. Remove seat belt buckle anchor bolt and seat belt buckle (LH).

CAUTION:

Before removing the seat belt buckle anchor bolt, note the positions of washers and spacers for

correct installation.

INSTALLATION

Installation is in the reverse order of removal.

• Tighten the seat belt buckle anchor bolt to specification. Refer to

SB-12, "Exploded View"

.

• Always perform an inspection after repair to make sure the system is functioning within specifications. Refer

to

SB-5, "Inspection"

.

REMOVAL - Seat Belt Buckle (RH)

1. Remove rear seat cushion. Refer to

SE-19, "SEAT CUSHION : Removal and Installation"

.

2. Remove seat belt buckle anchor bolt and seat belt buckle (RH).

CAUTION:

Before removing the seat belt buckle anchor bolt, note the positions of washers and spacers for

correct installation.

INSTALLATION

Installation is in the reverse order of removal.

• Tighten the seat belt buckle anchor bolt to specification. Refer to

SB-12, "Exploded View"

.

• Always perform an inspection after repair to make sure the system is functioning within specifications. Refer

to

SB-5, "Inspection"

.

SEAT BELT RETRACTOR
SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000009561095

REMOVAL - Seat Belt Retractor (LH/RH)

1. Remove luggage side upper finisher (LH/RH). Refer to

INT-33, "LUGGAGE SIDE UPPER FINISHER :

Removal and Installation"

.

ALHIA0315ZZ

SB-14

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

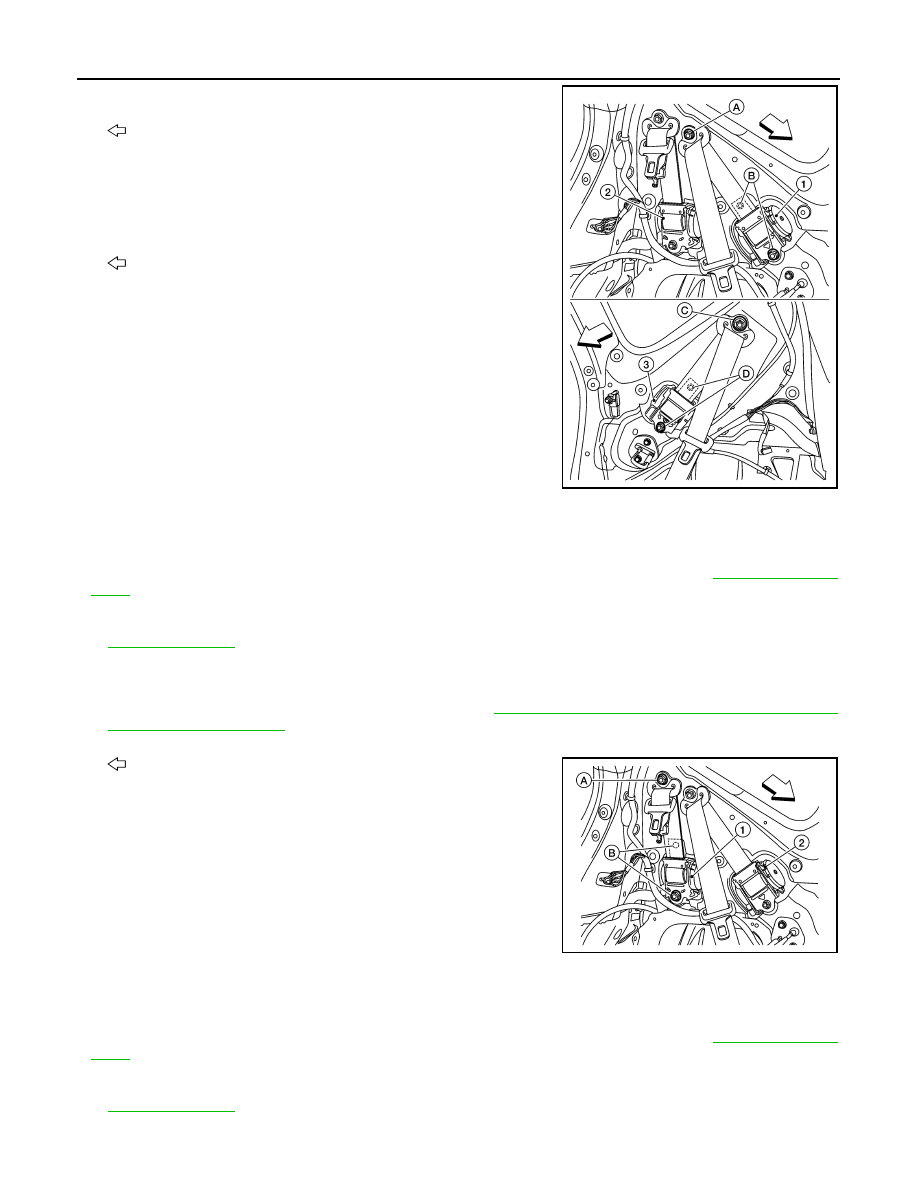

2. For seat belt retractor (LH) (1).
a. Remove D-ring anchor bolt (A).

: Front

CAUTION:

Before removing the D-ring anchor bolt, note the positions

of washers and spacers for correct installation.

b. Remove bolts (B) and the seat belt retractor (LH) (1).

(2): Seat belt retractor (center)

3. For seat belt retractor (RH) (3).

: Front

a. Remove D-ring anchor bolt (C).

CAUTION:

Before removing the D-ring anchor bolt, note the positions

of washers and spacers for correct installation.

b. Remove bolts (D) and seat belt retractor (RH) (3).

INSTALLATION

Installation is in the reverse order of removal.

• Install the seat belt retractor upper bolt first.

• Tighten the D-ring anchor bolt and the seat belt retractor bolts to specification. Refer to

SB-12, "Exploded

View"

.

• Make sure the D-ring anchor operates freely.

• Always perform an inspection after repair to make sure the system is functioning within specifications. Refer

to

SB-5, "Inspection"

.

REMOVAL - Seat Belt Retractor (center)

1. Remove luggage side upper finisher (LH). Refer to

INT-33, "LUGGAGE SIDE UPPER FINISHER :

Removal and Installation"

.

2. Remove D-ring anchor bolt (A).

: Front

CAUTION:

Before removing the D-ring anchor bolt, note the positions

of washers and spacers for correct installation.

3. Remove bolts (B) and seat belt retractor (center) (1).

(2): Seat belt retractor (LH)

INSTALLATION

Installation is in the reverse order of removal.

• Install the center seat belt retractor upper bolt first.

• Tighten the D-ring anchor bolt and the seat belt retractor bolts to specification. Refer to

SB-12, "Exploded

View"

.

• Make sure the D-ring anchor operates freely.

• Always perform an inspection after repair to make sure the system is functioning within specifications. Refer

to

SB-5, "Inspection"

.
