Nissan Note E12. Manual - part 524

RSU-14

< REMOVAL AND INSTALLATION >

REAR SUSPENSION BEAM

• Perform the final tightening of the rear suspension beam nuts and bolts under unladen conditions with the

tires on level ground.

• Adjust the parking brake. Refer to

PB-4, "Inspection and Adjustment"

.

• Fill the hydraulic brake system. Refer to

BR-11, "Refilling"

.

• Bleed the hydraulic brake system. Refer to

BR-12, "Bleeding Brake System"

.

• Complete the inspection. Refer to

RSU-14, "Inspection"

.

Inspection

INFOID:0000000009592948

INSPECTION AFTER REMOVAL

Check the rear suspension beam for deformation, cracks or damage. Replace the parts if necessary.

INSPECTION AFTER INSTALLATION

1. Check the wheel sensor harness to be sure the connectors are fully seated.
2. Check the wheel alignment. Refer to

RSU-6, "Inspection"

.

SERVICE DATA AND SPECIFICATIONS (SDS)

RSU-15

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

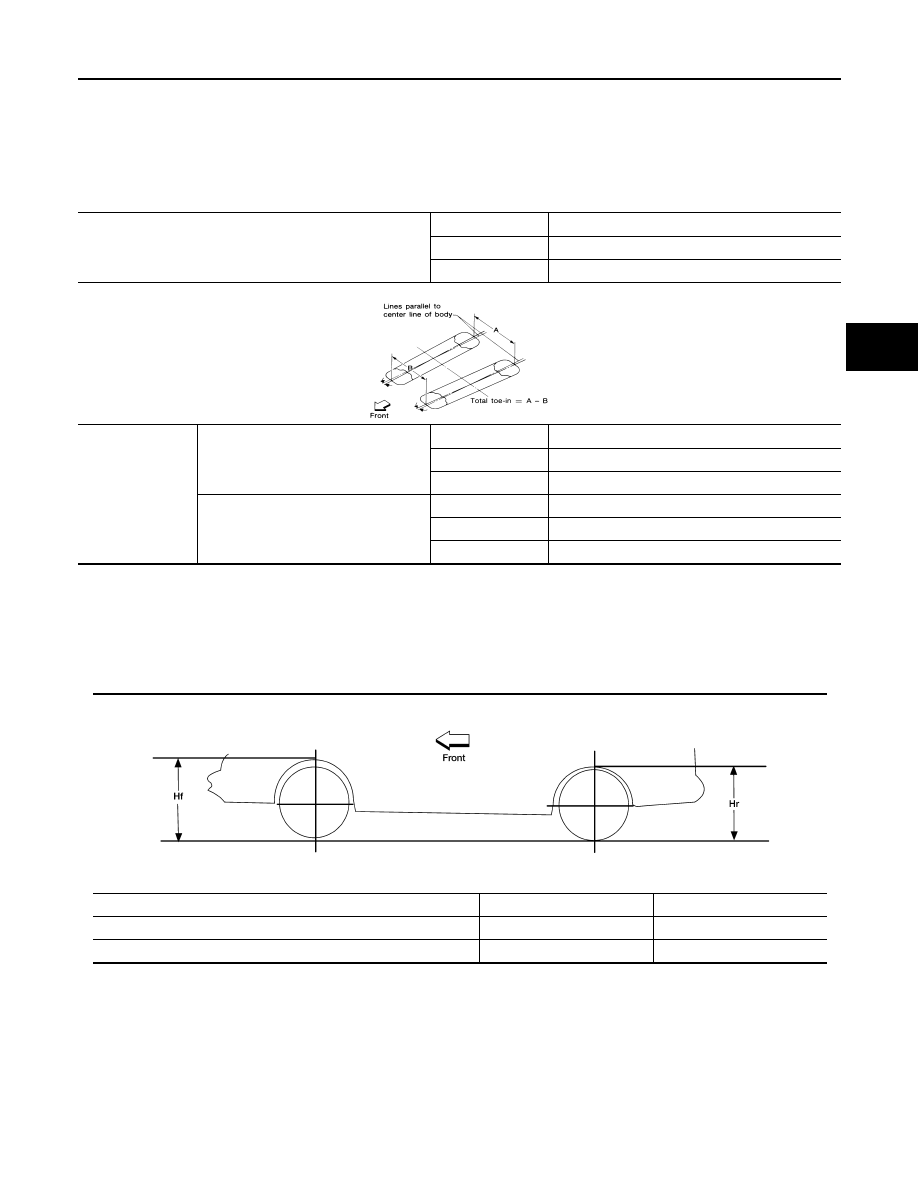

Wheel Alignment (Unladen*

1

)

INFOID:0000000009515823

*1: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
*2: Since an adjustment mechanism is not included, the value of the left and right wheels must be used as the standard value.

Wheelarch Height (Unladen*)

INFOID:0000000009515824

Unit: mm (in)

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

Camber
Degree minute (Decimal degree)

Minimum

−1° 55′ (−1.92°)

Nominal

−1° 25′ (−1.42°)

Maximum

−0° 55′ (−0.92°)

Total toe-in

Distance (A - B)

Minimum

Out 2.0 mm (Out 0.079 in)

Nominal

In 2.0 mm (In 0.079 in)

Maximum

In 6.0 mm (In 0.236 in)

Angle (LH and RH)

*2

Degree minute (Decimal degree)

Minimum

Out 0

° 45′ (Out 0.75°)

Nominal

In 0

° 10′ (In 0.17°)

Maximum

In 0

° 35′ (In 0.58°)

SFA234AC

Tire size

185/65R15

195/55R16

Front (Hf)

690 (27.17)

687 (27.05)

Rear (Hr)

679 (26.73)

678 (26.69)

LEIA0085E

SB-1

RESTRAINTS

C

D

E

F

G

I

J

K

L

M

SECTION

SB

A

B

SB

N

O

P

CONTENTS

SEAT BELT

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precaution for Seat Belt Service  ...............................

2

Precaution for Work  ..................................................

2

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tools ................................................

4

BASIC INSPECTION  ....................................

5

COMPONENT INSPECTION ...............................

5

Inspection ..................................................................

5

REMOVAL AND INSTALLATION ................

8

FRONT SEAT BELT ............................................

8

Exploded View  ..........................................................

8

FRONT SEAT BELT BUCKLE ....................................

8

FRONT SEAT BELT BUCKLE : Removal and In-
stallation ....................................................................

8

SEAT BELT RETRACTOR  .........................................

9

SEAT BELT RETRACTOR : Removal and Instal-
lation .........................................................................

9

SEAT BELT HEIGHT ADJUSTER .............................

10

SEAT BELT HEIGHT ADJUSTER : Removal and
Installation ...............................................................

10

REAR SEAT BELT ............................................

12

Exploded View .........................................................

12

REAR SEAT BELT BUCKLE  ....................................

12

REAR SEAT BELT BUCKLE : Removal and In-
stallation ..................................................................

12

SEAT BELT RETRACTOR  ........................................

13

SEAT BELT RETRACTOR : Removal and Instal-
lation ........................................................................

13

LATCH (LOWER ANCHORS AND TETHER
FOR CHILDREN) SYSTEM ...............................

15

Removal and Installation  .........................................

15

TOP TETHER STRAP CHILD RESTRAINT  .....

16

Removal and Installation  .........................................

16

S B - 2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009561083

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Seat Belt Service

INFOID:0000000009561084

CAUTION:

• Before removing the seat belt pre-tensioner assembly, turn the ignition switch OFF, disconnect both

battery terminals and wait at least three minutes. For approximately three minutes after the battery

terminals have been removed, it is still possible for the air bag and seat belt pre-tensioner to deploy.

Therefore, do not attempt work on any SRS connectors or wires until at least three minutes have

passed.

• After replacing or reinstalling seat belt pre-tensioner assembly or reconnecting seat belt pre-ten-

sioner assembly connector, make sure entire SRS operates properly. Refer to

SRC-9, "Description"

.

• Do not disassemble buckle or seat belt assembly.

• Replace anchor bolts if they are deformed or worn out.

• Do not oil tongue or buckle.

• If any component of seat belt assembly is questionable, do not repair. Replace the whole seat belt

assembly.

• If webbing is cut, frayed or damaged, replace seat belt assembly.

• When replacing seat belt assembly, use a genuine NISSAN seat belt assembly.

Precaution for Work

INFOID:0000000009561085

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:
