REAR WHEEL HUB
3. Remove wheel bearing, using the Tool.
ASSEMBLY

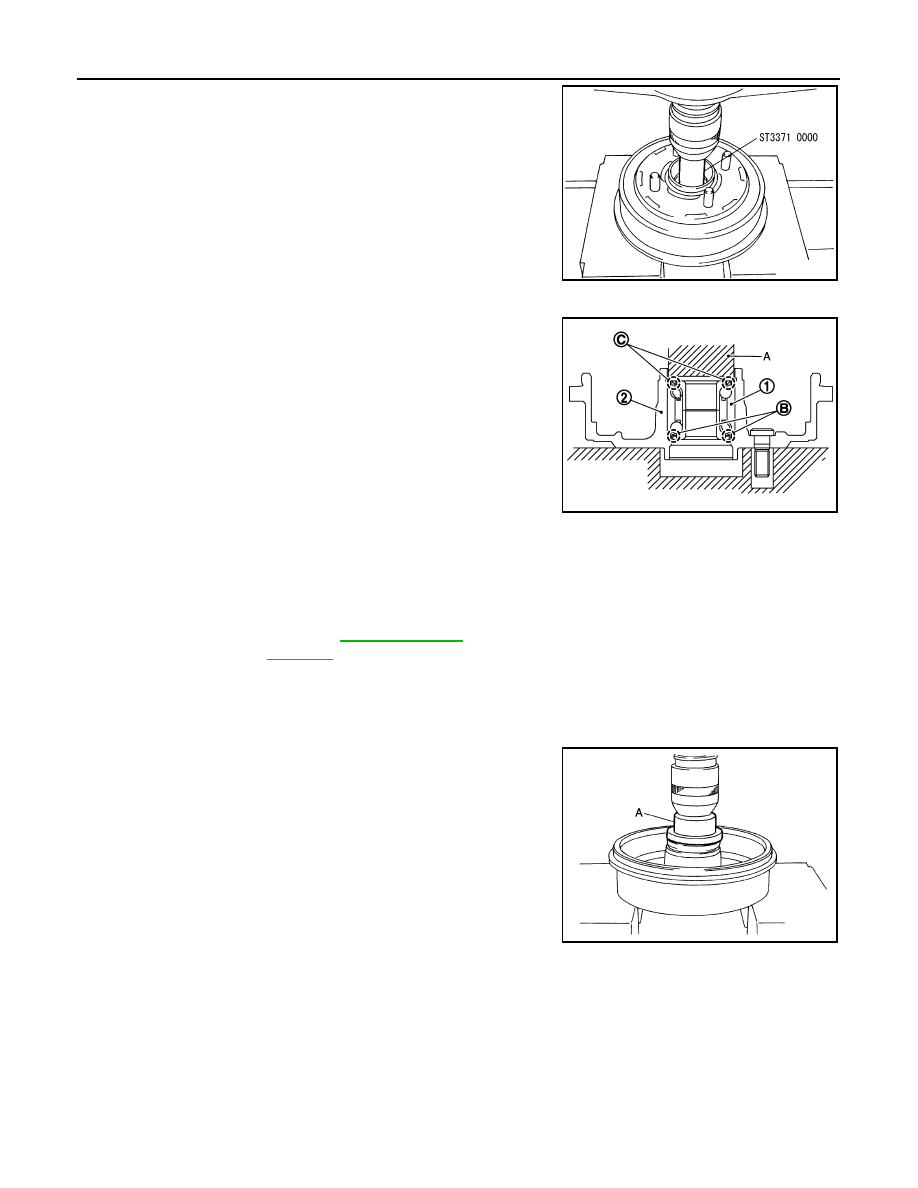

1. Install wheel bearing (1) to brake drum (2), using the Tool (A).
CAUTION:
• Do not reuse wheel bearing.
• Do not apply lubricating oil to the press-fit surface of the
wheel hub bearing.
• Install wheel bearing with the seal rubber part (B) faced to
the brake drum side.
• Set brake drum and wheel bearing horizontally and insert
them vertically.
• The press-fit load must be applied to the wheel bearing
outer race and the brake drum.
• Do not apply press-fit load to the wheel bearing inner race, the seal (B) on the rubber surface
side, and the seal (C) on the metallic surface side. If a press-fit load is applied, the wheel bearing
must be replaced with a new one.
2. Install snap ring to brake drum.
CAUTION:
• Do not damage the wheel bearing seal.
• The snap ring must be installed evenly into the groove.
3. Install sensor rotor, using the Tool (A).
CAUTION:
Do not reuse sensor rotor.
Inspection
INFOID:0000000009499779
INSPECTION AFTER REMOVAL
Check the brake drum and spindle for wear, cracks, and damage. Replace if necessary.
INSPECTION AFTER DISASSEMBLY
• Check brake drum for wear, cracks, or any other damage. Replace if necessary.
• Check snap ring for wear or cracks. Replace if necessary.
INSPECTION AFTER INSTALLATION

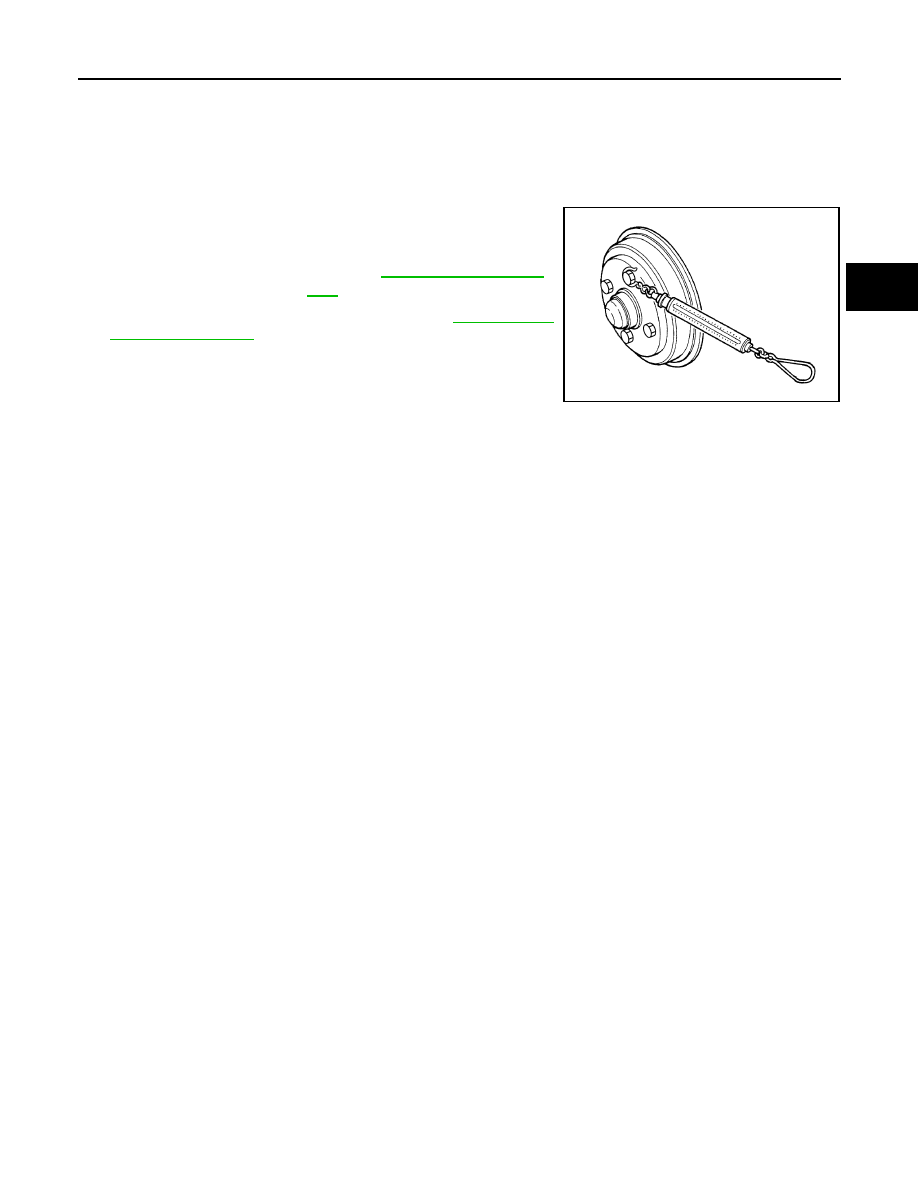

1. Check wheel bearing rotating torque per the following instructions.
Tool number : ST33710000 ( — )
JPDIG0079ZZ
Tool number : KV40104730 ( — )
Wheel bearing
press-fit load
: Refer to
Tool number : ST30032000 ( — )
JPDIG0200ZZ
JPDIG0191ZZ
