REAR RH SIDE POWER WINDOW DOES NOT OPERATE

PWC-41

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

WHEN POWER WINDOW MAIN SWITCH IS OPERATED : Diagnosis Procedure

INFOID:0000000009578862

1.

CHECK REAR POWER WINDOW SWITCH RH

Check rear power window switch RH.

Refer to

PWC-27, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE POWER WINDOW MAIN SWITCH

• Replace power window main switch.

• Confirm the operation after replacement.
Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

PWC-42

< SYMPTOM DIAGNOSIS >

POWER WINDOW RETAINED POWER OPERATION DOES NOT OPERATE

PROPERLY

POWER WINDOW RETAINED POWER OPERATION DOES NOT OPER-
ATE PROPERLY

Diagnosis Procedure

INFOID:0000000009578863

1.

CHECK FRONT DOOR SWITCH

Check front door switch.

Refer to

PWC-25, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

• Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

• Confirm the operation after replacement.
Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

POWER WINDOW LOCK SWITCH DOES NOT FUNCTION

PWC-43

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW LOCK SWITCH DOES NOT FUNCTION

Diagnosis Procedure

INFOID:0000000009578864

1.

REPLACE POWER WINDOW MAIN SWITCH

• Replace power window main switch.

• Confirm the operation after replacement.
Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

PWC-44

< REMOVAL AND INSTALLATION >

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

REMOVAL AND INSTALLATION

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Removal and Installation

INFOID:0000000009567637

REMOVAL

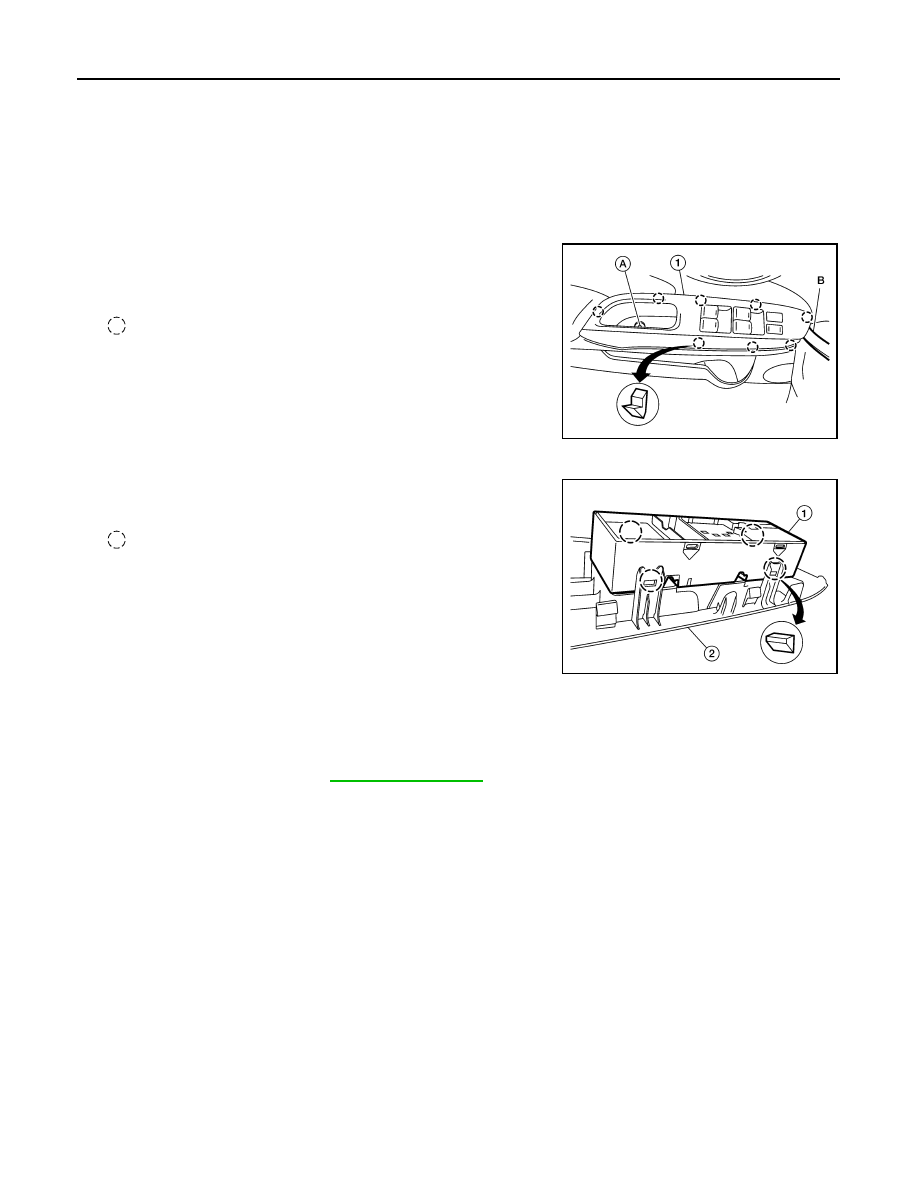

1. Remove main power window and door lock/unlock switch finisher door handle pull escutcheon.
2. Remove screw (A) from main power window and door lock/

unlock switch finisher.

3. Remove main power window and door lock/unlock switch fin-

isher (1) using a suitable tool (B).

: Pawl

4. Disconnect the harness connectors from the main power window and door lock/unlock switch.
5. Release pawls and remove main power window and door lock/

unlock switch (1) from main power window and door lock/unlock

switch finisher assembly (2) using a suitable tool.

: Pawl

CAUTION:

Do not bend back the pawls on the switch finisher too far or

damage may occur.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

When the main power window and door lock/unlock switch is removed or replaced, it is necessary to perform

the initialization procedure. Refer to

PWC-19, "Work Flow"

.

AWKIA2536ZZ

AWKIA2506ZZ
