MWI-30

< WIRING DIAGRAM >

METER SYSTEM

AANIA1742GB

MWI

METER SYSTEM

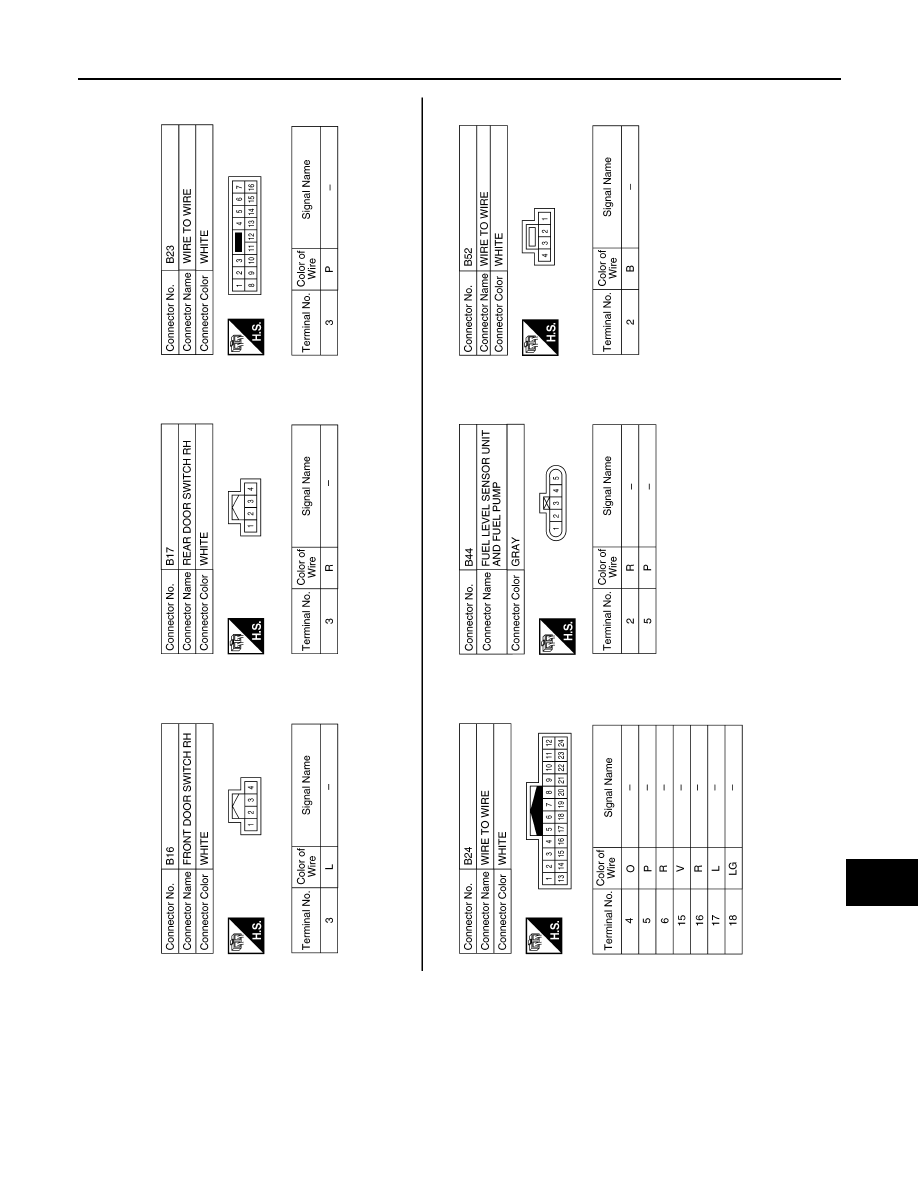

MWI-31

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AANIA1743GB

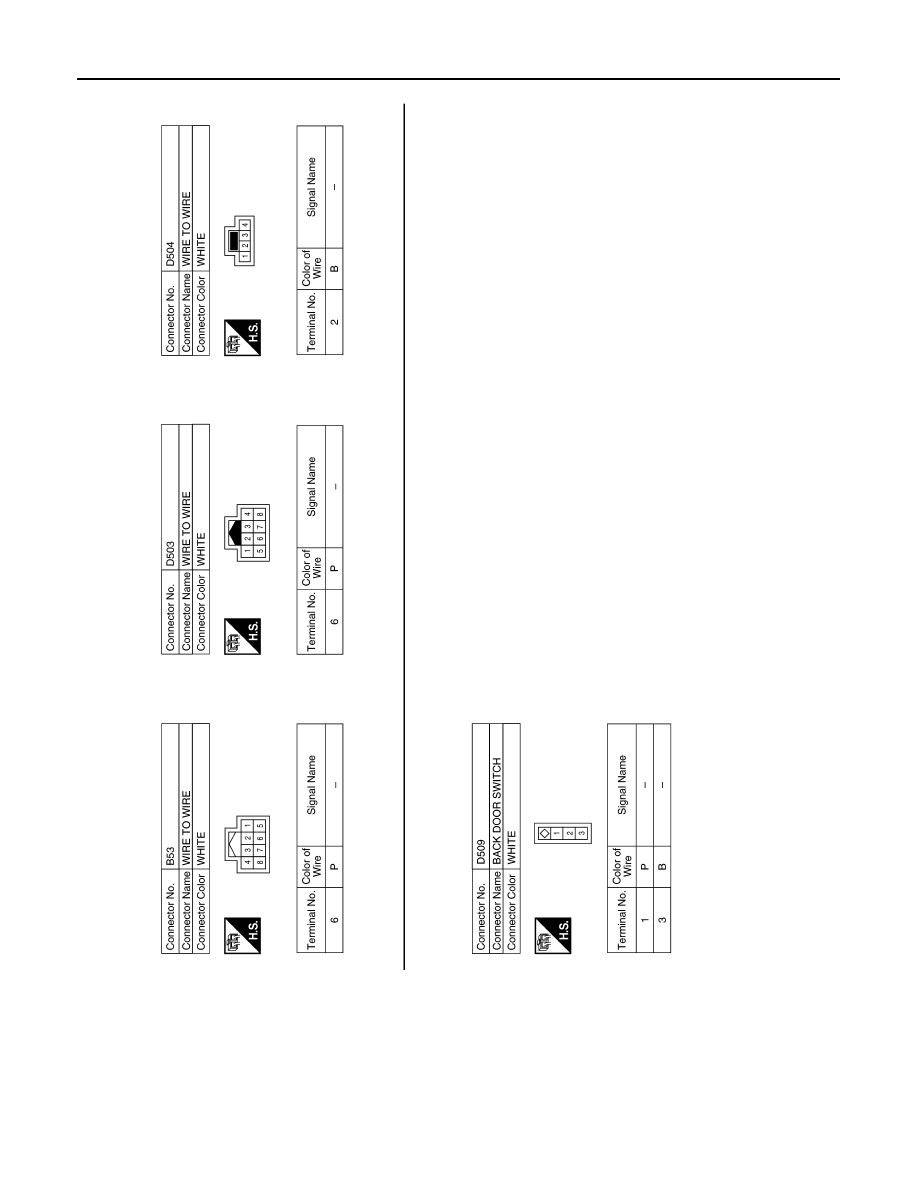

MWI-32

< WIRING DIAGRAM >

METER SYSTEM

AANIA1744GB

MWI

DIAGNOSIS AND REPAIR WORK FLOW

MWI-33

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009549347

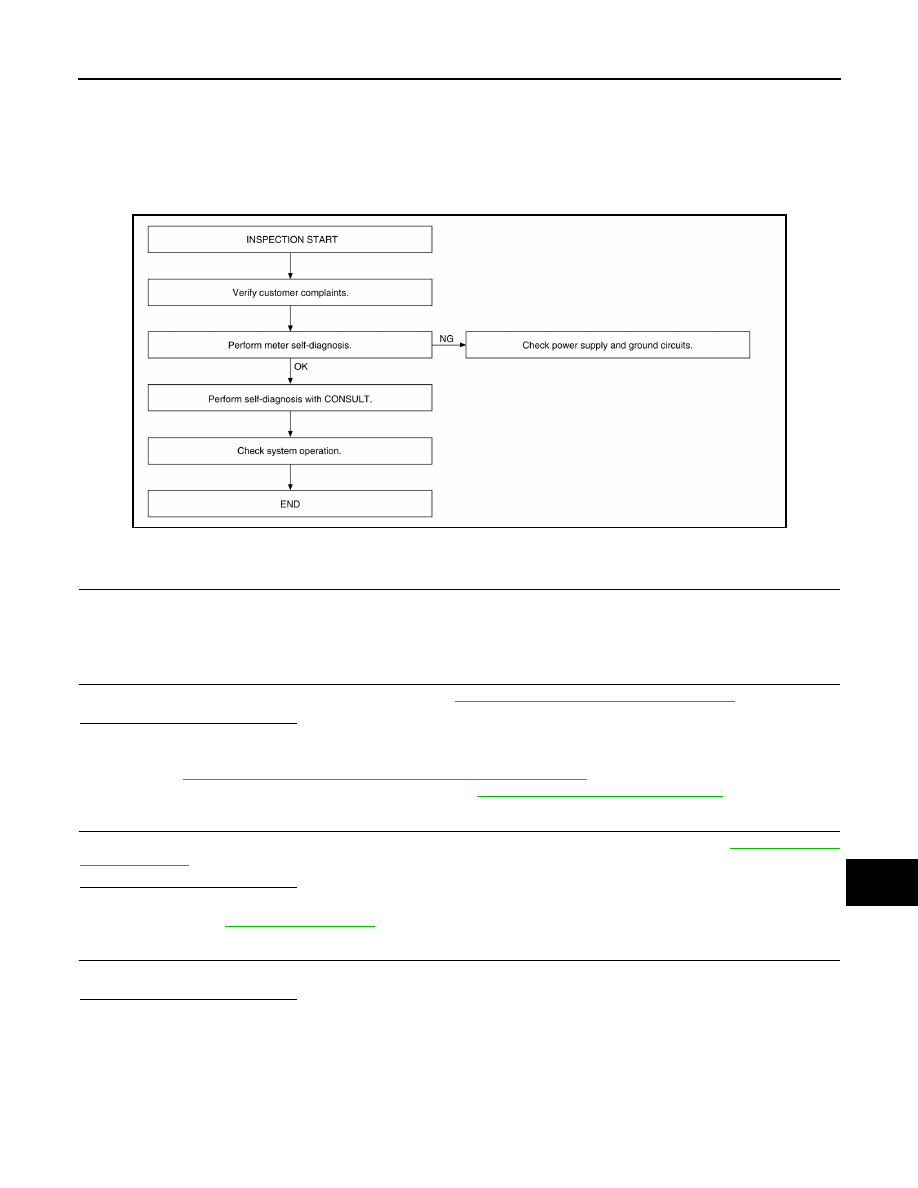

OVERALL SEQUENCE

DETAILED FLOW

1.

CONFIRM SYMPTOM

Confirm symptom or customer complaint.

>> GO TO 2.

2.

SELF-DIAGNOSIS OF COMBINATION METER

Perform self-diagnosis of combination meter. Refer to

MWI-14, "On Board Diagnosis Function"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> If self-diagnosis will not start, check power supply and ground circuit of combination meter. Refer

to

MWI-39, "COMBINATION METER : Diagnosis Procedure"

. If power supply and ground circuits

are OK, replace combination meter. Refer to

MWI-48, "Removal and Installation"

.

3.

CHECK COMBINATION METER WITH CONSULT

Select METER/M&A on CONSULT and perform self-diagnosis of combination meter. Refer to

MWI-15, "CON-

SULT Function"

.

Is the inspection result normal?

YES

>> Check symptom. GO TO 4.

NO

>> Refer to

MWI-20, "DTC Index"

.

4.

CHECK SYSTEM OPERATION

Check the combination meter to verify that the repair has been completed successfully.
Is the inspection result normal?

YES

>> Inspection End.

NO

>> GO TO 1.

AWNIA2458GB
