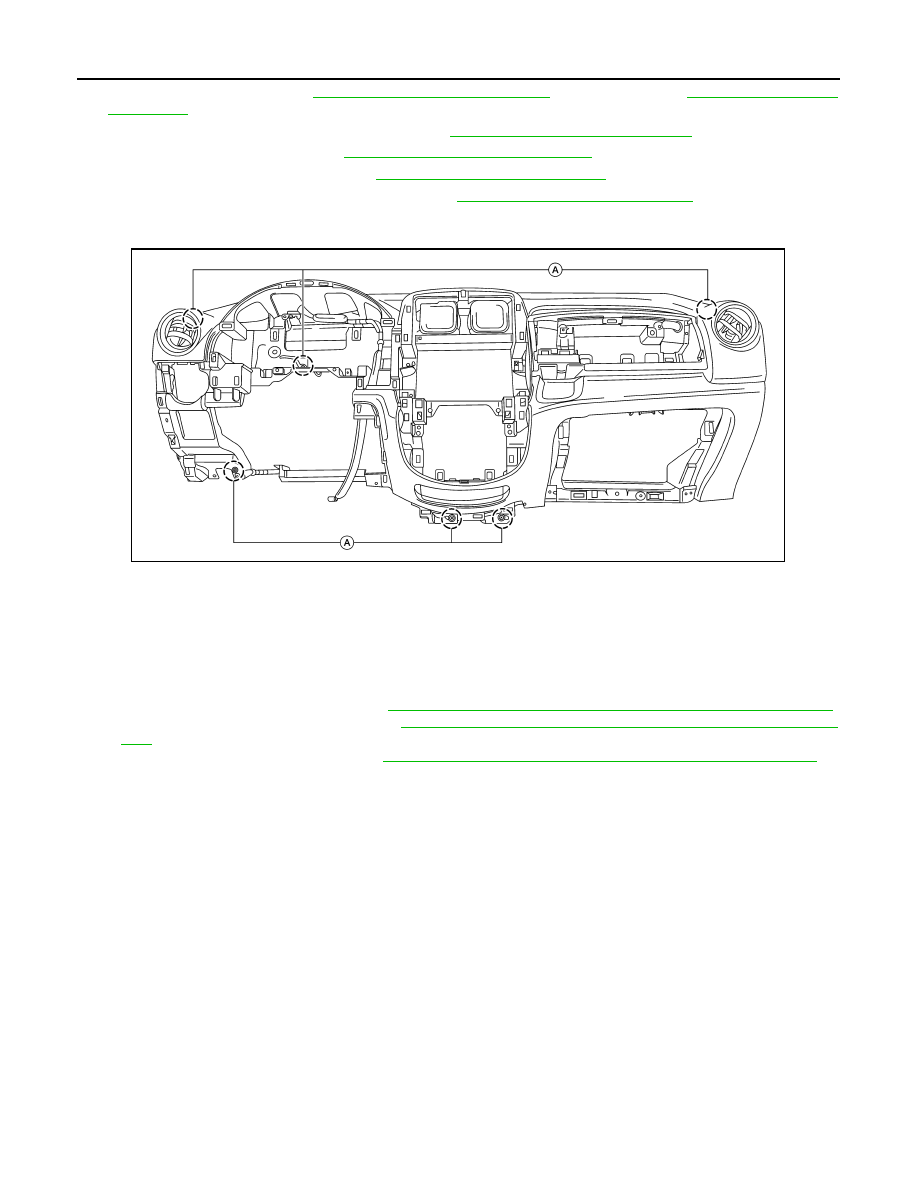

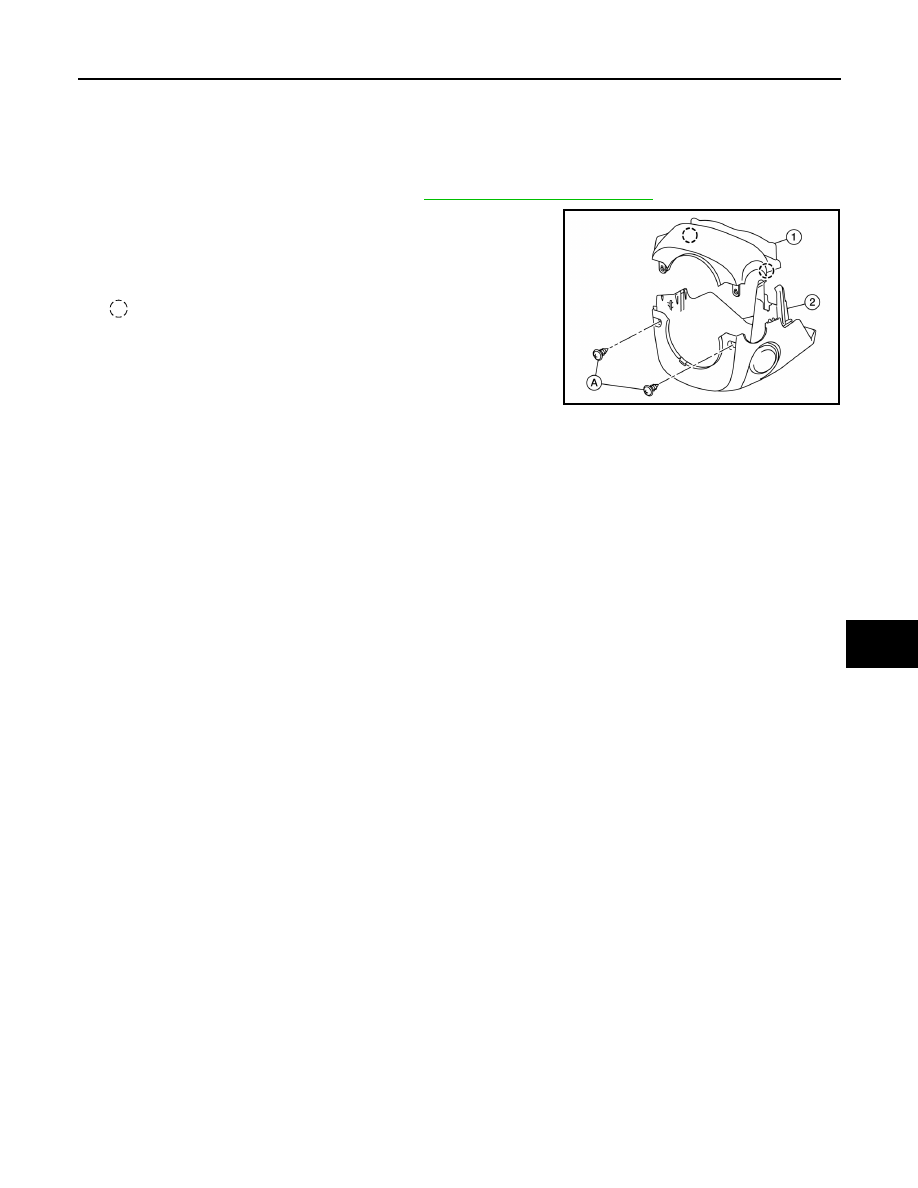

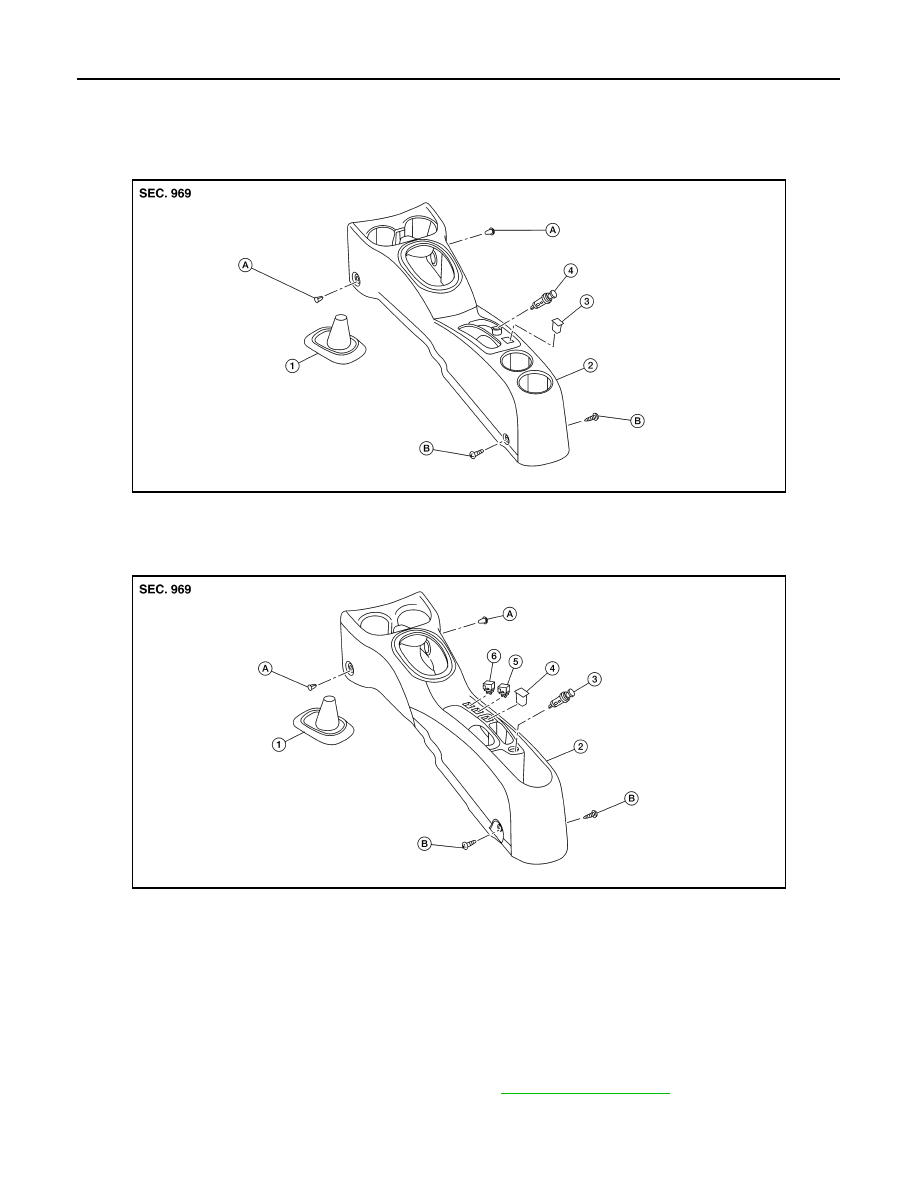

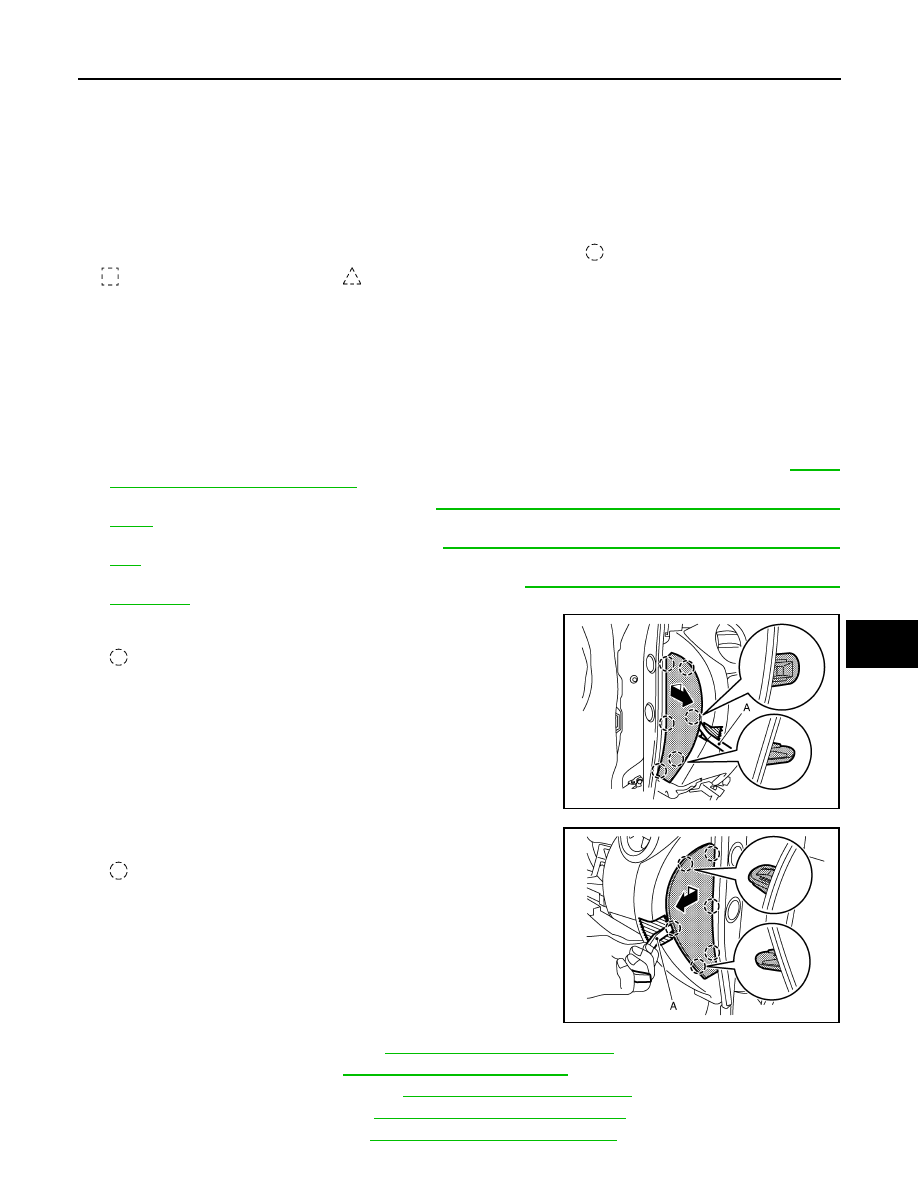

INSTRUMENT PANEL ASSEMBLY IP-15 < REMOVAL AND INSTALLATION > C D E F G H I K L M A B IP N O P Removal and Installation INFOID:0000000009567641 CAUTION: • Be careful not to scratch instrument panel pad or other parts. • Before servicing, turn the ignition switch off, disconnect both battery terminals and wait at least three minutes. • Do not tamper with or force air bag lid open, as this may adversely affect air bag performance. REMOVAL 1. Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to "Removal and Installation (Battery)" . 2. Remove front pillar finishers (LH/RH). Refer to INT-19, "FRONT PILLAR FINISHER : Removal and Instal- . 3. Remove dash side finishers (LH/RH). Refer to INT-22, "DASH SIDE FINISHER : Removal and Installa- 4. Partially remove front body side welts (LH/RH). Refer to INT-22, "BODY SIDE WELT : Removal and . 5. Release the pawls using a suitable tool (A) and then remove instrument side finisher (LH) as shown. : Pawl 6. Release the pawls using a suitable tool (A) and then remove instrument side finisher (RH) as shown. : Pawl 7. Remove center console lower. Refer to IP-20, "Removal and Installation" 8. Remove steering wheel. Refer to ST-8, "Removal and Installation" 9. Remove steering column covers. Refer to IP-17, "Removal and Installation" . 10. Remove combination switch. Refer to EXL-112, "Removal and Installation" 11. Remove combination meter. Refer to MWI-48, "Removal and Installation" 1. Instrument side finisher (RH) 2. Passenger air bag module 3. Instrument panel assembly 4. Instrument side finisher (LH) 5. Side ventilator grille (LH) 6. Combination meter 7. Cluster lid A 8. Instrument lower panel LH 9. Steering column upper cover 10. Steering column lower cover 11. Steering lock escutcheon 12. Center console lower 13. Front air control finisher 14. Front air control 15. Center ventilator grille (RH) 16. Center ventilator grille (LH) 17. Cluster lid C 18. Audio unit/AV control unit 19. Glove box lid 20. Glove box assembly 21. Glove box striker 22. Side ventilator grille (RH) 23. Upper glove box Pawl Metal clip Clip AWJIA1130ZZ AWJIA1131ZZ |
