REMOVAL AND INSTALLATION

MAP LAMP

Exploded View

INFOID:0000000009015798

Removal and Installation

INFOID:0000000009015799

REMOVAL

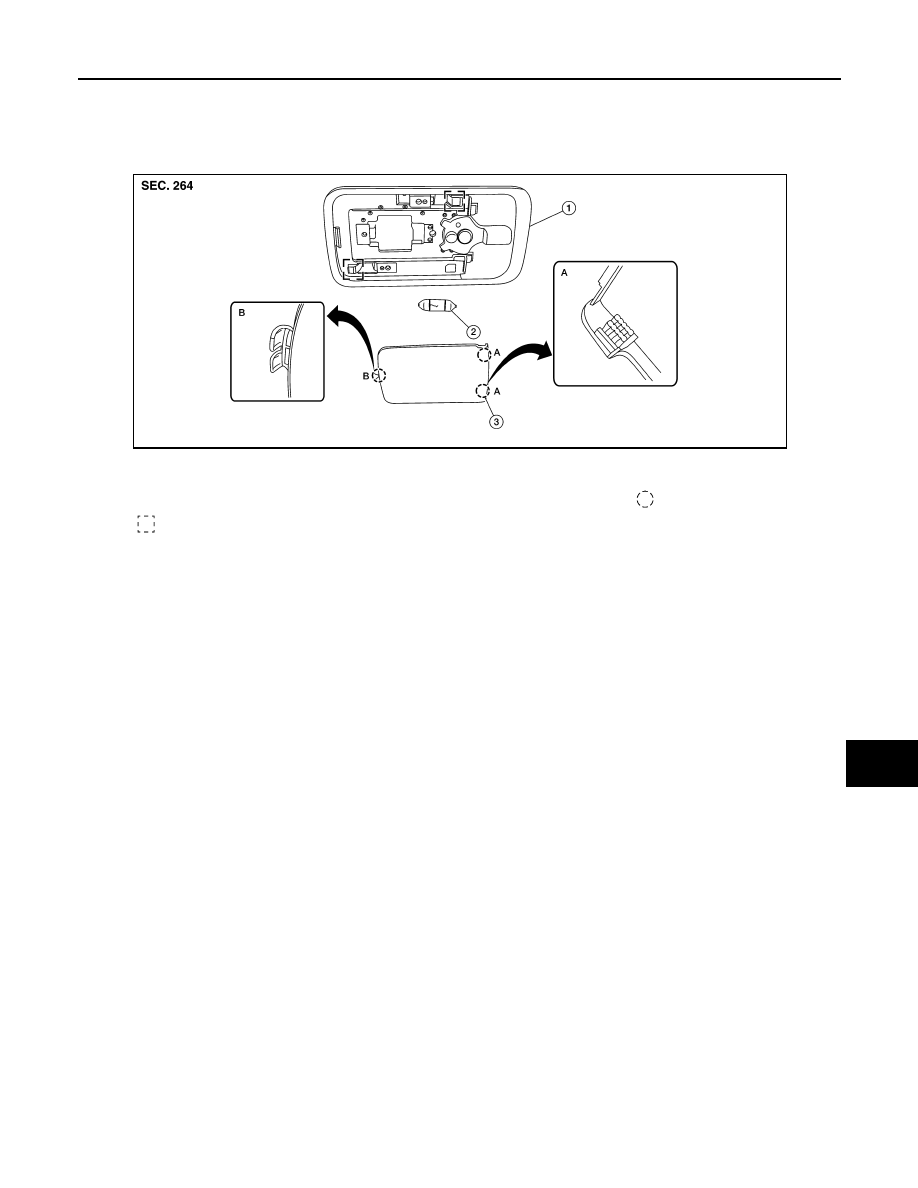

1. Release lens pawls using a suitable tool (A) and remove.

: Pawl

2. Release map lamp pawl using suitable tool (A).

: Pawl

3. Disconnect the harness connector from map lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000009015800

WARNING:

1.

Map lamp

2.

Bulb

3.

Lens

Pawl

AWLIA2175ZZ

AWLIA2150ZZ

AWLIA2144ZZ

INL-38

< REMOVAL AND INSTALLATION >

MAP LAMP

Do not touch bulb while it is lit or right after being turned OFF. Burning may result.

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp.

REMOVAL

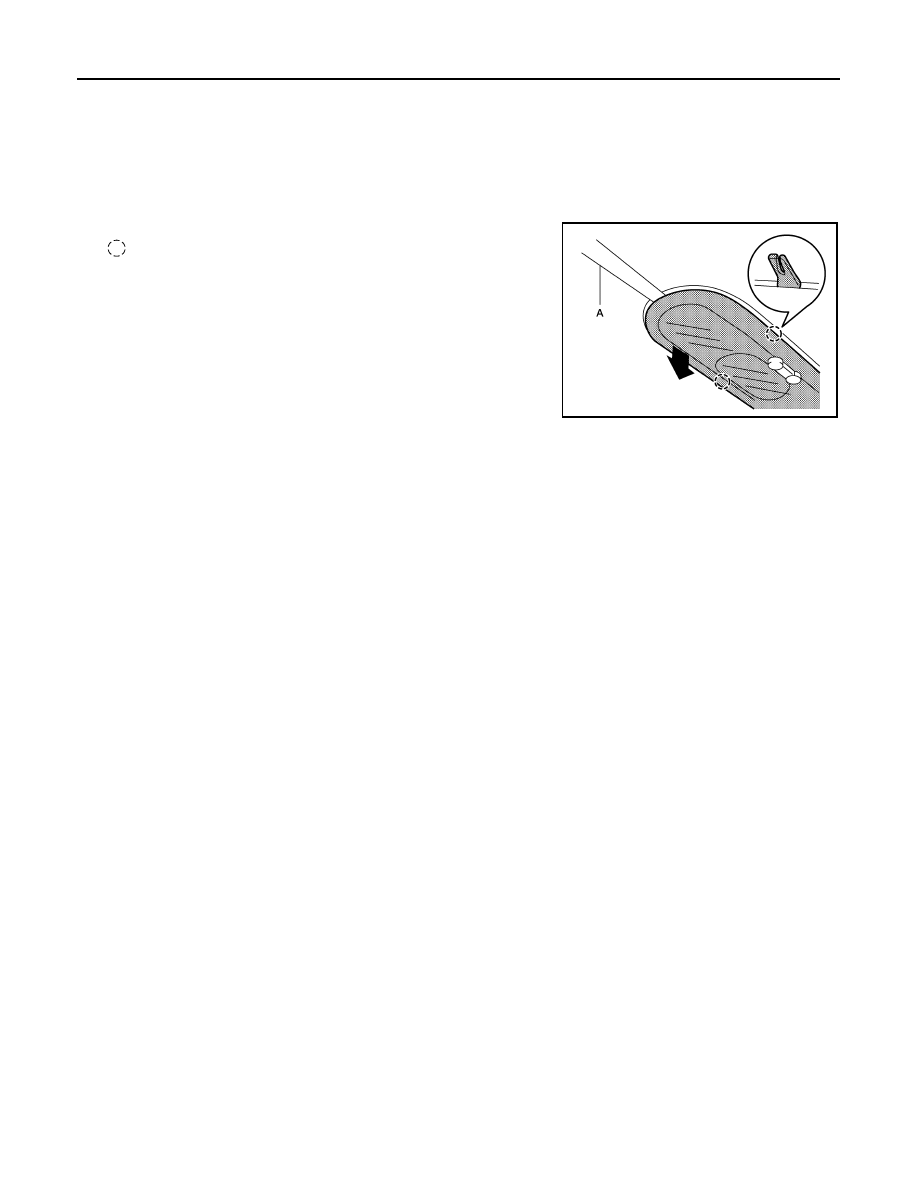

1. Release lens pawls using suitable tool (A) and remove.

: Pawl

2. Remove the bulb.

INSTALLATION

Installation is in the reverse order of removal.

AWLIA2150ZZ

INTERIOR ROOM LAMP

INL-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

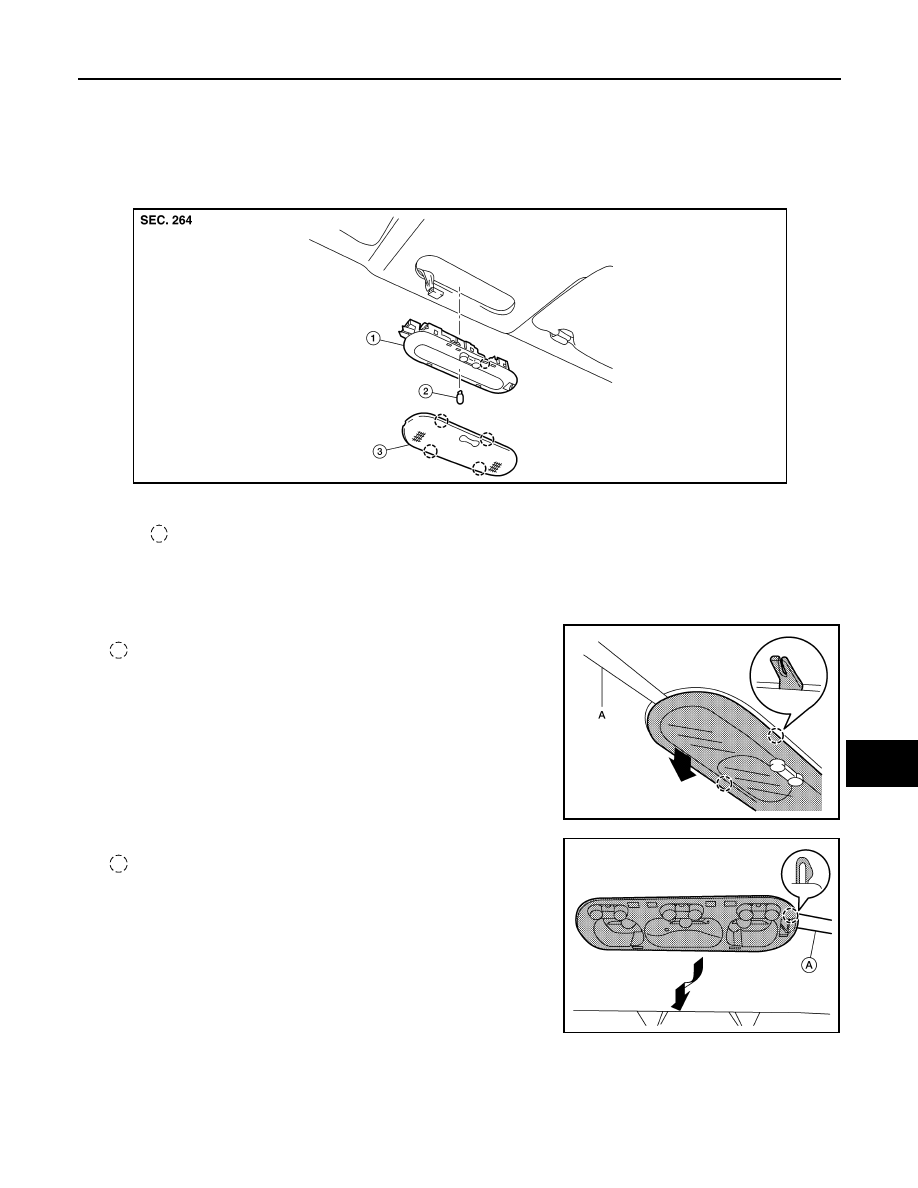

INTERIOR ROOM LAMP

Exploded View

INFOID:0000000009015801

Removal and Installation

INFOID:0000000009015802

REMOVAL

1. Release interior room lamp metal clips using a suitable tool.
2. Disconnect the harness connector from room lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000009015803

WARNING:

Do not touch bulb while it is lit or right after being turned OFF. Burning may result.

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp.

REMOVAL

1. Release interior room lamp lens pawls using a suitable tool and remove.
2. Remove bulb.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Insert the lens hook end RH side first when installing lens.

1.

Interior room lamp

2.

Bulb

3.

Lens

A.

Pawls to release first for lens removal B.

Pawl to install first for lens installation

Pawl

Metal clip

AWLIA2174ZZ

INL-40

< REMOVAL AND INSTALLATION >

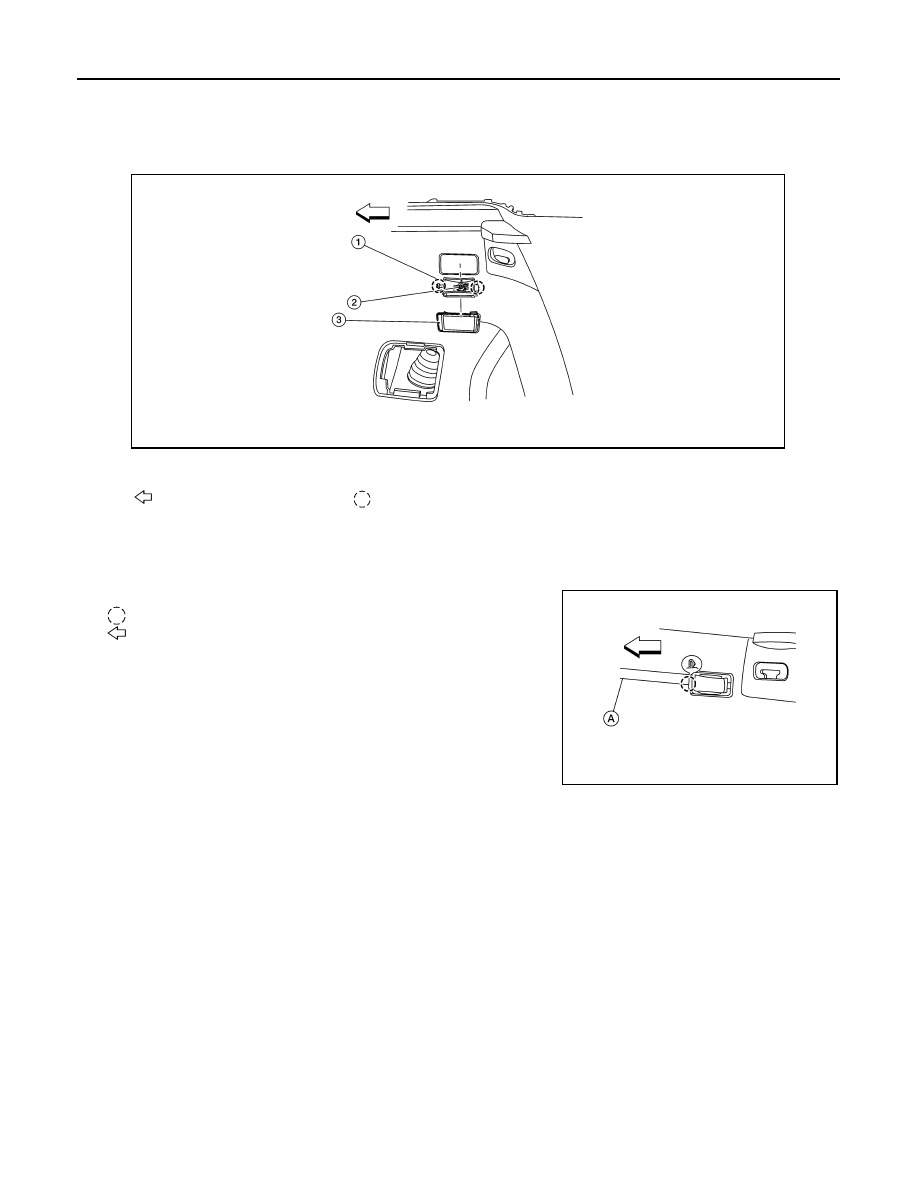

CARGO ROOM LAMP

CARGO ROOM LAMP

Exploded View

INFOID:0000000009445827

Removal and Installation

INFOID:0000000009445828

REMOVAL

1. Release cargo room lamp pawl with a suitable tool (A)

: Pawl

: Front

2. Disconnect harness connector from cargo room lamp and

remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000009445829

WARNING:

Do not touch bulb while it is lit or right after being turned OFF. Burning may result.

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp.

REMOVAL

1. Release cargo room lamp lens pawl using a suitable tool.
2. Remove the bulb.

INSTALLATION

Installation is in the reverse order of removal.

1.

Cargo room lamp

2.

Bulb

3.

Lens

Front

Pawl

AWLIA2148ZZ

AWLIA2149ZZ
