INTERIOR ROOM LAMP CONTROL SYSTEM

INL-13

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

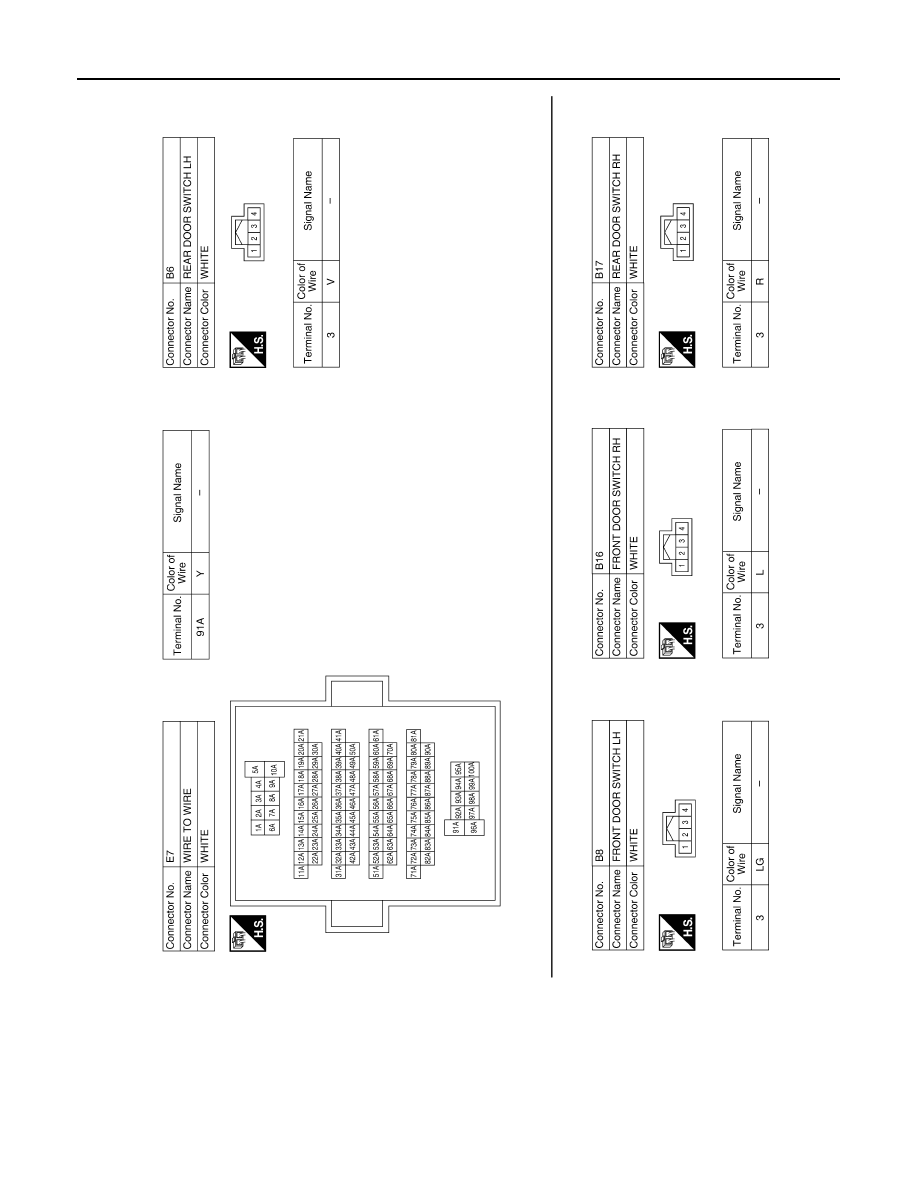

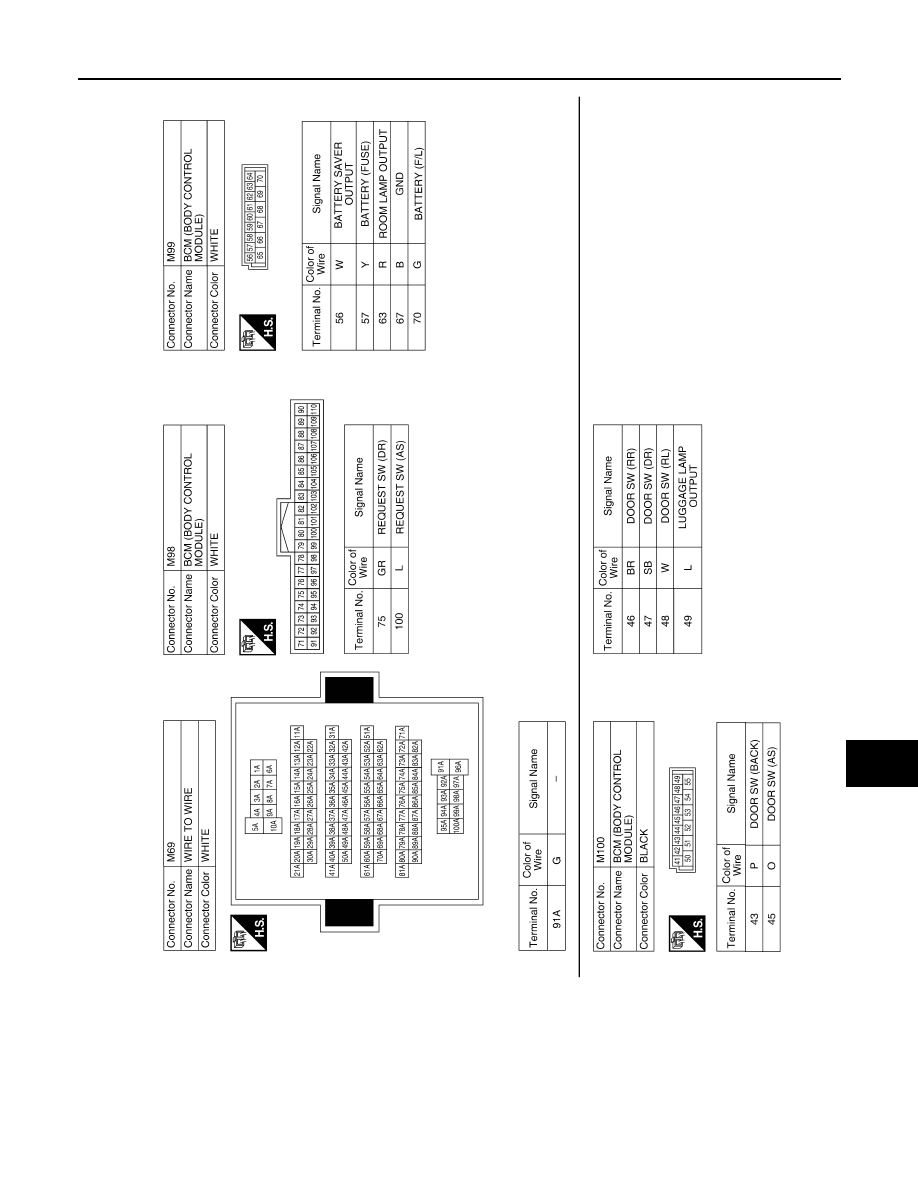

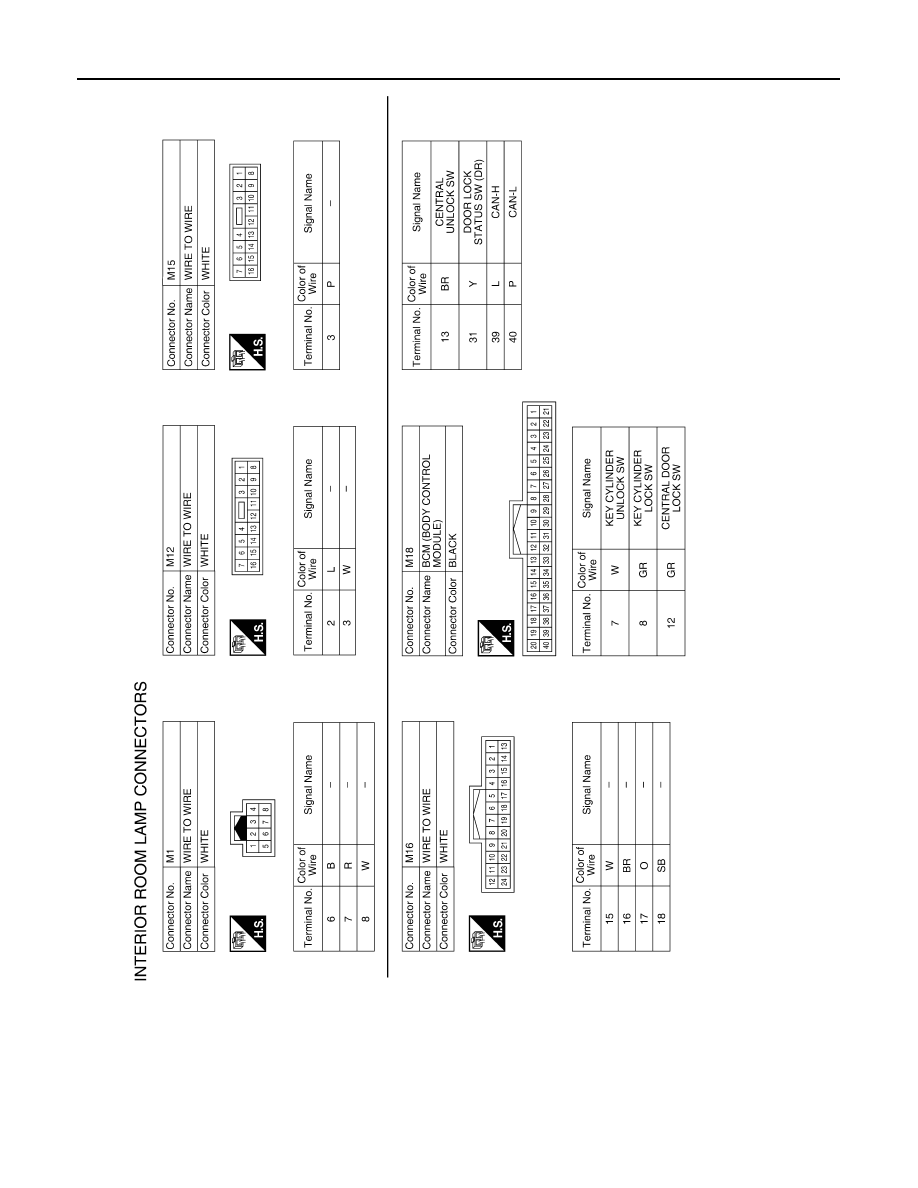

WIRING DIAGRAM

INTERIOR ROOM LAMP CONTROL SYSTEM

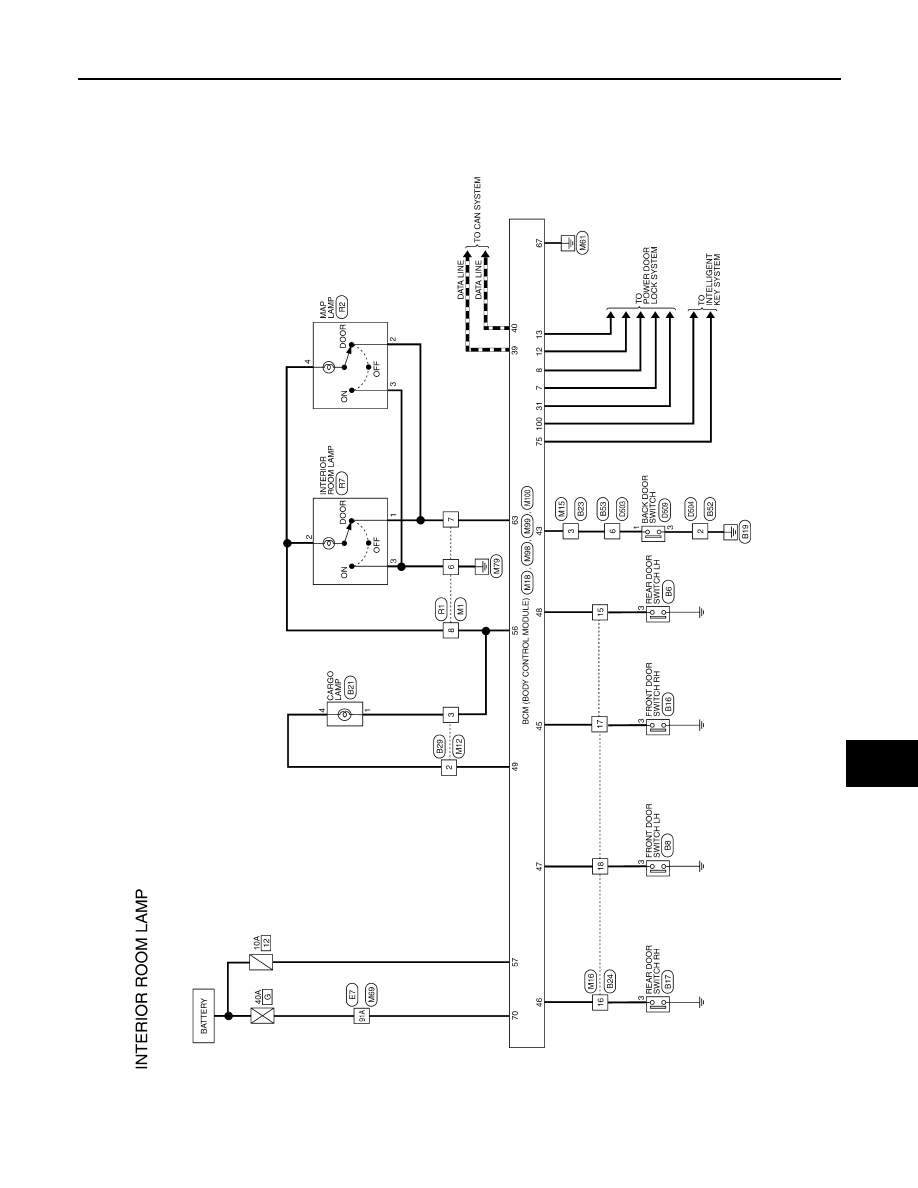

Wiring Diagram

INFOID:0000000009560575

AALWA0644GB

INL-14

< WIRING DIAGRAM >

INTERIOR ROOM LAMP CONTROL SYSTEM

AALIA1413GB

INTERIOR ROOM LAMP CONTROL SYSTEM

INL-15

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

AALIA1414GB

INL-16

< WIRING DIAGRAM >

INTERIOR ROOM LAMP CONTROL SYSTEM

AALIA1415GB
