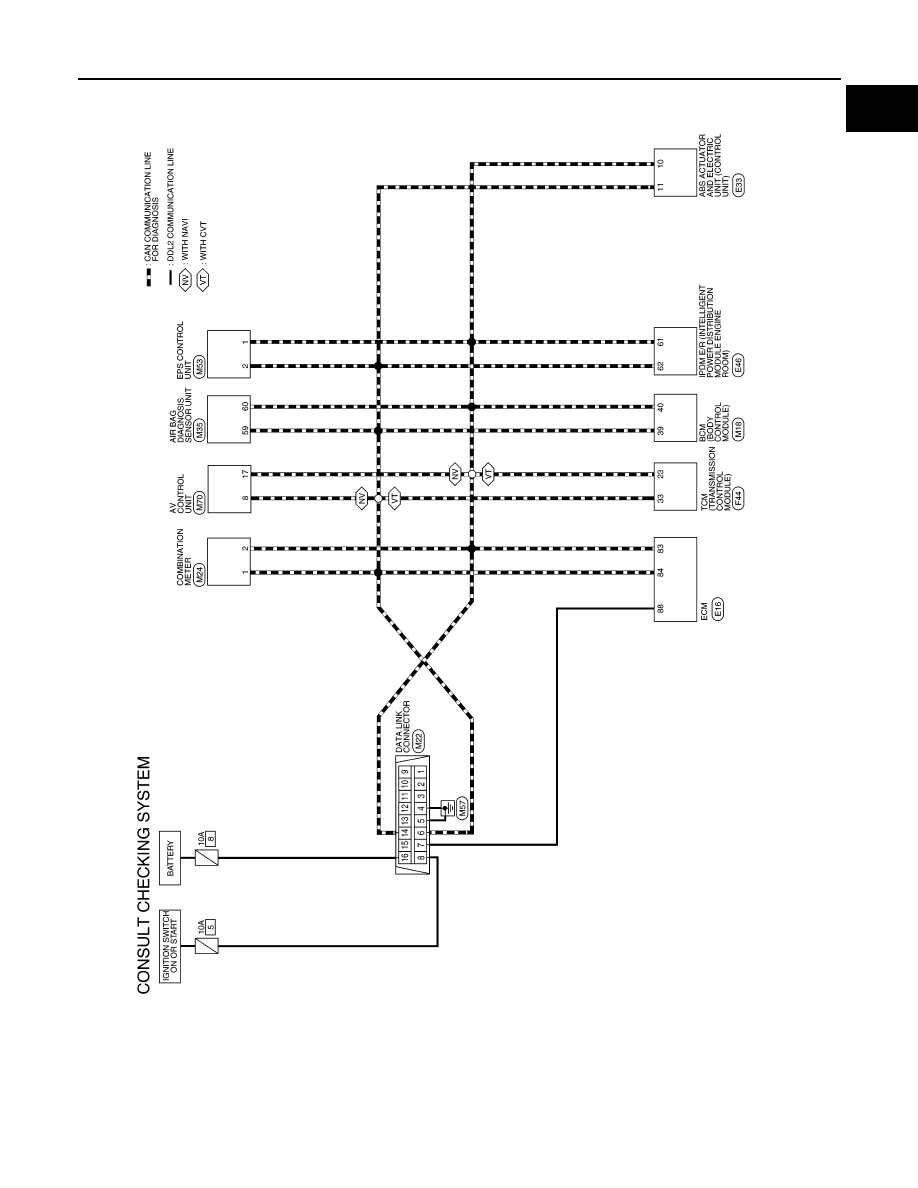

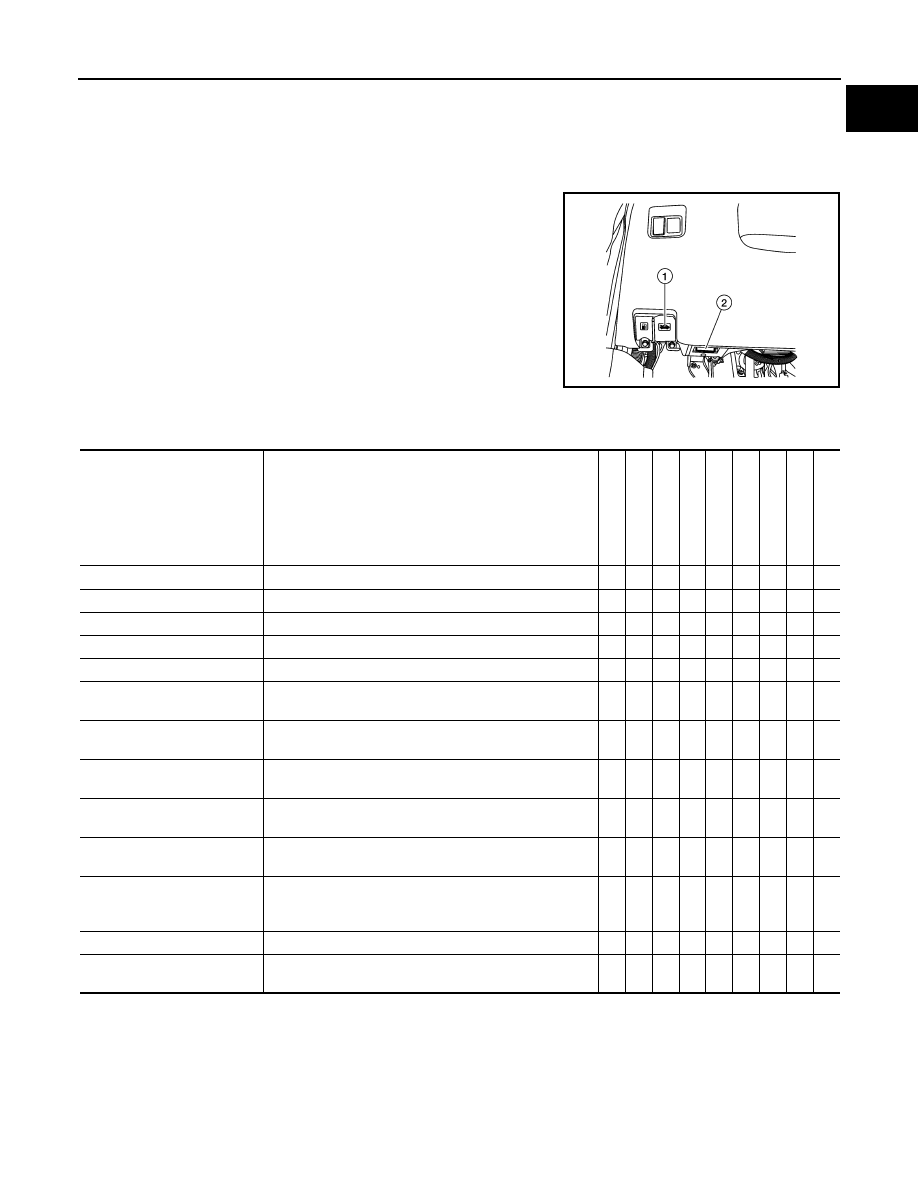

CONSULT/GST CHECKING SYSTEM GI-49 < BASIC INSPECTION > C D E F G H I J K L M B GI N O P CONSULT/GST CHECKING SYSTEM Description INFOID:0000000009464427 NOTE: This vehicle is diagnosed using the CONSULT-III plus. • When CONSULT is connected with a data link connector equipped on the vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various kinds of diagnos- tic tests. • Refer to “CONSULT-III plus Operation Manual” for more informa- tion. Function and System Application INFOID:0000000009464428 x: Applicable CONSULT Data Link Connector (DLC) Circuit INFOID:0000000009464429 INSPECTION PROCEDURE If the CONSULT cannot diagnose the system properly, check the following items. 1 : Hood release handle 2 : Data link connector ALAIA0095ZZ Diagnosis (All Systems) Description ENGINE ABS MET E R/M & A BC M AIR B A G TRANSMISSION 1 EPS IPDM E/R MUL T I A V Self Diagnostic Result The ECU self diagnostic results are displayed. x x x x x x x x x Data Monitor The ECU input/output data is displayed in real time. x x x x x x x x x Work support The settings for ECU functions can be changed. x x x x - x - - - Active Test The ECU activates outputs to test components. x x - x - - - x - ECU identification The ECU part number is displayed. x x - x x x x x x DTC Work Support The status of system monitoring tests and the self diagno- x - - - - - - - - Warning History Displays the history of the combination meter warning - - x - - - - - - TROUBLE DIAG RECORD Self diagnostic history and trouble diagnosis records in - - - - x - - - - CAN Diag This mode displays network diagnostic results of CAN x x x x x x x x x CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communi- x x x x x x x x x Configuration • The vehicle specification can be read and saved. ECU. - - - x - - - - - CALIB DATA The calibration values of the ECU are displayed. - - - - - x - - - SRT & P-DTC Confirmation The status of system monitoring tests and the self diagno- x - - - - - - - - |
