Nissan Note E12. Manual - part 333





EVAP CANISTER

FL-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

7. Remove the EVAP canister.

INSTALLATION

Installation is in the reverse order of removal.

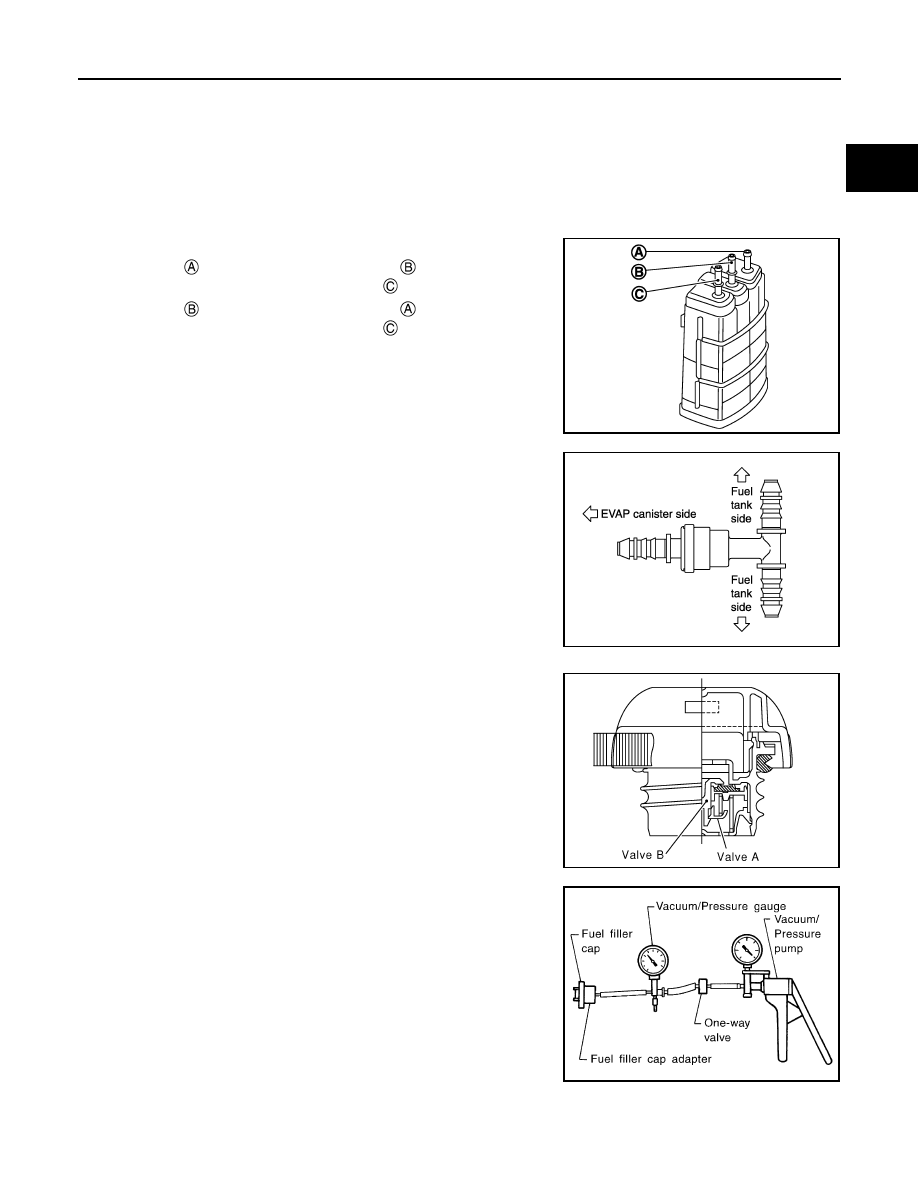

Inspection

INFOID:0000000009634426

1. Visually inspect EVAP vapor lines for improper attachment and for cracks, damage, loose connections,

chafing and deterioration.

2. Check EVAP canister as follows:
a. Block port  . Orally blow air through port  .

Check that air flows freely through port  .

b. Block port  . Orally blow air through port  .

Check that air flows freely through port  .

3. Visually inspect the fuel check valve for cracks, damage, loose

connections chafing and deterioration.

4. Check fuel check valve as follows:
a. Blow air through connector on the fuel tank side. A considerable

resistance should be felt and a portion of air flow should be

directed toward the EVAP canister side.

b. Blow air through connector on EVAP canister side. Air flow

should be smoothly directed toward fuel tank side.

c. If fuel check valve is suspected or not properly functioning in

step 1 and 2 above, replace it.

5. Inspect fuel tank filler cap vacuum relief valve for clogging, stick-

ing, etc.

a. Wipe clean valve housing.

b. Check valve opening pressure and vacuum.

c. If out of specification, replace fuel filler cap as an assembly.

JMBIA0443ZZ

JSBIA0080GB

SEF989X

Pressure:

15.3 - 20.0 kPa (0.153 - 0.200 bar, 0.156 - 0.204 kg/
cm

2

, 2.22 - 2.90 psi)

Vacuum:

–6.0 to –3.4 kPa (–0.06 bar to –-0.034bar, –0.061 to –
0.035 kg/cm

2

, –0.87 to –0.49 psi)

SEF943S

FL-16

< DISASSEMBLY AND ASSEMBLY >

FUEL LEVEL SENSOR UNIT

DISASSEMBLY AND ASSEMBLY

FUEL LEVEL SENSOR UNIT

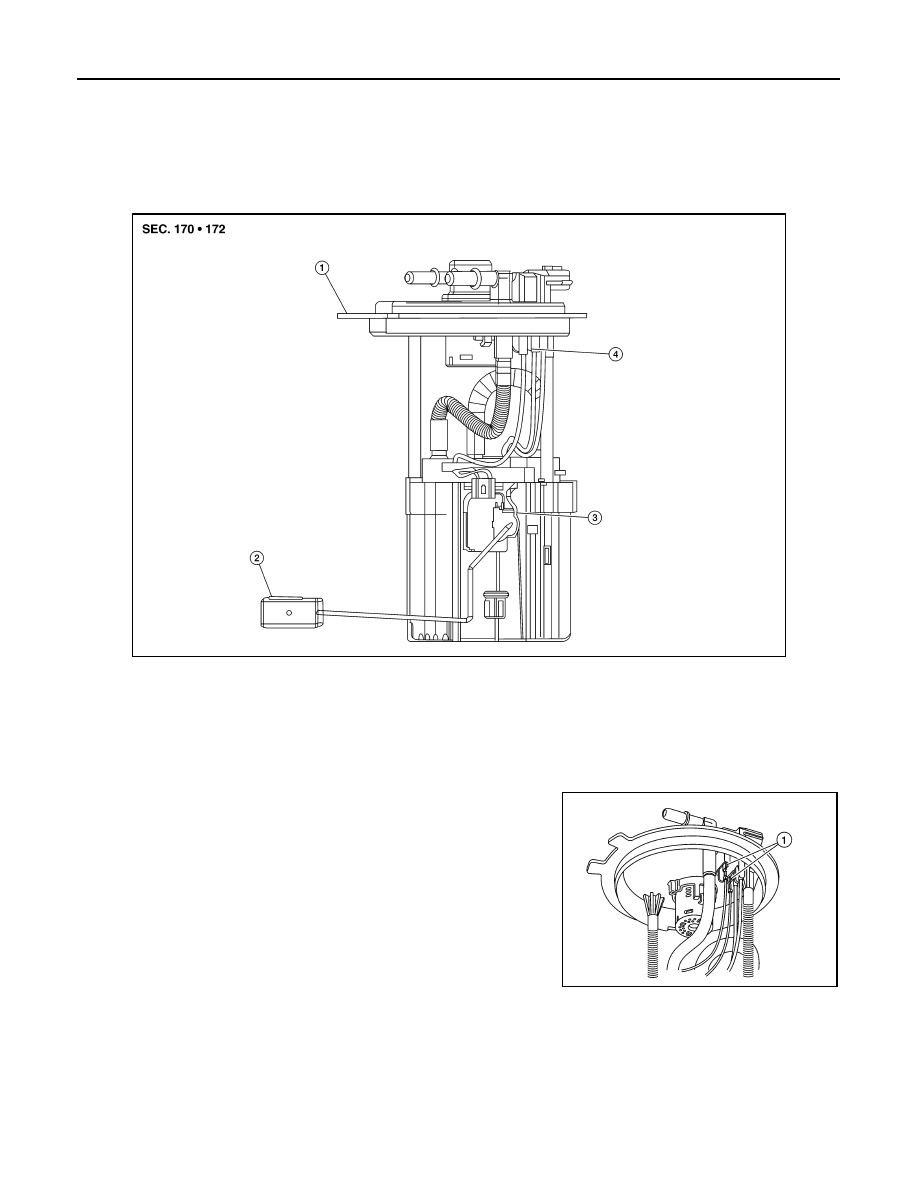

Exploded View

INFOID:0000000009486654

Fuel Level Sensor Unit

Disassembly and Assembly

INFOID:0000000009486655

DISASSEMBLY

1. Disconnect fuel level sensor unit harness connector (1).

NOTE:

Hold connector with your fingers, because there is no tab for

releasing stopper. Pull it out straight downward.

ALBIA1152ZZ

1. Fuel filter and pump assembly

2. Float arm assembly 3. Fuel level sensor unit

4. Fuel level sensor unit sensor harness connector

ALBIA1153ZZ

FUEL LEVEL SENSOR UNIT

FL-17

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

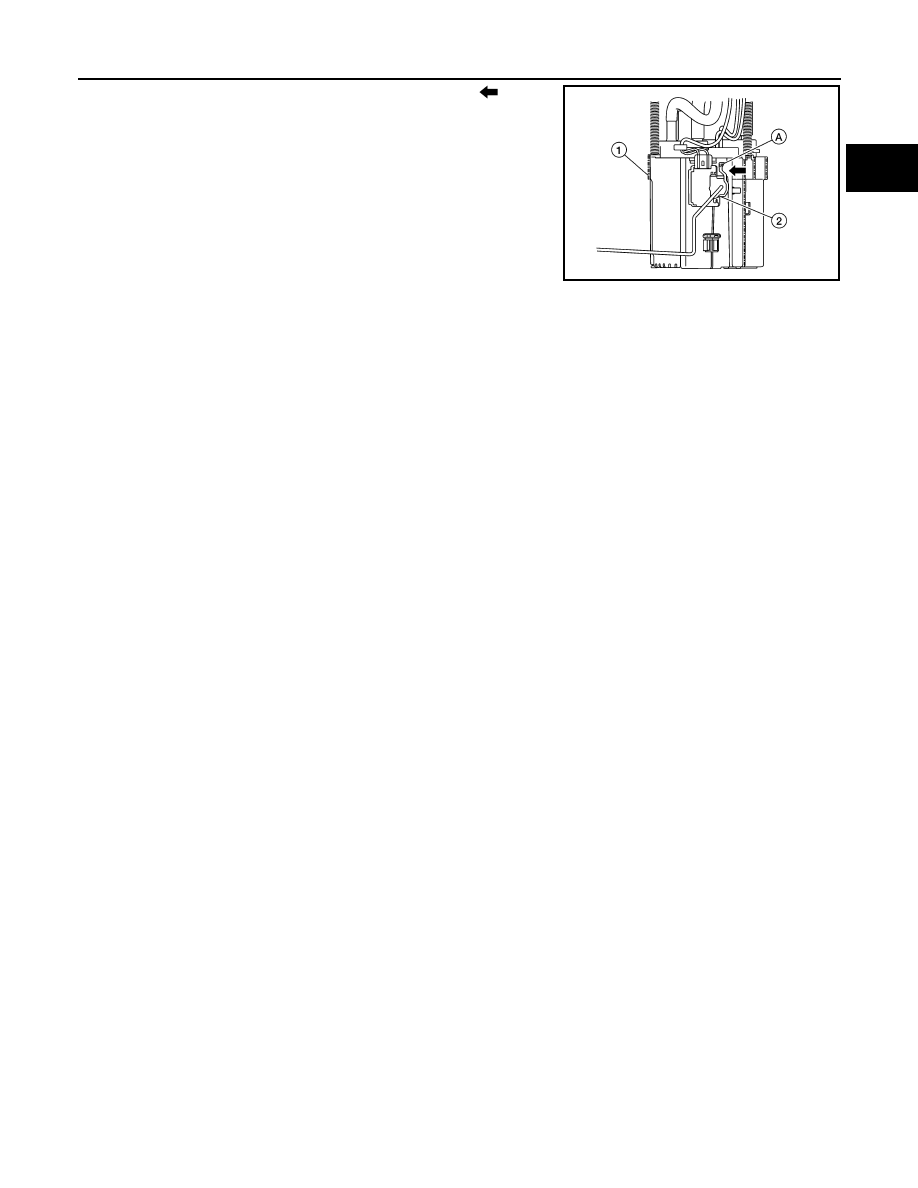

2. Using a suitable tool push tab (A) in the driection (

) shown

and remove fuel level sensor unit (2) from fuel filter and fuel

pump assembly (1).

CAUTION:

• Be careful not to damage the fuel level sensor unit.

• Do not disassemble fuel filter and fuel pump assembly.

ASSEMBLY

1. Check for damage of fuel level sensor unit installation position on the side of fuel filter and pump assem-

bly.

2. Slide fuel level sensor unit until it aligns to installation groove, then insert it until it stops.

• After inserting, apply force in reverse direction (removal direction) to ensure it cannot be pulled out.

3. Connect fuel level sensor unit harness connector.

INSPECTION AFTER INSTALLATION

Use the following procedure to check for fuel leaks.
1. Turn ignition switch “ON” (with engine stopped), then check fuel system connections for leaks by applying

fuel pressure to fuel piping.

2. Start engine and let it idle and check there are no fuel leaks at the fuel system connections.

ALBIA1154ZZ

FL-18

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Fuel Tank

INFOID:0000000009445850

Standard and Limit

Unit:   (US gal, lmp gal)

Fuel tank capacity

Approx. 41.0   (10-7/8 US gal, 9.0 Imp gal)

Fuel recommendation

Refer to

MA-12
