Nissan Note E12. Manual - part 292

EXL-36

< WIRING DIAGRAM >

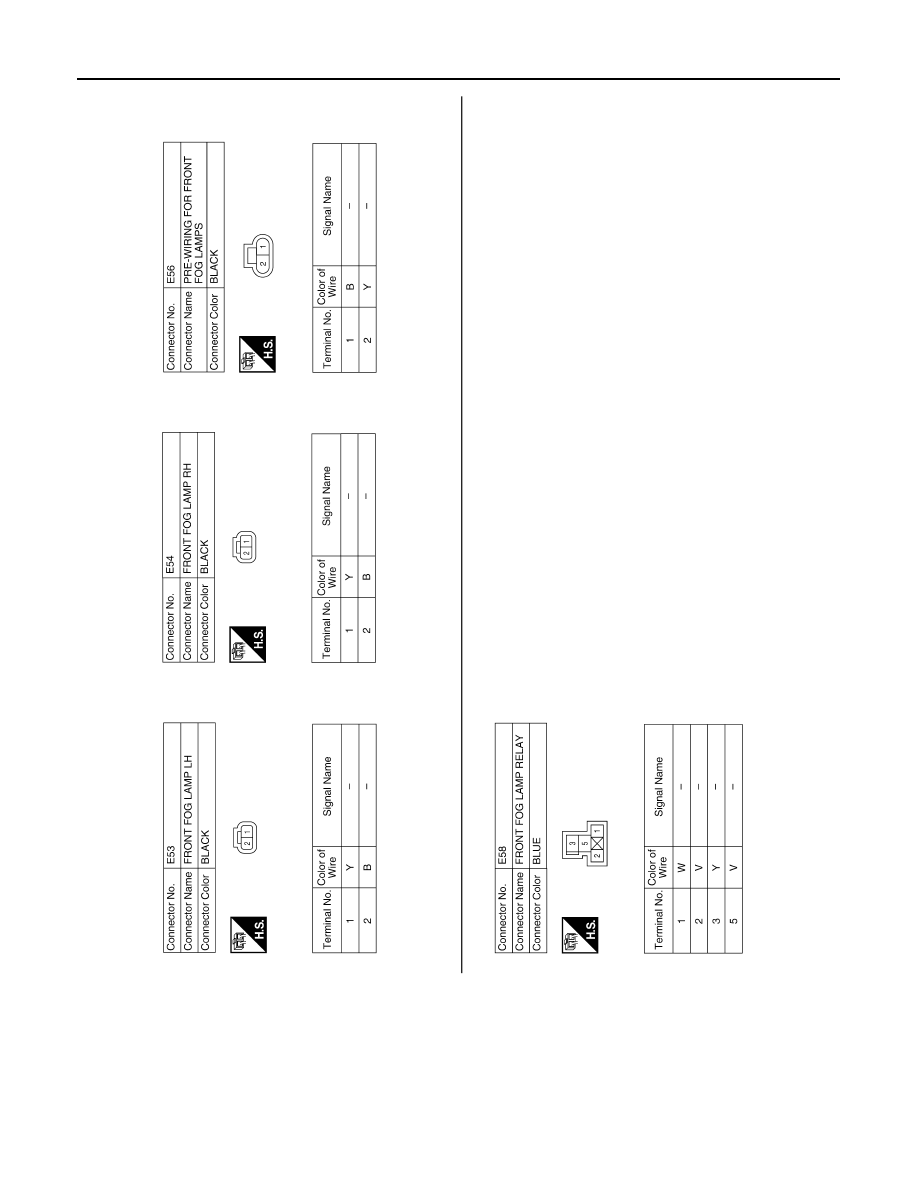

FRONT FOG LAMP

AALIA1384GB

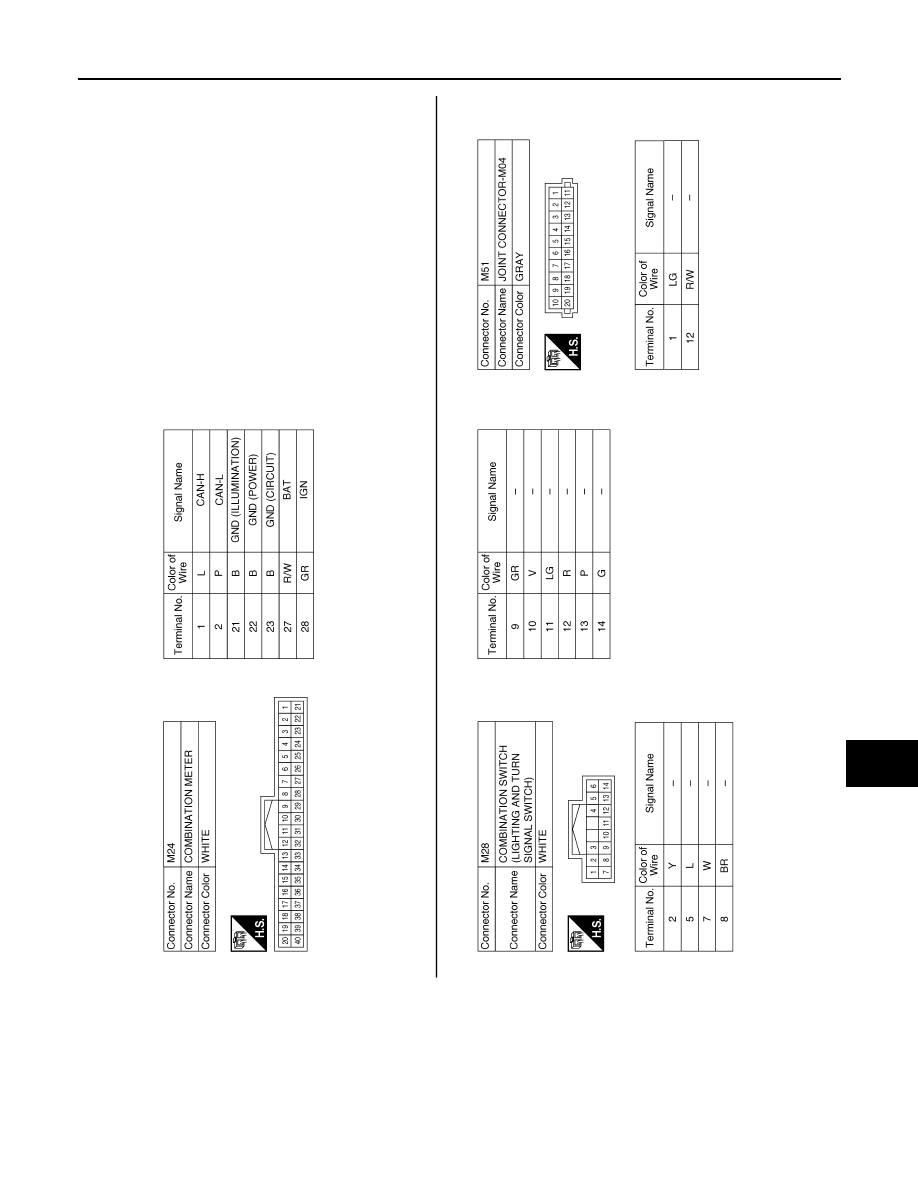

TURN SIGNAL AND HAZARD WARNING LAMPS

EXL-37

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

TURN SIGNAL AND HAZARD WARNING LAMPS

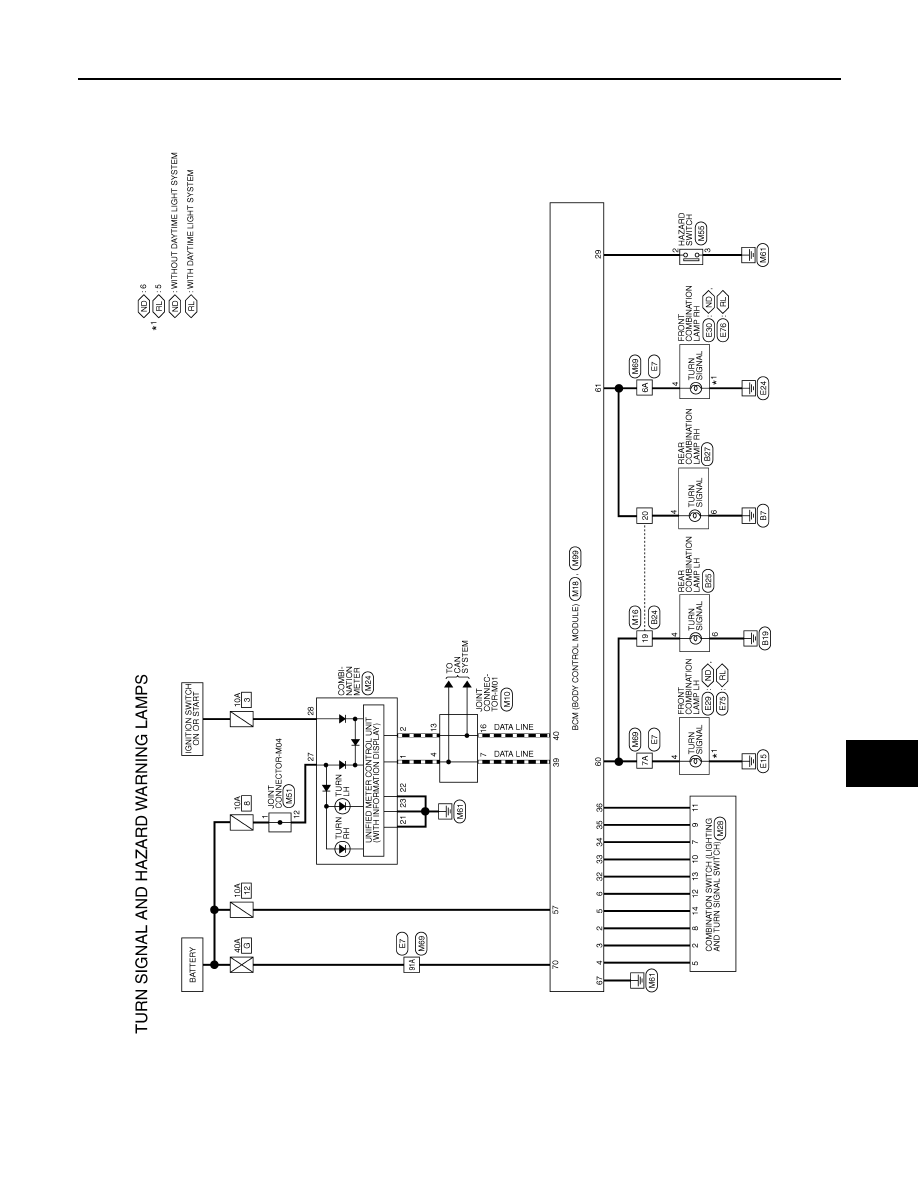

Wiring Diagram

INFOID:0000000009473001

AALWA0634GB

EXL-38

< WIRING DIAGRAM >

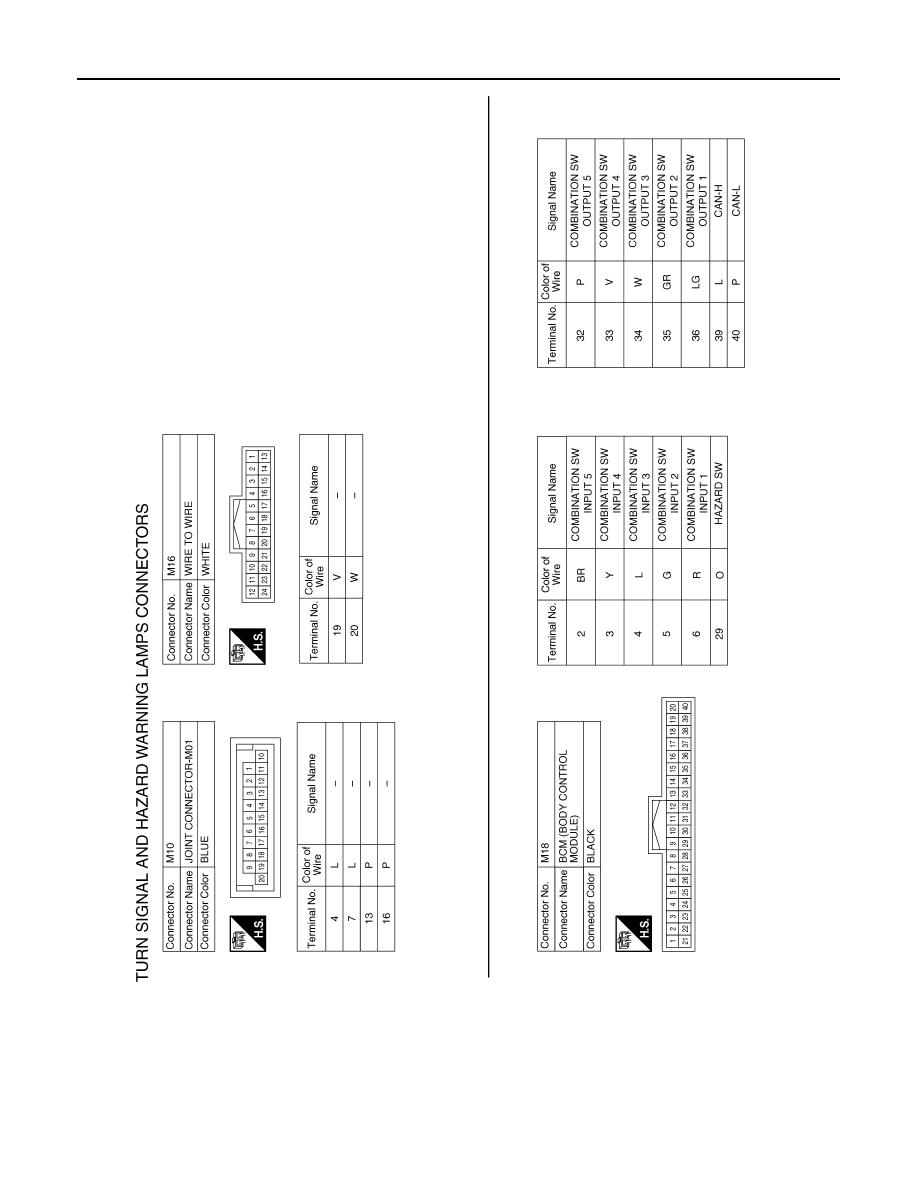

TURN SIGNAL AND HAZARD WARNING LAMPS

AALIA1391GB

TURN SIGNAL AND HAZARD WARNING LAMPS

EXL-39

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AALIA1392GB
