3. With spring (3), tighten nut (4).
CAUTION:
• Ensure springs are seated correctly on the flange and not
sitting on locator dimple (A).
• Be careful that stud bolt does not interfere with mounting
hole of exhaust front tube (
).
4. After installing, check that bolt does not interfere with mounting hole of exhaust front tube.
Exhaust Front Tube to Center Muffler
1. Securely insert seal bearing (2) into exhaust front tube (1).
CAUTION:
Be careful not to damage seal bearing surface when install-
ing.
2. With spring, tighten bolt.
CAUTION:
• Ensure springs are seated correctly on the flange and not
sitting on locator dimple (A).
• Be careful that bolt does not interfere with mounting hole of center muffler.
3. After installing, check that bolt does not interfere with mounting hole of center muffler.
INSPECTION AFTER INSTALLATION
• With the engine running, check the exhaust tube joints for exhaust gas leaks and unusual noises.
• Check that the mounting brackets and mounting insulators are installed properly and free from excessive
stress. Improper installation could result in excessive noise, leaks, and vibration.

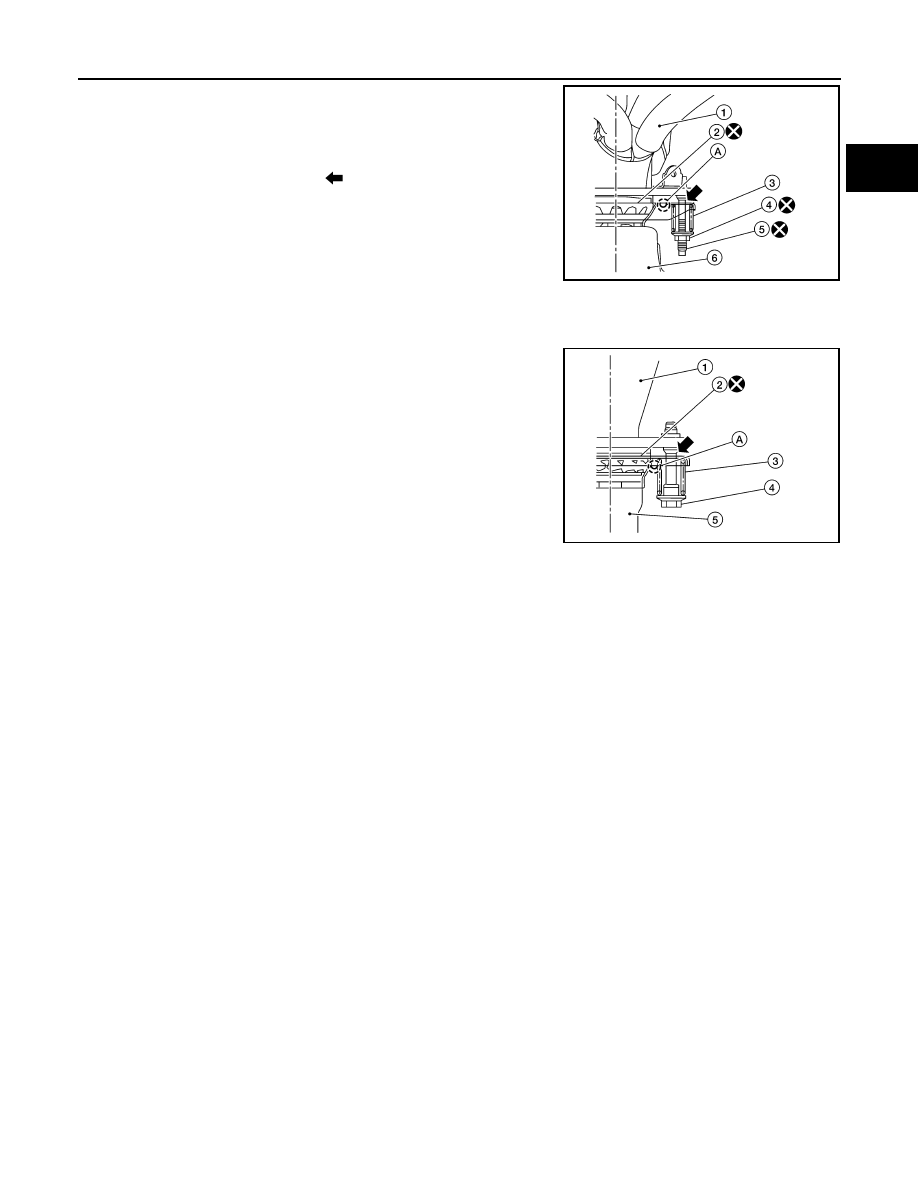

(1)
: Spring
(2)
: Seal bearing
(5)
: Bolt
(6)
: Front exhaust tube
AWBIA1528ZZ
(3)
: Spring
(4)
: Bolt
(5)
: Center muffler
AWBIA1529ZZ
