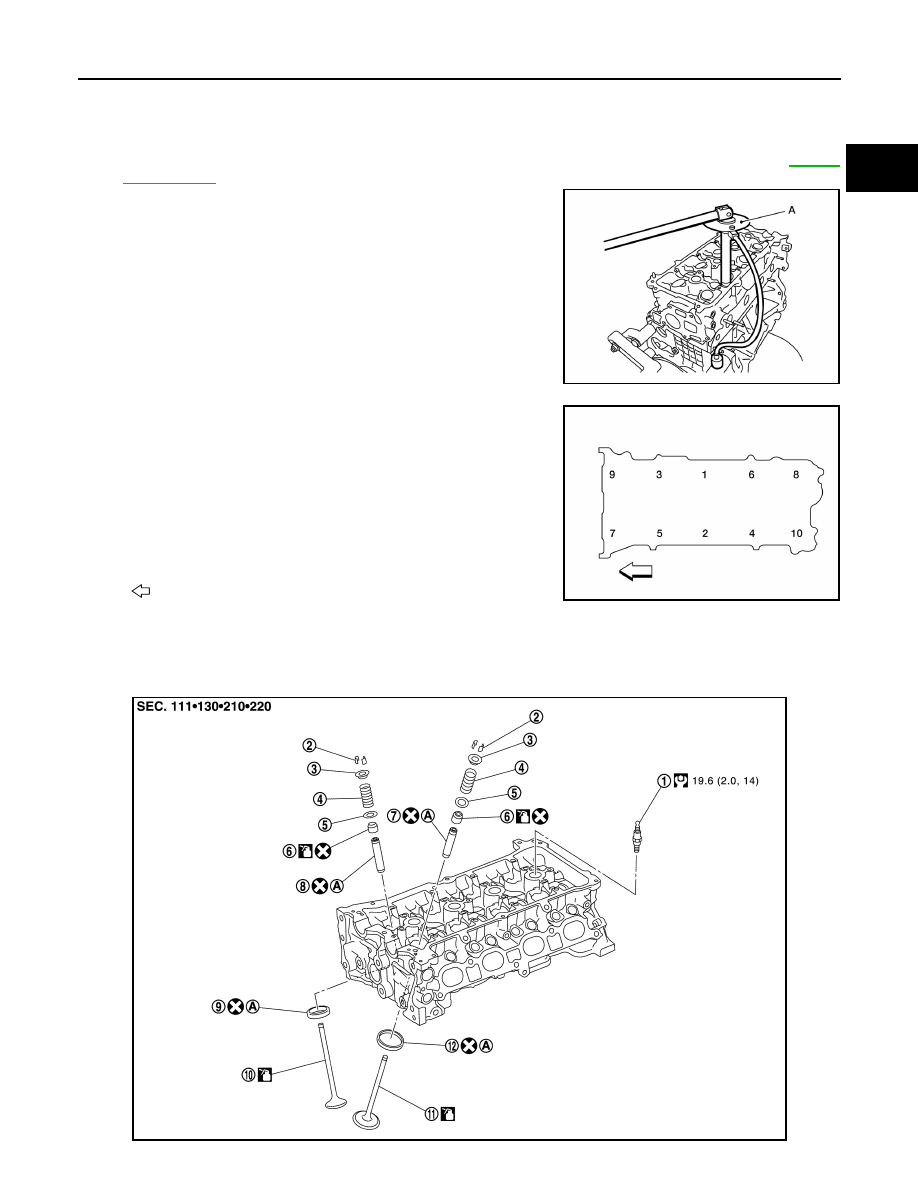

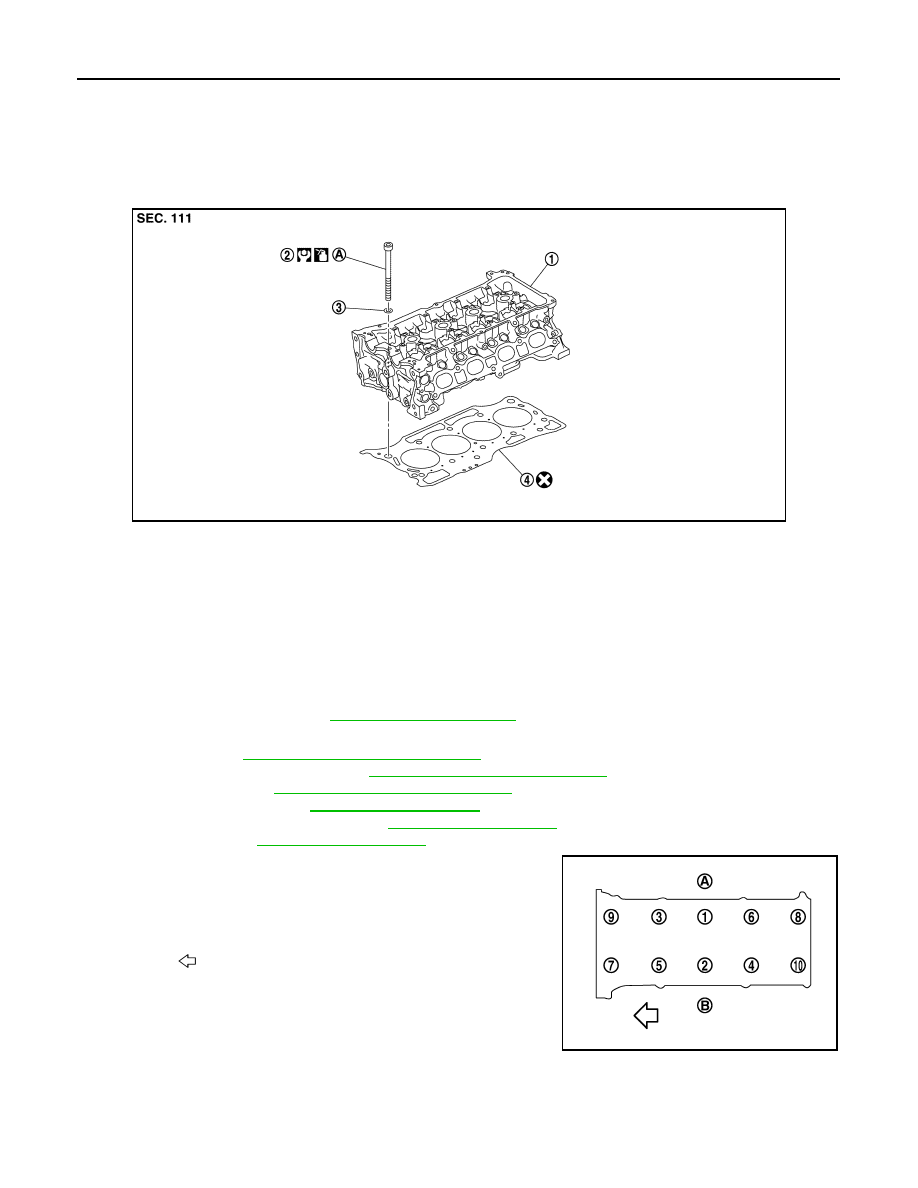

EM-76 < REMOVAL AND INSTALLATION > [HR16DE] CYLINDER HEAD CYLINDER HEAD Exploded View INFOID:0000000009670525 Cylinder Head Bolts Removal and Installation INFOID:0000000009670526 REMOVAL NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill- ing. 2. Remove the following components and related parts. • Air duct. Refer to EM-26, "Removal and Installation" • Fuel tube and fuel injector. Refer to EM-40, "Removal and Installation" . • Water outlet. Refer to CO-25, "Removal and Installation" • Exhaust manifold. Refer to • Front cover and timing chain. Refer to . • Camshaft. Refer to . 3. Remove cylinder head loosening bolts in reverse order as shown. 4. Remove cylinder head gasket. INSTALLATION 1. Install new cylinder head gasket. JPBIA4097ZZ 1. Cylinder head assembly 2. Cylinder head bolt 3. Washer 4. Cylinder head gasket A. INSTALLATION (A) : EXH side : Engine front PBIC3732E |
