IGNITION TIMING

EC-335

< PERIODIC MAINTENANCE >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

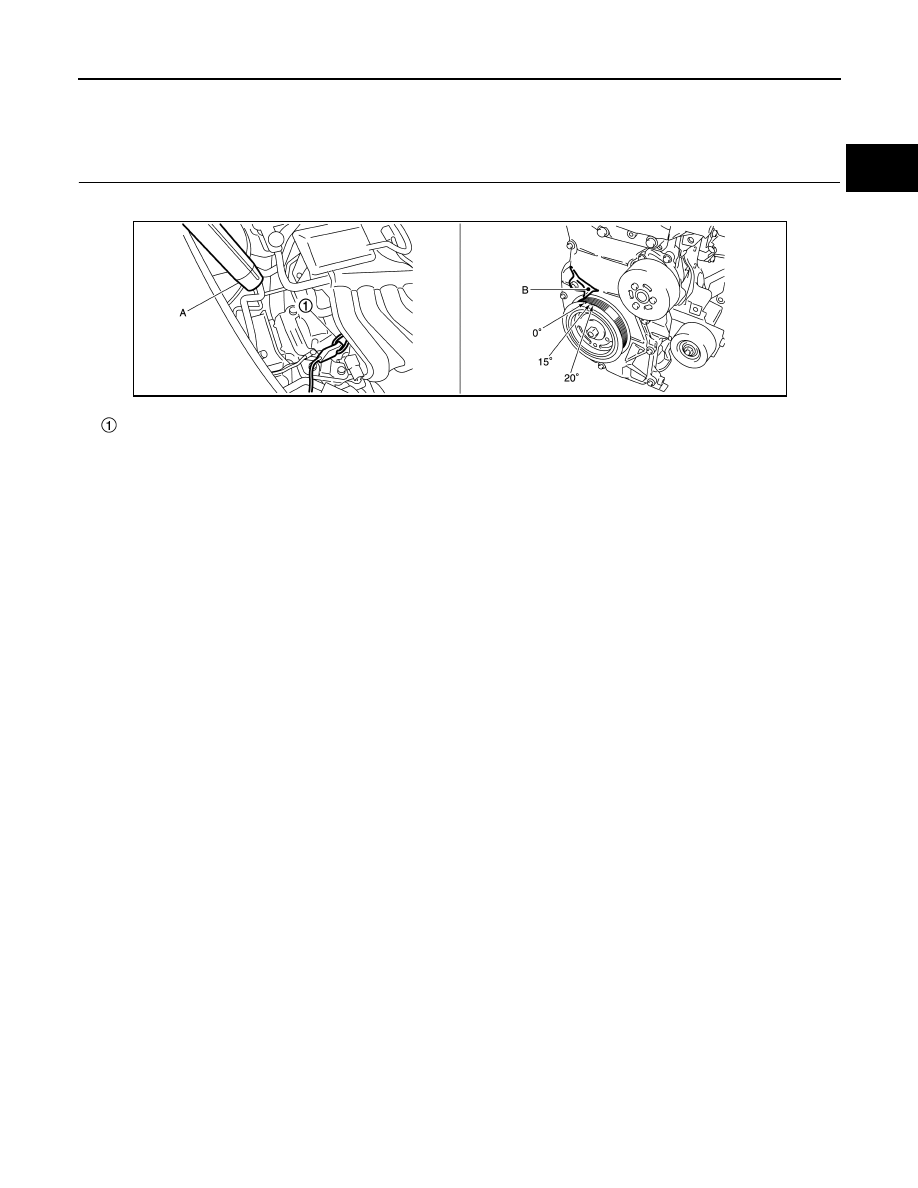

IGNITION TIMING

Inspection

INFOID:0000000009022689

1.

CHECK IGNITION TIMING

1. Attach timing light to loop wire as shown.

2. Check ignition timing.

>> INSPECTION END

Loop wire

A.

Timing light

B.

Timing indicator

JSBIA0603ZZ

EC-336

< PERIODIC MAINTENANCE >

[HR16DE]

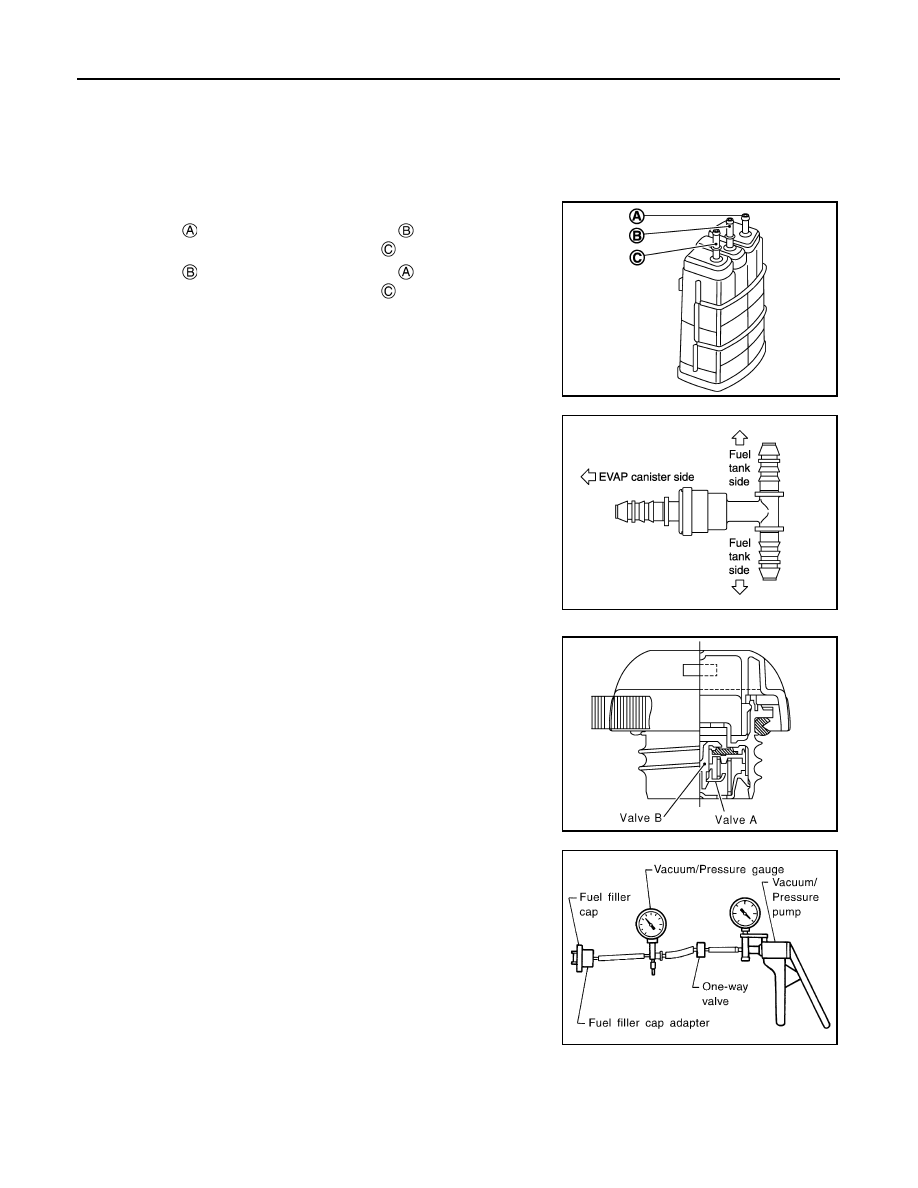

EVAPORATIVE EMISSION SYSTEM

EVAPORATIVE EMISSION SYSTEM

Inspection

INFOID:0000000009022690

1. Visually inspect EVAP vapor lines for improper attachment and for cracks, damage, loose connections,

chafing and deterioration.

2. Check EVAP canister as follows:
a. Block port  . Orally blow air through port  .

Check that air flows freely through port  .

b. Block port  . Orally blow air through port  .

Check that air flows freely through port  .

3. Visually inspect the fuel check valve for cracks, damage, loose

connections chafing and deterioration.

4. Check fuel check valve as follows:
a. Blow air through connector on the fuel tank side. A considerable

resistance should be felt and a portion of air flow should be

directed toward the EVAP canister side.

b. Blow air through connector on EVAP canister side. Air flow

should be smoothly directed toward fuel tank side.

c.

If fuel check valve is suspected or not properly functioning in

step 1 and 2 above, replace it.

5. Inspect fuel tank filler cap vacuum relief valve for clogging, stick-

ing, etc.

a. Wipe clean valve housing.

b. Check valve opening pressure and vacuum.

c.

If out of specification, replace fuel filler cap as an assembly.

JMBIA0443ZZ

JSBIA0080GB

SEF989X

Pressure:

15.3 - 20.0 kPa (0.153 - 0.200 bar, 0.156 - 0.204 kg/
cm

2

, 2.22 - 2.90 psi)

Vacuum:

–6.0 to –3.4 kPa (–0.06 bar to –-0.034bar, –0.061 to –
0.035 kg/cm

2

, –0.87 to –0.49 psi)

SEF943S

POSITIVE CRANKCASE VENTILATION

EC-337

< PERIODIC MAINTENANCE >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

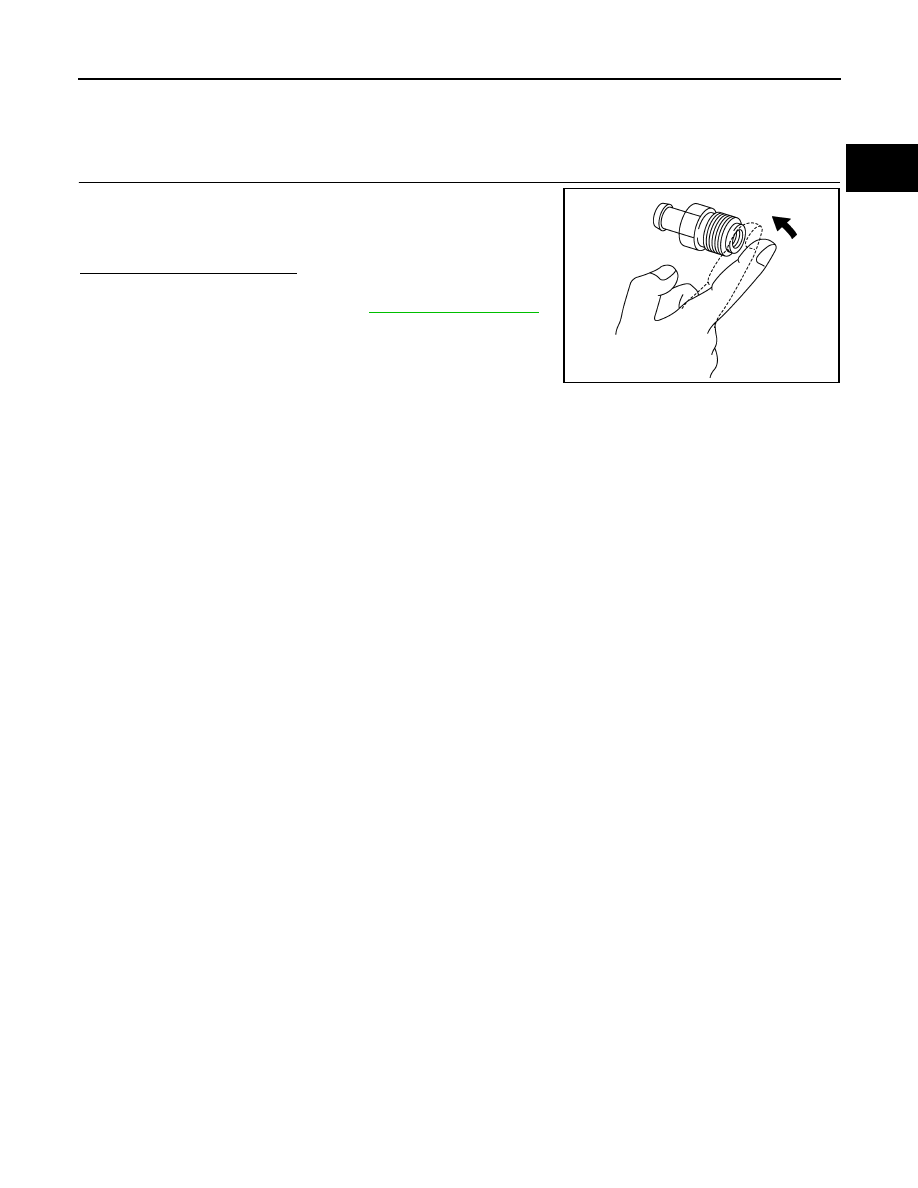

POSITIVE CRANKCASE VENTILATION

Inspection

INFOID:0000000009022691

1.

CHECK PCV VALVE

With engine running at idle, remove PCV valve from rocker cover. A

properly working valve makes a hissing noise as air passes through

it. A strong vacuum should be felt immediately when a finger is

placed over valve inlet.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace PCV valve. Refer to

EM-48, "Exploded View"

.

PBIB1589E

EC-338

< REMOVAL AND INSTALLATION >

[HR16DE]

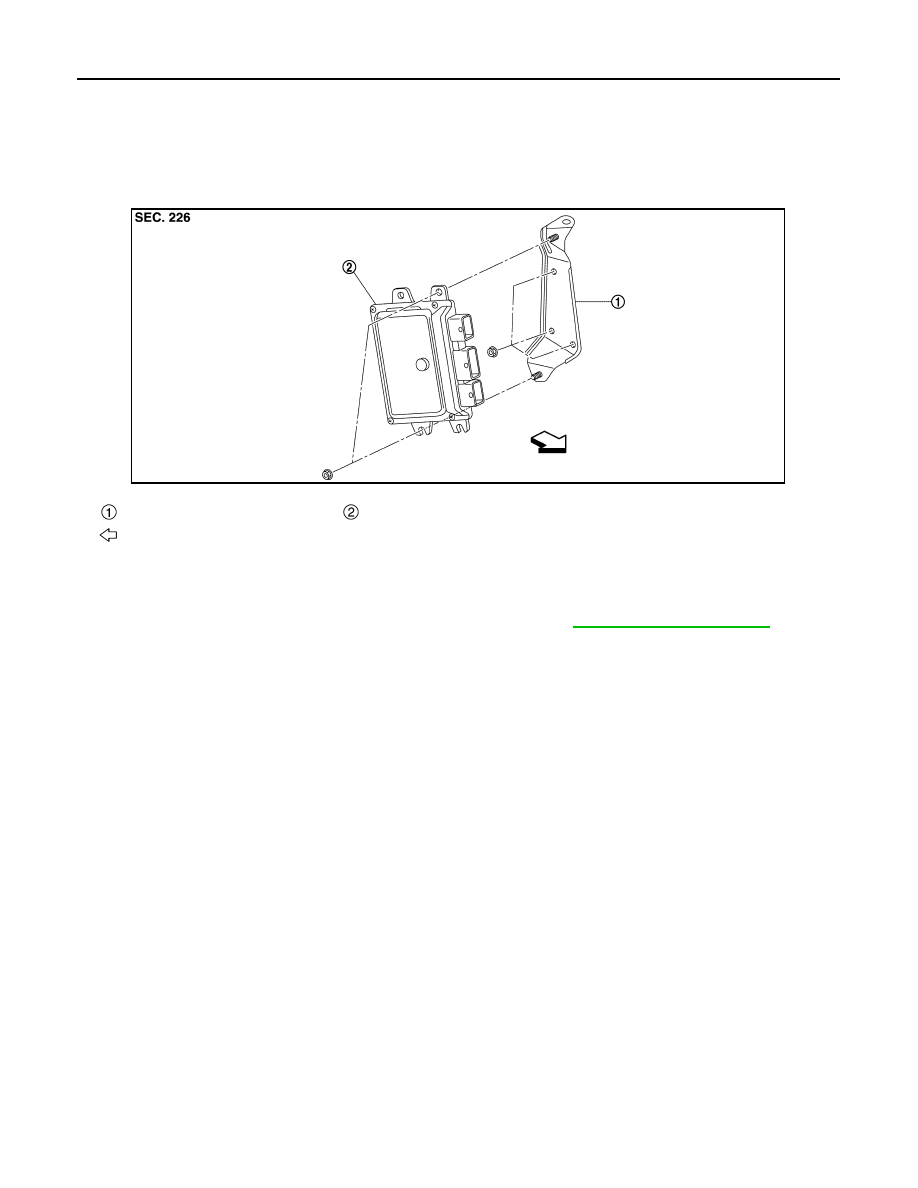

ECM

REMOVAL AND INSTALLATION

ECM

Exploded View

INFOID:0000000009022692

Removal and Installation

INFOID:0000000009022693

CAUTION:

Perform ADDITIONAL SERVICE WHEN REPLACING ECM. Refer to

EC-111, "Work Procedure"

.

REMOVAL

1. Remove fusible link bracket. Keep a service area.
2. Disconnect ECM harness connectors.
3. Remove ECM mounting nuts, and then remove ECM.

INSTALLATION

Install in the reverse order of removal.

ECM bracket

ECM

: Vehicle front

JPBIA4276ZZ
