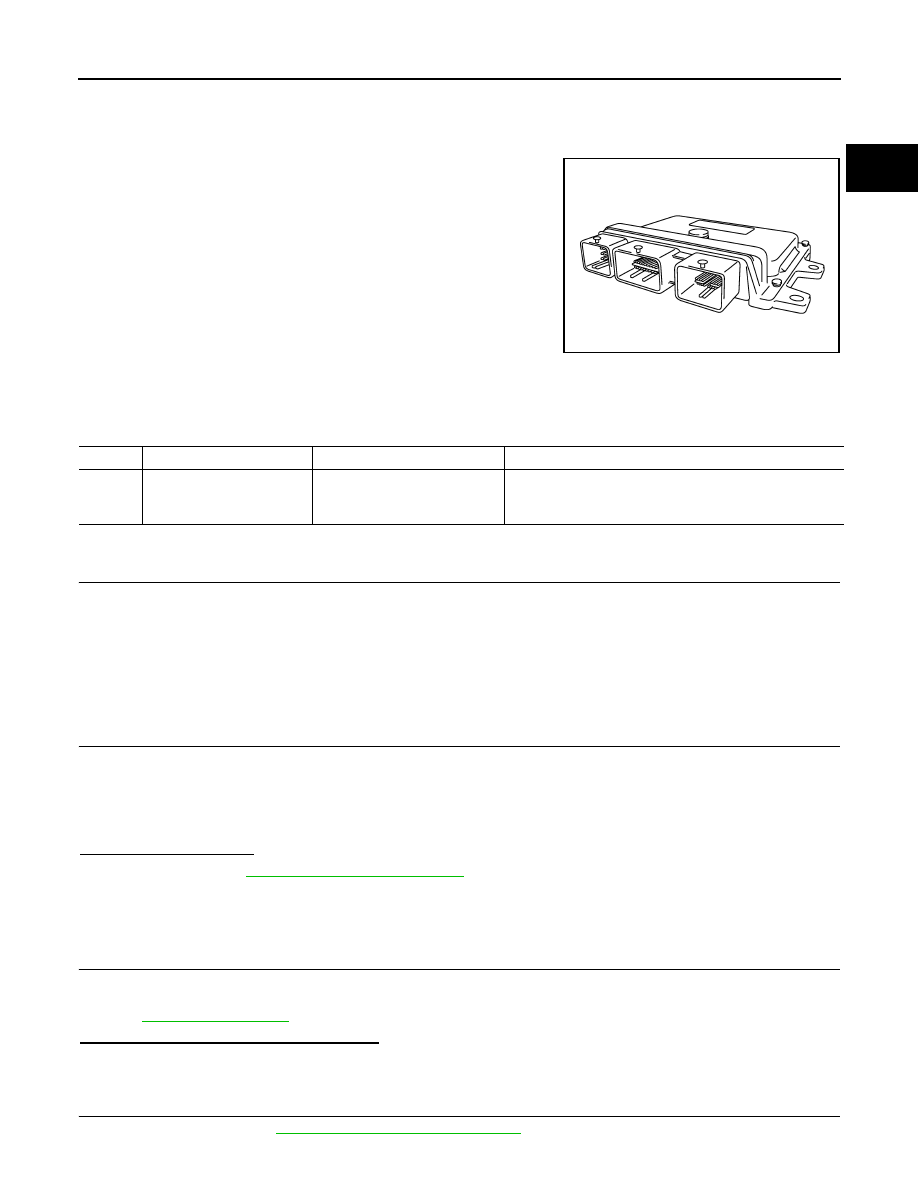

P0603 ECM POWER SUPPLY

Description

INFOID:0000000009022593

ECM has the memory function of the DTC memory, the air-fuel ratio

feedback compensation value memory, the Idle Air Volume Learning

value memory, etc. even when the ignition switch is turned OFF.

DTC Logic

INFOID:0000000009022594

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON wait at least 10 seconds.

2. Turn ignition switch OFF and wait at least 5 minutes

3. Turn ignition switch ON, wait at least 10 seconds.

4. Repeat step 2 and 3 for five times.

5. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-247, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009022595

1.

INSPECTION START

1. Erase DTC.

2. Perform DTC CONFIRMATION PROCEDURE.

See

EC-247, "DTC Logic"

.

Is the 1st trip DTC P0603 displayed again?

YES

>> GO TO 2.

NO

>> INSPECTION END

2.

REPLACE ECM

1. Replace ECM. Refer to

EC-338, "Removal and Installation"

.

PBIA9222J

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0603

ECM BACK UP/CIRCUIT
(ECM power supply circuit)

ECM back-up RAM system
does not function properly.

• Harness or connectors

[ECM power supply (back up) circuit is open or shorted.]

• ECM
