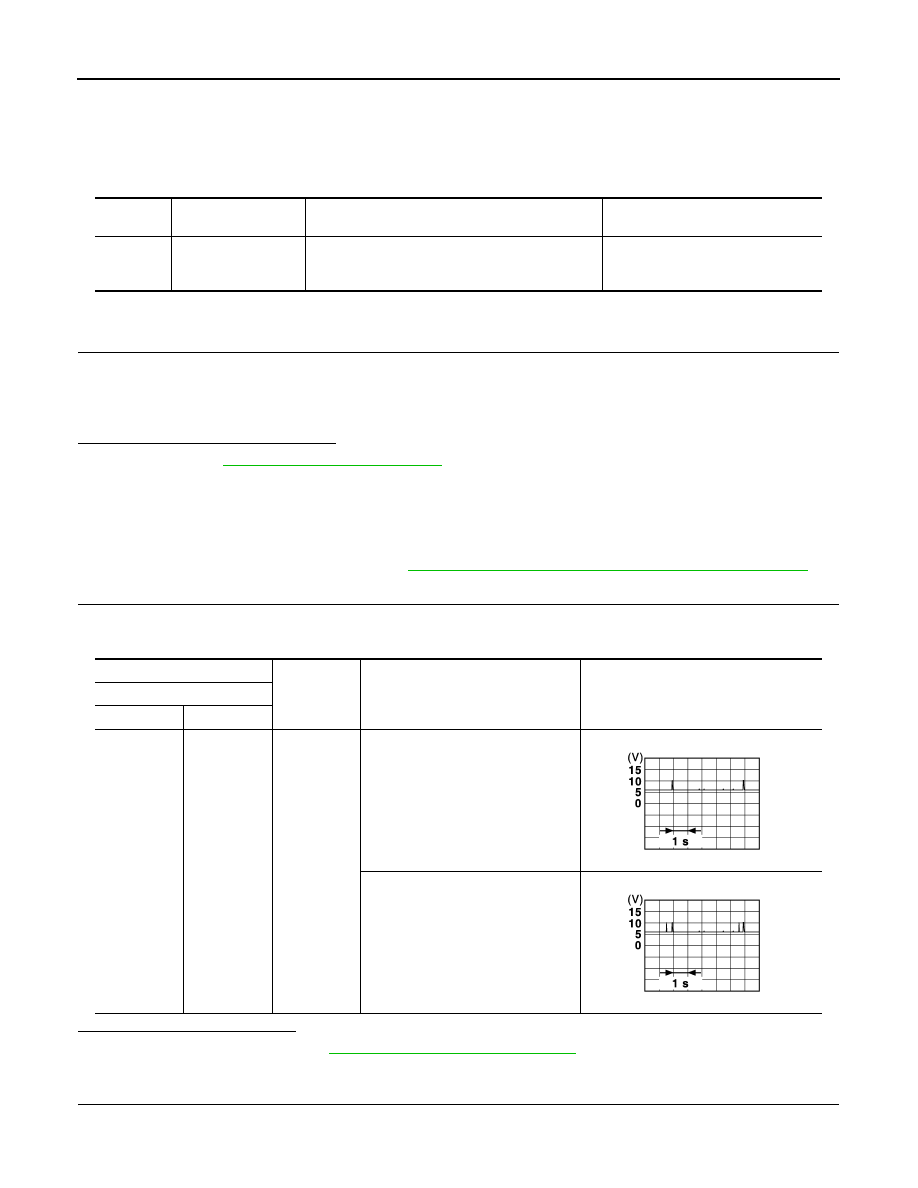

DLK-56

< DTC/CIRCUIT DIAGNOSIS >

B2622 INSIDE ANTENNA

B2622 INSIDE ANTENNA

DTC Logic

INFOID:0000000009515836

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Select INTELLIGENT KEY of BCM using CONSULT.

2. Select INSIDE ANT DIAGNOSIS in WORK SUPPORT mode.

3. Perform inside key antenna (INSIDE ANT DIAGNOSIS) on WORK SUPPORT of INTELLIGENT KEY.

4. Check BCM for DTC.
Is inside key antenna DTC detected?

YES

>> Refer to

DLK-56, "Diagnosis Procedure"

.

NO

>> Inside key antenna (console) is OK.

Diagnosis Procedure

INFOID:0000000009515837

Regarding Wiring Diagram information, refer to

DLK-37, "INTELLIGENT KEY SYSTEM : Wiring Diagram"

.

1.

CHECK INSIDE KEY ANTENNA INPUT SIGNAL 1

1. Turn ignition switch ON.

2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK INSIDE KEY ANTENNA CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM connector and inside key antenna (console) connector.

DTC

CONSULT display

description

DTC detecting condition

Possible cause

B2622

INSIDE ANTENNA 2

An excessive high or low voltage from inside anten-
na (console) is sent to BCM

• Inside key antenna (console)
• Between BCM Inside key antenna

(console)

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M98

86
87

Ground

When Intelligent Key is in the anten-
na detection area

When Intelligent Key is not in the an-
tenna detection area

JMKIA3839GB

JMKIA5951GB

B2622 INSIDE ANTENNA

DLK-57

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

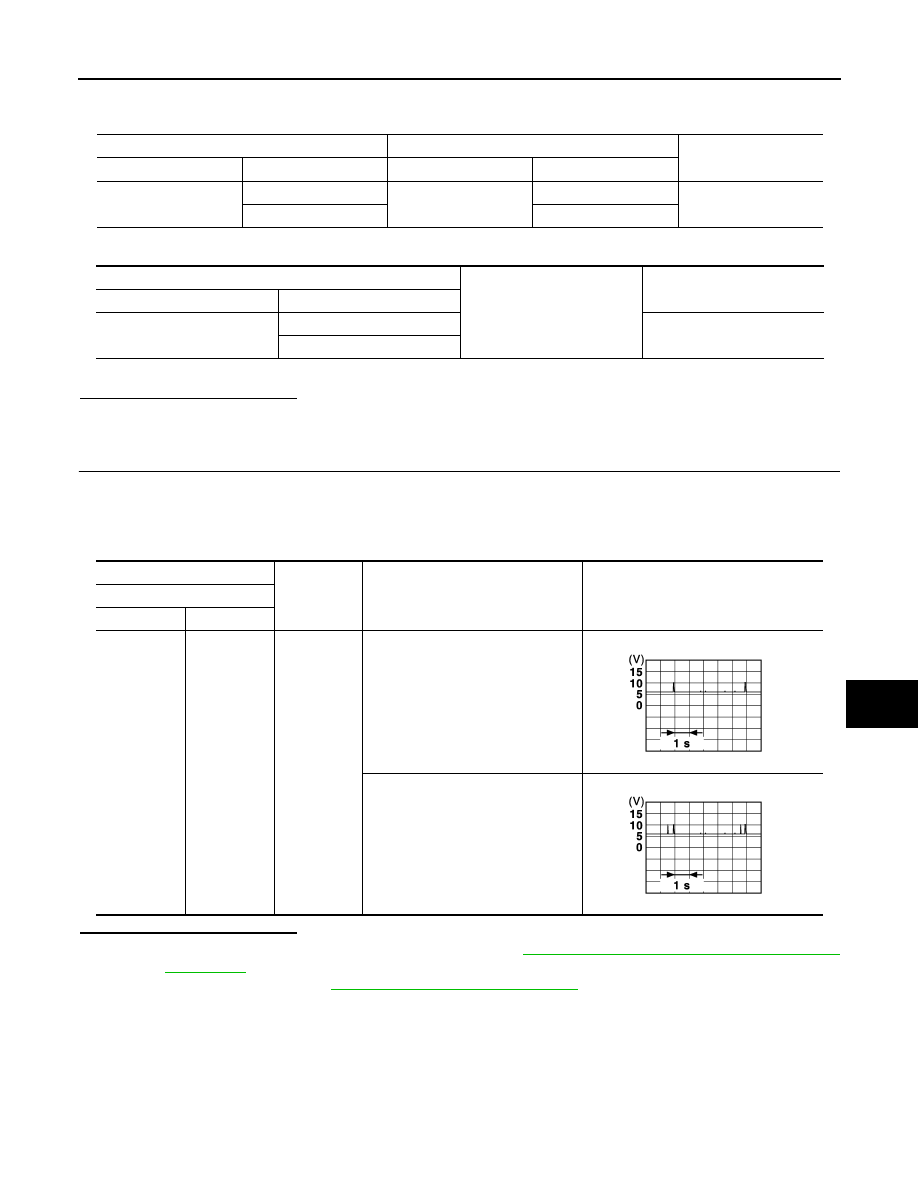

3. Check continuity between BCM harness connector and inside key antenna (console) harness connector.

4. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK INSIDE KEY ANTENNA INPUT SIGNAL 2

1. Replace inside key antenna (console). (New antenna or other antenna)

2. Connect BCM connector and inside key antenna (console) connector.

3. Turn ignition switch ON.

4. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace inside key antenna (console). Refer to

DLK-159, "CONSOLE : Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

BCM

Inside key antenna (console)

Continuity

Connector

Terminal

Connector

Terminal

M98

86

M89

1

Yes

87

2

BCM

Ground

Continuity

Connector

Terminal

M98

86

No

87

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M98

86
87

Ground

When Intelligent Key is in the anten-
na detection area

When Intelligent Key is not in the an-
tenna detection area

JMKIA3839GB

JMKIA5951GB

DLK-58

< DTC/CIRCUIT DIAGNOSIS >

B2623 INSIDE ANTENNA

B2623 INSIDE ANTENNA

DTC Logic

INFOID:0000000009515838

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Select INTELLIGENT KEY of BCM using CONSULT.

2. Select INSIDE ANT DIAGNOSIS in WORK SUPPORT mode.

3. Perform inside key antenna (INSIDE ANT DIAGNOSIS) on WORK SUPPORT of INTELLIGENT KEY.

4. Check BCM for DTC.
Is inside key antenna DTC detected?

YES

>> Refer to

DLK-58, "Diagnosis Procedure"

.

NO

>> Inside key antenna (trunk room) is OK.

Diagnosis Procedure

INFOID:0000000009515839

Regarding Wiring Diagram information, refer to

DLK-37, "INTELLIGENT KEY SYSTEM : Wiring Diagram"

.

1.

CHECK INSIDE KEY ANTENNA INPUT SIGNAL 1

1. Turn ignition switch ON.

2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK INSIDE KEY ANTENNA CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM connector and inside key antenna (trunk room) connector.

DTC

CONSULT display

description

DTC detecting condition

Possible cause

B2623

INSIDE ANTENNA 3

An excessive high or low voltage from inside anten-
na (trunk room) is sent to BCM

• Inside key antenna (trunk room)
• Between BCM Inside key antenna

(trunk room)

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M98

88
89

Ground

When Intelligent Key is in the anten-
na detection area

When Intelligent Key is not in the an-
tenna detection area

JMKIA3839GB

JMKIA5951GB

B2623 INSIDE ANTENNA

DLK-59

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3. Check continuity between BCM harness connector and inside key antenna (trunk room) harness connec-

tor.

4. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK INSIDE KEY ANTENNA INPUT SIGNAL 2

1. Replace inside key antenna (trunk room). (New antenna or other antenna)

2. Connect BCM connector and inside key antenna (trunk room) connector.

3. Turn ignition switch ON.

4. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace inside key antenna (trunk room). Refer to

DLK-159, "LUGGAGE ROOM : Removal and

Installation"

.

NO

>> Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

BCM

Inside key antenna (trunk room)

Continuity

Connector

Terminal

Connector

Terminal

M98

88

B48

1

Yes

89

2

BCM

Ground

Continuity

Connector

Terminal

M98

88

No

89

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M98

88
89

Ground

When Intelligent Key is in the anten-
na detection area

When Intelligent Key is not in the an-
tenna detection area

JMKIA3839GB

JMKIA5951GB
