< PREPARATION >

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000009486705

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009486706

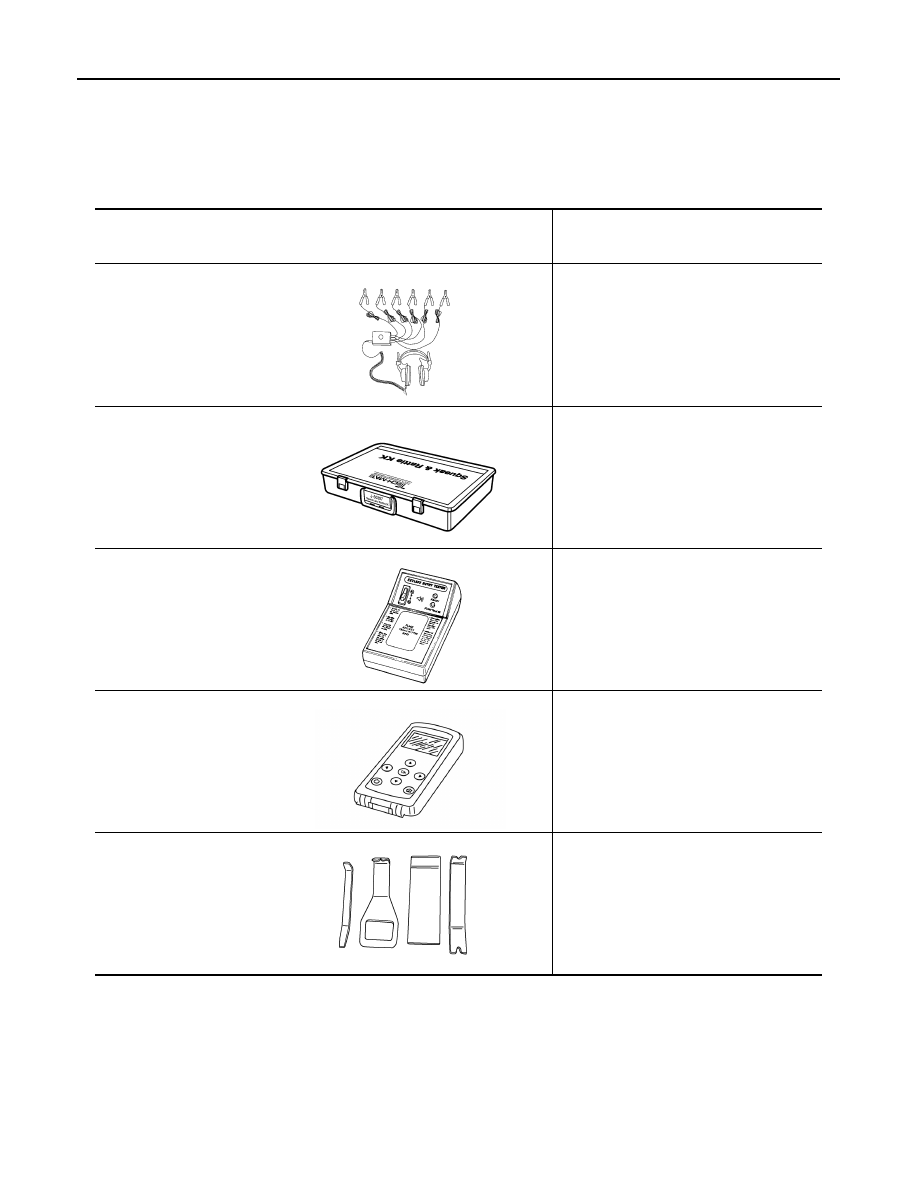

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis Ear

Locating the noise

—

(J-50397)
NISSAN Squeak and Rat-
tle Kit

Repairing the cause of noise

—

(J-43241)
Remote Keyless Entry
Tester

Used to test keyfobs

—

(J-50190)
Signal Tech II

• Check Intelligent Key relative signal

strength

• Confirm vehicle Intelligent Key antenna

signal strength

—

(J-46534)
Trim Tool Set

Removing trim components

SIIA0993E

ALJIA1232ZZ

LEL946A

ALEIA0131ZZ

AWJIA0483ZZ

PREPARATION

DLK-9

< PREPARATION >

DLK

(Kent-Moore No.)
Tool name

Description

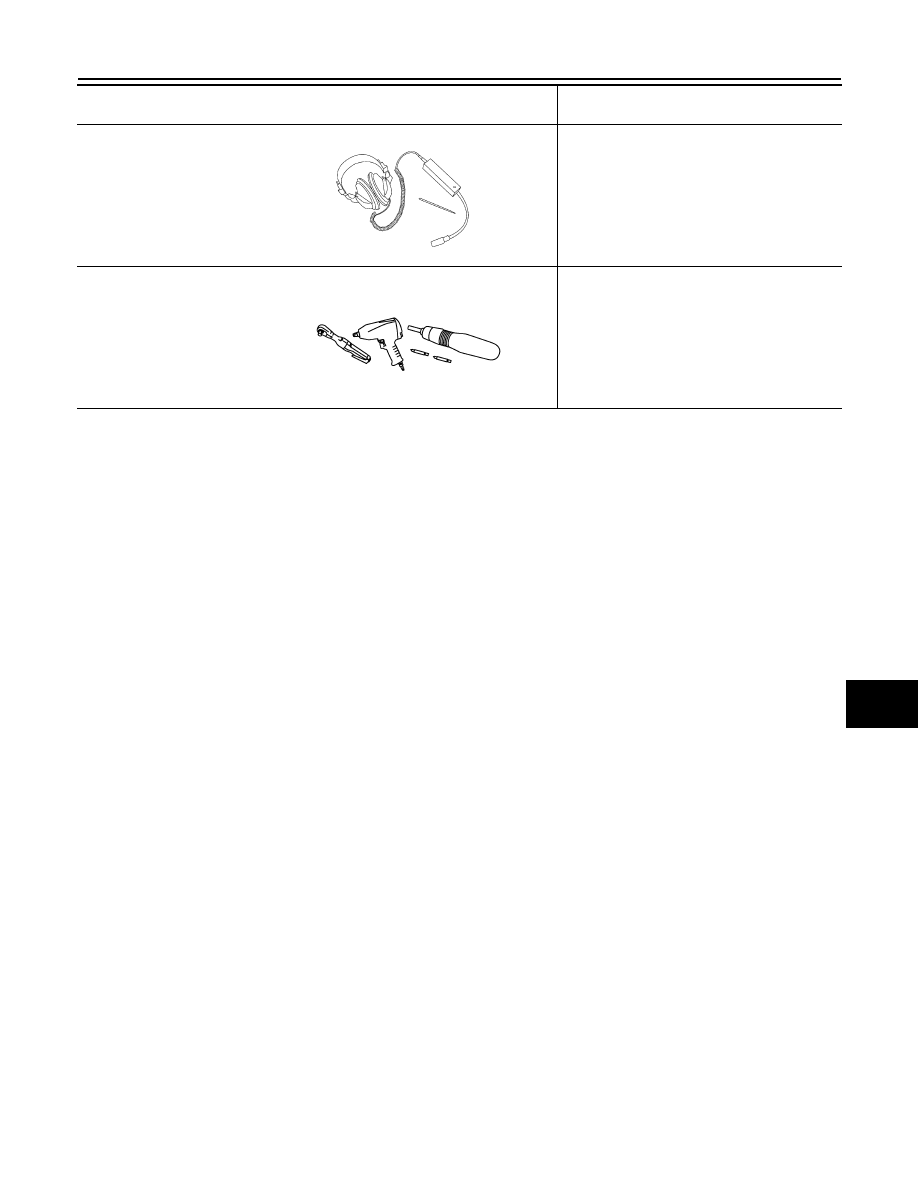

(J-39565)
Engine Ear

Locating the noise

( — )
Power Tool

Loosening nuts, screws and bolts

SIIA0995E

PIIB1407E

COMPONENT PARTS

DLK-11

< SYSTEM DESCRIPTION >

DLK

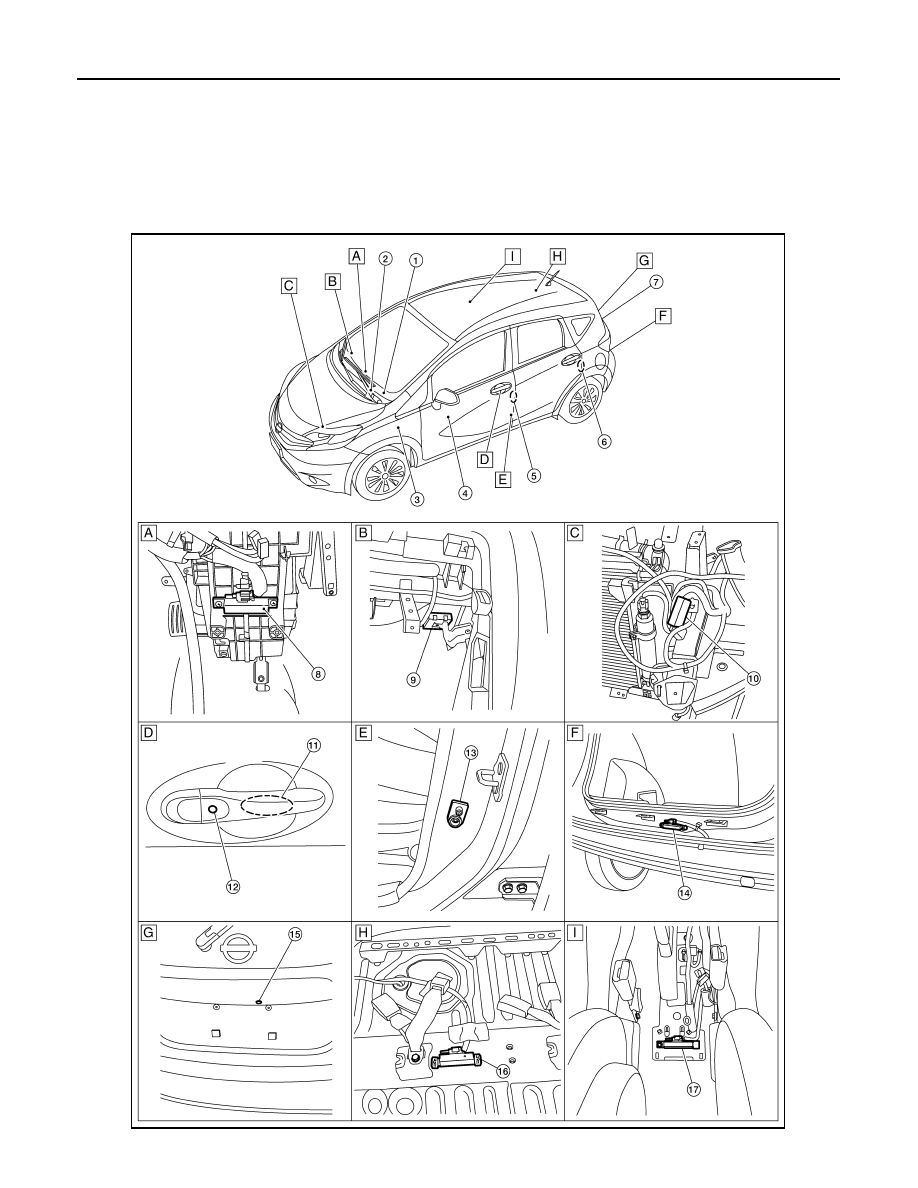

A. View with instrument panel assembly

removed

B. View with glove box door removed

C. View with front grill removed

D. View of LH door. (RH similar)

E. View of LH door switch (RH similar)

View with rear bumper cover re-
moved

G. View from rear of vehicle

H. View with rear seat cushion removed I.

View with center console removed

No.

Component

Function

Combination meter

Combination meter transmits the vehicle speed sig-
nal to BCM via CAN communication.
BCM also receives the vehicle speed signal from
ABS actuator and electric unit (control unit) via CAN
communication. BCM compares both signals to de-
tect the vehicle speed.
Security indicator lamp is located on combination
meter.
Security indicator lamp blinks when ignition switch
is in any position other than ON to warn that NIS-
SAN VEHICLE IMMOBILIZER SYSTEM-NATS
[NVIS (NATS)] is on board.
Refer to

MWI-6, "METER SYSTEM : Combination

Meter"

Push-button ignition switch

Push-button ignition switch has push switch inside
which detects that push-button ignition switch is
pressed, and then transmits ON/OFF signal to
BCM. BCM changes the ignition switch position with
the operation of push-button ignition switch. BCM
maintains the ignition switch position status while
push-button ignition switch is not operated.

BCM

BCM controls INTELLIGENT KEY SYSTEM (EN-
GINE START FUNCTION), NISSAN VEHICLE IM-
MOBILIZER SYSTEM-NATS [NVIS (NATS)] and
VEHICLE SECURITY SYSTEM.
BCM performs the ID verification between BCM and
Intelligent Key when the Intelligent Key is carried
into the detection area of inside key antenna, and
push-button ignition switch is pressed. If the ID ver-
ification result is OK, ignition switch operation is
available.
Then, when the ignition switch is turned ON, BCM
performs ID verification between BCM and ECM. If
the ID verification result is OK, ECM can start en-
gine.
Refer to

BCS-4, "BODY CONTROL SYSTEM :

Component Parts Location"

for detailed installation

location.

Main power window and door lock/unlock switch

Door lock and unlock switch is integrated into the
power window main switch.
Door lock and unlock switch transmits door lock/un-
lock operation signal to BCM.
Refer to

PWC-6, "Power Window Main Switch"

Front door lock assembly LH

Door key cylinder switch is integrated into front door
lock assembly (driver side).
Door key cylinder switch detects door LOCK/UN-
LOCK operation using mechanical key, and then
transmits the operation signal to BCM.
Refer to

DLK-14, "DOOR LOCK SYSTEM : Front

Door Lock Assembly (Driver Side)"

Rear door lock actuator LH

Rear door lock actuator locks/unlocks the rear door
latch assembly.

Back door lock actuator

Back door lock actuator locks/unlocks the back door
latch assembly.
