Nissan Note E12. Manual - part 115

CO-16

< REMOVAL AND INSTALLATION >

[HR16DE]

RADIATOR

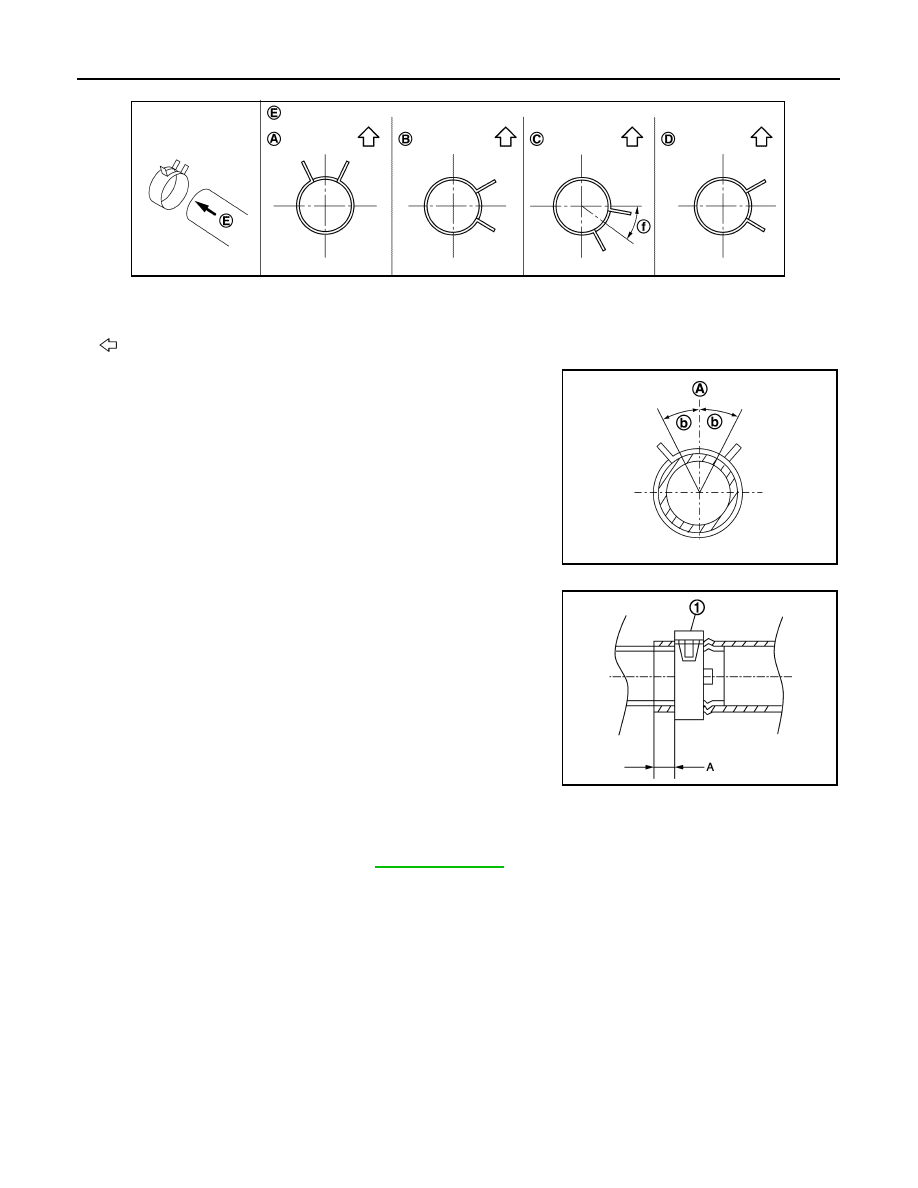

• The angle (b) created by the hose clamp pawl and the specified

line (A) must be within

±30° as shown.

• To install hose clamps (1), check that the dimension (A) from the

end of the hose clamp on the radiator hose to the hose clamp is

within the reference value.

CAUTION:

• When installing do not damage or scratch radiator core or A/C

condenser.

• Replace water hose clamp if it is removed.

• Use only Genuine NISSAN bolts for the cooling fan assembly

and strictly follow the tightening torque. Over tightening may

damage the radiator.

INSPECTION AFTER INSTALLATION

• Check for engine coolant leaks. Refer to

CO-8, "Inspection"

.

• Start and warm up the engine. Visually inspect for engine coolant leaks. Repair as necessary.

A. View  A

B. View  B

C. View  C

D

View D

E. View E

f.

45

°

: Vehicle upper

JSBIA1299ZZ

JPBIA4295ZZ

Dimension (A)

: 3 – 7 mm (0.12 – 0.28 in)

JPBIA3527ZZ

COOLING FAN

CO-17

< REMOVAL AND INSTALLATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

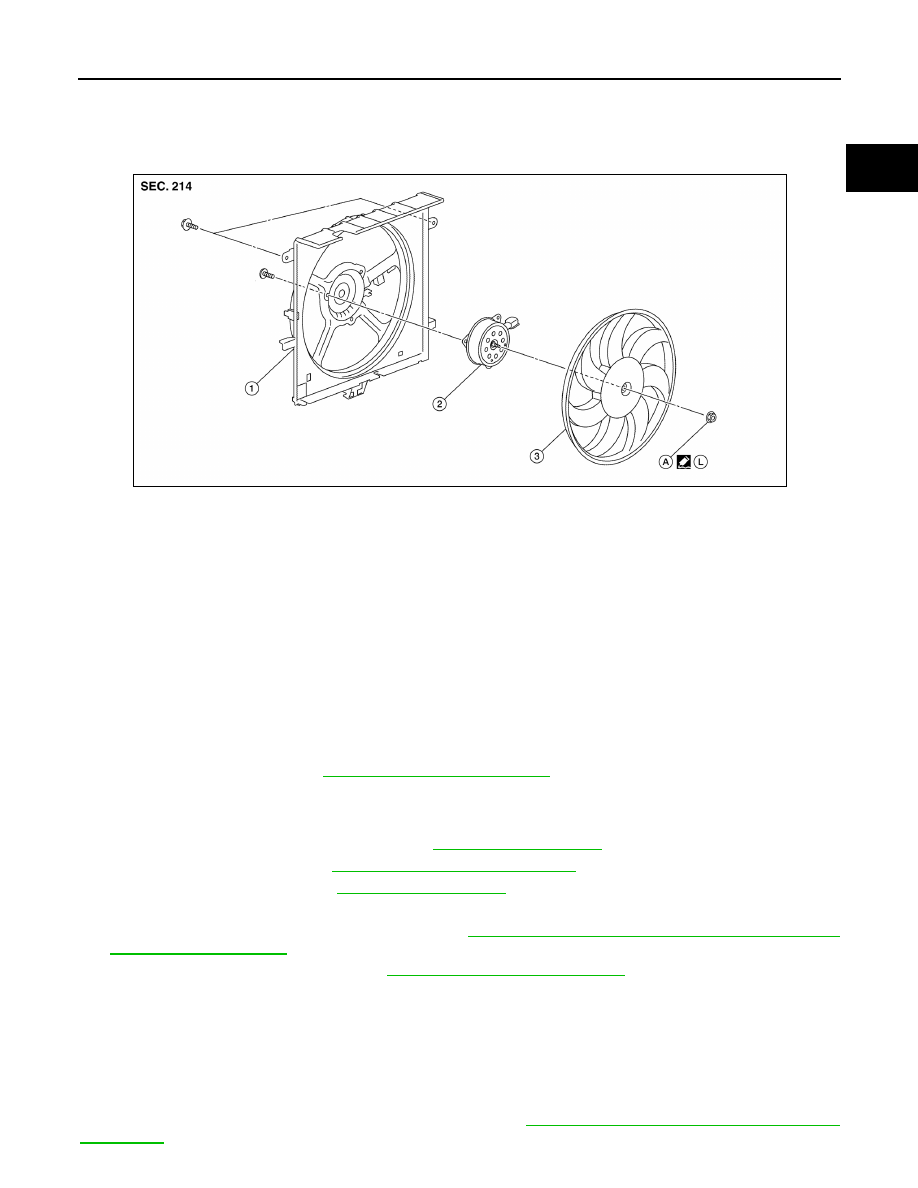

COOLING FAN

Exploded View

INFOID:0000000009444923

Removal and Installation

INFOID:0000000009444924

REMOVAL

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure

engine coolant escaping from the radiator. Wrap a thick cloth around the radiator cap. Slowly turn it a

quarter of a turn to release built-up pressure. Carefully remove radiator cap by turning it all the way.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.
1. Drain engine coolant. Refer to

CO-8, "Draining Engine Coolant"

.

CAUTION:

• Perform this step when the engine is cold.

• Do not spill engine coolant on drive belt.

2. Disconnect battery negative terminal. Refer to

PG-69, "Exploded View"

.

3. Remove the front grille. Refer to

EXT-21, "Removal and Installation"

.

4. Remove reservoir tank. Refer to

CO-14, "Exploded View"

.

5. Disconnect harness connector from fan motor, and move harness aside.
6. Remove radiator core support (upper). Refer to

DLK-122, "RADIATOR CORE SUPPORT UPPER :

Removal and Installation"

.

7. Remove cooling fan assembly. Refer to

CO-17, "Removal and Installation"

.

CAUTION:

Be careful not to damage or scratch the radiator.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Only use Genuine NISSAN parts for the fan shroud bolt.

NOTE:

Cooling fan assembly is controlled by ECM. For details, refer to

EC-35, "COOLING FAN CONTROL : System

Description"

.

1.

Fan shroud

2.

Fan motor

3.

Cooling fan

A.

Cooling fan nut

L.

Genuine NISSAN high strength lock-
ing sealant

AWBIA1140GB

CO-18

< REMOVAL AND INSTALLATION >

[HR16DE]

COOLING FAN

Disassembly and Assembly

INFOID:0000000009444925

DISASSEMBLY

1. Remove cooling fan nut, and then remove the cooling fan.
2. Remove fan motor.

INSPECTION AFTER DISASSEMBLY

Cooling fan and shroud

Inspect cooling fan and shroud for nicks, cracks, breaks and warping. Replace if necessary.

ASSEMBLY

Assembly is in the reverse order of disassembly.

CAUTION:

Apply Genuine NISSAN high strength thread locking sealant on fan motor shaft.

WATER PUMP

CO-19

< REMOVAL AND INSTALLATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

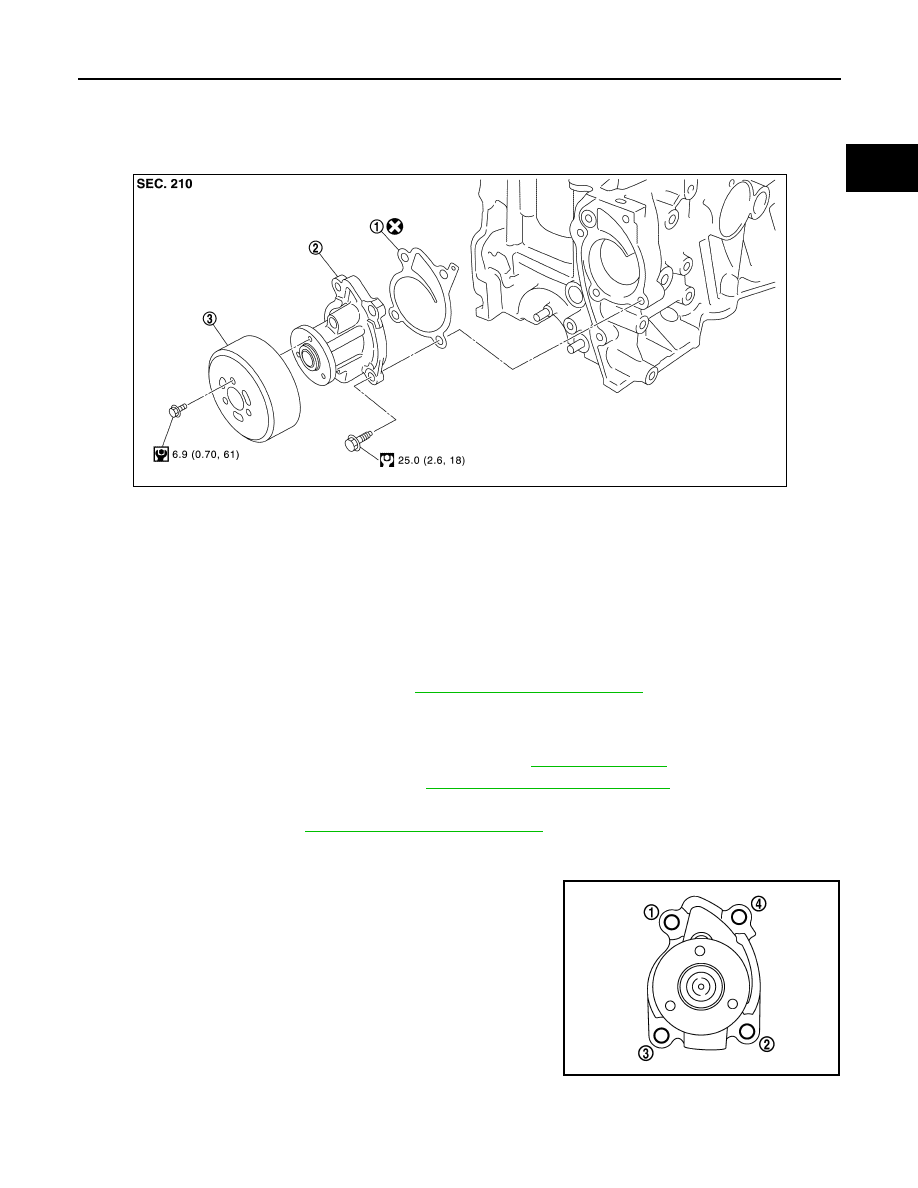

WATER PUMP

Exploded View

INFOID:0000000009444926

Removal and Installation

INFOID:0000000009444927

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure

engine coolant escaping from the radiator. Wrap a thick cloth around the radiator cap. Slowly turn it a

quarter of a turn to release built-up pressure. Carefully remove radiator cap by turning it all the way.

REMOVAL

1. Drain engine coolant from radiator. Refer to

CO-8, "Draining Engine Coolant"

.

CAUTION:

• Perform this step when the engine is cold.

• Do not spill engine coolant on drive belt.

2. Remove front wheel and tire (RH) using power tool. Refer to

WT-5, "Adjustment"

.

3. Remove front fender protector (RH). Refer to

EXT-24, "Removal and Installation"

.

4. Loosen water pump pulley bolts before loosening belt tension of drive belt.
5. Remove drive belt. Refer to

EM-16, "Removal and Installation"

.

6. Remove water pump pulley.
7. Remove water pump.

• Loosen water pump bolts in reverse order as shown.

• Engine coolant will leak from cylinder block, so have a recep-

tacle ready below.

CAUTION:

• Do not allow water pump vane to contact any other parts.

• Water pump cannot be disassembled and must be

replaced as an assembly.

INSPECTION AFTER REMOVAL

1.

Gasket

2.

Water pump

3.

Water pump pulley

JPBIA4104GB

KBIA3393J
