Nissan Note E12. Manual - part 101

CHG-6

< WIRING DIAGRAM >

CHARGING SYSTEM

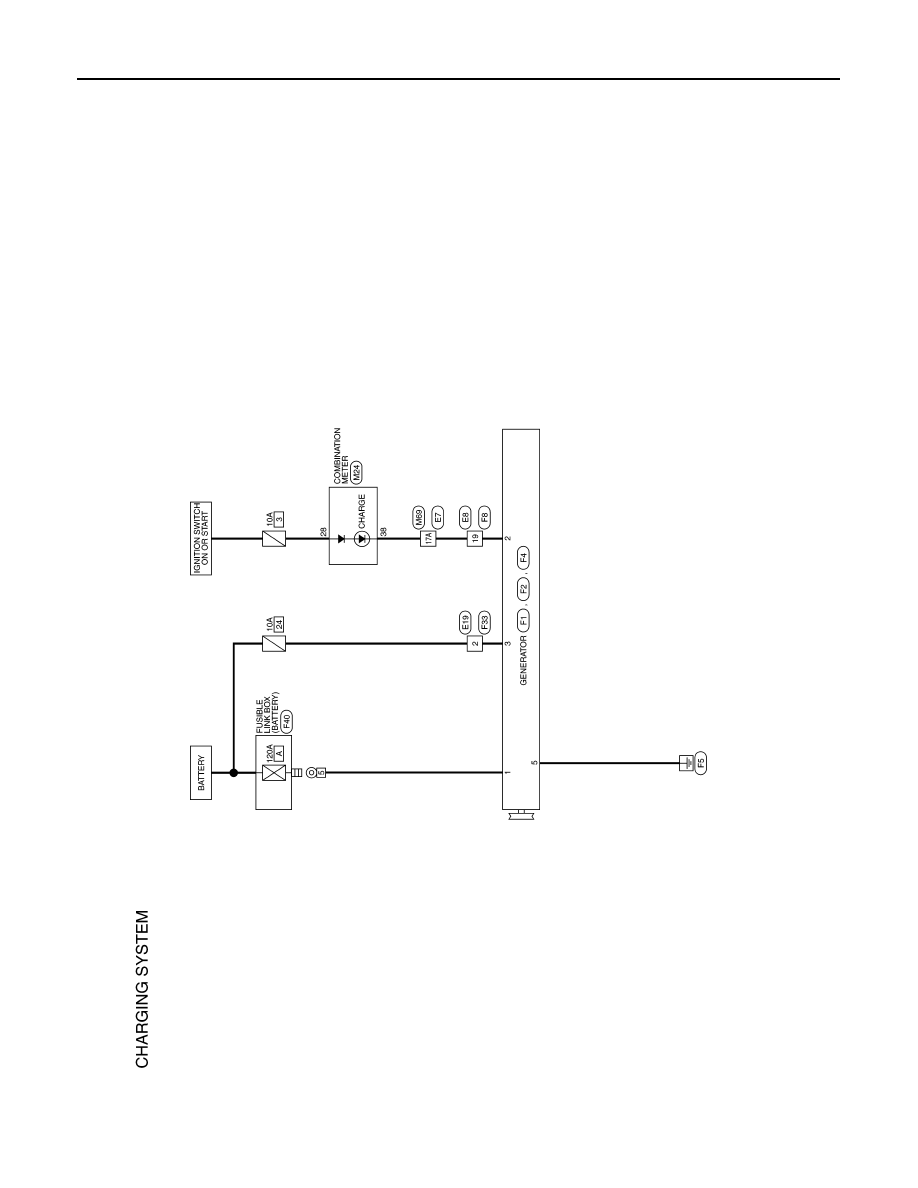

WIRING DIAGRAM

CHARGING SYSTEM

Wiring Diagram

INFOID:0000000009014843

AAMWA0758GB

CHG

CHARGING SYSTEM

CHG-7

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA1655GB

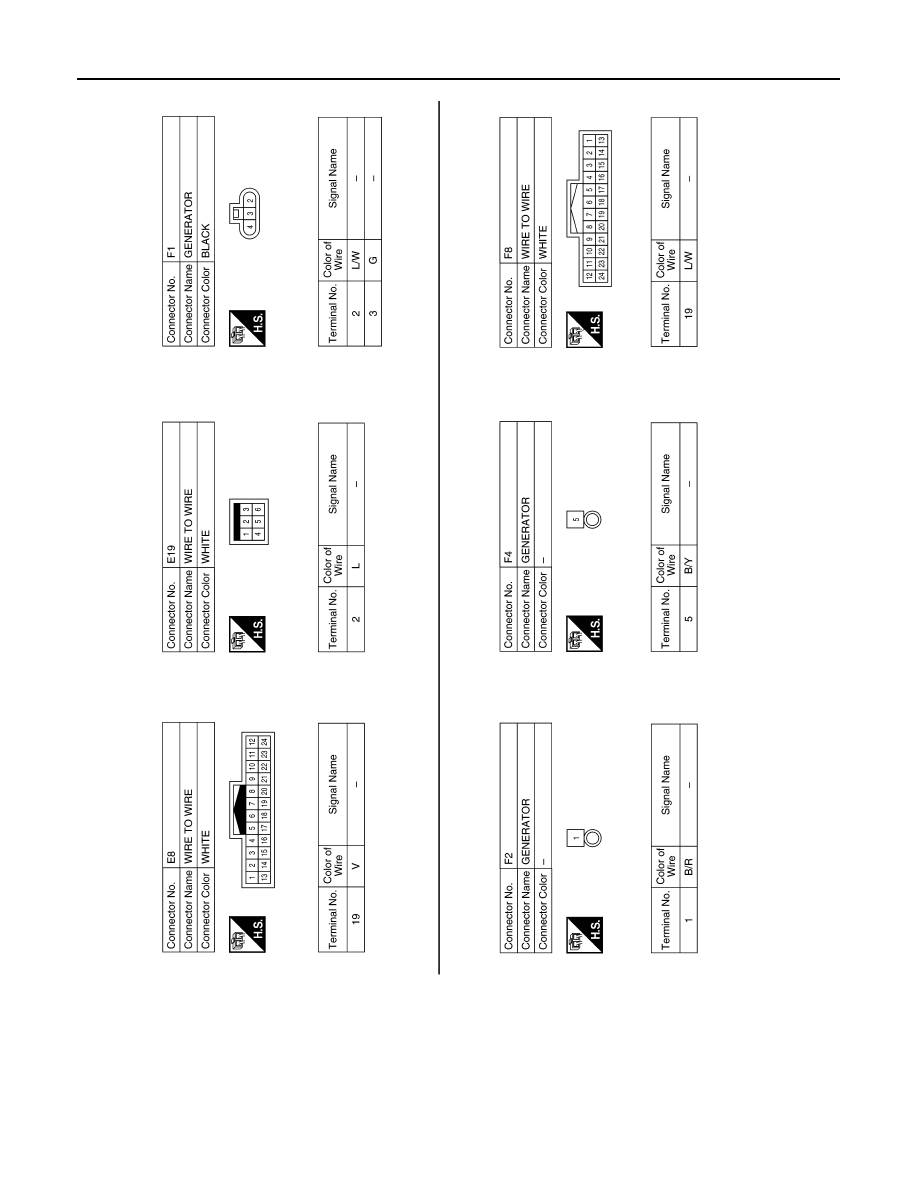

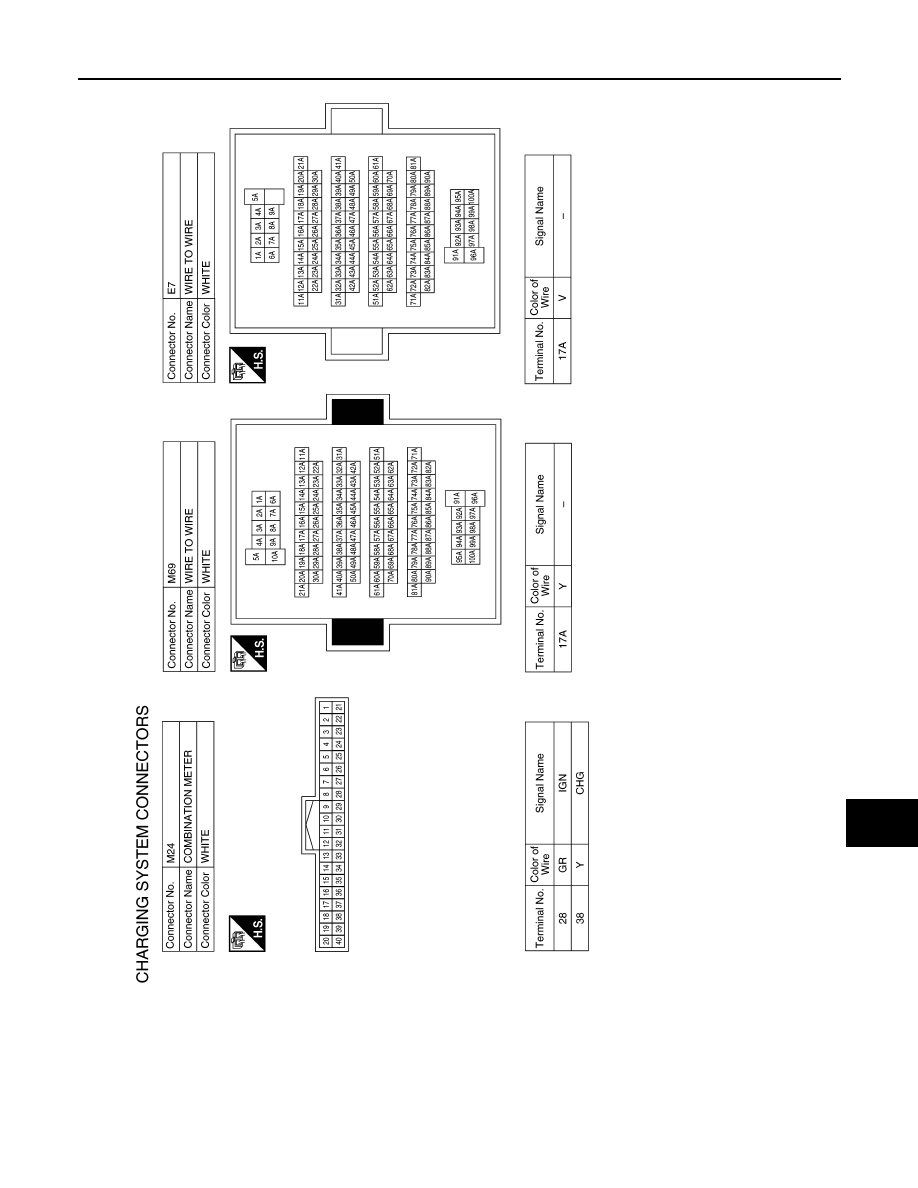

CHG-8

< WIRING DIAGRAM >

CHARGING SYSTEM

AAMIA1656GB

CHG

CHARGING SYSTEM

CHG-9

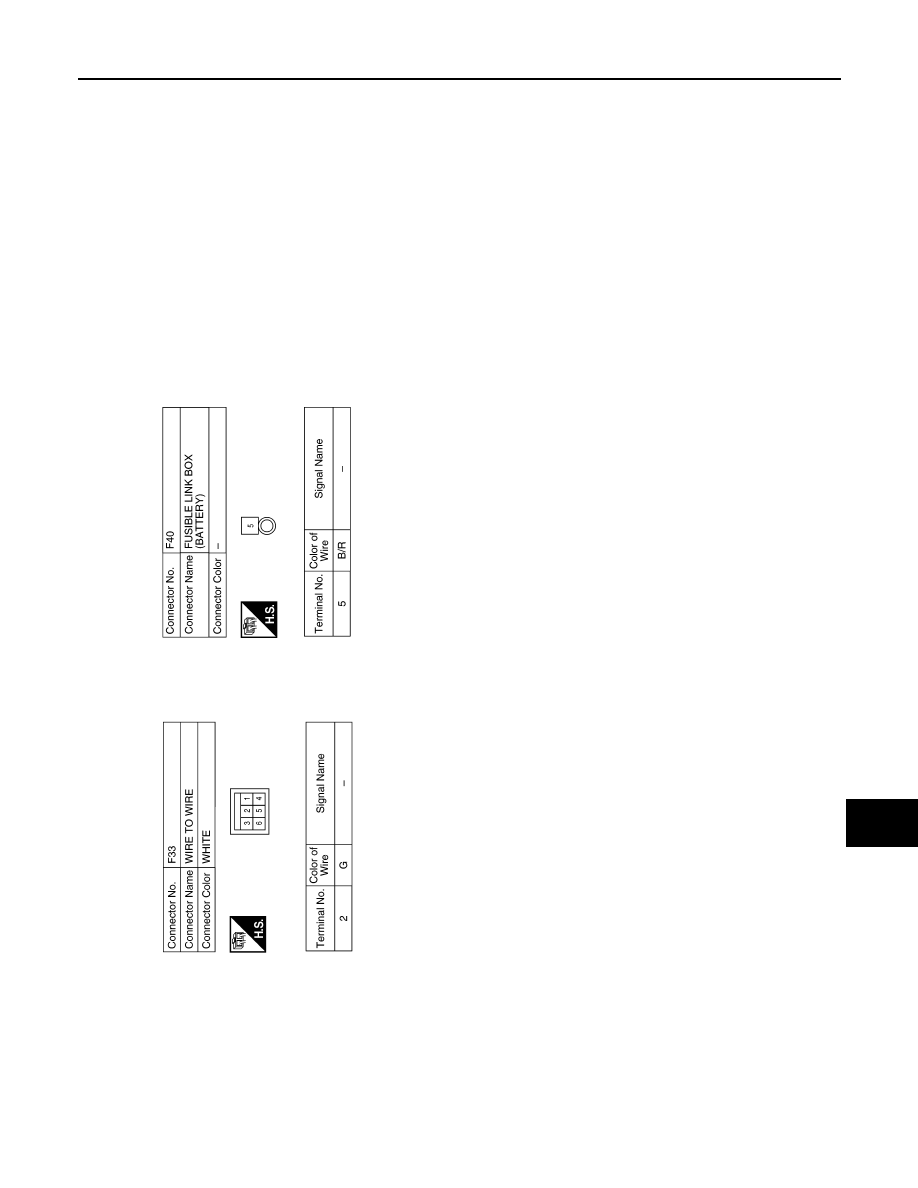

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA1657GB
