Nissan Note E12. Manual - part 81

SYSTEM

BRC-15

< SYSTEM DESCRIPTION >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Major signal transmission between each unit via communication lines is shown in the following table.

ABS : EBD Function

INFOID:0000000009667732

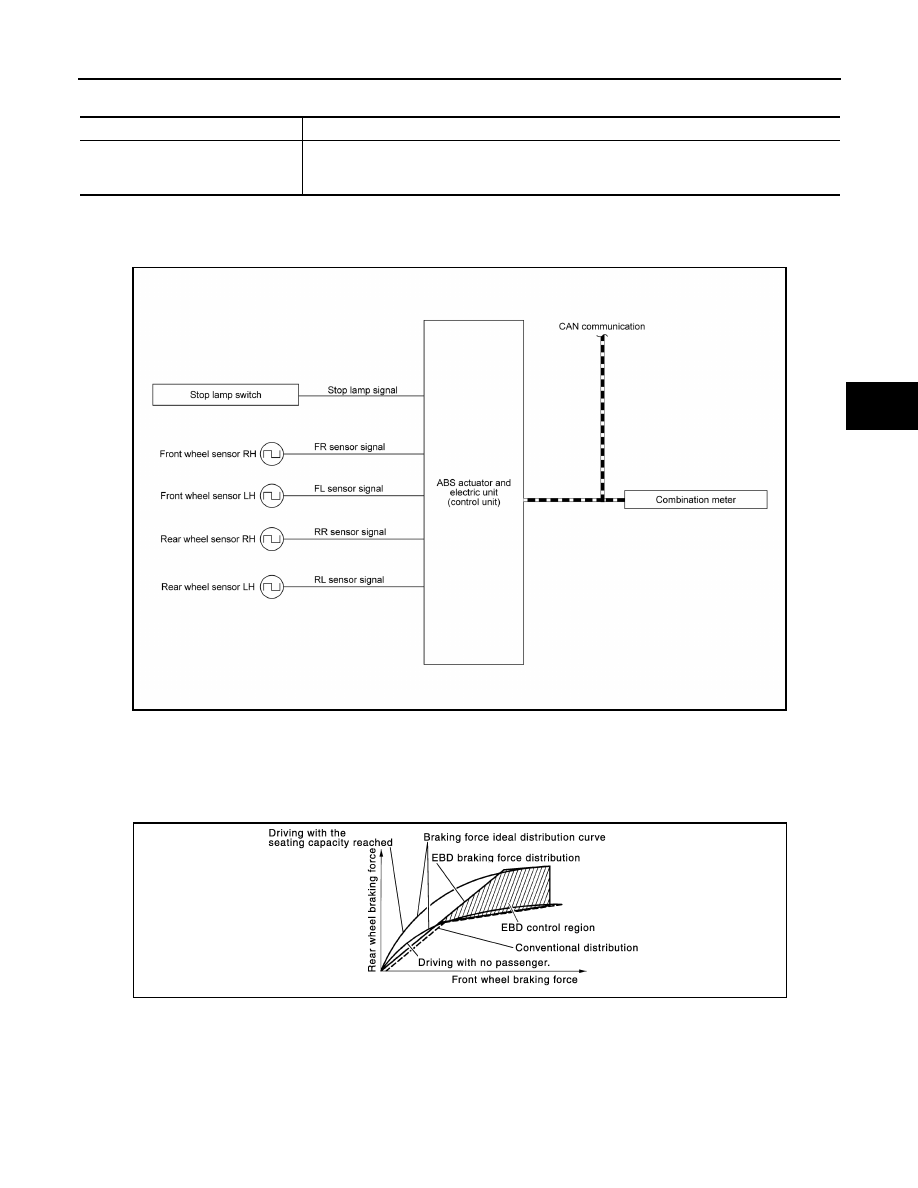

SYSTEM DIAGRAM

• By preventing rear wheel slip increase through rear wheel brake force (brake fluid pressure) control that is

electronically controlled when slight skip on front and rear wheels are detected during braking, stability dur-

ing braking is improved.

• EBD function is expanded and developed from conventional ABS function and corrects rear wheel brake

force to appropriate level by electronic control according to load weight (number of passengers).

Component

Signal description

Combination meter

Receives the following signals from ABS actuator and electric unit (control unit) via CAN com-
munication.
• ABS warning lamp signal

AWFIA0808GB

JPFIC0142GB

BRC-16

< SYSTEM DESCRIPTION >

[ABS]

SYSTEM

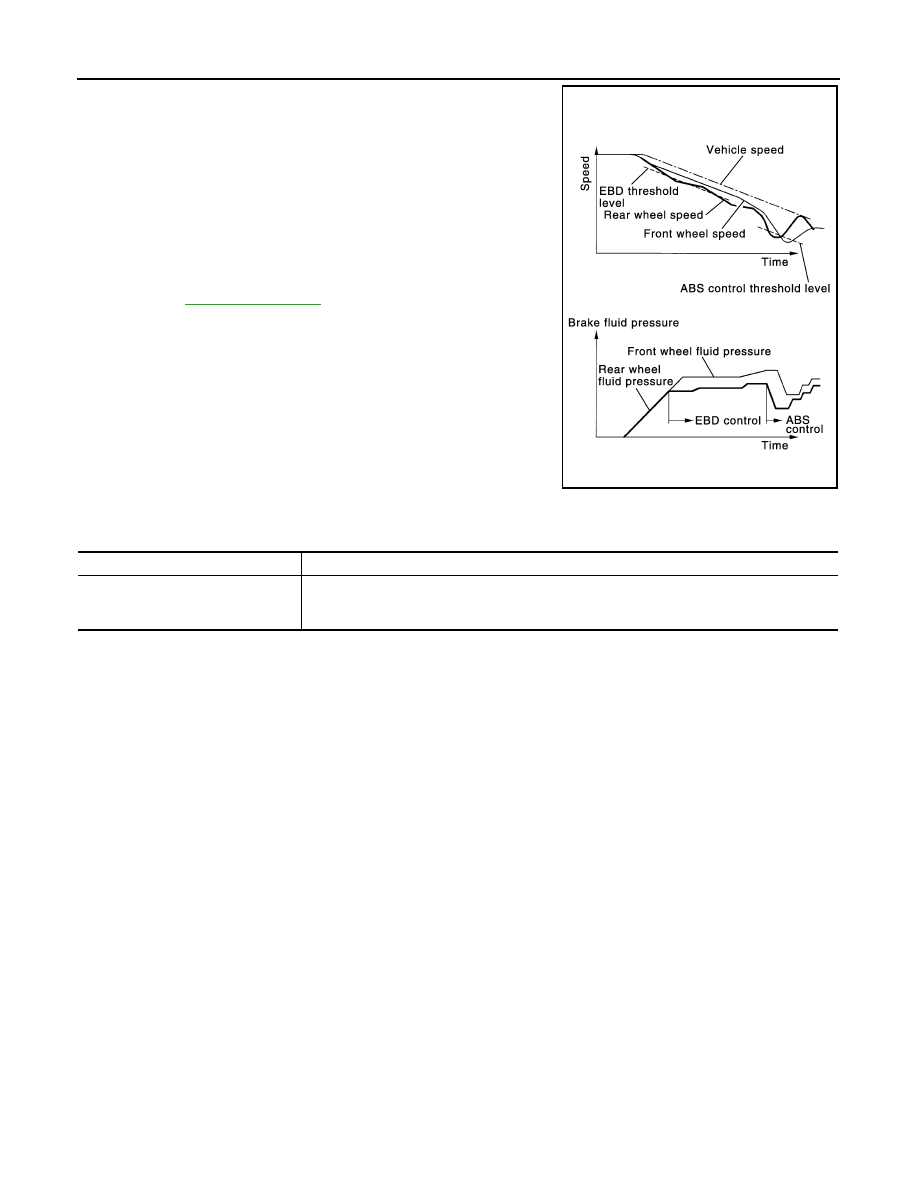

• During braking, control unit portion compares slight slip on front

and rear wheels by wheel speed sensor signal, transmits drive sig-

nal to actuator portion when rear wheel slip exceeds front wheel

slip for the specified value or more, and controls rear wheel brake

force (brake fluid pressure) so that increase of rear wheel slip is

prevented and slips on front wheel and rear wheel are nearly

equalized. ABS control is applied when slip on each wheel

increases and wheel speed is the threshold value of ABS control or

less.

• CONSULT can be used to diagnose the system.

• Fail-safe function is adopted. When a malfunction occurs in EBD

function, the control is suspended for ABS function and EBD func-

tion. Refer to

BRC-24, "Fail-safe"

.

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

ABS : Fail-safe

INFOID:0000000009365064

ABS FUNCTION

ABS warning lamp in combination meter turns ON when a malfunction occurs in system [ABS actuator and

electric unit (control unit)]. The control is suspended for ABS functions. However, EBD functions operate nor-

mally.

EBD FUNCTION

ABS warning lamp and brake warning lamp in combination meter turn ON when a malfunction occurs in sys-

tem [ABS actuator and electric unit (control unit)]. The control is suspended for ABS and EBD functions.

JPFIC0143GB

Component

Signal description

Combination meter

Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN
communication.
• Brake warning lamp signal

SYSTEM

BRC-17

< SYSTEM DESCRIPTION >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

DTC

Malfunction detected condition

Fail-safe condition

C1101

When an open circuit is detected in rear RH wheel sensor circuit.

The following functions are sus-
pended:
• ABS
• EBD (only when both rear wheels

are malfunctioning)

C1102

When an open circuit is detected in rear LH wheel sensor circuit.

C1103

When an open circuit is detected in front RH wheel sensor circuit.

C1104

When an open circuit is detected in front LH wheel sensor circuit.

C1105

• When a short circuit is detected in rear RH wheel sensor circuit.
• When power supply voltage of rear RH wheel sensor is in following state.
- Rear RH wheel sensor power supply voltage: 7.2 V

≥ Rear RH wheel sensor pow-

er supply voltage

• When distance between rear RH wheel sensor and rear RH wheel sensor rotor is

large.

• When installation of rear RH wheel sensor or rear RH wheel sensor rotor is not

normal.

C1106

• When a short circuit is detected in rear LH wheel sensor circuit.
• When power supply voltage of rear LH wheel sensor is in following state.
- Rear LH wheel sensor power supply voltage: 7.2 V

≥ Rear LH wheel sensor power

supply voltage

• When distance between rear LH wheel sensor and rear LH wheel sensor rotor is

large.

• When installation of rear LH wheel sensor or rear LH wheel sensor rotor is not nor-

mal.

C1107

• When a short circuit is detected in front RH wheel sensor circuit.
• When power supply voltage of front RH wheel sensor is in following state.
- Front RH wheel sensor power supply voltage: 7.2 V

≥ Front RH wheel sensor

power supply voltage

• When distance between front RH wheel sensor and front RH wheel sensor rotor

is large.

• When installation of front RH wheel sensor or front RH wheel sensor rotor is not

normal.

C1108

• When a short circuit is detected in front LH wheel sensor circuit.
• When power supply voltage of front LH wheel sensor is in following state.
- Front LH wheel sensor power supply voltage: 7.2 V

≥ Front LH wheel sensor pow-

er supply voltage

• When distance between front LH wheel sensor and front LH wheel sensor rotor is

large.

• When installation of front LH wheel sensor or front LH wheel sensor rotor is not

normal.

C1109

• When ignition power supply voltage is in following state.
- Ignition power supply voltage: 10 V

≥ Ignition power supply voltage.

- Ignition power supply voltage: 16 V

≤ Ignition power supply voltage.

The following functions are sus-
pended:
• ABS
• EBD

C1110

When there is an internal malfunction in the ABS actuator and electric unit (control
unit).

C1111

When a malfunction is detected in motor or motor relay.

The following functions are sus-
pended:
• ABS

C1115

When difference in wheel speed between any wheel and others is detected when
the vehicle is driven, because of installation of tires other than specified.

The following functions are sus-
pended:
• ABS
• EBD

BRC-18

< SYSTEM DESCRIPTION >

[ABS]

SYSTEM

C1120

When a malfunction is detected in front LH ABS IN valve.

The following functions are sus-
pended:
• ABS
• EBD

C1121

When a malfunction is detected in front LH ABS OUT valve.

C1122

When a malfunction is detected in front RH ABS IN valve.

C1123

When a malfunction is detected in front RH ABS OUT valve.

C1124

When a malfunction is detected in rear LH ABS IN valve.

C1125

When a malfunction is detected in rear LH ABS OUT valve.

C1126

When a malfunction is detected in rear RH ABS IN valve.

C1127

When a malfunction is detected in rear RH ABS OUT valve.

C1130

When a CAN signal malfunction is detected.

C1140

When a malfunction is detected in actuator relay.

The following functions are sus-
pended:
• ABS
• EBD

U1000

When CAN communication signal is not continuously transmitted or received for 2
seconds or more.

U1010

When detecting error during the initial diagnosis of CAN controller of ABS actuator
and electric unit (control unit).

DTC

Malfunction detected condition

Fail-safe condition
