AV-180

< REMOVAL AND INSTALLATION >

[NAVIGATION]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000009640350

REMOVAL

1. Remove the rear door finisher. Refer to

INT-17, "Removal and Installation"

2. Disconnect the harness connector from the rear door speaker.

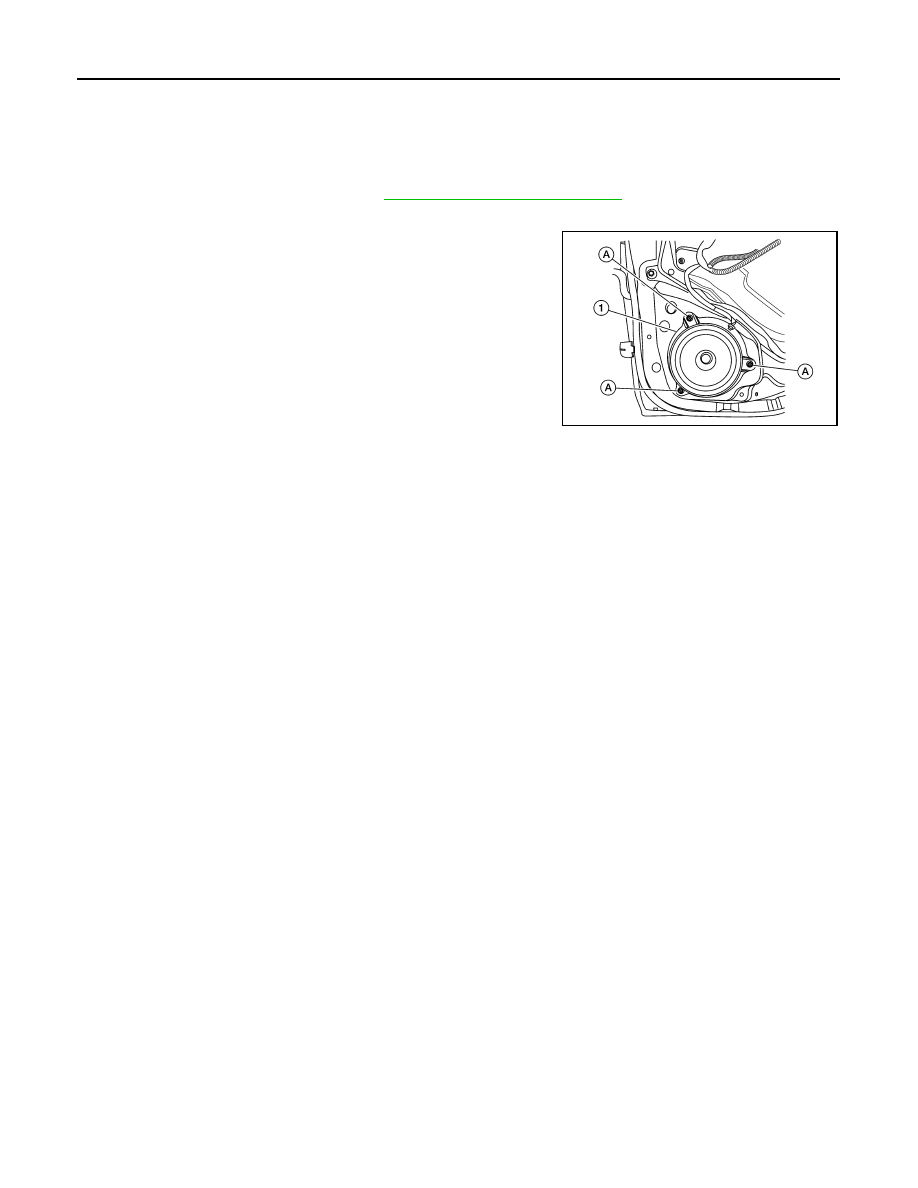

3. Remove the rear door speaker screws (A).
4. Remove the rear door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3089ZZ

USB INTERFACE

AV-181

< REMOVAL AND INSTALLATION >

[NAVIGATION]

USB INTERFACE

Removal and Installation

INFOID:0000000009640351

REMOVAL

1. Remove the center console assembly. Refer to

IP-18, "Removal and Installation"

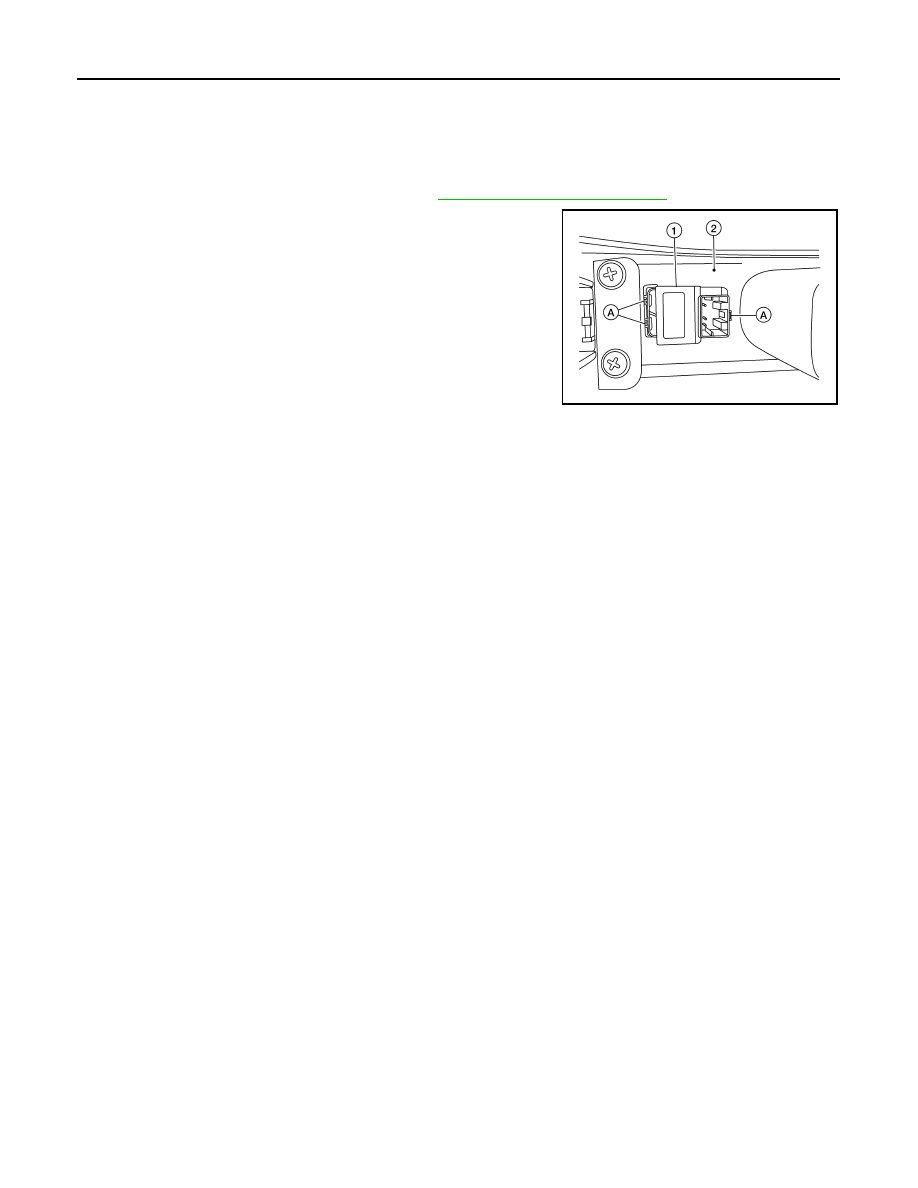

2. Release the pawls (A) from the back of the center console

assembly (2) using a suitable tool and remove the USB interface

(1).

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3069ZZ

AV-182

< REMOVAL AND INSTALLATION >

[NAVIGATION]

AUXILIARY INPUT JACK

AUXILIARY INPUT JACK

Removal and Installation

INFOID:0000000009647057

REMOVAL

1. Remove the center console assembly. Refer to

IP-18, "Removal and Installation"

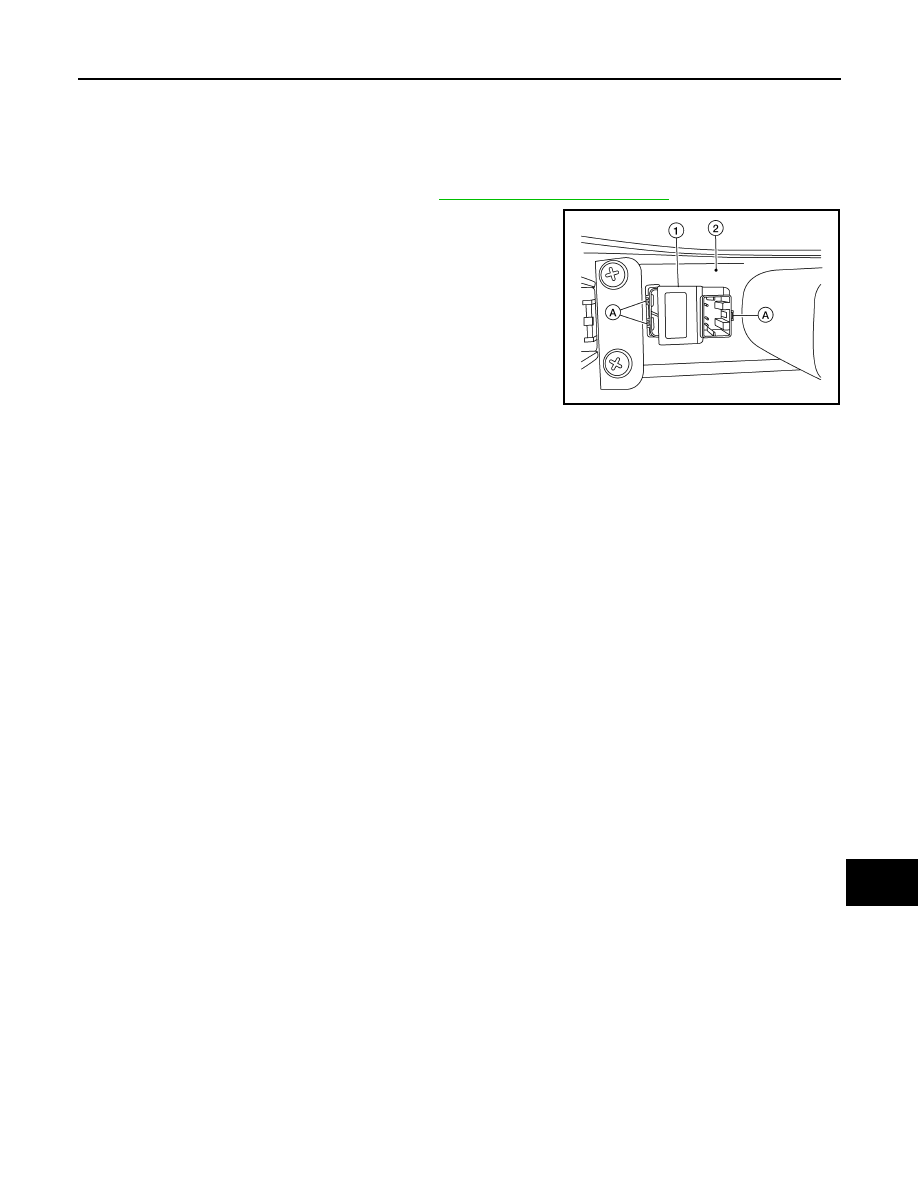

2. Release the pawls (A) from the back of the center console

assembly (2) using a suitable tool and remove the auxiliary input

jack (1).

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3069ZZ

STEERING SWITCH

AV-183

< REMOVAL AND INSTALLATION >

[NAVIGATION]

STEERING SWITCH

Removal and Installation

INFOID:0000000009640352

REMOVAL

1. Remove the steering wheel. Refer to

ST-8, "Removal and Installation"

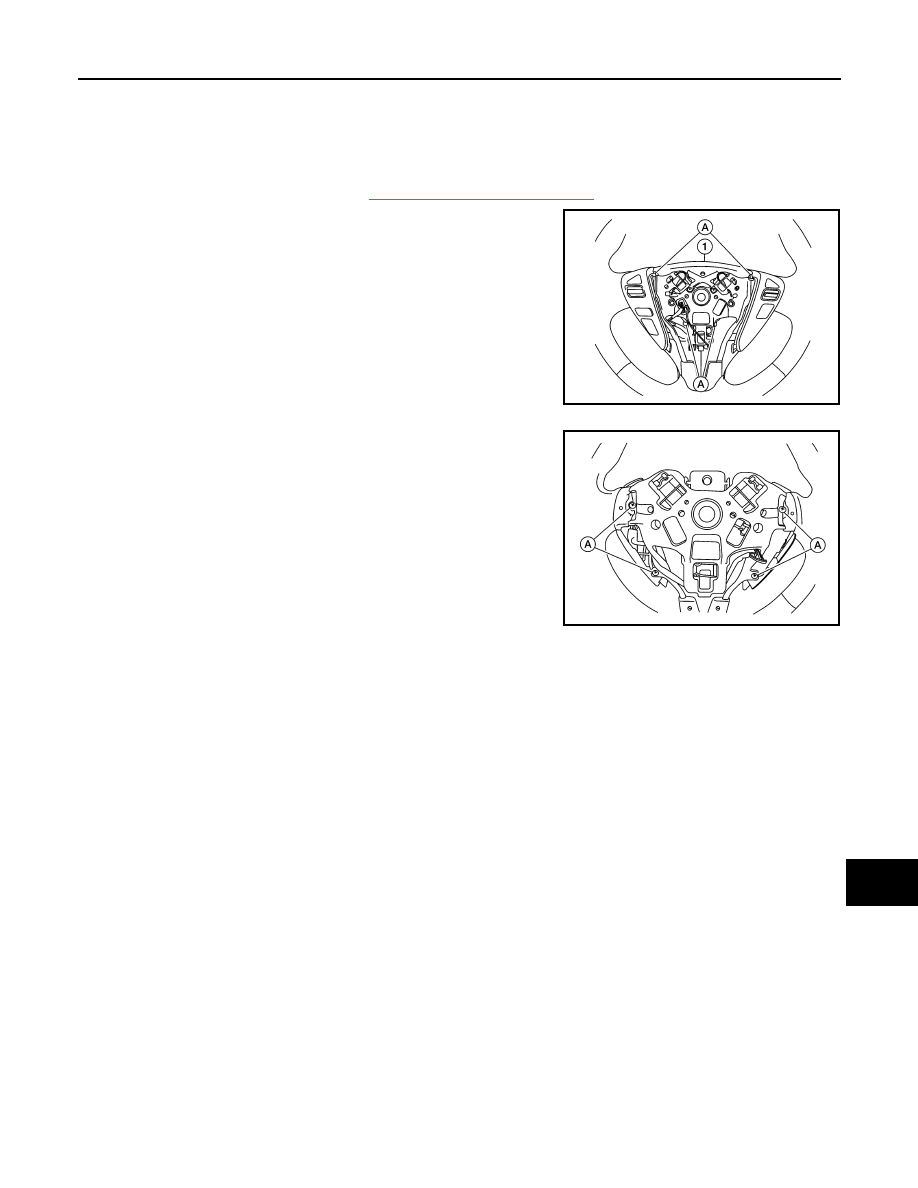

2. Remove the steering wheel rear finisher (1) by releasing pawls

(A).

3. Remove the steering wheel audio control switch screws (A) from

the back of the steering wheel.

4. Remove the steering wheel audio control switches from the steering wheel.

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3063ZZ

AWNIA3064ZZ
