AV-120

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION]

AV CONTROL UNIT

DTC Index

INFOID:0000000009460263

61

(B)

Ground GPS antenna signal

Input

ON

—

5.0 V

62

(Shield)

—

GPS antenna shield

—

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

CONSULT Display

Reference Page

U1000: CAN COMM CIRCUIT

AV-137, "DTC Logic"

U1010: CONTROL UNIT (CAN)

AV-138, "DTC Logic"

U1217: BLUETOOTH MODULE

AV-139, "DTC Logic"

U1229: iPod CERTIFICATION

AV-140, "DTC Logic"

U122F: Digital broadcasting connection error

AV-141, "DTC Logic"

U1244: GPS ANTENNA CONN

AV-142, "DTC Logic"

U1263: USB OVERCURRENT

AV-143, "DTC Logic"

U1264: ANTENNA AMP TERMINAL

AV-144, "DTC Logic"

U12AA: Configuration Error

AV-145, "DTC Logic"

U12AC: Display Temperature too High

AV-146, "DTC Logic"

U12AD: ECU Temperature too High

AV-147, "DTC Logic"

U12AE: Internal Amplifier temperature Warning

AV-148, "DTC Logic"

U12AF: CD Mechanism Temperature Warning

AV-149, "DTC Logic"

U12B0: Supply Voltage Goes below 9V > 20s

AV-150, "DTC Logic"

U12B1: Supply Voltage Goes High > 16V for 20s

AV-151, "DTC Logic"

U1310: CONTROL UNIT (AV)

AV-152, "DTC Logic"

AV

NAVIGATION SYSTEM

AV-121

< WIRING DIAGRAM >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

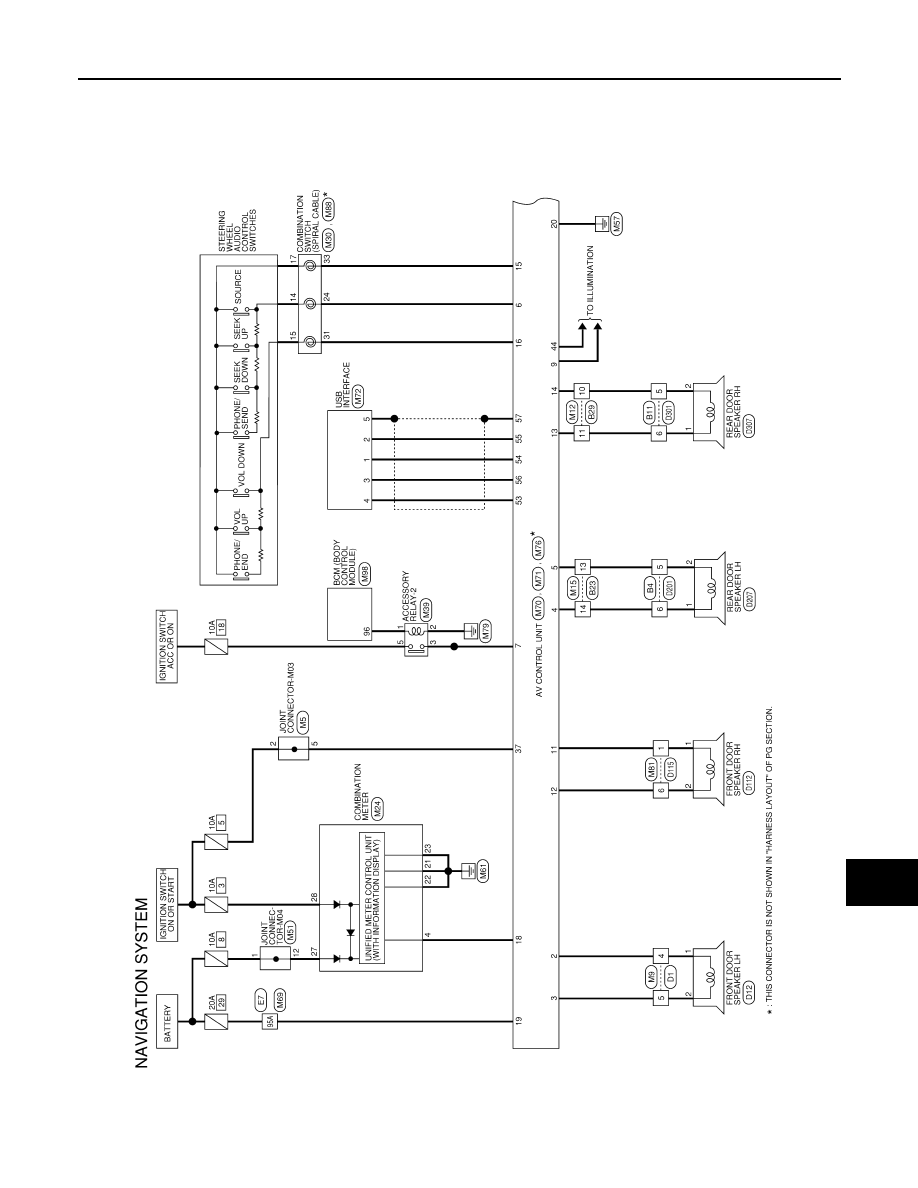

WIRING DIAGRAM

NAVIGATION SYSTEM

Wiring Diagram

INFOID:0000000009460264

AANWA0861GB

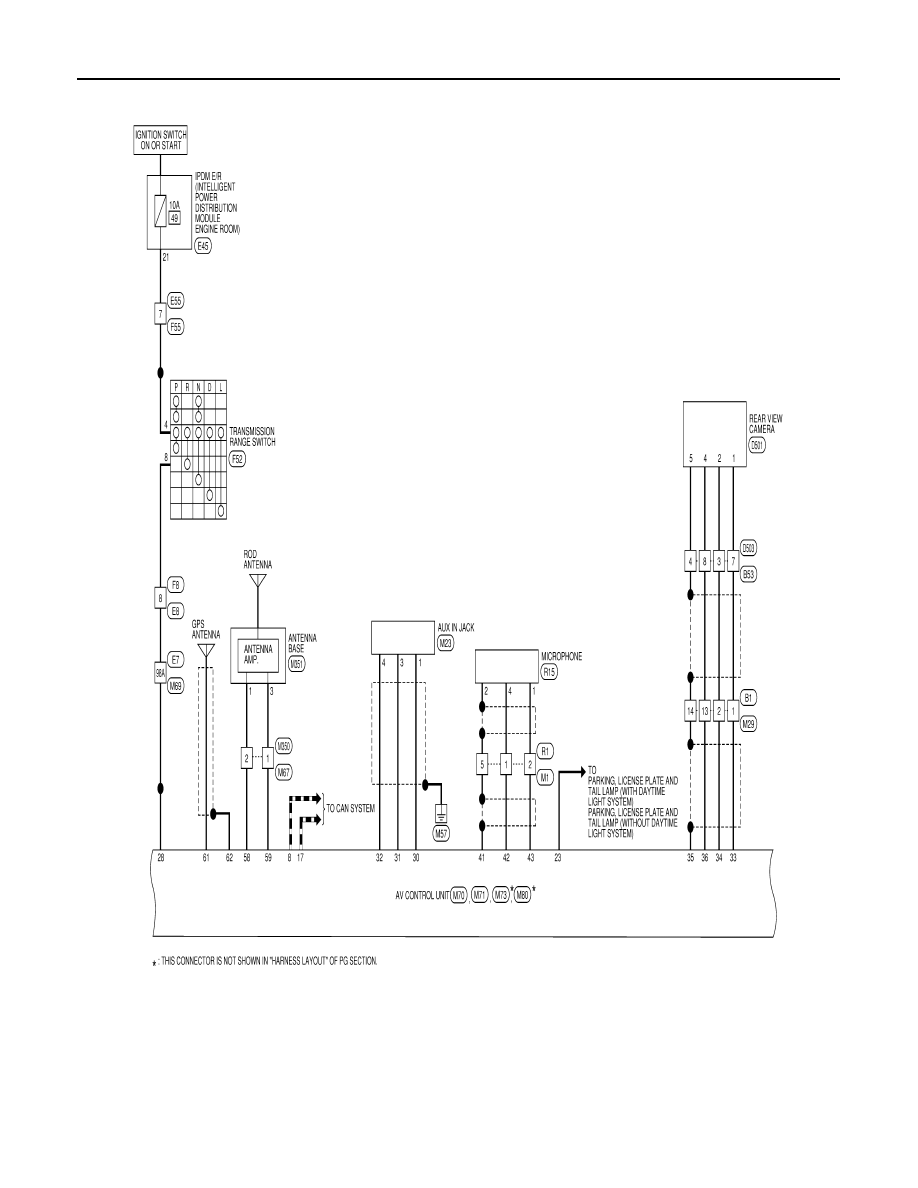

AV-122

< WIRING DIAGRAM >

[NAVIGATION]

NAVIGATION SYSTEM

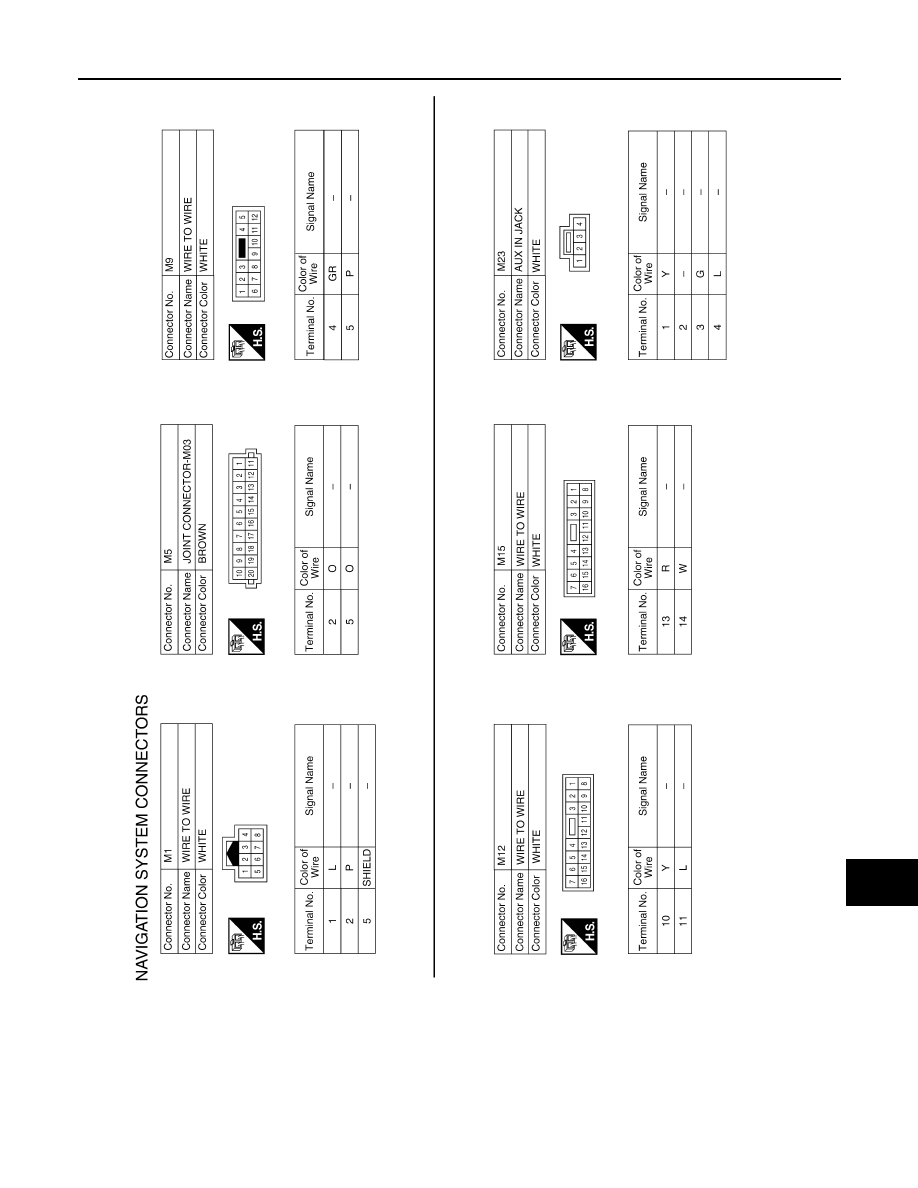

AANWA0862GB

AV

NAVIGATION SYSTEM

AV-123

< WIRING DIAGRAM >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AANIA1720GB
