STEERING SWITCH

STEERING SWITCH

Removal and Installation

INFOID:0000000009640337

REMOVAL

1. Remove the steering wheel. Refer to

ST-8, "Removal and Installation"

.

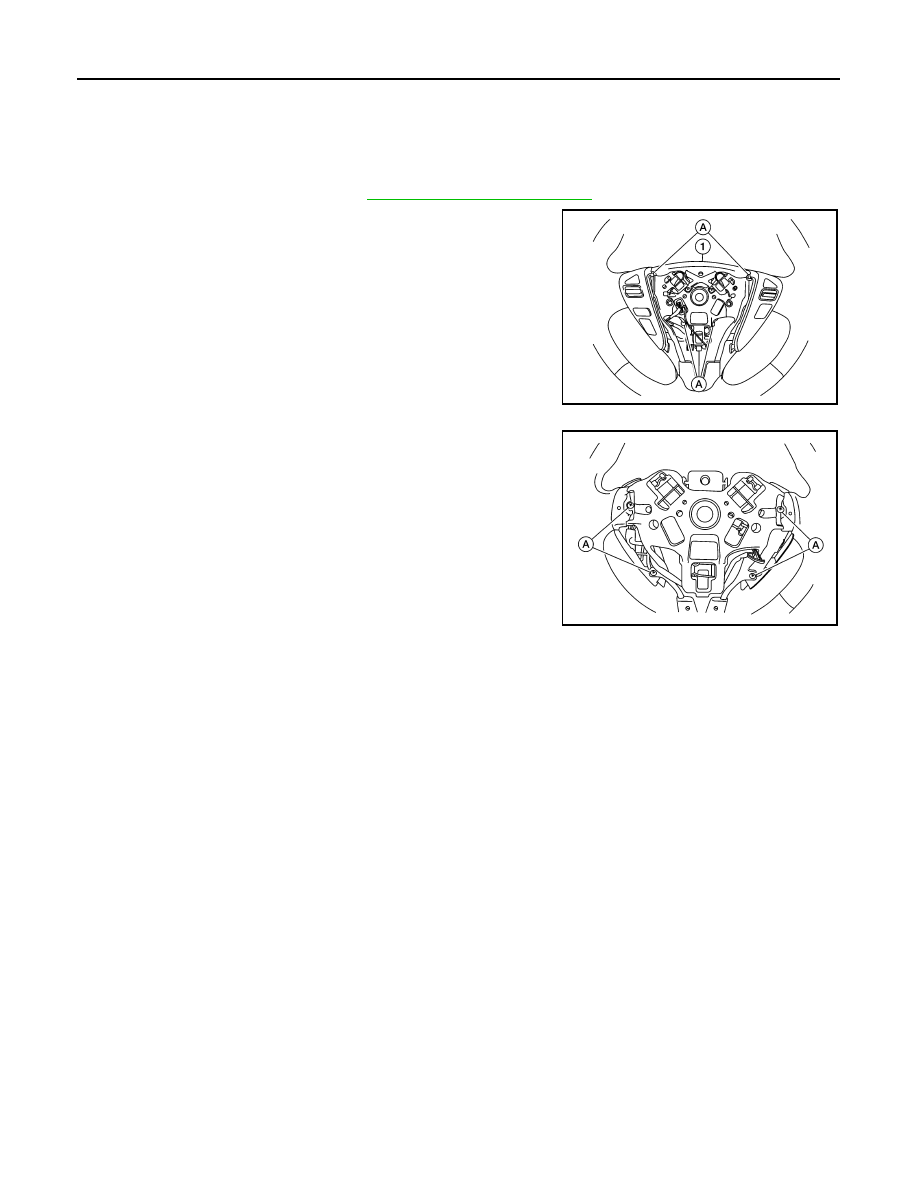

2. Remove the steering wheel rear finisher (1) by releasing pawls

(A).

3. Remove the steering wheel audio control switch screws (A) from

the back of the steering wheel.

4. Remove the steering wheel audio control switches from the steering wheel.

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3063ZZ

AWNIA3064ZZ

AV

MICROPHONE

AV-101

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Removal and Installation

INFOID:0000000009640338

REMOVAL

1. Remove the microphone from the headlining by releasing pawls using a suitable tool.
2. Disconnect the harness connector from microphone and remove.

INSTALLATION

Installation is in the reverse order of removal.

AV-102

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

ROD ANTENNA

ROD ANTENNA

Exploded View

INFOID:0000000009667930

Removal and Installation

INFOID:0000000009667931

REMOVAL

1. Lower the rear portion of the headlining. Refer to

INT-29, "Removal and Installation"

.

2. Disconnect the harness connectors from the antenna (satellite radio model shown).
3. Remove the antenna nut (A) and remove the antenna.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

If the antenna nut is tightened looser than the specified torque this will lower the sensitivity of the

antenna. If the antenna nut is tightened tighter than the specified torque this will deform the roof

panel.

AWNIA3124ZZ

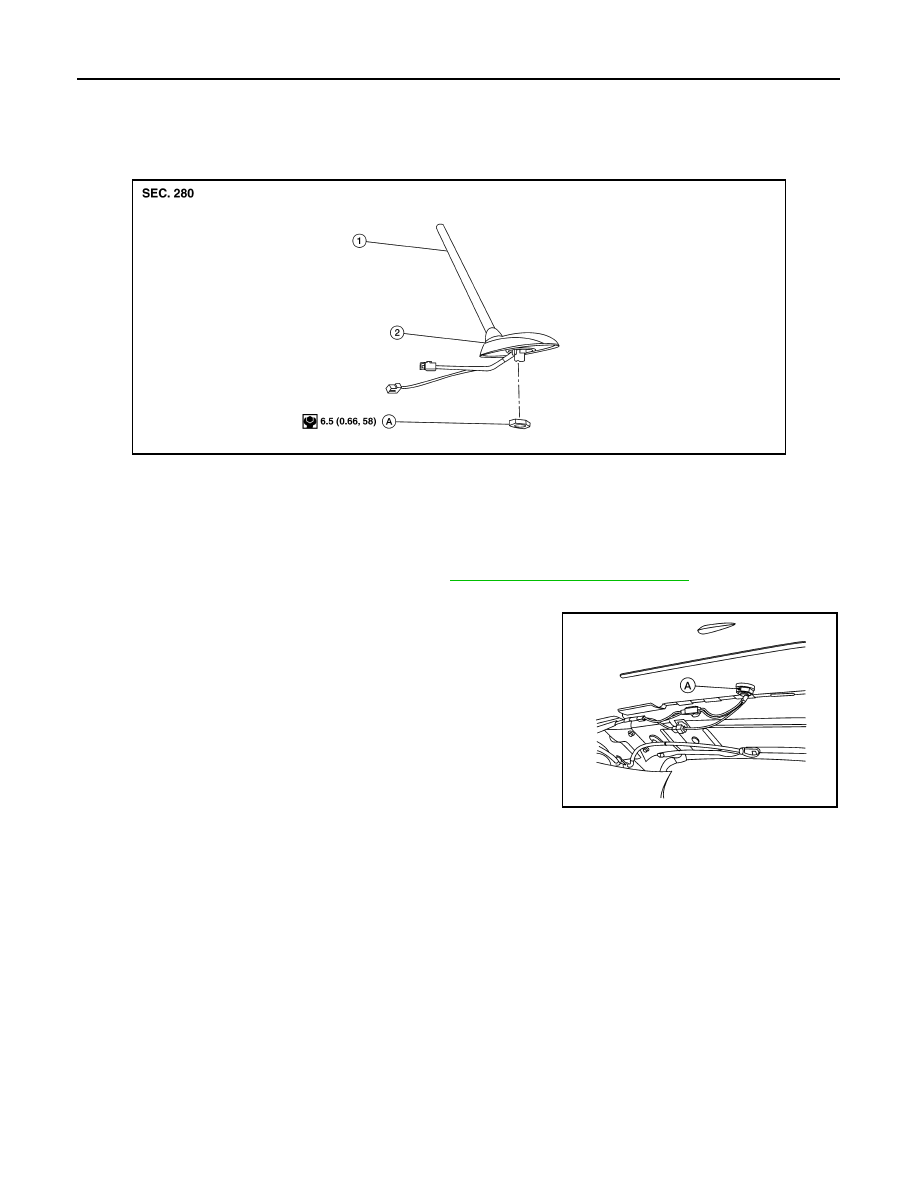

1. Antenna rod

2. Antenna base

A. Antenna nut

AWNIA3115ZZ

AV

ANTENNA FEEDER

AV-103

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ANTENNA FEEDER

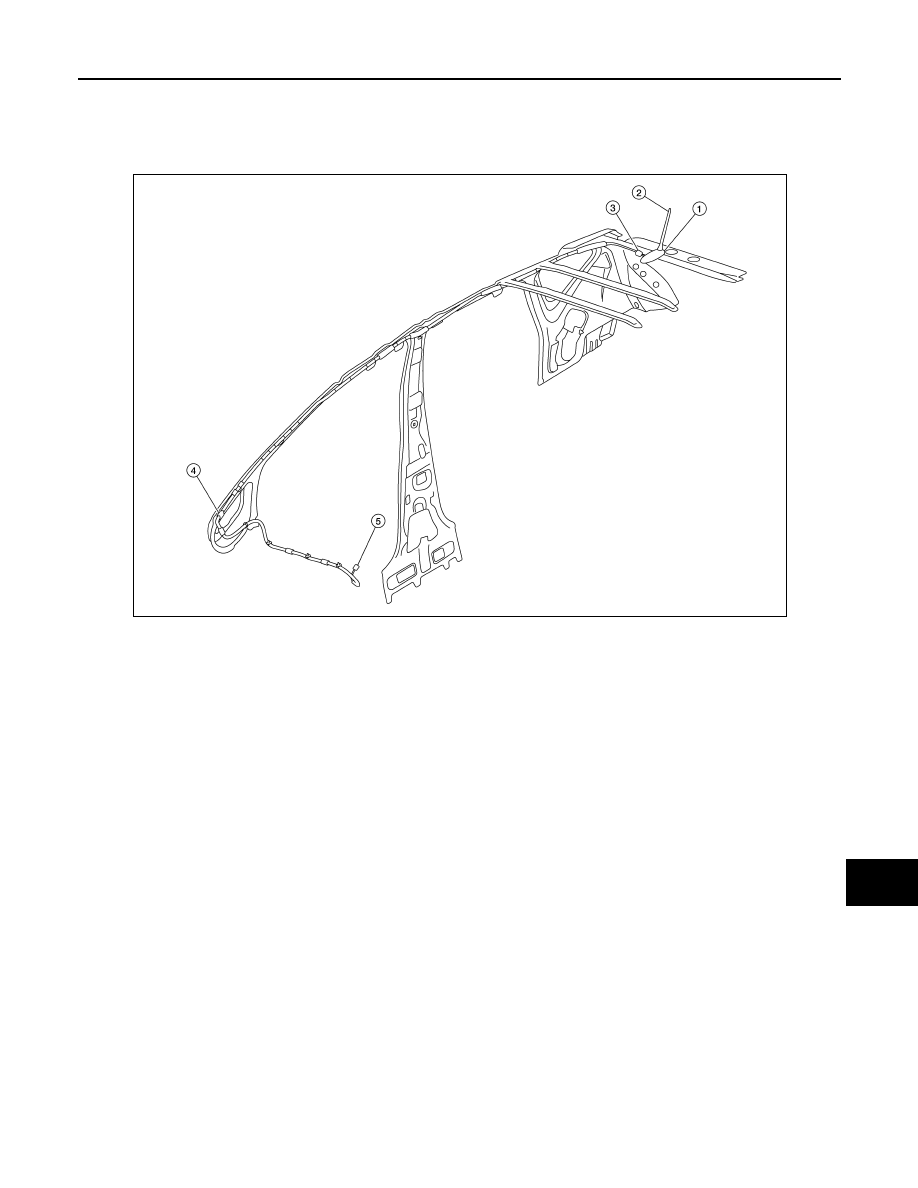

Feeder Layout

INFOID:0000000009460183

1.

Antenna base (antenna amp.)

2.

Rod Antenna

3.

M351

4.

M67, M350

5.

M108

AWNIA3114ZZ
