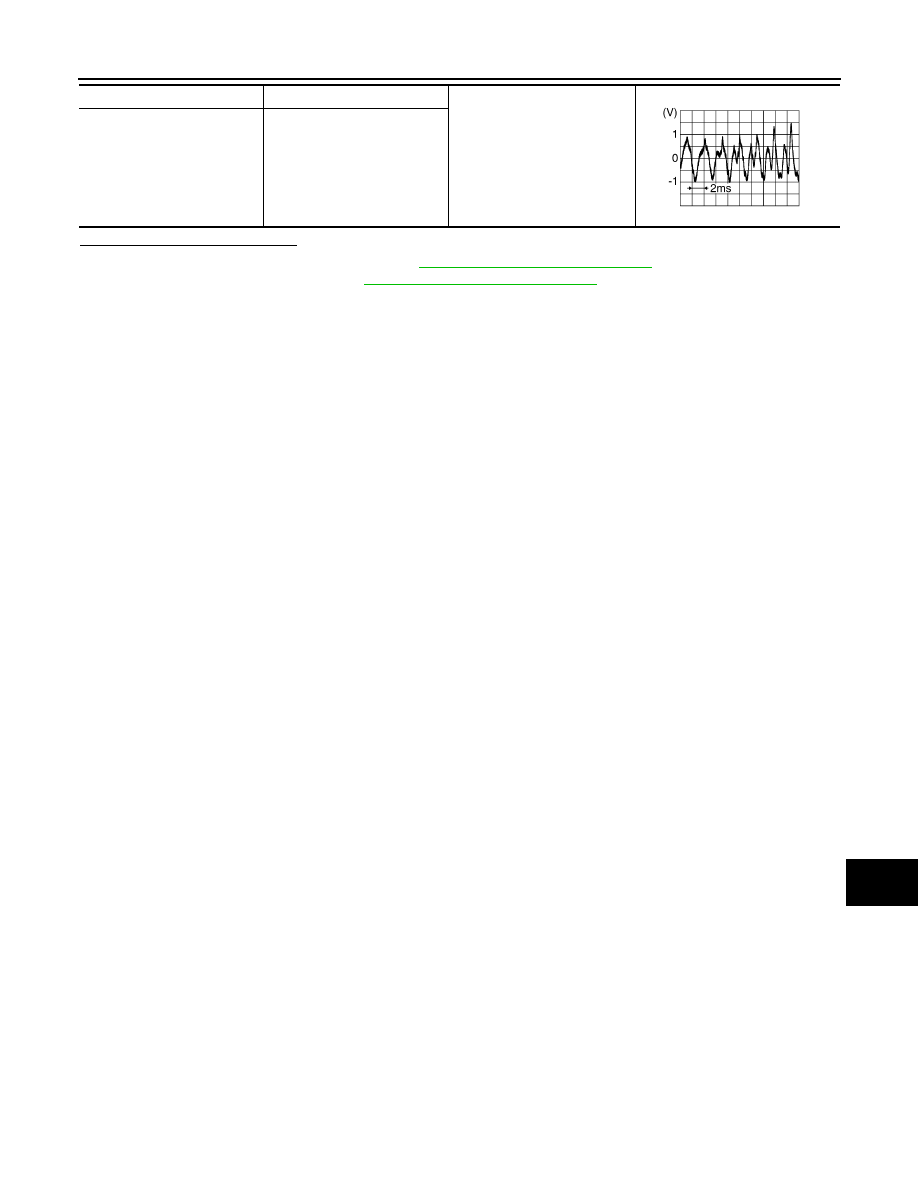

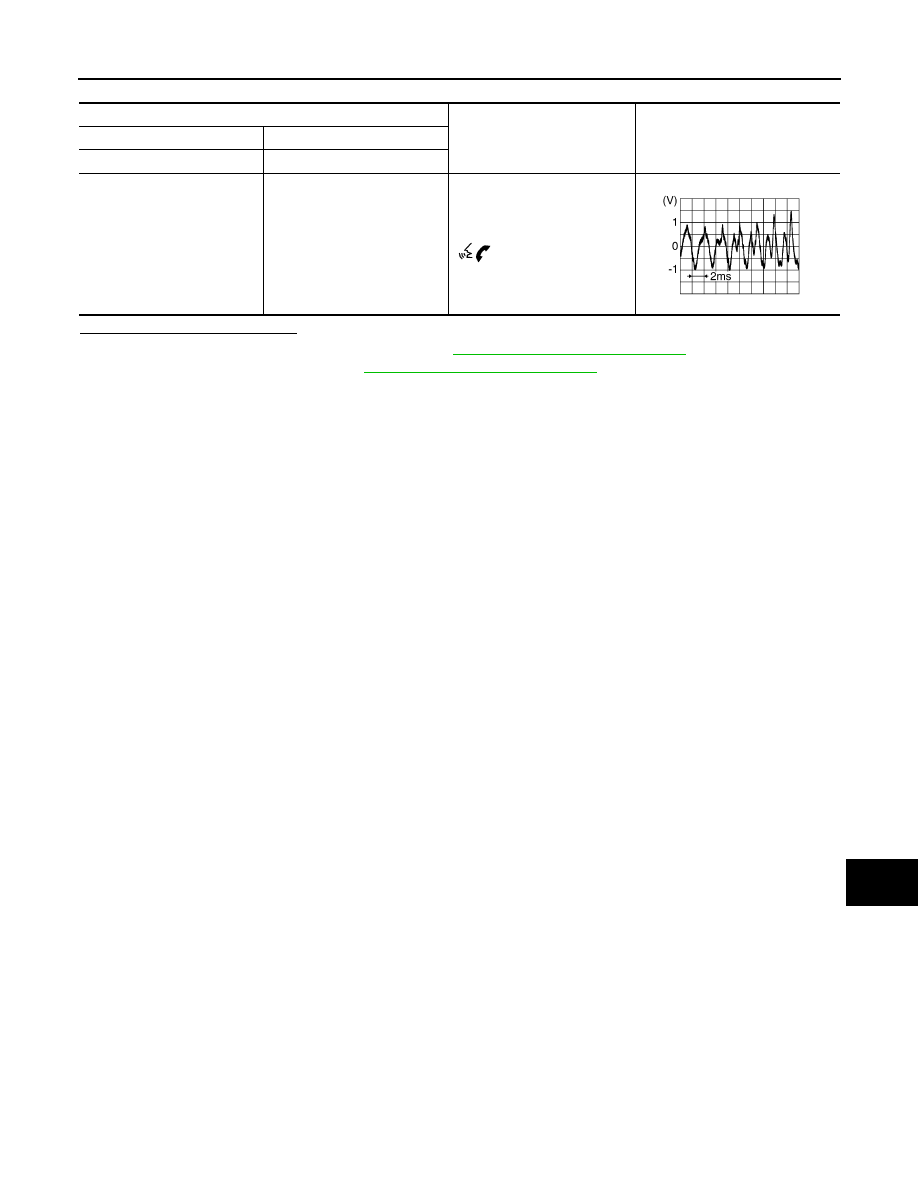

AV-76 < DTC/CIRCUIT DIAGNOSIS > [DISPLAY AUDIO] REAR DOOR SPEAKER REAR DOOR SPEAKER Diagnosis Procedure INFOID:0000000009460163 Regarding Wiring Diagram information, refer to 1. CONNECTOR CHECK Check the audio unit and speaker connectors for the following: • Proper connection • Damage • Disconnected or loose terminals YES >> GO TO 2. NO >> Repair the terminals or connectors. 2. CHECK REAR DOOR SPEAKER SIGNAL CIRCUIT CONTINUITY 1. Disconnect audio unit connector M45 and suspect rear door speaker connector. 2. Check continuity between audio unit connector M45 and suspect rear door speaker connector. 3. Check continuity between audio unit connector M45 and ground. Is the inspection result normal? YES >> GO TO 3. NO >> Repair or replace harness or connectors. 3. CHECK REAR DOOR SPEAKER SIGNAL 1. Connect audio unit connector M45 and suspect rear door speaker connector. 2. Turn ignition switch to ACC. 3. Push audio unit POWER switch. 4. Check signal between the terminals of audio unit connector M45. Audio unit Rear speaker Continuity Connector Terminal Connector Terminal M45 4 D207 (LH) 1 Yes 5 2 13 D307 (RH) 1 14 2 Audio unit Ground Continuity Connector Terminal M45 4 — No 5 13 14 Audio unit connector M45 Condition Reference value (+) ( −) Terminal Terminal |
