PARKING BRAKE FRONT CABLE

PB-9

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

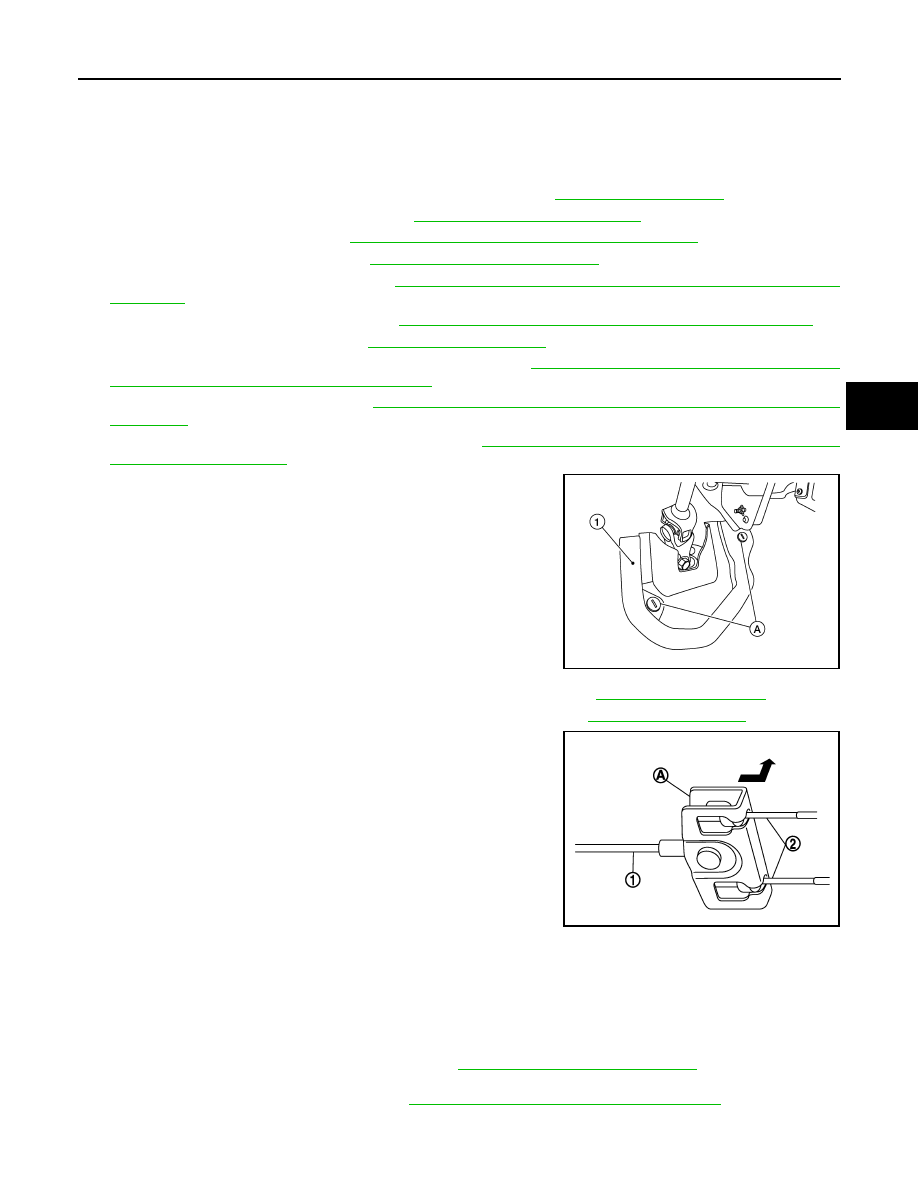

PARKING BRAKE FRONT CABLE

Removal and Installation

INFOID:0000000011280107

REMOVAL

1. Disconnect the positive and negative battery terminals. Refer to

PG-78, "Exploded View"

2. Remove the parking brake control. Refer to

PB-8, "Removal and Installation"

3. Remove driver seat (LH). Refer to

SE-32, "DRIVER SIDE : Removal and Installation"

.

4. Remove the center console. Refer to

IP-19, "Removal and Installation"

.

5. Remove front door welts (LH). Refer to

INT-23, "BODY SIDE WELT : Removal and Installation - Front

Door Welt"

.

6. Remove dash side finisher (LH). Refer to

INT-24, "DASH SIDE FINISHER : Removal and Installation"

.

7. Remove shift selector knob. Refer to

TM-193, "Exploded View"

.

8. Remove the front floor connecting ducts (LH/RH). Refer to

VTL-10, "FRONT FLOOR DUCT : Removal

and Installation - Front Floor Connecting Duct"

.

9. Remove the front floor duct. Refer to

VTL-11, "FRONT FLOOR DUCT : Removal and Installation - Front

Floor Duct"

10. Remove the rear center ventilator duct. Refer to

VTL-11, "REAR CENTER VENTILATOR DUCT :

Removal and Installation"

.

11. Release clips (A) using a suitable tool and remove steering joint

floor cover (1).

12. Place front floor trim aside and remove the front floor spacer. Refer to

INT-26, "Exploded View"

.

13. Remove the bolts from the parking brake front cable mount. Refer to

PB-7, "Exploded View"

.

14. Pull equalizer (A) of the parking brake front cable (1) in a rear-

ward direction and then push upward to separate each parking

brake rear cable (2) from the parking brake front cable (1).

CAUTION:

To prevent damage to the parts, do not bend the parking

brake cables.

15. Remove the parking brake front cable.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse the adjusting nut.

• Inspect and adjust the parking brake pedal. Refer to

PB-4, "Inspection and Adjustment"

.

• If a malfunction is indicated by the air bag warning lamp after repair or replacement of the malfunctioning

parts, perform the SRS Final Check. Refer to

SRC-16, "Trouble Diagnosis with CONSULT"

.

ALJIA1359ZZ

JPFIB0129ZZ

PB-10

< REMOVAL AND INSTALLATION >

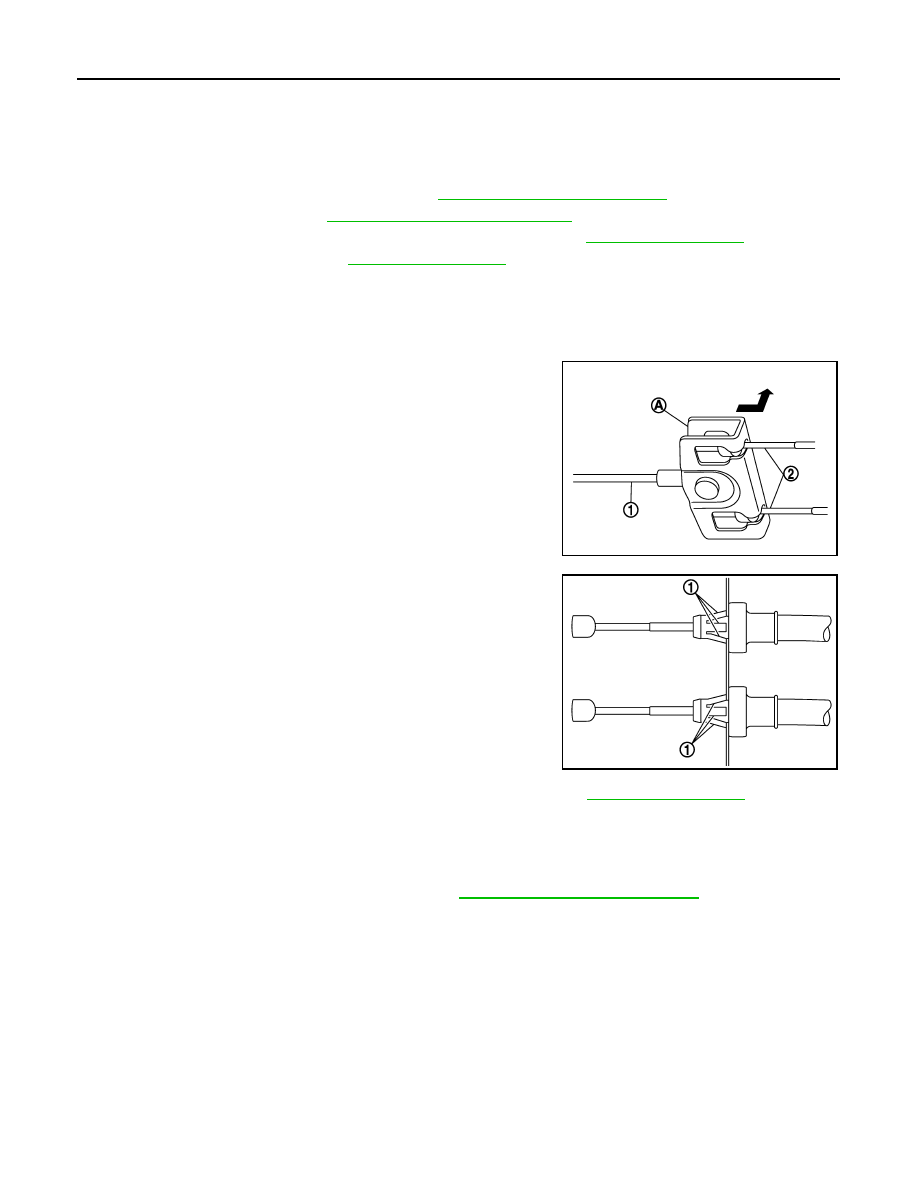

PARKING BRAKE REAR CABLE

PARKING BRAKE REAR CABLE

Removal and Installation

INFOID:0000000011280108

REMOVAL

1. Remove the center console assembly. Refer to

IP-19, "Removal and Installation"

.

2. Remove shift selector. Refer to

TM-193, "Removal and Installation"

.

3. Remove the bolts from the parking brake front cable mount. Refer to

PB-7, "Exploded View"

.

4. Loosen the adjusting nut. Refer to

PB-7, "Exploded View"

.

NOTE:

It is not necessary to remove the parking brake front cable.

5. Pull equalizer (A) of the parking brake front cable (1) in a rearward direction and then push upward to sep-

arate each parking brake rear cable (2) from the parking brake front cable (1).

CAUTION:

To prevent damage to the parts, do not bend the parking

brake cables.

6. Press the pawl (1) to remove each parking brake rear cable from

the vehicle.

7. Separate the parking brake rear cable from the toggle lever. Refer to

PB-7, "Exploded View"

.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse the adjusting nut if the nut is removed.

• Inspect and adjust the parking brake shoes. Refer to

PB-6, "Inspection and Adjustment"

.

JPFIB0129ZZ

JPFIB0130ZZ

PARKING BRAKE SWITCH

PB-11

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PARKING BRAKE SWITCH

Removal and Installation

INFOID:0000000011280109

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-23, "Removal and Installation"

.

2. Disconnect the harness connector from the parking brake switch. Refer to

PB-7, "Exploded View"

.

3. Remove the screw and remove the parking brake switch. Refer to

PB-7, "Exploded View"

.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the parking brake switch if it has been dropped or sustained an impact.

Adjust the parking brake cable if necessary. Refer to

PB-4, "Inspection and Adjustment"

.

PB-12

< REMOVAL AND INSTALLATION >

PARKING BRAKE SHOE

PARKING BRAKE SHOE

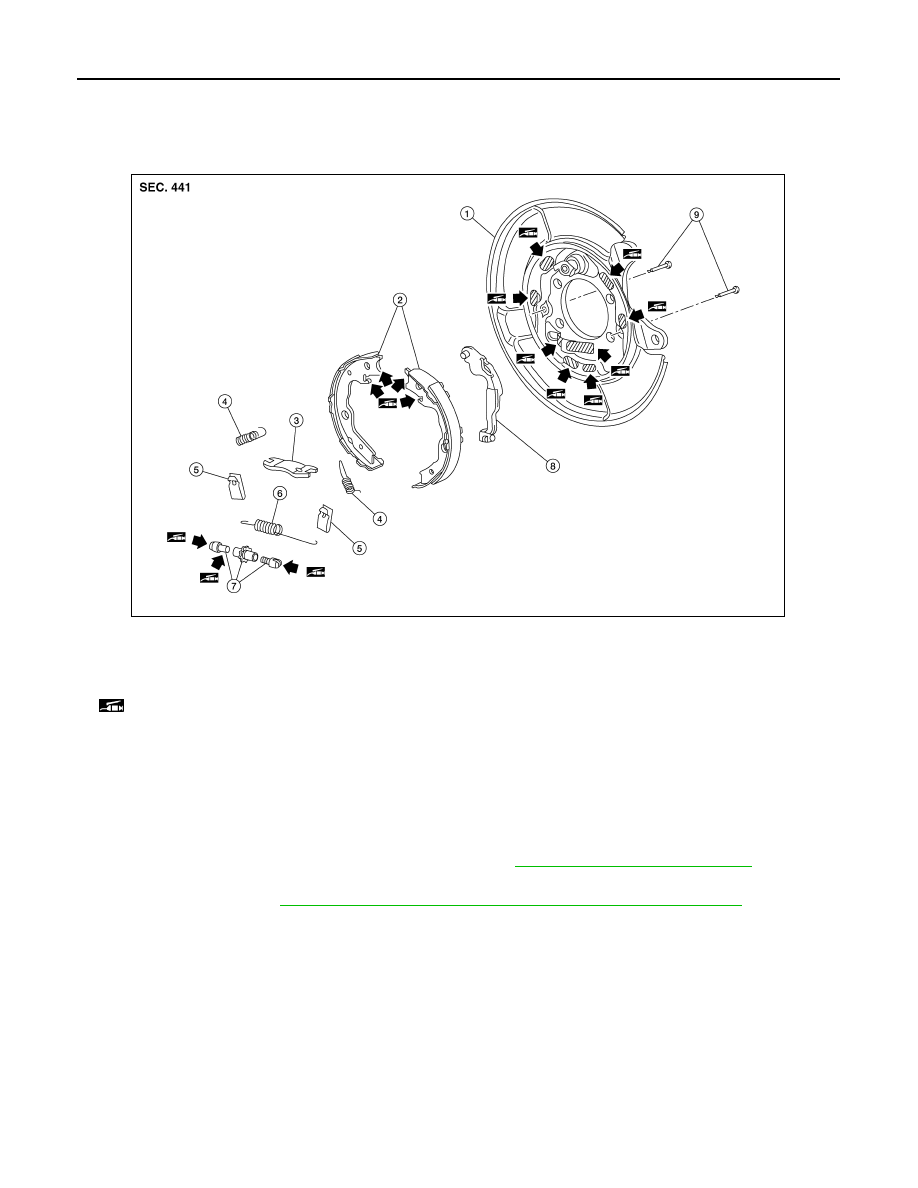

Exploded View

INFOID:0000000011280110

Removal and Installation

INFOID:0000000011280111

REMOVAL

WARNING:

Clean dust on the parking brake shoes with a vacuum dust collector to minimize the hazard of air-

borne particles or other materials.
1. Remove the rear wheel and tire using power tool. Refer to

WT-67, "Removal and Installation"

.

2. Remove the brake caliper torque member bolts, leaving the brake hose attached. Position the caliper

aside with wire. Refer to

BR-47, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

CAUTION:

Do not depress the brake pedal while the caliper assembly is removed.

3. Put alignment marks on the disc brake rotor and on the wheel hub and bearing and remove the disc brake

rotor.

CAUTION:

Do not drop the disc brake rotor.

4. If disc brake rotor cannot be removed, remove as follows:
a. Secure the disc brake rotor with wheel nuts and remove the adjusting hole plug.

1.

Back plate

2.

Parking brake shoe

3.

Brake strut

4.

Return spring

5.

Spring

6.

Return spring to brake strut

7.

Adjuster

8.

Toggle lever

9.

Anti-rattle pin

: Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease.

AWFIA1077ZZ
