LU-1

ENGINE

SECTION

CONTENTS

ENGINE LUBRICATION SYSTEM

PRECAUTION ...............................................

PRECAUTIONS ...................................................

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

Liquid Gasket ............................................................

PREPARATION ............................................

PREPARATION ...................................................

Special Service Tools ..............................................

Commercial Service Tools .......................................

SYSTEM DESCRIPTION ..............................

DESCRIPTION ....................................................

Engine Lubrication System ......................................

Engine Lubrication System Schematic ...................

PERIODIC MAINTENANCE ..........................

ENGINE OIL ........................................................

Inspection ..................................................................

Draining .....................................................................

Refilling .....................................................................

OIL FILTER .......................................................

Removal and Installation .........................................

Inspection ................................................................

REMOVAL AND INSTALLATION ...............

OIL COOLER ....................................................

Exploded View .........................................................

Removal and Installation .........................................

Inspection ................................................................

OIL PUMP .........................................................

Exploded View .........................................................

Removal and Installation .........................................

Disassembly and Assembly .....................................

Inspection ................................................................

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

Oil Pressure .............................................................

Oil Pump ..................................................................

Relief Valve .............................................................

Oil Capacity .............................................................

LU-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011277137

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Liquid Gasket

INFOID:0000000011277138

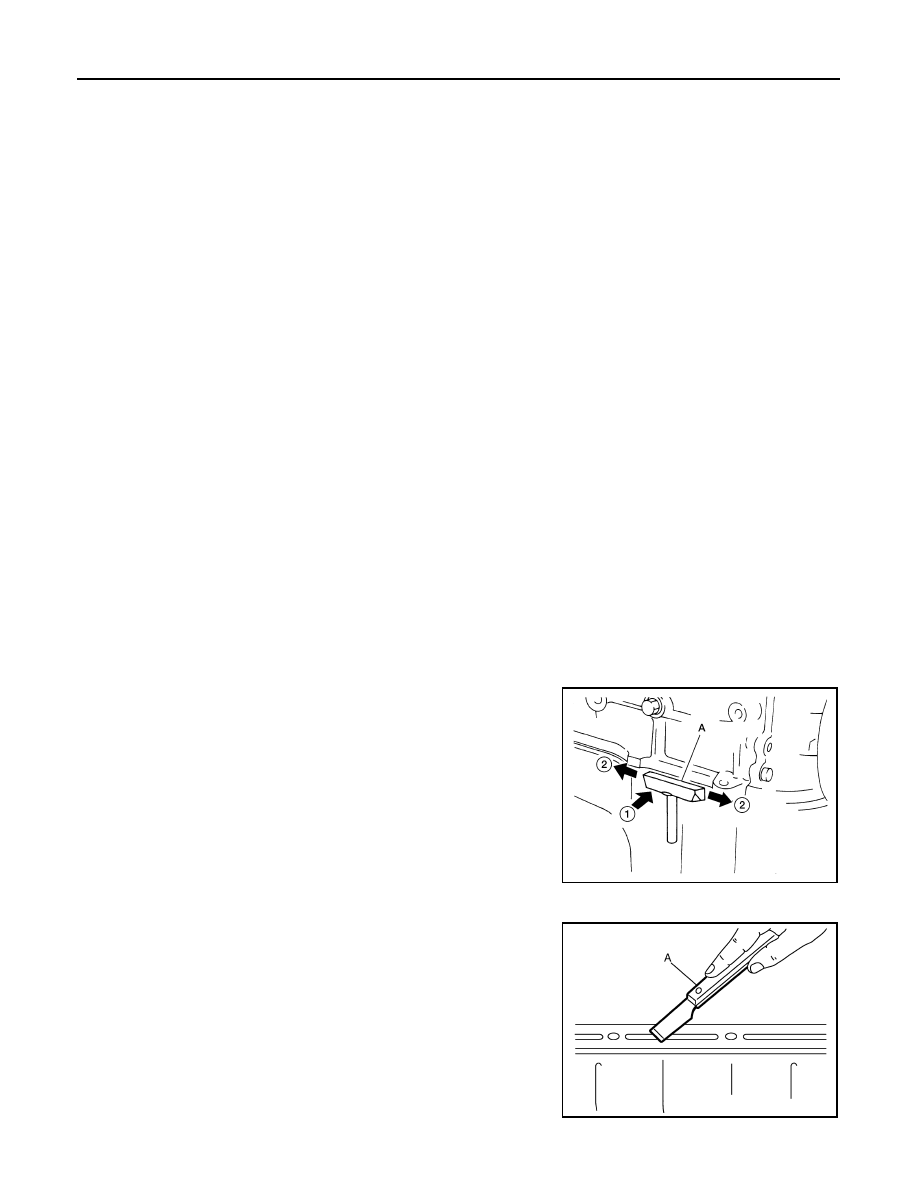

REMOVAL OF LIQUID GASKET SEALING

• After removing the bolts and nuts, separate the mating surface and

remove the liquid gasket using Tool (A).

CAUTION:

Be careful not to damage the mating surfaces.

• In areas where the cutter is difficult to use, use a plastic hammer to

lightly tap (1) the cutter where the liquid gasket is applied. Use a

plastic hammer to slide (2) the cutter by tapping on the side.

CAUTION:

Do not damage the mating surfaces.

LIQUID GASKET APPLICATION PROCEDURE

1. Using suitable tool (A), remove old liquid gasket adhering to the

liquid gasket application surface and the mating surface.

• Remove liquid gasket completely from the groove of the liquid

gasket application surface, mounting bolts, and bolt holes.

2. Thoroughly clean the mating surfaces and remove adhering

moisture, grease and foreign material.

Tool Number

: KV10111100 (J-37228)

AWBIA1249GB

JPBIA0053ZZ

PRECAUTIONS

LU-3

< PRECAUTION >

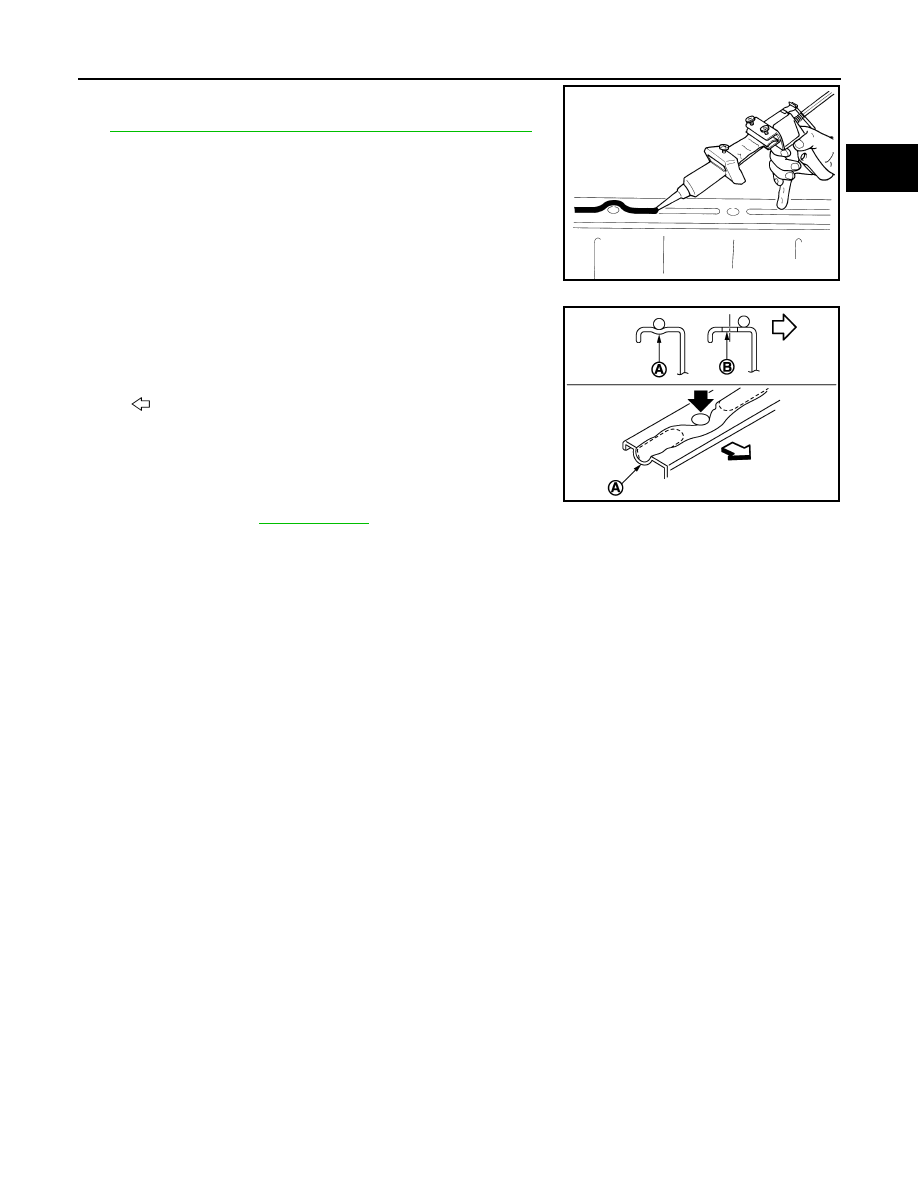

3. Attach liquid gasket tube to the suitable tool.

Use Genuine Silicone RTV Sealant, or equivalent. Refer to

4. Apply liquid gasket without gaps to the specified location accord-

ing to the specified dimensions.

• If there is a groove for liquid gasket application, apply liquid

gasket to the groove.

• As for bolt holes (B), normally apply liquid gasket inside the

holes. Occasionally, it should be applied outside the holes.

Check to read the text of this manual.

• Within five minutes of liquid gasket application, install the mat-

ing component.

• If liquid gasket protrudes, wipe it off immediately.

• Do not retighten mounting bolts or nuts after the installation.

• After 30 minutes or more have passed from the installation, fill

engine oil. Refer to

LU-8, "Refilling"

CAUTION:

If there are specific instructions in the procedures contained in this manual concerning liquid gas-

ket application, observe them.

EMA0622D

(A)

: Groove

: Inside

JPBIA0010ZZ

LU-4

< PREPARATION >

PREPARATION

PREPARATION

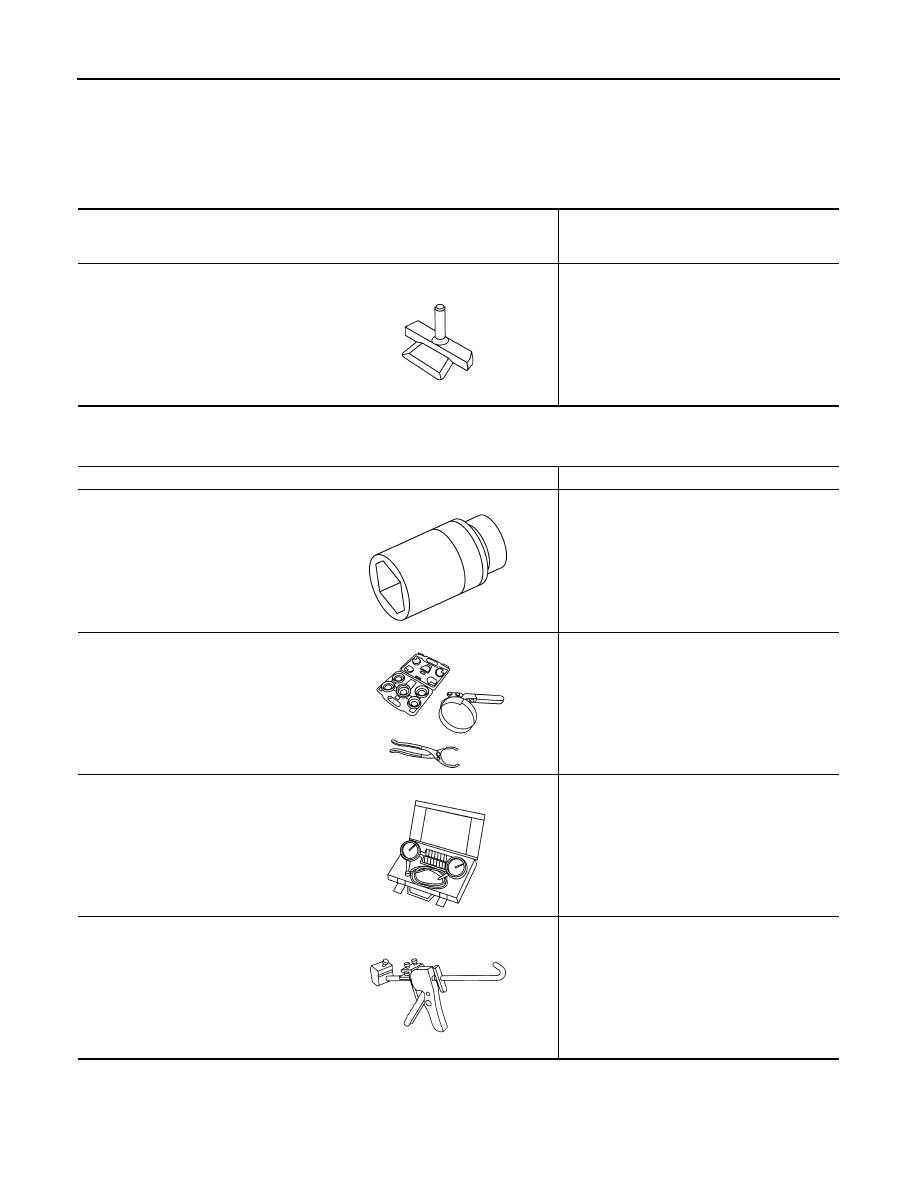

Special Service Tools

INFOID:0000000011277139

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000011277140

Tool number
(TechMate No.)
Tool name

Description

KV10111100
(J-37228)
Seal cutter

Removing oil pan (lower) etc.

NT046

Tool name

Description

Deep socket

Removing and installing oil pressure sensor
27 mm (1.06 in)

Oil filter wrench assortment

Removing oil filter

Oil pressure kit

Measuring oil pressure. Comes with adapter
and hose. Designed to be used for both static
and on road testing.

Tube presser

Pressing the tube of liquid gasket

PBIC4066E

AWBIA1656ZZ

AWBIA1657ZZ

NT052
