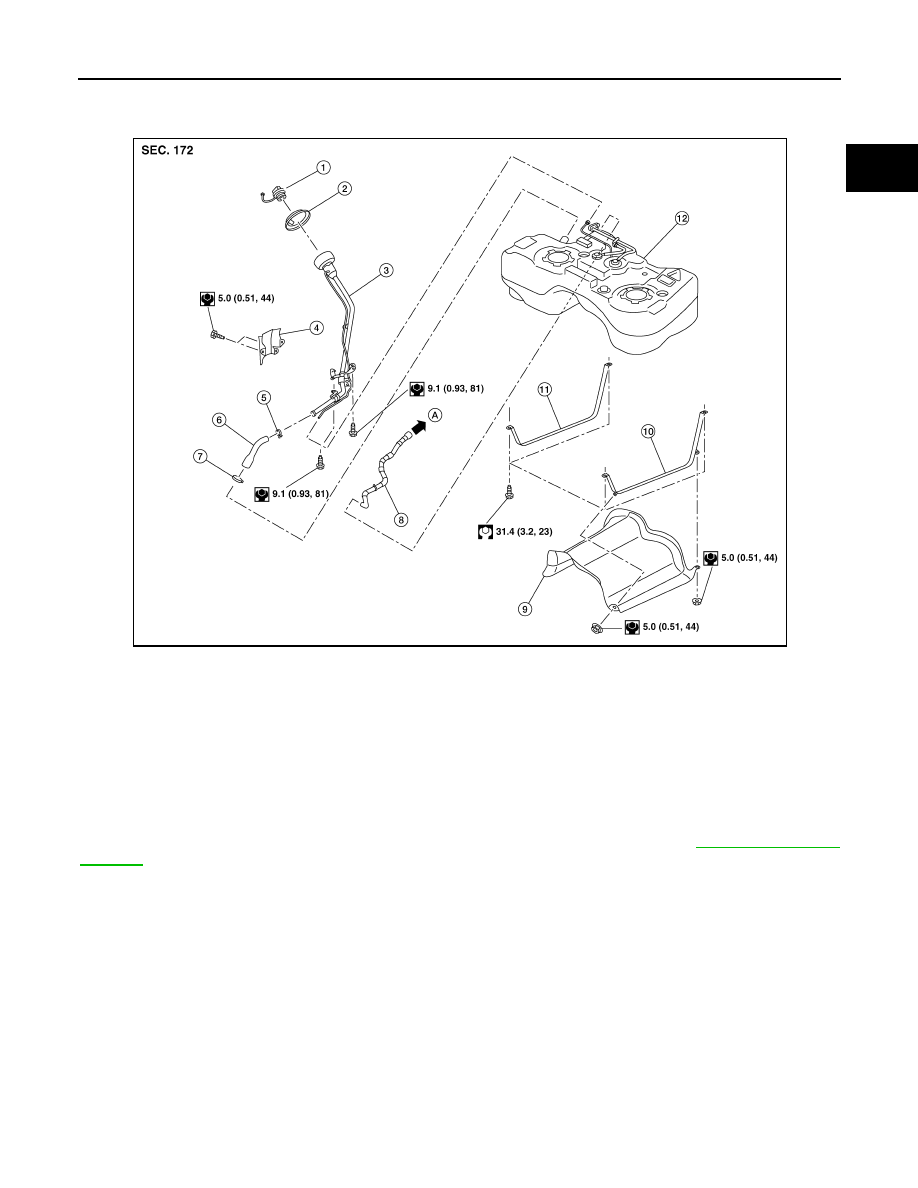

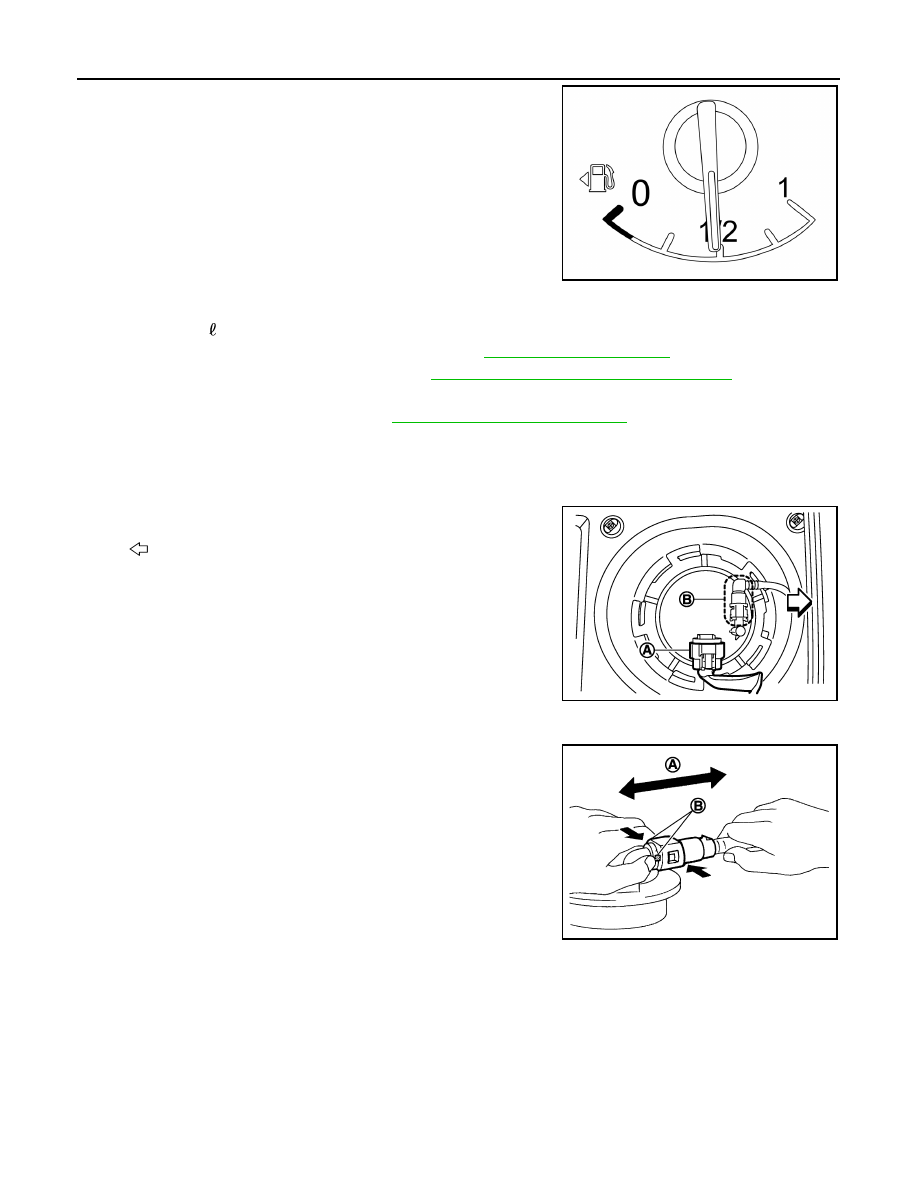

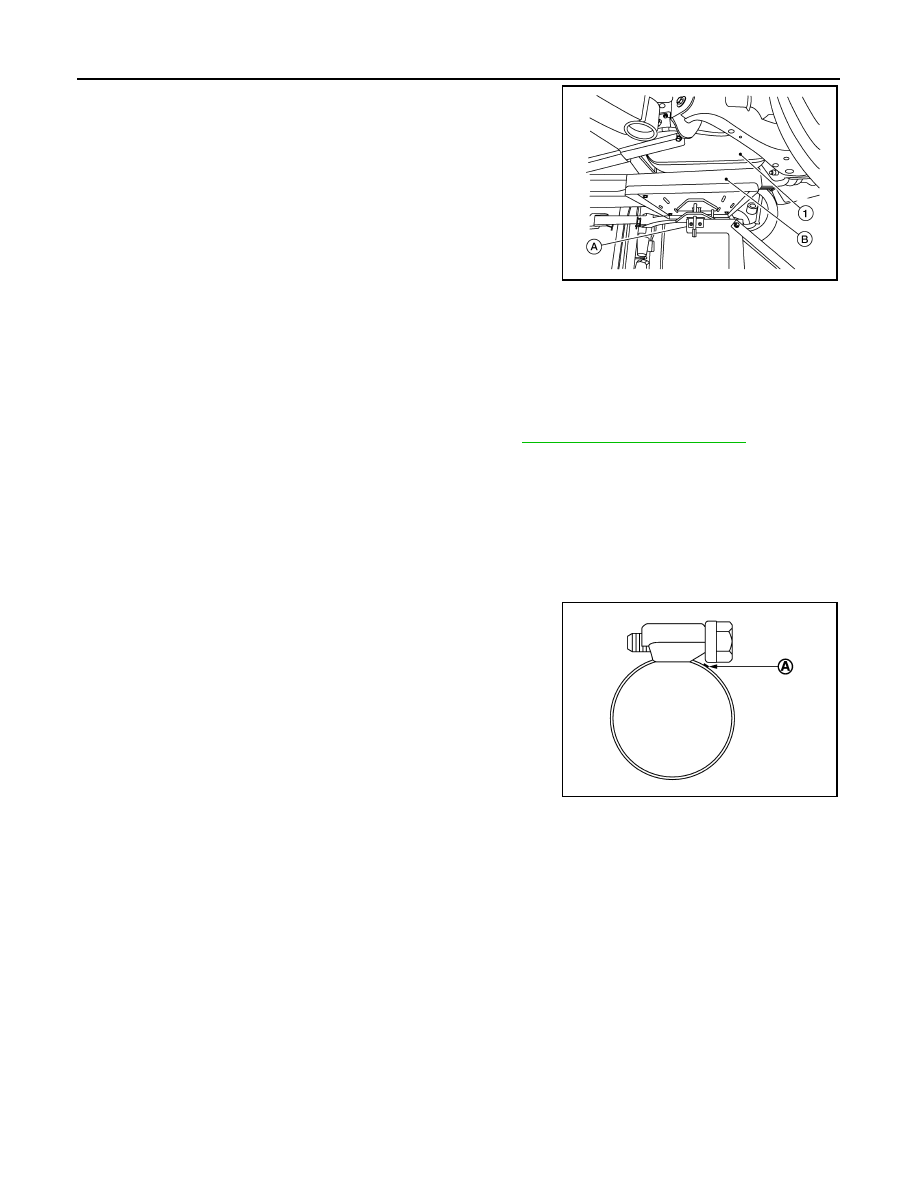

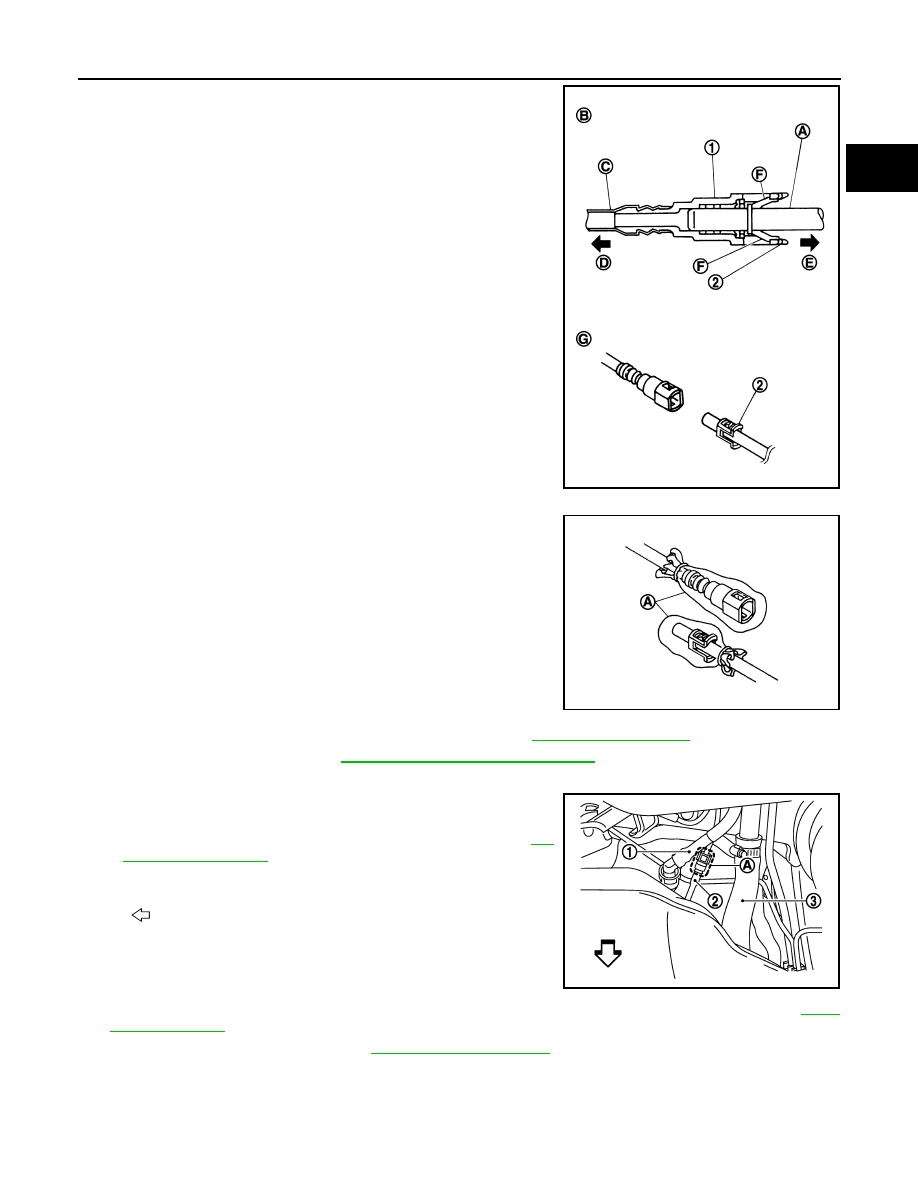

FUEL TANK FL-15 < REMOVAL AND INSTALLATION > C D E F G H I J K L M A FL N P O AWD : Exploded View INFOID:0000000011279619 AWD : Removal and Installation INFOID:0000000011279620 WARNING: Be sure to read “General Precautions” when working on the fuel system. Refer to . NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill- ing. REMOVAL 1. Fuel filler cap 2. Grommet 3. Fuel filler tube 4. Cover 5. Clamp 6. Fuel filler hose 7. Clamp 8. Vent hose 9. Fuel tank protector 10. Fuel tank strap (LH) 11. Fuel tank strap (RH) 12. Fuel tank A. To EVAP canister AWBIA1953ZZ |
