FENDER PROTECTOR

EXT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Installation is in the reverse order of removal.

REAR WHEEL HOUSE PROTECTOR

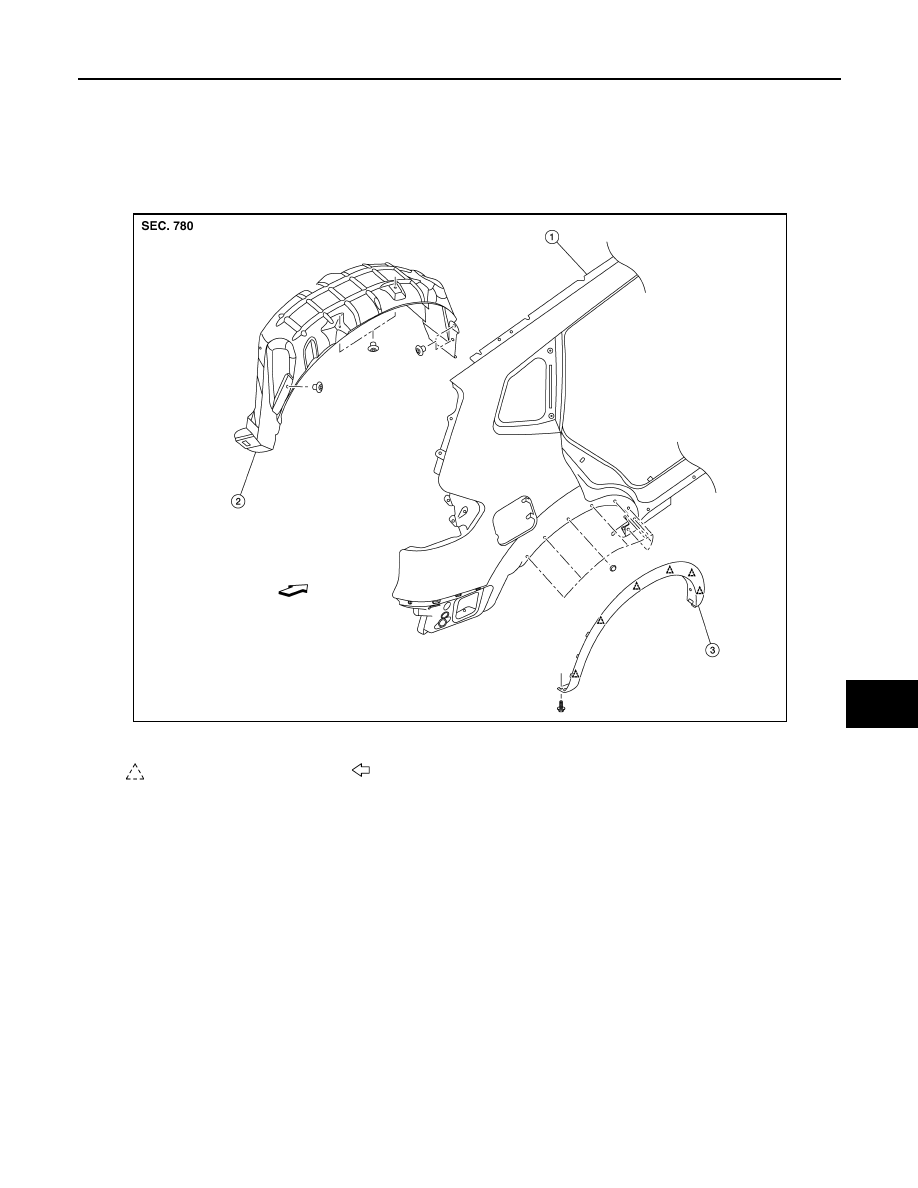

REAR WHEEL HOUSE PROTECTOR : Exploded View

INFOID:0000000011280037

REAR WHEEL HOUSE PROTECTOR : Removal and Installation

INFOID:0000000011280038

REMOVAL

1. Remove rear wheel house protector clips.
2. Remove rear wheel house protector nuts and rear wheel house protector.

INSTALLATION

Installation is in the reverse order of removal.

1.

Rear fender

2.

Rear wheel house protector

3.

Rear over fender

Clip

Front

ALKIA3385ZZ

EXT-30

< REMOVAL AND INSTALLATION >

OVER FENDER

OVER FENDER

FRONT OVER FENDER

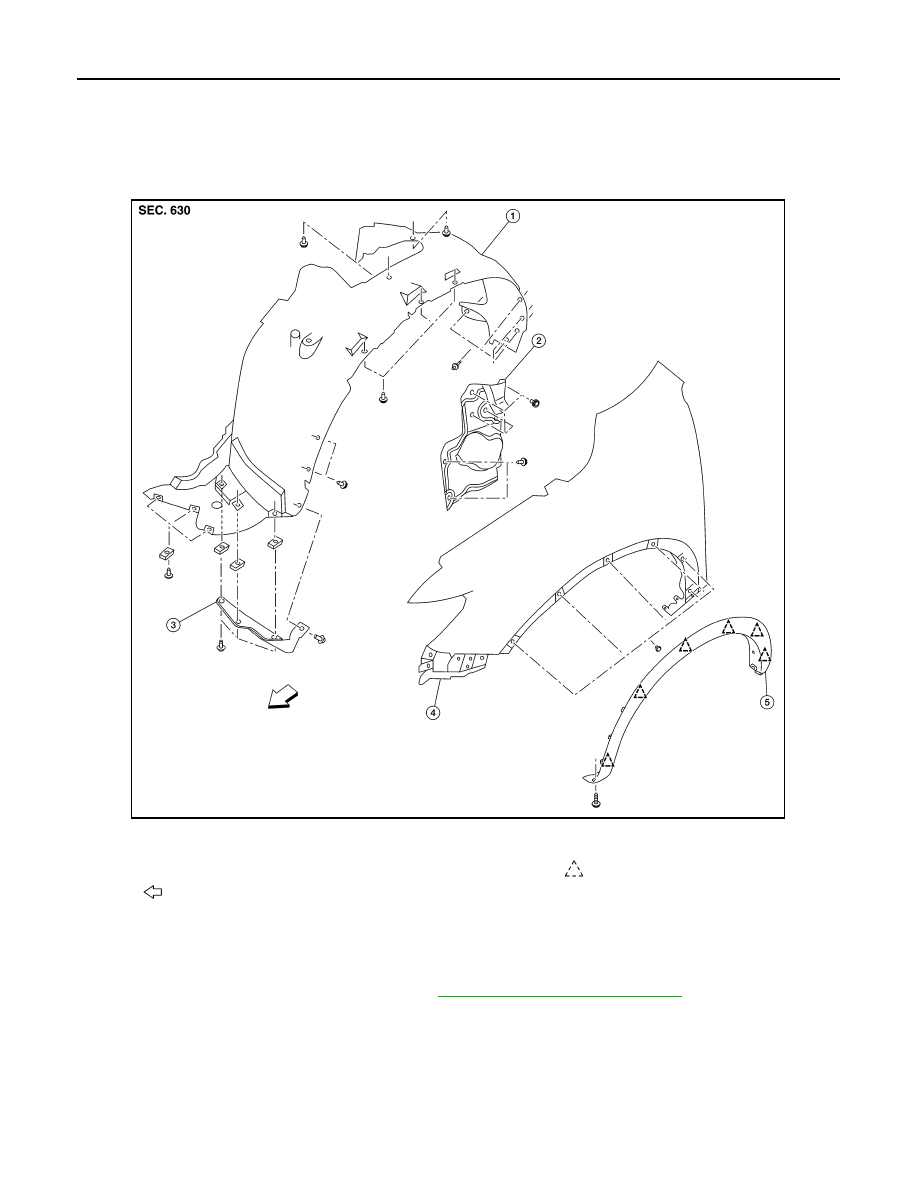

FRONT OVER FENDER : Exploded View

INFOID:0000000011280039

FRONT OVER FENDER : Removal and Installation

INFOID:0000000011280040

REMOVAL

1. Remove front mudguard (if equipped). Refer to

EXT-34, "Removal and Installation"

.

1.

Front fender protector

2.

Engine side cover

3.

Front air spoiler

4.

Front fender

5.

Front over fender

Clip

Front

AWKIA3204ZZ

OVER FENDER

EXT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

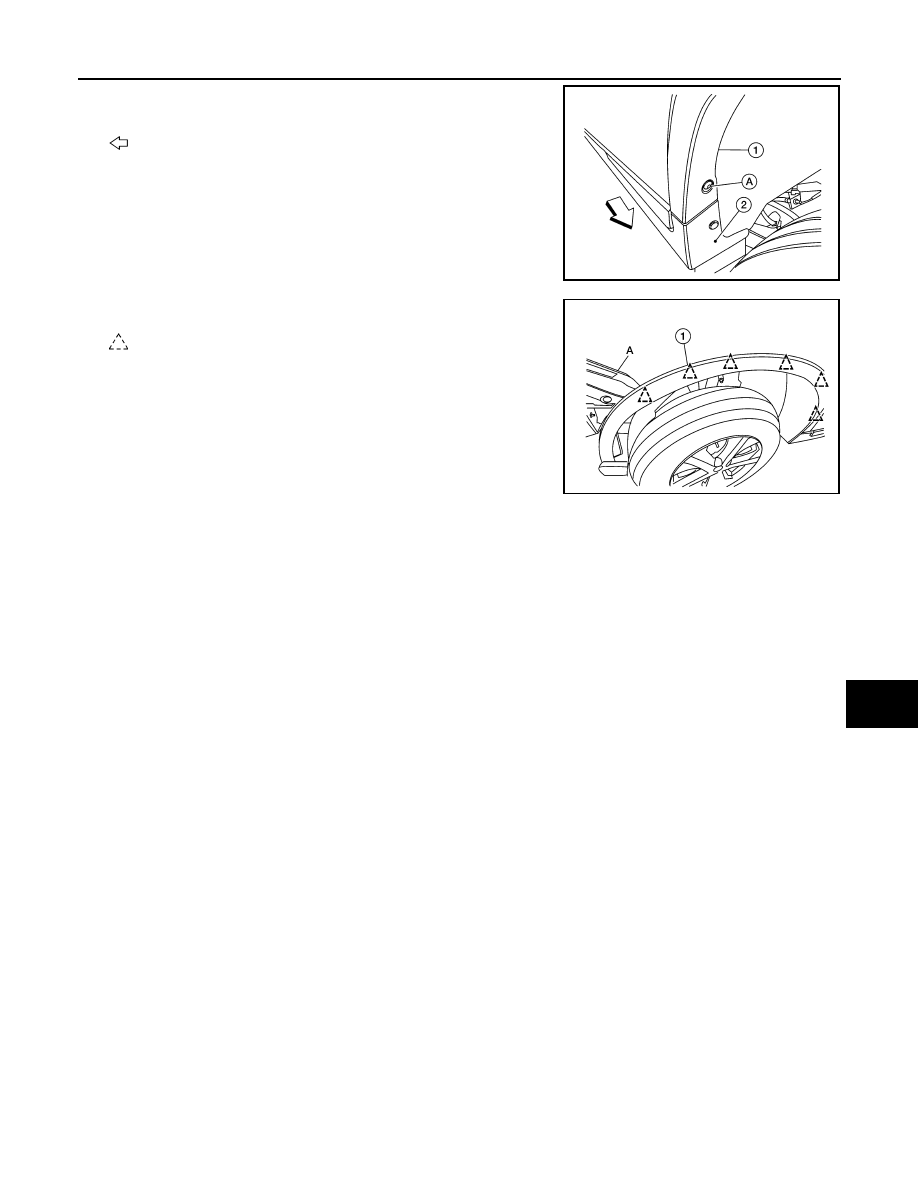

2. Remove front and rear screw (A).

(1): Front over fender

(2): Center mudguard

: Front

3. Release clips using suitable tool (A) and remove front over

fender (1).

: Clips

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if

necessary.

• When installing front over fender, check that clips are securely placed in body panel holes.

REAR OVER FENDER

AWKIA3217ZZ

ALKIA3402ZZ

EXT-32

< REMOVAL AND INSTALLATION >

OVER FENDER

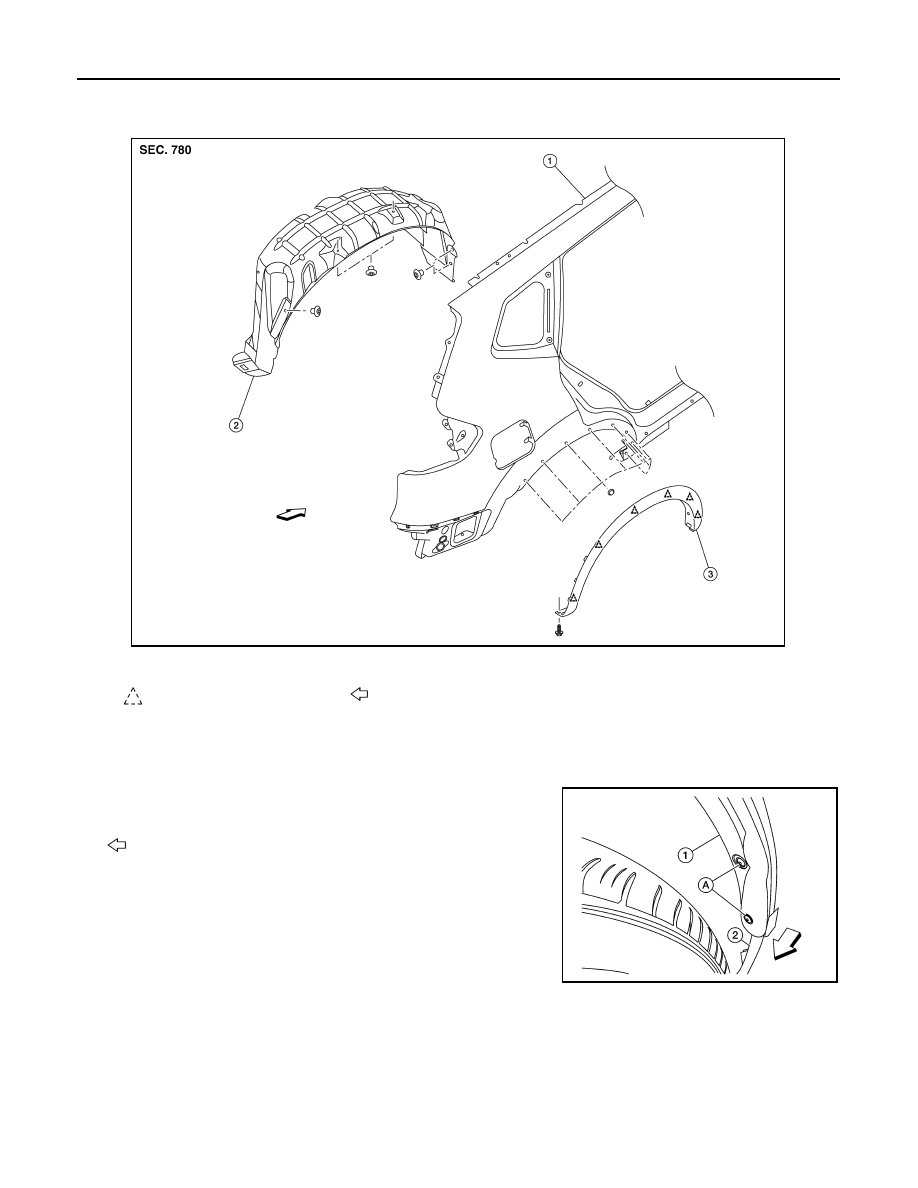

REAR OVER FENDER : Exploded View

INFOID:0000000011280041

REAR OVER FENDER : Removal and Installation

INFOID:0000000011280042

REMOVAL

1. Remove rear over fender screws (A).

(1): Rear over fender

(2): Rear bumper

: Front

1.

Rear fender

2.

Rear wheel house protector

3.

Rear over fender

Clip

Front

ALKIA3385ZZ

ALKIA3405ZZ
