PREPARATION

EM-13

< PREPARATION >

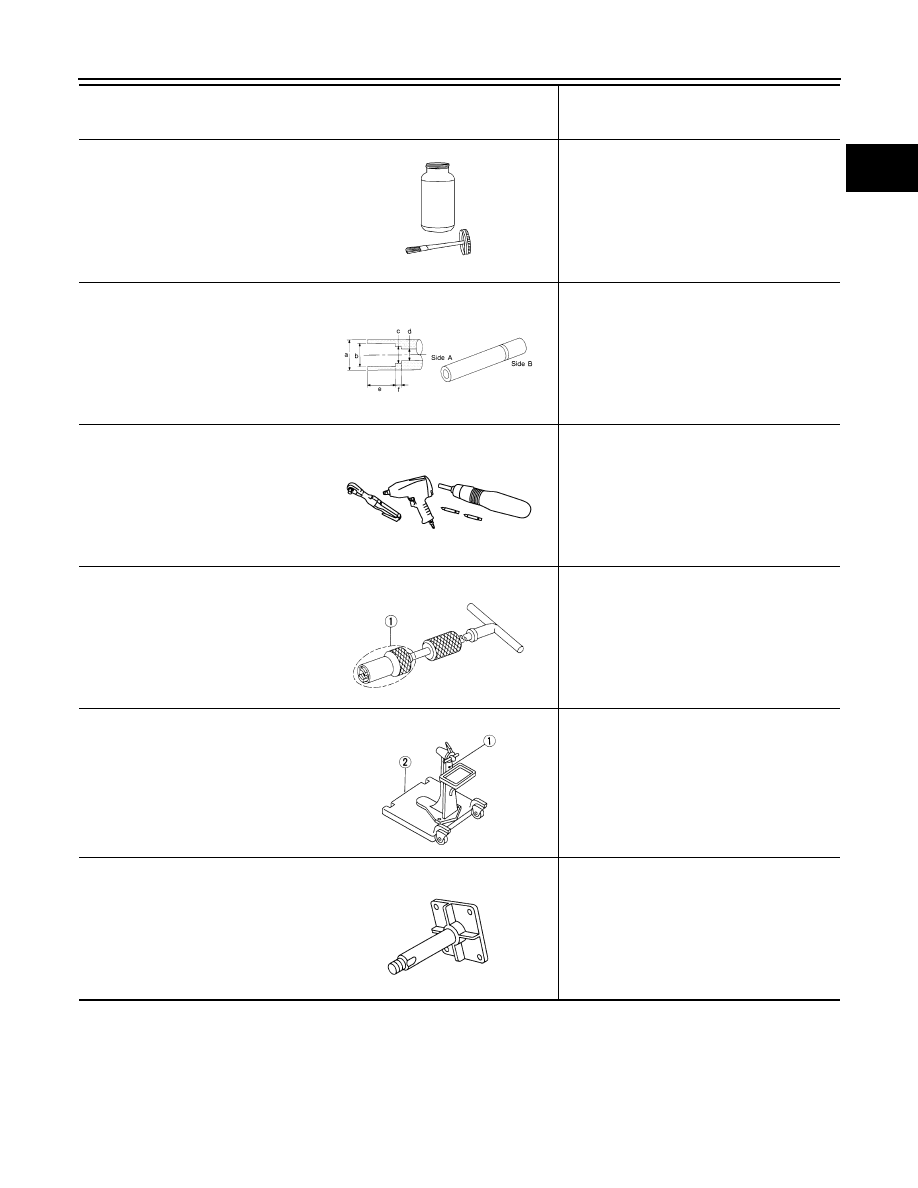

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

KV10115600
(J-38958)
Valve oil seal drift

Installing valve oil seal
Use side A.
a: 20 (0.79) dia.          d: 8 (0.31) dia.
b: 13 (0.51) dia.           e: 10.7 (0.421) dia.
c: 10.3 (0.406) dia.         f: 5 (0.20) dia.
                                              Unit: mm (in)

Power tool

Loosening nuts, screws, and bolts

KV10107902
(J-38959)
Valve oil seal puller with adapter (1)

Removing valve oil seal

ST0501S000
Engine stand assembly
( — )
1. ST05011000
( — )
Engine stand
2. ST05012000
( — )
Base

Disassembling and assembling

KV10106500
( — )
Engine stand shaft

Engine supporting

Tool number
(TechMate No.)
Tool name

Description

AEM489

S-NT603

PIIB1407E

S-NT605

NT042

NT028

EM-14

< PREPARATION >

PREPARATION

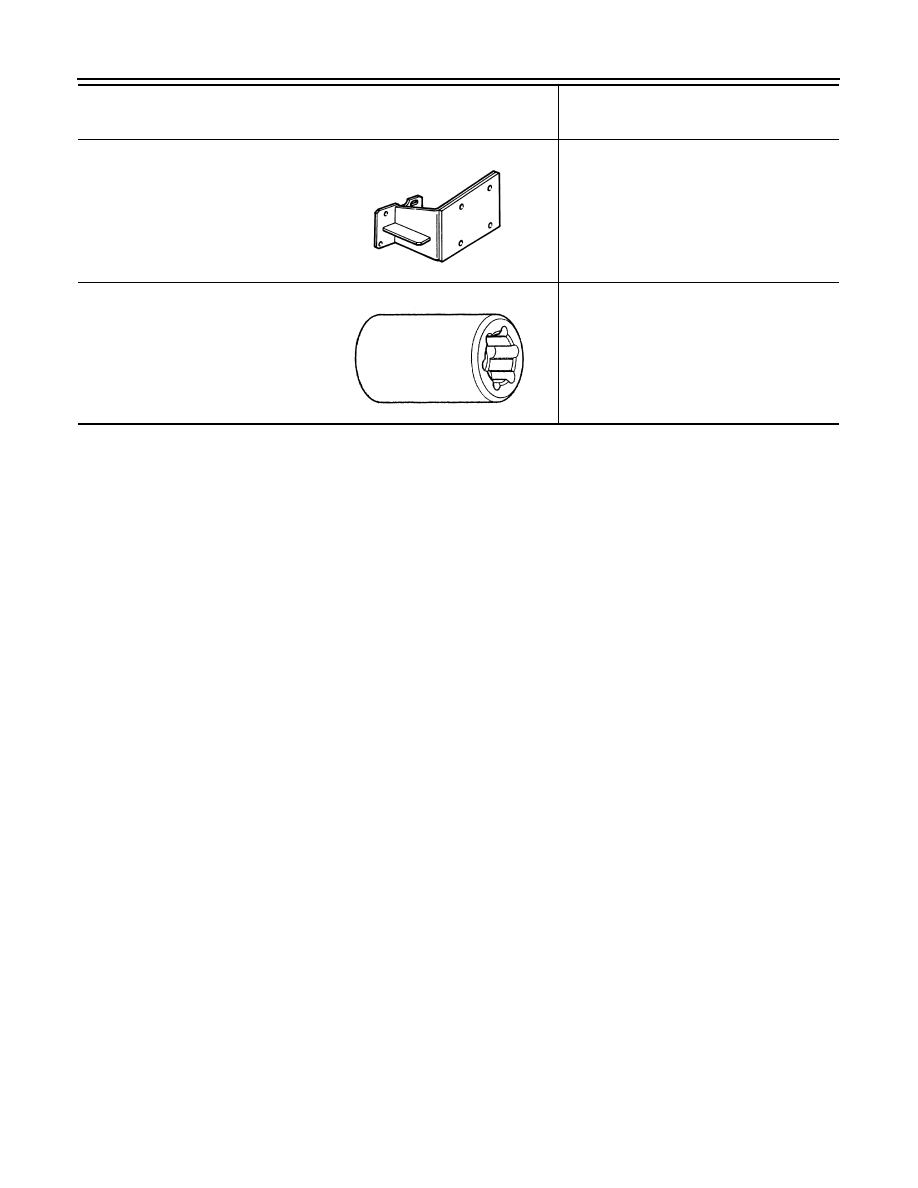

KV10115300
( — )
Engine sub-attachment

Disassembling and assembling

(J-45816)
E20 Socket

Removing and installing CVT drive plate bolts

Tool number
(TechMate No.)
Tool name

Description

ZZA1078D

LBIA0285E

DRIVE BELTS

EM-15

< PERIODIC MAINTENANCE >

PERIODIC MAINTENANCE

DRIVE BELTS

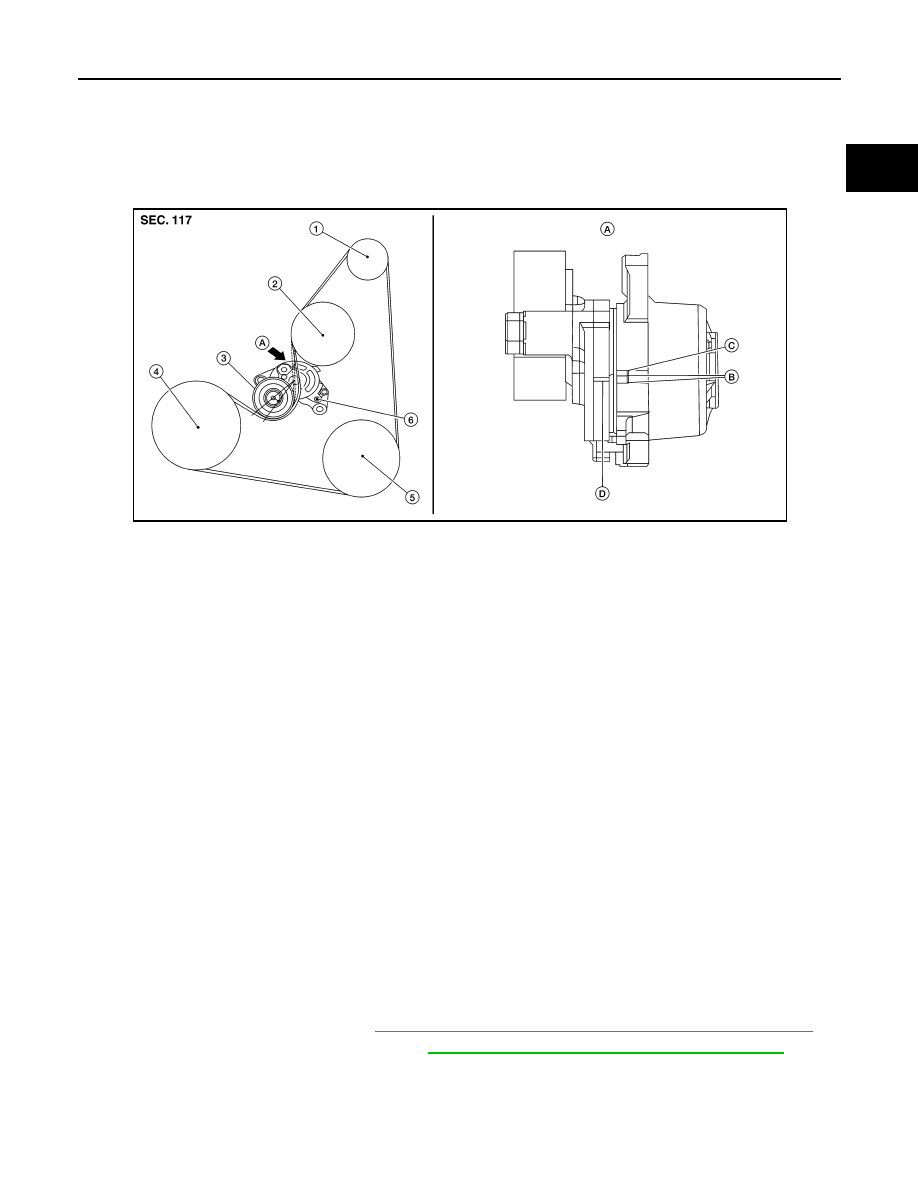

Exploded View

INFOID:0000000011279934

Checking

INFOID:0000000011279935

WARNING:

Inspect the drive belt only when the engine is stopped.
1. Visually check entire drive belt for wear, damage or cracks.
2. Check that the drive belt auto-tensioner indicator is within the possible use range.

NOTE:

• When new drive belt is installed, the drive belt auto-tensioner indicator should be within the new drive

belt range.

• Check the drive belt auto-tensioner indicator when the engine is cold.

3. If the drive belt auto-tensioner indicator is out of the possible use range or belt is damaged, replace drive

belt.

Tension Adjustment

INFOID:0000000011279936

Belt tension is not manually adjustable. It is automatically adjusted by the drive belt auto-tensioner.

Removal and Installation

INFOID:0000000011279937

REMOVAL

1. Remove wheel and tire (RH) using a power tool.
2. Remove engine under cover. Refer to

EXT-37, "ENGINE UNDER COVER : Removal and Installation"

3. Remove fender protector side cover. Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

Generator pulley

Water pump pulley

Drive belt auto-tensioner

Crankshaft pulley

A/C compressor pulley

Drive belt retainer boss

View A

New drive belt range

Maximum belt length

Indicator (notch)

AWBIA1893ZZ

EM-16

< PERIODIC MAINTENANCE >

DRIVE BELTS

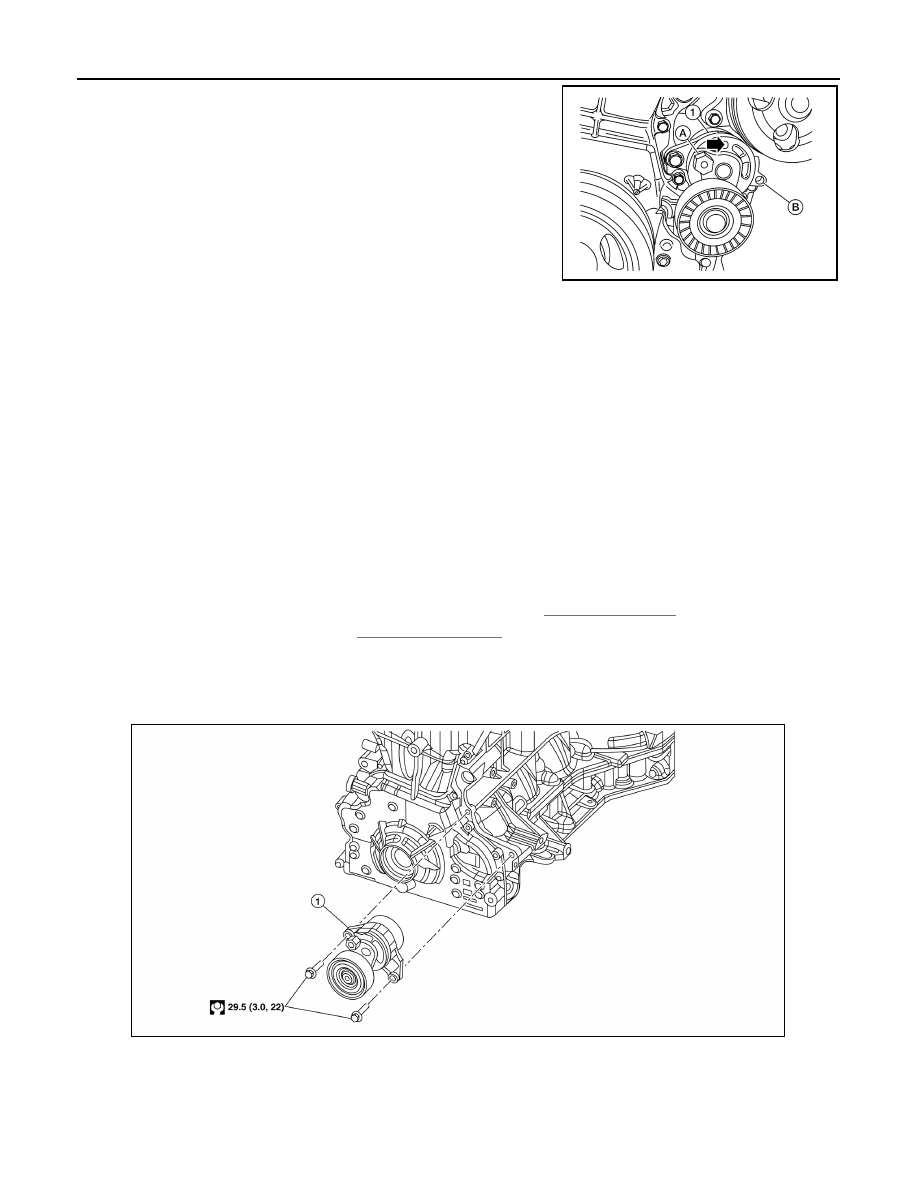

4. Securely hold the hexagonal part (A) of drive belt auto-tensioner

(1) using suitable tool, and move in the direction of arrow (loos-

ening direction of tensioner).

5. Insert a rod approximately 6 mm (0.24 in) in diameter through

the rear of the drive belt auto-tensioner into retaining boss (B) to

lock drive belt auto-tensioner pulley.

WARNING:

Avoid placing hand in a location where pinching may occur

if the holding tool accidentally comes off.

NOTE:

Leave drive belt auto-tensioner pulley arm locked until drive belt

is installed again.

6. Loosen drive belt from drive belt auto-tensioner and then remove it from the other pulleys.
7. Installation of remaining components is in the reverse order of removal.

INSTALLATION

Installation is in the reverse order of removal.
1. Install the drive belt onto all of the pulleys except for the drive belt auto-tensioner. Then install the drive

belt onto drive belt auto-tensioner last.

CAUTION:

• Confirm belts are completely set on the pulleys.

• Check for engine oil and engine coolant. Be sure they are not adhered to the drive belt and each

pulley groove.

2. Release the drive belt auto-tensioner and apply tension to drive belt.

WARNING:

Avoid placing hand in a location where pinching may occur if the holding tool accidentally comes

off.

3. Turn crankshaft pulley clockwise several times to equalize tension between each pulley.
4. Confirm the indicator is within the possible use range. Refer to

EM-15, "Checking"

5. Install wheel and tire (RH). Refer to

WT-64, "Adjustment"

Removal and Installation of Drive Belt Auto-tensioner

INFOID:0000000011279938

REMOVAL

CAUTION:

The complete drive belt auto-tensioner must be replaced as a unit, including the pulley.

ALBIA0879GB

Drive belt auto-tensioner

AWBIA1381ZZ
