EC-308

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P0420 THREE WAY CATALYST FUNCTION

2. Remove fuel injector assembly.

Refer to

EM-45, "Exploded View"

.

Keep fuel hose and all fuel injectors connected to fuel tube.

3. Disconnect all ignition coil harness connectors.

4. Reconnect all fuel injector harness connectors disconnected.

5. Turn ignition switch ON.
Does fuel drip from fuel injector?

YES

>> GO TO 11.

NO

>> Replace the fuel injector(s) from which fuel is dripping. Refer to

EM-45, "Exploded View"

.

11.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

Is the trouble fixed?

YES

>> INSPECTION END

NO

>> Replace three way catalyst assembly. Refer to

EM-32, "Exploded View"

.

P0441 EVAP CONTROL SYSTEM

EC-309

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

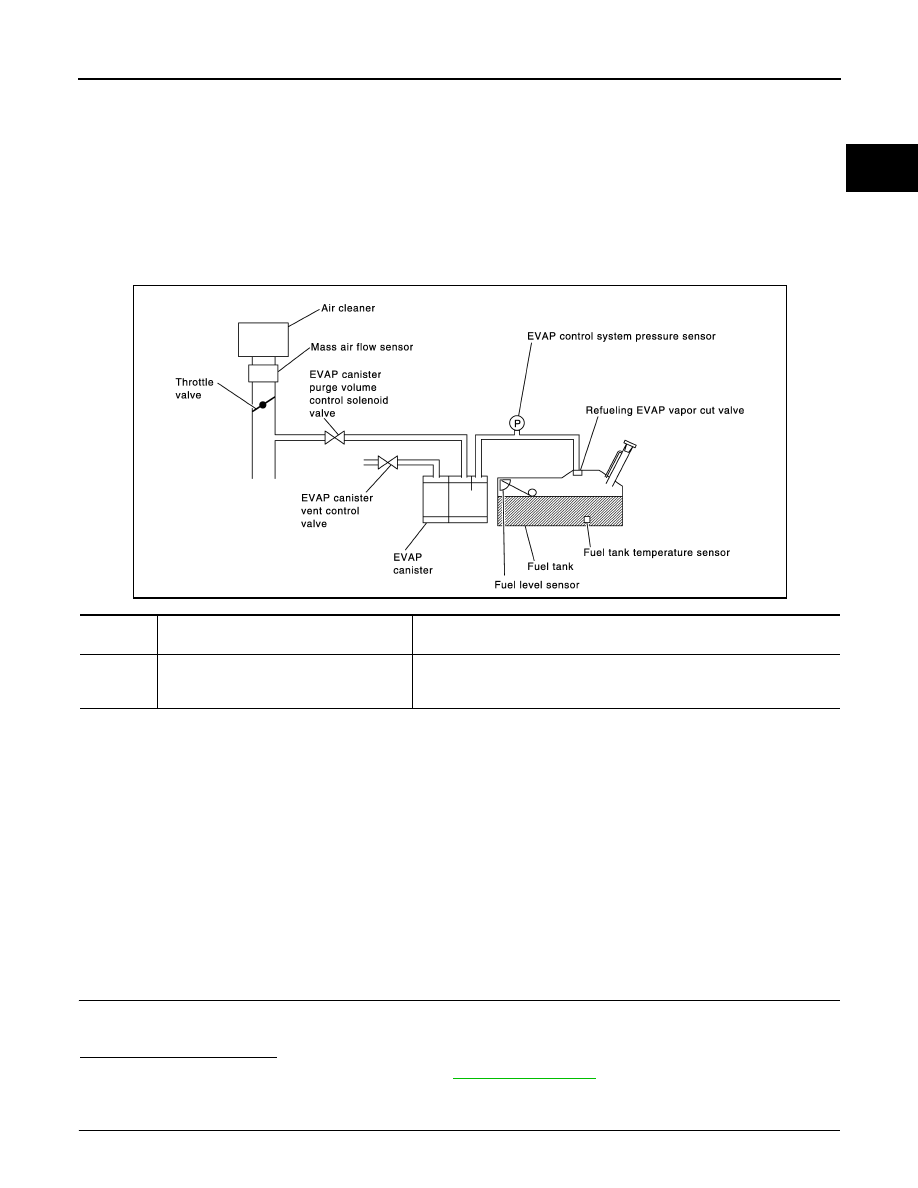

P0441 EVAP CONTROL SYSTEM

DTC Description

INFOID:0000000011278028

DTC DETECTION LOGIC

In this evaporative emission (EVAP) control system, purge flow occurs during non-closed throttle conditions.

Purge volume is related to air intake volume. Under normal purge conditions (non-closed throttle), the EVAP

canister purge volume control solenoid valve is open to admit purge flow. Purge flow exposes the EVAP con-

trol system pressure sensor to intake manifold vacuum.

Under normal conditions (non-closed throttle), sensor output voltage indicates if pressure drop and purge flow

are adequate. If not, a malfunction is determined.

POSSIBLE CAUSE

• EVAP canister purge volume control solenoid valve stuck closed

• EVAP control system pressure sensor and the circuit

• Loose, disconnected or improper connection of rubber tube

• Blocked rubber tube

• Cracked EVAP canister

• EVAP canister purge volume control solenoid valve circuit

• Accelerator pedal position sensor

• Blocked purge port

• EVAP canister vent control valve

FAIL-SAFE

Not applicable

DTC CONFIRMATION PROCEDURE

1.

CHECK DTC PRIORITY

If DTC P0441 is displayed with DTC P2122, P2123, P2127, P2128 or P2138, first perform the trouble diagno-

sis for DTC P2122, P2123, P2127, P2128 or P2138.
Is applicable DTC detected?

YES

>> Perform diagnosis of applicable. Refer to

EC-96, "DTC Index"

.

NO

>> GO TO 2.

2.

PRECONDITIONING

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P0441

EVAP PURG FLOW/MON
(Evaporative emission system incorrect
purge flow)

EVAP control system does not operate properly, EVAP control system has
a leak between intake manifold and EVAP control system pressure sensor.

JSBIA0416GB

EC-310

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P0441 EVAP CONTROL SYSTEM

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.
Will CONSULT be used?

YES

>> GO TO 3.

NO

>> GO TO 6.

3.

PERFORM DTC CONFIRMATION PROCEDURE-1

WITH CONSULT

TESTING CONDITION:

Always perform test at a temperature of 5

°C (41°F) or more.

1. Start engine and warm it up to normal operating temperature.

2. Turn ignition switch OFF and wait at least 10 seconds.

3. Turn ignition switch ON.

4. Turn ignition switch OFF and wait at least 10 seconds.

5. Start engine and let it idle for at least 70 seconds.

6. Select “PURG FLOW P0441” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode of

“ENGINE” using CONSULT.

7. Touch “START”.
Is “COMPLETED” displayed on CONSULT screen?

YES

>> GO TO 5.

NO

>> GO TO 4.

4.

PERFORM DTC CONFIRMATION PROCEDURE-2

When the following conditions are met, “TESTING” will be displayed on the CONSULT screen. Maintain the

conditions continuously until “TESTING” changes to “COMPLETED”. (It will take at least 35 seconds.)

CAUTION:

Always drive vehicle at a safe speed.

NOTE:

If “TESTING” does not change for a long time, retry from step 2.
Is “COMPLETED” displayed on CONSULT screen?

YES

>> GO TO 5.

NO

>> Perform DTC CONFIRMATION PROCEDURE again. GO TO 2.

5.

PERFORM DTC CONFIRMATION PROCEDURE-3

Touch “SELF-DIAG RESULTS”.
Which is displayed on CONSULT screen?

OK

>> INSPECTION END

NG

>> Proceed to

EC-311, "Diagnosis Procedure"

.

6.

PERFORM COMPONENT FUNCTION CHECK

1. Lift up drive wheels.

2. Start engine (VDC switch OFF) and warm it up to normal operating temperature.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Start engine and wait at least 70 seconds.

5. Set voltmeter probes to ECM harness connector terminals as per the following.

Selector lever

Suitable position

VHCL SPEED SE

32 - 120 km/h (20 - 75 MPH)

ENG SPEED

500 - 3,800 rpm

B/FUEL SCHDL

1.0 - 10.0 msec

COOLAN TEMP/S

More than 0

°C (32°F)

P0441 EVAP CONTROL SYSTEM

EC-311

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

6. Check EVAP control system pressure sensor value at idle speed and note it.

7. Establish and maintain the following conditions for at least 1 minute.

8. Verify that EVAP control system pressure sensor value stays 0.1 V less than the value at idle speed (mea-

sured at step 6) for at least 1 second.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-311, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000011278029

1.

CHECK DTC PRIORITY

If DTC P0441 is displayed with DTC P2122, P2123, P2127, P2128 or P2138, first perform the trouble diagno-

sis for DTC P2122, P2123, P2127, P2128 or P2138.
Is applicable DTC detected?

YES

>> Perform diagnosis of applicable. Refer to

EC-96, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK EVAP CANISTER

1. Turn ignition switch OFF.

2. Check EVAP canister for cracks.
Is the inspection result normal?

YES-1 >> With CONSULT: GO TO 3.

YES-2 >> Without CONSULT: GO TO 4.

NO

>> Replace EVAP canister. Refer to

FL-19, "Removal and Installation"

.

3.

CHECK PURGE FLOW

WITH CONSULT

1. Disconnect vacuum hose connected to EVAP canister purge volume control solenoid valve at EVAP ser-

vice port.

2. Start engine and let it idle.

3. Select “PURG VOL CONT/V” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.

4. Touch “Qd” and “Qu” on CONSULT screen to adjust “PURG VOL CONT/V” opening and check vacuum

existence.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> GO TO 5.

4.

CHECK PURGE FLOW

ECM

Connector

+

–

Terminal

E16

114

124

Air conditioner switch

ON

Headlamp switch

ON

Rear window defogger switch

ON

Engine speed

Approx. 3,000 rpm

Gear position

Any position other than P, N or R

PURG VOL CONT/V

Vacuum

100%

Existed

0%

Not existed
