Nissan Rogue. Manual - part 470

EC-148

< BASIC INSPECTION >

[QR25DE]

HOW TO SET SRT CODE

HOW TO SET SRT CODE

Description

INFOID:0000000011277908

OUTLINE

In order to set all SRTs, the self-diagnoses as in the “SRT ITEM” table must have been performed at least

once. Each diagnosis may require actual driving for a long period of time under various conditions.

SRT ITEM

The table below shows required self-diagnostic items to set the SRT to “CMPLT”.

*1: Though displayed on the CONSULT screen, “HO2S HTR” is not SRT item.

*2: If completion of several SRTs is required, perform driving patterns (DTC confirmation procedure), one by

one based on the priority for models with CONSULT.

SRT SERVICE PROCEDURE

SRT item

*1

(CONSULT indication)

Performance

Priority

*2

Required self-diagnostic items to set the SRT to “CMPLT”

Corresponding

DTC No.

CATALYST

1

Three way catalyst function

P0420

EVAP SYSTEM

1

EVAP control system purge flow monitoring

P0441

1

EVAP control system

P0456

HO2S

1

Air fuel ratio (A/F) sensor 1

P014C, P014D,
P015A, P015B

Heated oxygen sensor 2

P0137

Heated oxygen sensor 2

P0138

Heated oxygen sensor 2

P0139

EGR/VVT SYSTEM

2

Intake value timing control function

P0011, P052A,
P052B

HOW TO SET SRT CODE

EC-149

< BASIC INSPECTION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

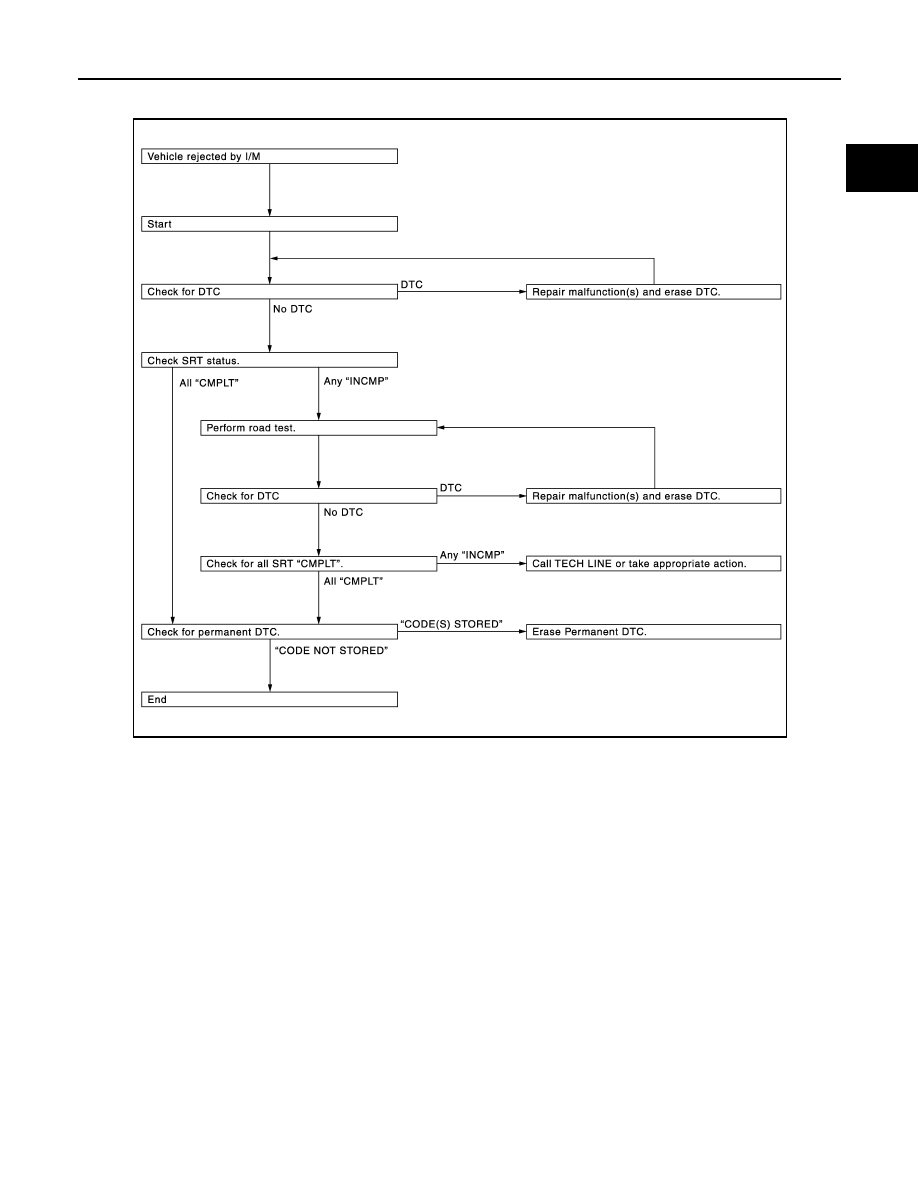

If a vehicle has failed the state emissions inspection due to one or more SRT items indicating “INCMP”, review

the flowchart diagnostic sequence, referring to the following flowchart.

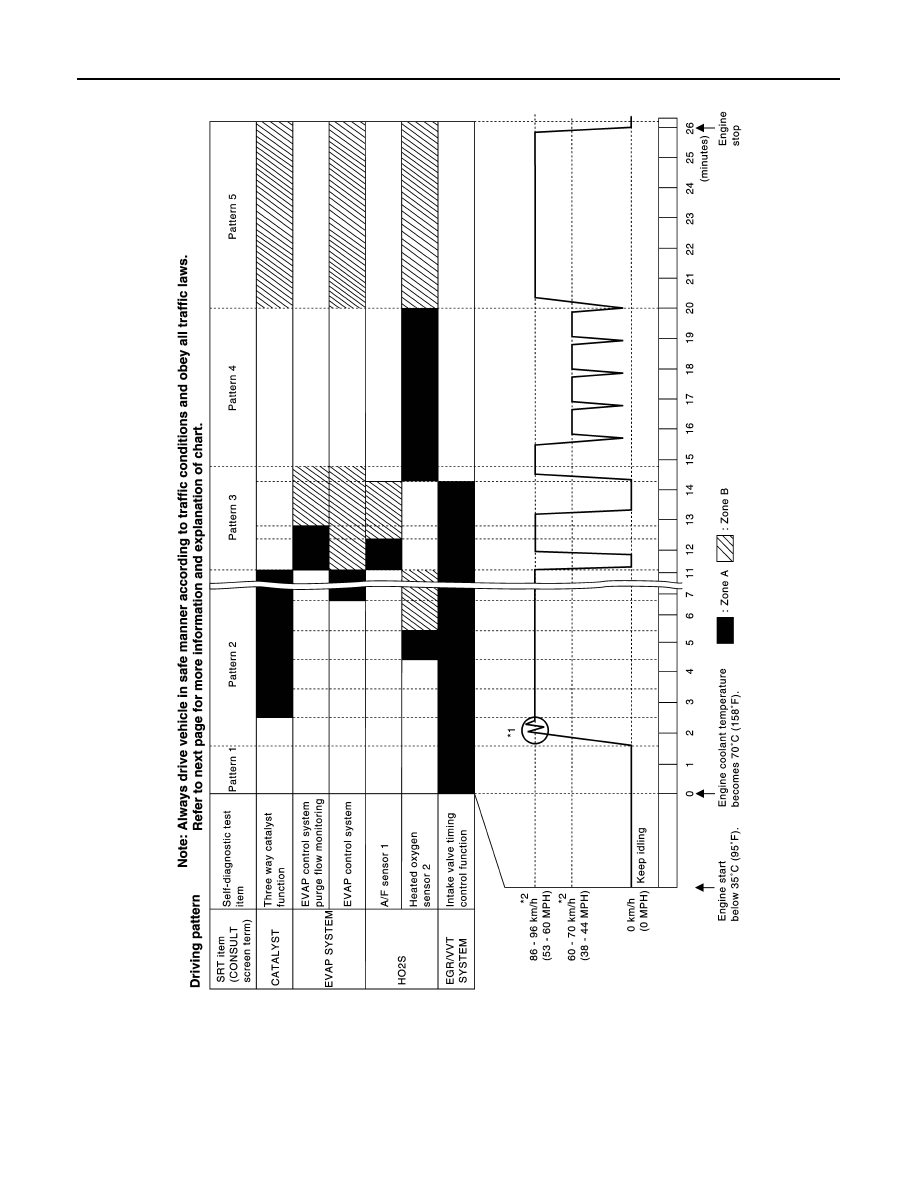

SRT Set Driving Pattern

INFOID:0000000011277909

CAUTION:

JSBIA0400GB

EC-150

< BASIC INSPECTION >

[QR25DE]

HOW TO SET SRT CODE

Always drive the vehicle in safe manner according to traffic conditions and obey all traffic laws.

*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then release the accelerator pedal

and keep it released for more than 10 seconds. Depress the accelerator pedal until vehicle speed is 90 km/h

(56 MPH) again.

*2: Checking the vehicle speed with GST is advised.

• The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driving

habits, etc.

• “Zone A” is the fastest time where required for the diagnosis under normal conditions*. If the diagnosis is not

completed within “Zone A”, the diagnosis can still be performed within “Zone B”.

JPBIA5560GB

HOW TO SET SRT CODE

EC-151

< BASIC INSPECTION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

*: Normal conditions

- Sea level

- Flat road

- Ambient air temperature: 20 – 30

°C (68 – 86°F)

NOTE:

Diagnosis is performed as quickly as possible under normal conditions. However, under other conditions,

diagnosis may also be performed. [For example: ambient air temperature other than 20 – 30

°C (68 – 86°F)]

Work Procedure

INFOID:0000000011277910

1.

CHECK DTC

Check DTC.
Is any DTC detected?

YES

>> Repair malfunction(s) and erase DTC. Refer to

EC-96, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK SRT STATUS

With CONSULT

Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT.

Without CONSULT

Perform “SRT status” mode with

EC-66, "On Board Diagnosis Function"

.

With GST

Select Service $01 with GST.
Is SRT code(s) set?

YES

>> GO TO 11.

NO-1 >> With CONSULT: GO TO 3.

NO-2 >> Without CONSULT: GO TO 4.

3.

DTC CONFIRMATION PROCEDURE

1. Select “SRT WORK SUPPORT” in “DTC & SRT CONFIRMATION” mode with CONSULT.

2. For SRT(s) that is not set, perform the corresponding “DTC CONFIRMATION PROCEDURE” according to

the “Performance Priority” in the “SRT ITEM” table. Refer to

EC-148, "Description"

.

3. Check DTC.
Is any DTC detected?

YES

>> Repair malfunction(s) and erase DTC. Refer to

EC-96, "DTC Index"

.

NO

>> GO TO 10.

4.

PERFORM ROAD TEST

• Check the “Performance Priority” in the “SRT ITEM” table. Refer to

EC-148, "Description"

.

• Perform the most efficient SRT set driving pattern to set the SRT properly. Refer to

EC-149, "SRT Set Driv-

ing Pattern"

.

In order to set all SRTs, the SRT set driving pattern must be performed at least once.

>> GO TO 5.

5.

PATTERN 1

1. Check the vehicle condition;

-

Engine coolant temperature is

−10 to 35°C (14 to 95°F).

-

Fuel tank temperature is more than 0

°C (32°F).

2. Start the engine.

3. Keep engine idling until the engine coolant temperature is greater than 70

°C (158°F)

NOTE:

ECM terminal voltage is follows;

• Engine coolant temperature

-

−10 to 35°C (14 to 95°F): 3.0 – 4.3 V

- 70

°(158°F): Less than 4.1 V

• Fuel tank temperature: Less than 1.4 V

Refer to

EC-80, "Reference Value"

.
