DLN-4

REAR FINAL DRIVE ASSEMBLY ...................

120

Exploded View .......................................................

120

Removal and Installation  .......................................

120

UNIT DISASSEMBLY AND ASSEMBLY ...

121

ELECTRIC CONTROLLED COUPLING  .........

121

Exploded View .......................................................

121

Disassembly and Assembly ...................................

122

DIFFERENTIAL ASSEMBLY  ..........................

125

Exploded View .......................................................

125

Disassembly and Assembly ...................................

126

Adjustment .............................................................

131

Inspection ..............................................................

135

DRIVE PINION ..................................................

136

Exploded View  ......................................................

136

Disassembly and Assembly  ..................................

137

Inspection ..............................................................

141

SERVICE DATA AND SPECIFICATIONS
(SDS) .........................................................

142

SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................

142

General Specifications  ..........................................

142

Preload Torque  .....................................................

142

Drive Gear Runout  ................................................

142

Backlash ...............................................................

142

Differential Side Gear Clearance ..........................

142

PRECAUTIONS

DLN-5

< PRECAUTION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011278285

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

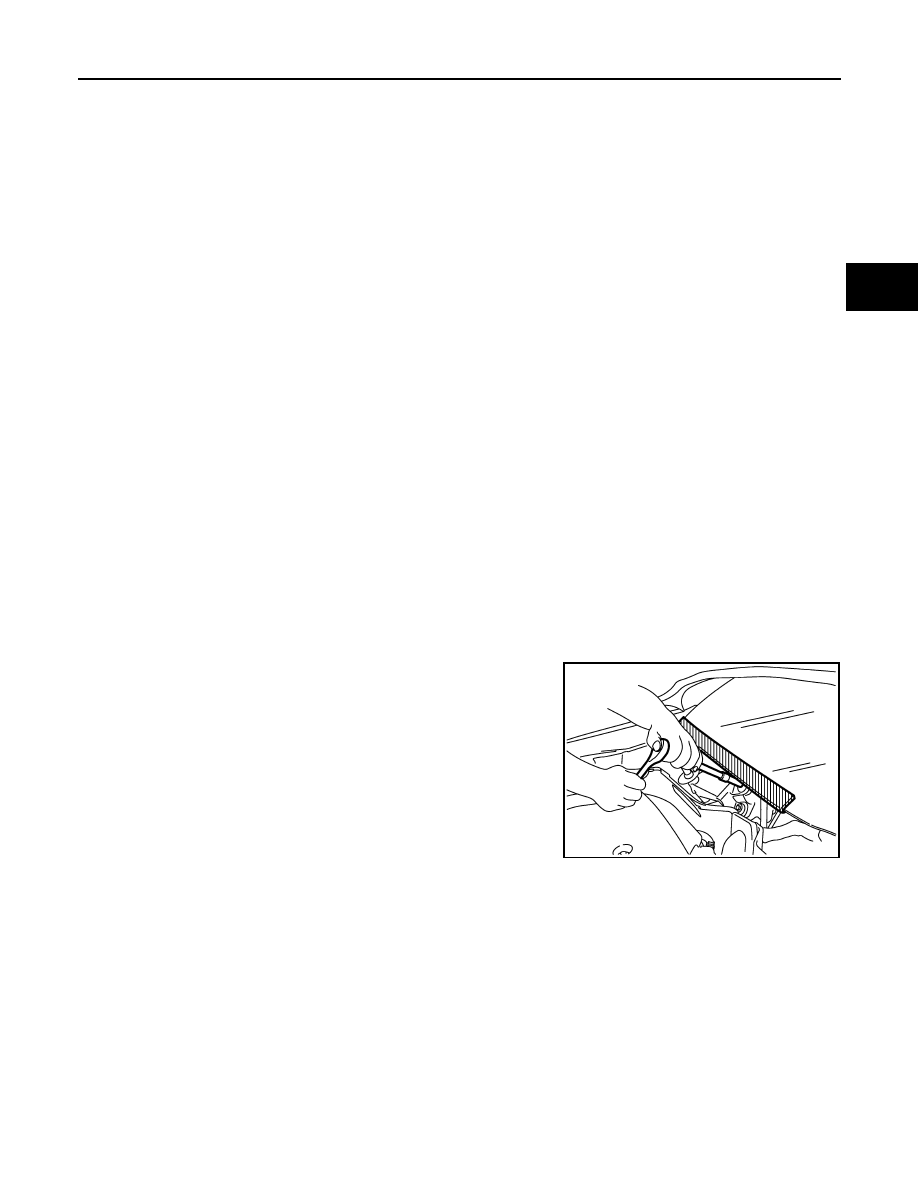

Precaution for Procedure without Cowl Top Cover

INFOID:0000000011278286

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc to prevent damage to

windshield.

Precaution for Battery Service

INFOID:0000000011278287

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-

ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the

window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic

window function will not work with the battery disconnected.

Service Notice or Precautions for Transfer

INFOID:0000000011278288

• After overhaul refill the transfer with new transfer oil.

• Check the oil level or replace the oil only with the vehicle parked on level surface.

• During removal or installation, keep inside of transfer clear of dust or dirt.

• Replace all tires at the same time. Always use tires of the proper size and the same brand and pattern. Fit-

ting improper size and unusual wear tires applies excessive force to vehicle mechanism and can cause lon-

gitudinal vibration.

• Disassembly should be done in a clean work area.

PIIB3706J

DLN-6

< PRECAUTION >

[TRANSFER: TY21C]

PRECAUTIONS

• Before proceeding with disassembly, thoroughly clean the transfer. It is important to prevent the internal

parts from becoming contaminated by dirt or other foreign matter.

• Check for the correct installation status prior to removal or disassembly. If matching marks are required, be

certain they do not interfere with the function of the parts when applied.

• All parts should be carefully cleaned with a general purpose, non-flammable solvent before inspection or

reassembly.

• Check appearance of the disassembled parts for damage, deformation, and unusual wear. Replace them

with a new one if necessary.

• Gaskets, seals, O-rings and lock nuts should be replaced any time when the transfer is disassembled.

• In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to outside. If tight-

ening sequence is specified, use it.

• Observe the specified torque when assembling.

• Clean and flush the parts sufficiently and blow-dry them.

• Be careful not to damage sliding surfaces and mating surfaces.

• Use lint-free cloth or towels for wiping parts clean. Common shop rags can leave fibers that could interfere

with the operation of the transfer.

PREPARATION

DLN-7

< PREPARATION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

PREPARATION

PREPARATION

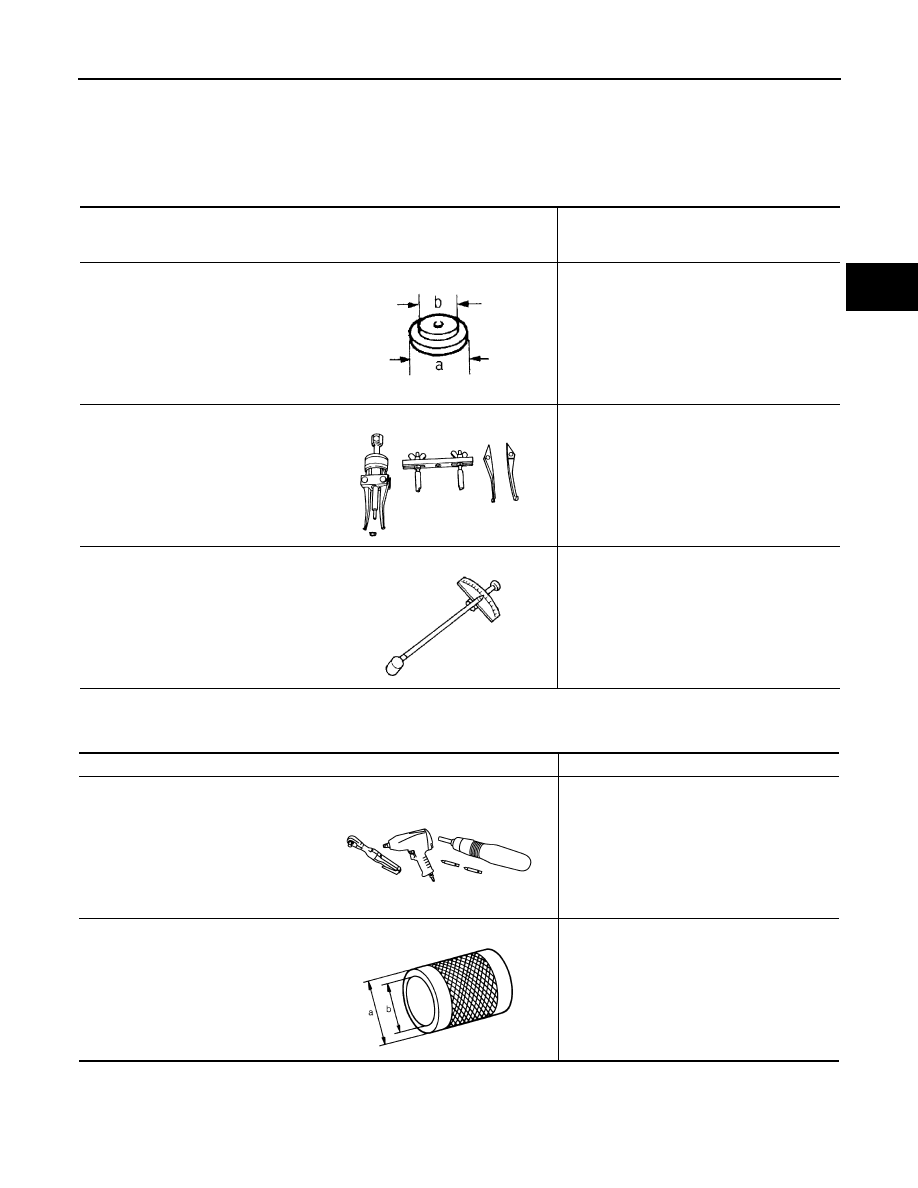

Special Service Tool

INFOID:0000000011278289

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000011278290

Tool number
(TechMate No.)
Tool name

Description

ST33061000
(J-8107-2)
Drift
a: 38 mm (1.50 in) dia.
b: 28.5 mm (1.122 in) dia.

Removing gear ring bearing inner race (trans-
fer case side)

KV381054S0
(J-34286)
Puller

Removing ring gear shaft oil seal

ST3127S000
(J-25765-A)
Preload gauge

Measuring preload torque

ZZA0810D

ZZA0601D

ZZA0503D

Tool name

Description

Power Tool

Loosening nuts, screws and bolts

Drift
a: 52 mm (2.05 in) dia.
b: 44 mm (1.73 in) dia.

Removing gear ring bearing inner race (trans-
fer cover side)

PIIB1407E

ZZA1002D
