INTELLIGENT KEY BATTERY

INTELLIGENT KEY BATTERY

Removal and Installation

INFOID:0000000011279060

1. Release the lock knob on the back of the Intelligent Key and remove the key.

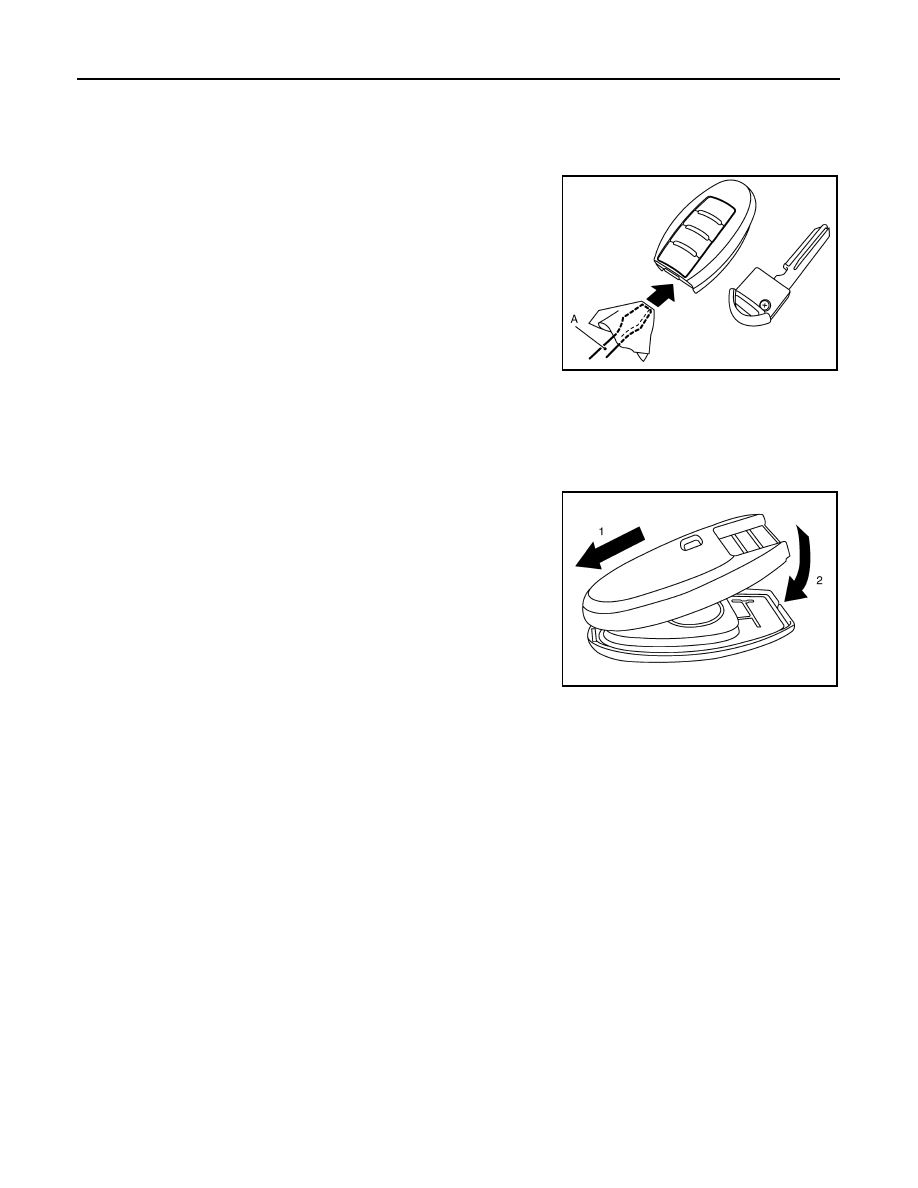

2. Insert a suitable tool (A) wrapped with a cloth into the slit of the

corner and twist it to separate the upper part from the lower part.

CAUTION:

• Do not insert a tool into the notches of the Intelligent Key

to pry it open, as this may damage the circuit board.

• Do not use excessive force when opening the intelligent

key, as this may result in damage to the internal compo-

nents.

• Do not touch the circuit board or battery terminal.

• The key fob is water-resistant. However, if it does get wet,

immediately wipe it dry.

3. Replace the battery with a new one.

4. Align the tips of the upper and lower parts, and then push them

together until unit is securely closed.

CAUTION:

• When replacing battery, keep dirt, grease, and other for-

eign materials off the electrode contact area.

• After replacing the battery, check that all Intelligent Key

functions work normally.

PIIB6221E

Battery replacement

:Coin-type lithium battery
(CR2025)

PIIB6222E

2015 Rogue NAM

AUTOMATIC BACK DOOR CONTROL MODULE

DLK-283

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AUTOMATIC BACK DOOR CONTROL MODULE

Removal and Installation

INFOID:0000000011279061

REMOVAL

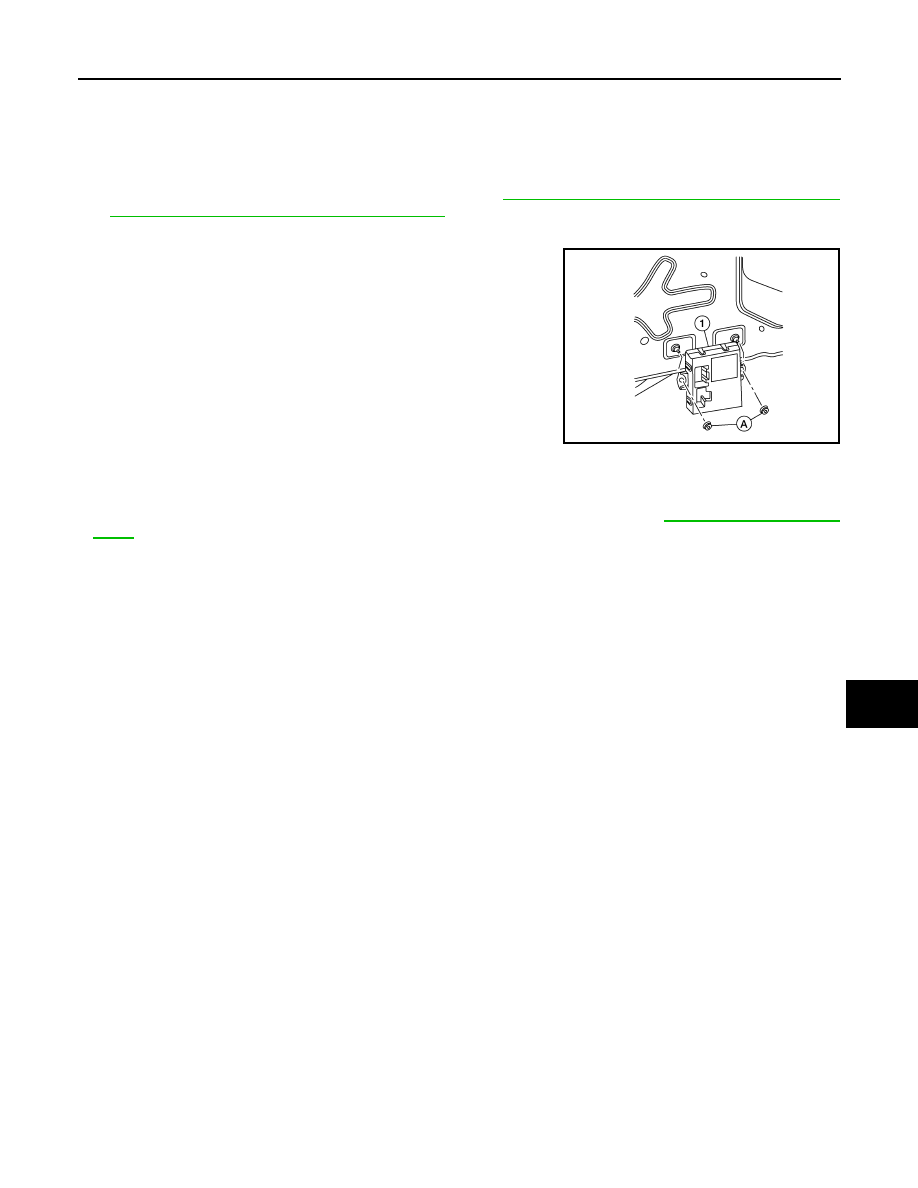

1. Remove the luggage side lower finisher (LH). Refer to

INT-34, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation - With Third Row Seat"

.

2. Disconnect the harness connectors from the automatic back door control module.
3. Remove nuts (A) and automatic back door control module (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Perform calibration of automatic back door position information. Refer to

DLK-110, "Work Proce-

dure"

.

ALKIA3347ZZ

2015 Rogue NAM

DLK-284

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

AUTOMATIC BACK DOOR MAIN SWITCH

AUTOMATIC BACK DOOR MAIN SWITCH

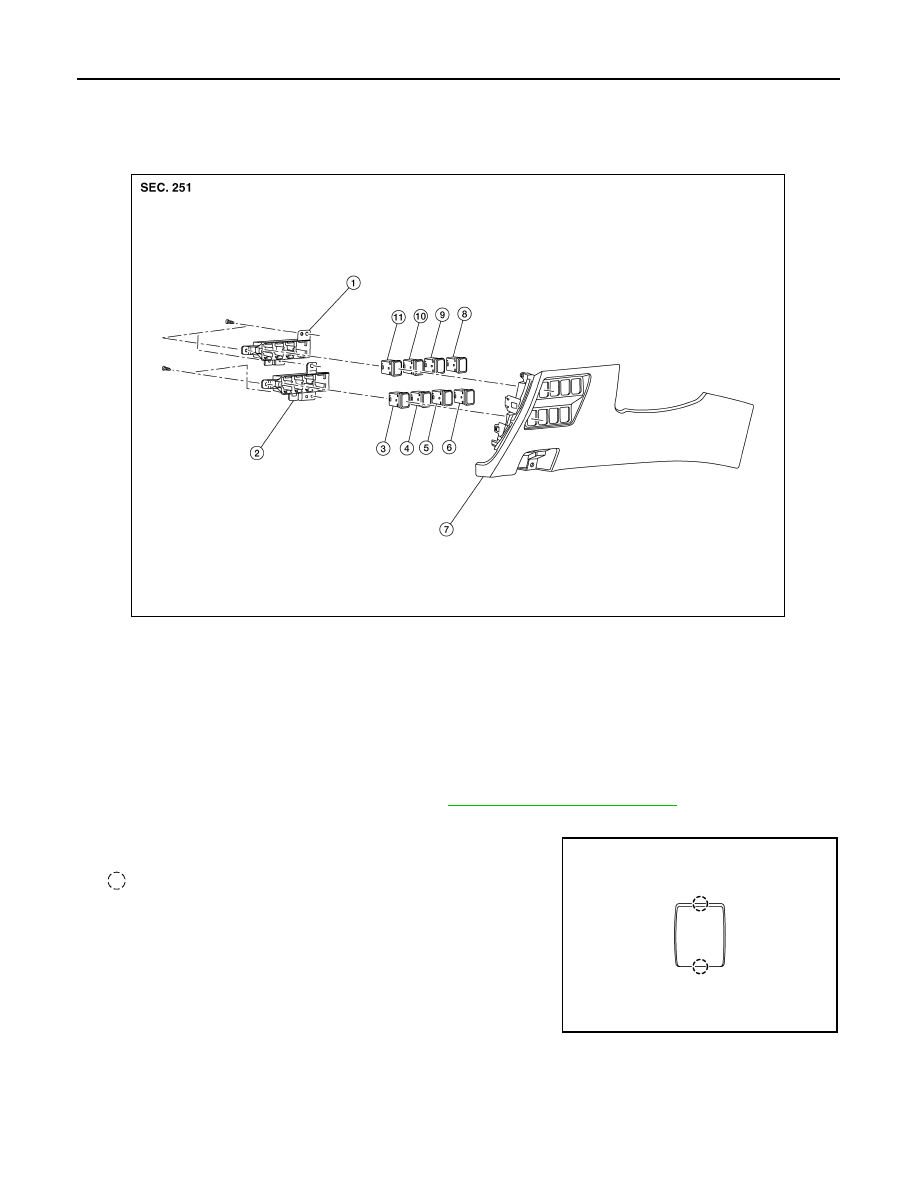

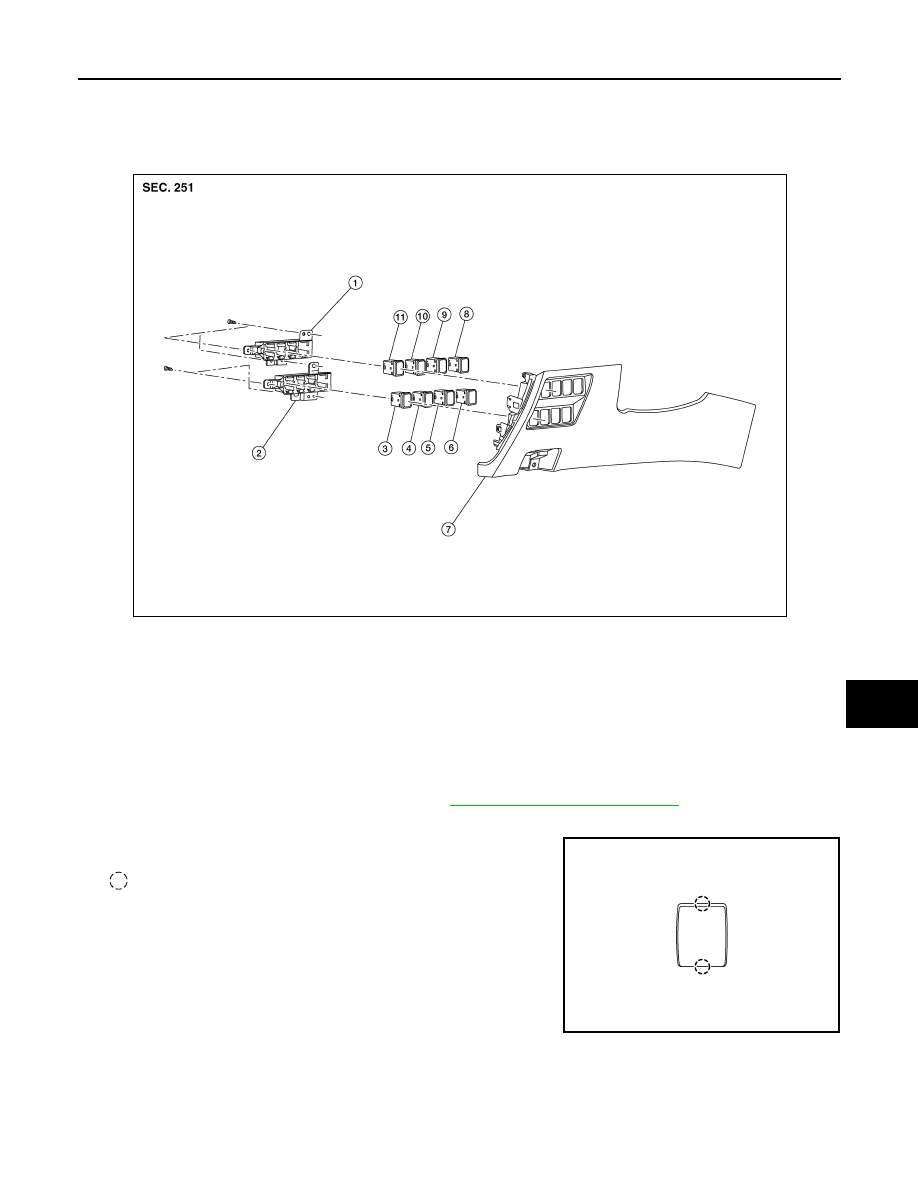

Exploded View

INFOID:0000000011491783

Removal and Installation

INFOID:0000000011492040

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-23, "Removal and Installation"

.

2. Remove the screws and upper switch carrier from the instrument lower panel LH.
3. Release pawls using suitable tool and remove the automatic

back door main switch from the upper switch carrier.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

1.

Upper switch carrier

2.

Lower switch carrier

3. Blank

4.

Warning system switch

5.

AWD lock switch

6. Hill descent control switch

7.

Instrument lower panel LH

8.

Automatic back door main switch

9. Automatic back door switch

10. Sport mode switch

11. VDC OFF switch

ALJIA1521ZZ

ALJIA1522ZZ

2015 Rogue NAM

AUTOMATIC BACK DOOR SWITCH

DLK-285

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AUTOMATIC BACK DOOR SWITCH

Exploded View
