SYSTEM (INTELLIGENT KEY SYSTEM)

WARNING FUNCTION
WARNING FUNCTION : System Description

INFOID:0000000011278790

OPERATION DESCRIPTION

The warning function are as per the following items and are given to the user as warning information and

warnings using combinations of Intelligent Key warning buzzer, combination meter buzzer, KEY warning lamp

and information display in combination meter:

• Intelligent Key system malfunction

• OFF position warning

• P position warning

• Take away warning

• Door lock operation warning

• Engine start information

• Intelligent Key low battery warning

• Key ID warning

• Key ID verification information

OPERATION CONDITION

Once the following condition from below is established, alert or warning is executed:

Function

In

te

lli

ge

nt Key

Do

or swi

tch

Do

or l

o

ck ac

tu

at

or

Pu

sh

-bu

tto

n i

gn

iti

on

 swi

tch

CAN co

mm

un

ic

ati

on

 sy

st

em

BCM

IPDM

 E/R

Horn

Combination meter

Hazard warning lamp

Aut

om

ati

c ba

ck

 do

or co

ntro

l m

o

du

le

Bac

k do

or l

o

ck a

sse

mb

ly

Door lock/unlock function

×

×

×

×

Selective unlock function

×

×

×

×

Auto door lock function

×

×

×

×

×

Hazard and horn reminder function

×

×

×

×

×

×

Automatic back door open/close function

×

×

×

×

×

Warning/Information functions

Operation procedure

Intelligent Key system malfunction

When a malfunction is detected on BCM, “KEY” warning lamp illuminates.

OFF position warning

For internal

When condition A, B or condition C is satisfied
• Condition A
- Ignition switch: ACC position
- Door switch (driver side): ON (Door is open)
• Condition B
- Turn ignition switch from ON to OFF while door is open
• Condition C
- Intelligent Key backside is contacted to ignition switch while brake pedal

is depressed and ignition switch is LOCK or OFF (When the Intelligent
Key battery is discharged)

- Door switch (driver side): ON (Door is open)

For external

OFF position warning (For internal) is in active mode, driver side door is
closed.
NOTE:
OFF position (For external) active only when each of the sequence occurs
as below: P position warning

→ ACC warning → OFF position warning (For

internal)

→ OFF position warning (For internal)

2015 Rogue NAM

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-35

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

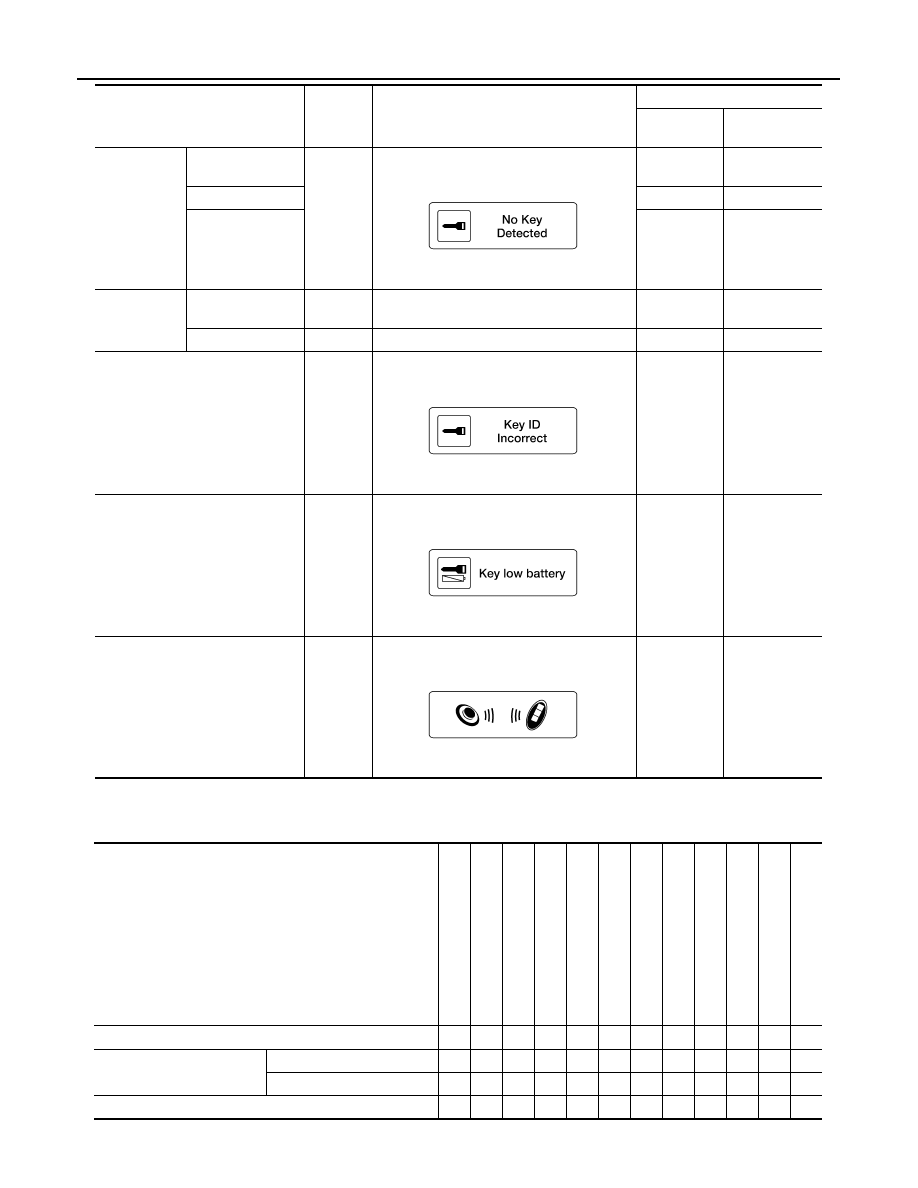

WARNING METHOD

The following table shows the alarm or warning methods with chime:

P position warning

For internal

• Shift position: Except P (Park) position
• Engine is running to stopped (ignition switch is ON to OFF)

For external

Warning is activated when driver door is closed from the open position
while the P (Park) position warning (for inside vehicle) is ON.

ACC warning

• When P (Park) position warning is in active mode, shift position changes

P (Park) position

• Ignition switch: ACC position

Take away warning

Door is open to close

• Ignition switch: Except Lock position
• Door switch: ON to OFF (Door is open to close)
• Intelligent Key cannot be detected inside the vehicle

Door is open

• Ignition switch: Except Lock position
• Door switch: ON (Door is open)
• Key ID verification every 5 seconds when registered Intelligent Key can-

not be detected inside the vehicle

Push-button ignition
switch operation

• Ignition switch: Except Lock position
• Press push-button ignition switch
• Intelligent Key cannot be detected inside the vehicle

Door lock operation warning

When door lock operation is requested while door lock operating condition
of door request switch or Intelligent Key are not satisfied

Engine start information

Ignition switch is ON po-
sition

• Ignition switch: ON position
• Shift position: P (Park) position*
• Engine is stopped

Ignition switch is except
ON position

• Ignition switch: Except ON position
• Shift position: P (Park) position*
• Intelligent Key is inserted in key slot or Intelligent Key can be detected

inside the vehicle

Intelligent Key low battery warning

When Intelligent Key is low battery, BCM is detected after ignition switch is
turned ON

Key ID warning

When registered Intelligent Key cannot be detected inside the vehicle after
ignition switch is turned ON

Key ID verification information

• When registered Intelligent Key cannot be detected inside the vehicle
• Intelligent Key battery is discharged
• When NATS antenna amp cannot be detected NATS ID

Warning/Information functions

Operation procedure

Warning/Information functions

“KEY”

warning

lamp

Information display

(combination meter)

Warning chime

Combination

meter buzzer

Intelligent Key

warning buzzer

Intelligent Key system malfunction

Indicate

—

—

—

OFF position
warning

For internal

—

—

Activate

—

For external

—

—

—

Activate

P position
warning

For internal

—

Activate

—

For external

—

Active

ALKIA2515GB

2015 Rogue NAM

DLK-36

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM (INTELLIGENT KEY SYSTEM)

LIST OF OPERATION RELATED PARTS

Parts marked with

× are the parts related to operation.

Take away
warning

Door is open to
close

—

Activate

Activate

Door is open

—

—

Push-button igni-
tion switch opera-
tion

Activate

—

Door lock op-
eration warn-
ing

Request switch
operation

—

—

—

Activate

Intelligent Key

—

—

—

Activate

Key ID warning

—

—

—

Intelligent Key low battery warning

—

—

—

Key ID verification information

—

—

—

Warning/Information functions

“KEY”

warning

lamp

Information display

(combination meter)

Warning chime

Combination

meter buzzer

Intelligent Key

warning buzzer

ALKIA2517GB

ALKIA2518GB

ALKIA2520GB

ALKIA2521ZZ

Warning function

In

te

llige

nt

 Key

Ign

iti

on

 swi

tch

Do

or swi

tch

Do

or re

qu

es

t s

w

itc

h

In

si

de

 ke

y a

n

ten

n

a

Out

si

de ke

y a

n

ten

n

a

In

te

lli

ge

nt Key

 wa

rnin

g buz

ze

r

Co

mb

ina

tio

n me

ter bu

zz

er

CAN co

mm

un

ic

ati

on

 s

ys

tem

BCM

In

fo

rma

tion di

sp

lay

“KE

Y

” warning lamp

Intelligent Key system malfunction

×

×

×

OFF position warning

For internal

×

×

×

×

For external

×

×

×

P (Park) position warning

×

×

×

×

×

×
