NOTE:
• If vehicle speed exceeds approximately 32 km/h (20 MPH), BSW function operates until the vehicle speed becomes lower than

approximately 29 km/h (18 MPH).

• Time shown in the figure is approximate.
• Whenever Blind Spot Warning system is turned off, the warning systems ON indicator remains OFF.

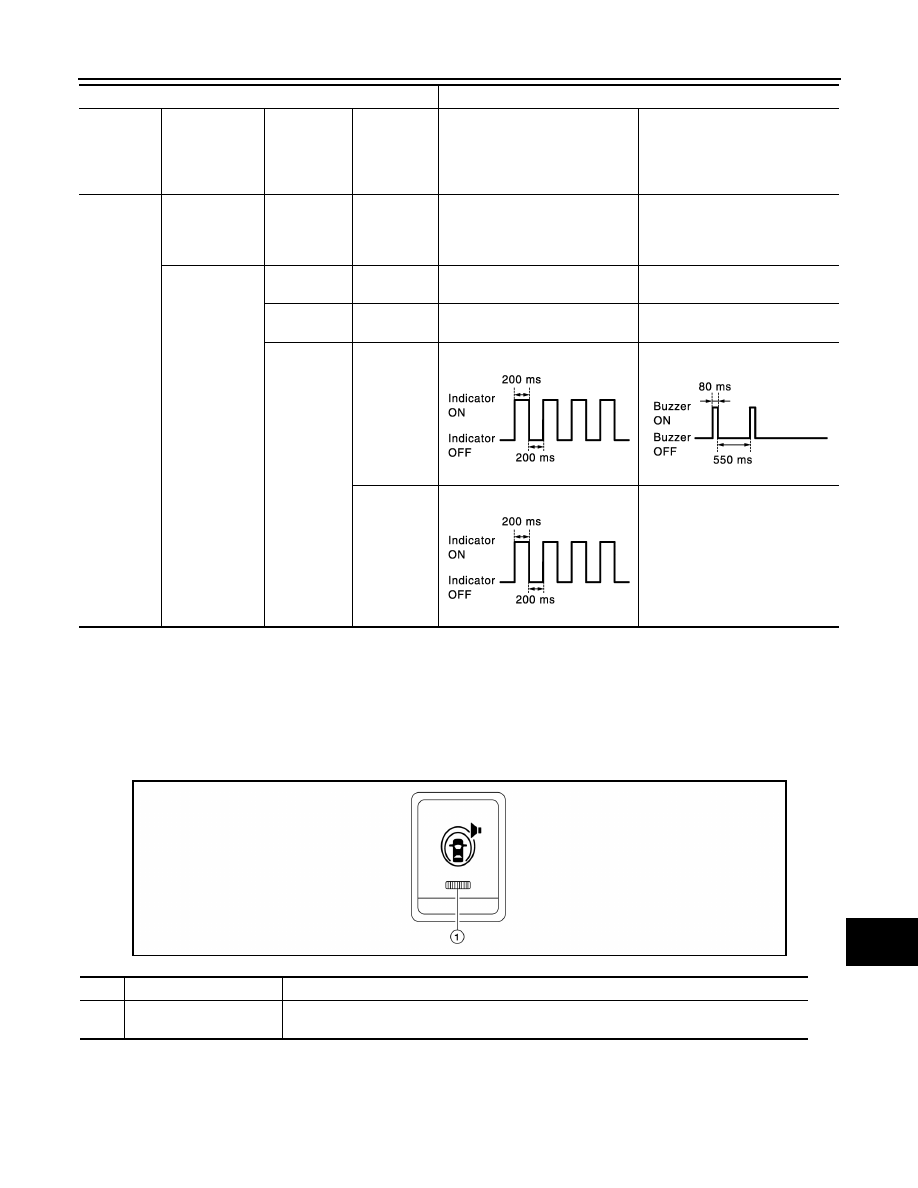

LDW
LDW : Switch Name and Function

INFOID:0000000011277182

ON

Less than ap-

prox.

29km/h

(18MPH)

—

—

OFF

OFF

Approx.

32 km/h (20

MPH)

 or more

—

Vehicle is

absent

OFF

OFF

OFF

Vehicle is

detected

ON

OFF

ON

(vehicle de-

tected direc-

tion)

Before turn

signal oper-

ates

Vehicle is

detected

Blink

Short continuous beep

Vehicle is

detected af-

ter turn sig-

nal operates

Blink

OFF

Vehicle condition/Driver's operation

Action

Warning

systems ON

indicator

Vehicle speed

(Approx.)

[km/h (MPH)]

Turn signal

condition

Status of ve-

hicle detec-

tion within

detection

area

Indication on the

Blind Spot Warning indicator

Buzzer

JSOIA0251GB

JSOIA0252GB

JSOIA0251GB

ALOIA0109ZZ

No.

Switch name

Description

1.

Warning systems switch

Turns LDW system ON/OFF (when the LDW system is enabled on the combination meter
information display).

DAS-32

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

OPERATION

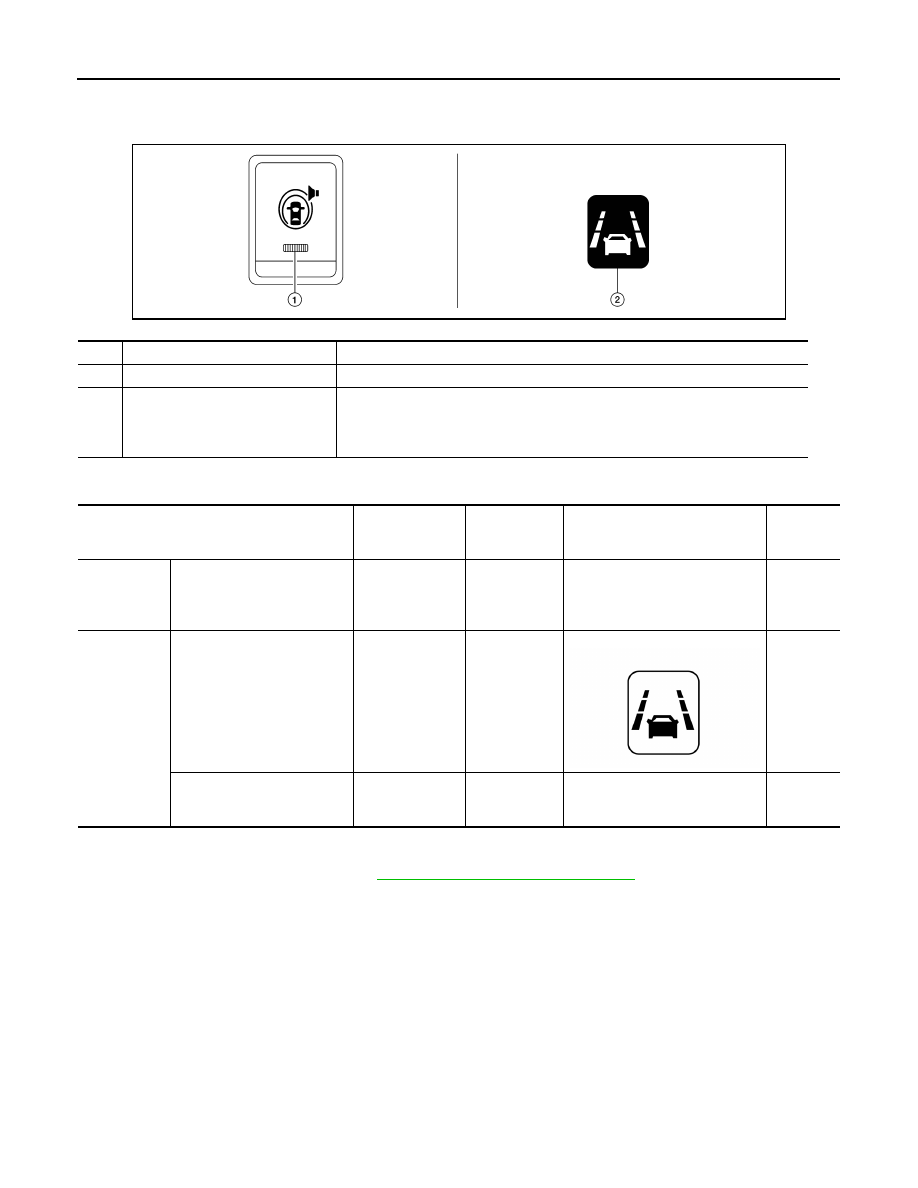

LDW : System Display and Warning

INFOID:0000000011277183

INDICATOR LAMP AND WARNING LAMP

DISPLAY AND WARNING

NOTE:

After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches

approximately 60 km/h (40 MPH). Refer to

DAS-15, "LDW : System Description"

.

MOD
MOD : System Display and Warning

INFOID:0000000011277184

INDICATOR AND WARNING LAMP

The MOD system can be turned ON or OFF for the current ignition cycle using the warning system switch.

When toggled between ON and OFF, the indicator will appear on the right side of the rear view camera screen.

AWOIA0088ZZ

No.

Display item

Description

1.

Warning systems ON indicator

Indicates that the LDW system is ON.

2.

Lane departure warning lamp

• Blinks when LDW system is activated.
• Turns ON when LDW system has a malfunction.
• Blinks when DTC is detected or system is temporarily disabled.
• Blinks when rear view camera blockage is detected.

Vehicle condition/Driver's operation

Action

Warning sys-

tems ON indi-

cator

Indication on the combination

meter

Buzzer

Less than Ap-
prox. 60 km/h
(40 MPH)

Close to lane marker

No action

ON

White

—

Approx. 70
km/h (45
MPH) or more

Close to lane marker

Warning

• Buzzer sounds
• Warning lamp

blinks (orange)

ON

OFF (orange) Blink

Short con-

tinuous

beeps

• Close to lane marker
• Turn signal ON (Deviate

side)

No action

ON

White

—

ALOIA0185ZZ

DAS

OPERATION

DAS-33

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

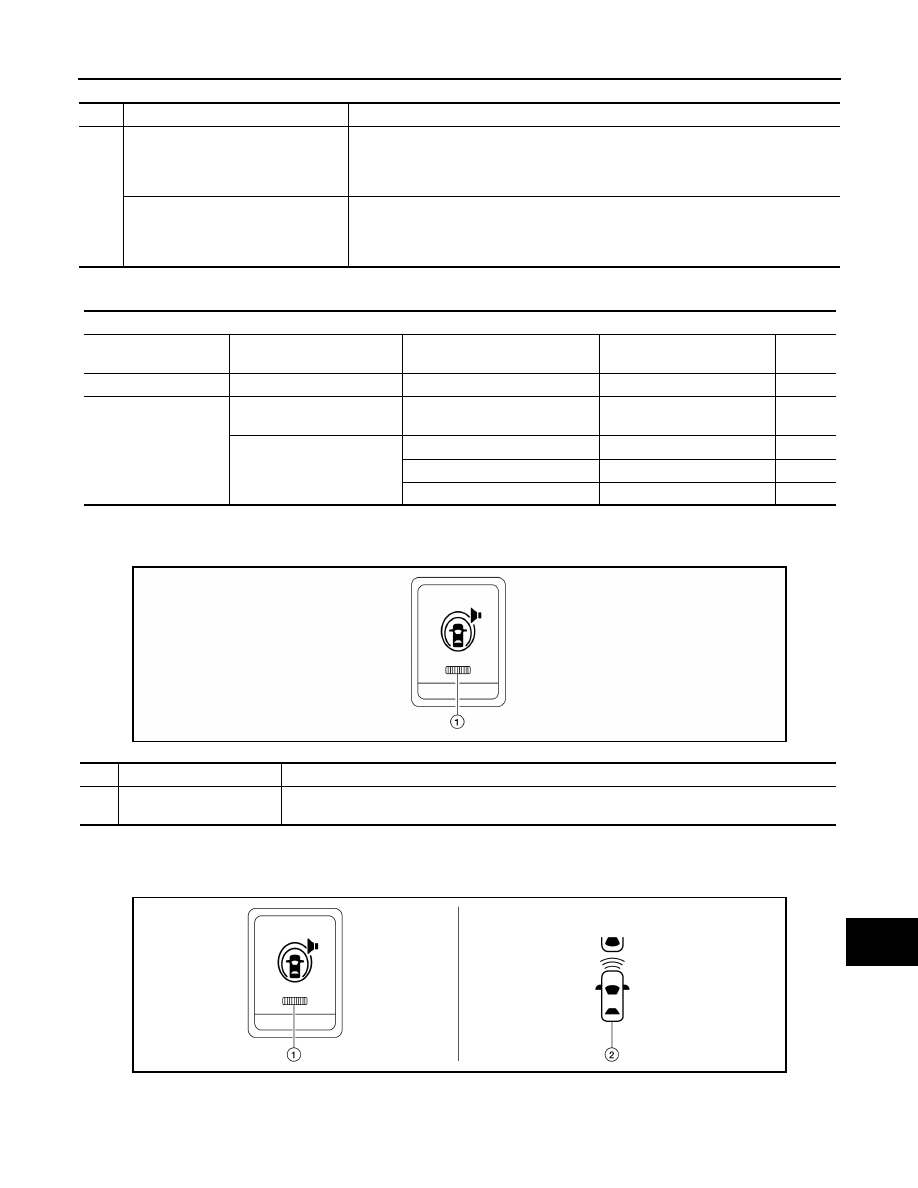

DISPLAY AND WARNING OPERATION

FCW
FCW : Switch Name and Function

INFOID:0000000011277185

FCW : System Display and Warning

INFOID:0000000011277186

INDICATOR LAMP AND WARNING LAMP

No.

Name

Description

1.

MOD indicator (blue)

• Turns ON while MOD system is ON.
• Under the following conditions, the MOD indicator (blue) will blink.
- When the VDC system (except TCS function) or ABS operates.
- When the VDC system is turned off.

MOD warning lamp (orange)

• Turns ON when MOD system is malfunctioning.
• Blinks under the following conditions:
- When the component temperature reaches high level.
- When rear view camera blockage is detected.

Vehicle condition/Driver's operation

Moving Object Detec-

tion ON indicator

Vehicle speed (Approx.)

[km/h (MPH)]

Status of vehicle detection within
detection area.

Indication on the Moving Ob-
ject Detection indicator.

Buzzer

OFF

—

—

OFF

OFF

Blue

 Less than approx.

8 km/h (5 MPH)

Vehicle is detected.

ON

ON

Approx.

8 km/h (5 MPH) or more

Vehicle is absent.

ON

OFF

Vehicle is detected.

ON

OFF

Vehicle is not detected.

ON

OFF

ALOIA0109ZZ

No.

Switch name

Description

1.

Warning systems switch

Turns FCW system ON/OFF (when the FCW system is enabled on the combination meter infor-
mation display).

AWOIA0095ZZ

DAS-34

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

OPERATION

DISPLAY

No.

Display item

Description

1.

Warning systems ON indicator

Indicates that the FCW system is ON.

2.

FCW indicator

• Indicates that the FCW system is ON (white).
• Blinks (white) when the FCW system is activated.
• Turns ON (orange) when the FCW system has a malfunction.

Vehicle condition/Driver's operation

Action

Warning

systems ON

indicator

Indication on the combination meter

Buzzer

Less than Ap-
prox. 10 MPH
(15 km/h)

Close to vehicle ahead

No action

ON

FCW indicator (white) ON steady

—

Approx. 10
MPH (15 km/
h) or more.

When own vehicle comes
close to the vehicle ahead
and it is judged that the dis-
tance between the vehicles
is not sufficient.

• Warning buzz-

er sounds

• FCW indicator

blinks (white)

ON

FCW indicator (white) Blinks

Short con-

tinuous

beeps

AWOIA0096ZZ

AWOIA0096ZZ
