WASHER TANK

WW-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

• Add water up to the top of washer tank inlet after installing. Check that no leaks exist.

• Fill washer tank with specified amount of fluid. Refer to

WW-78, "Specifications"

.

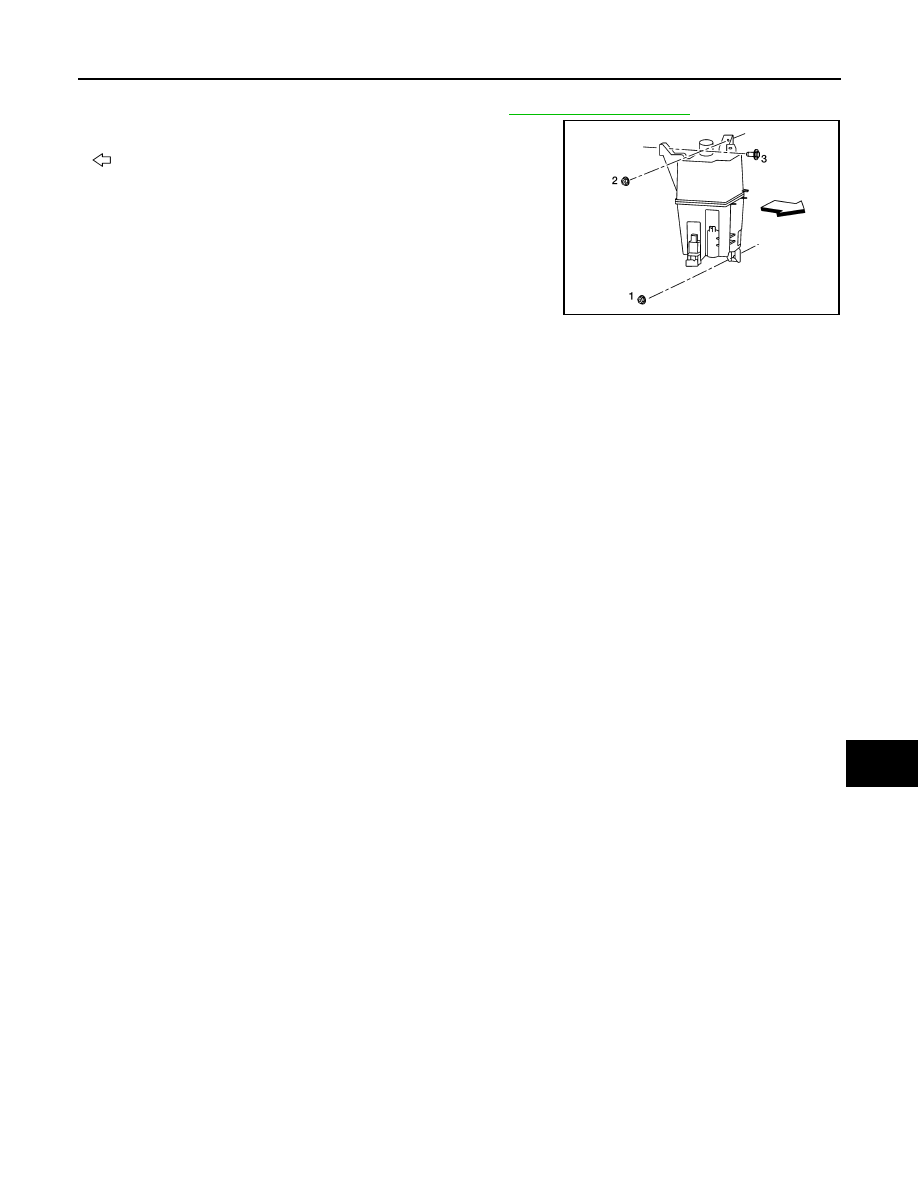

• Tighten the washer tank nuts and bolt to specification in the

sequence shown.

: Front

Nuts and bolt

: 4.5 N·m (0.46 kg-m, 40 in-lb)

USA Production

: No. 1, 2, 3

Korea Production

: No. 2, 1, 3

AWLIA2499ZZ

WW-56

< REMOVAL AND INSTALLATION >

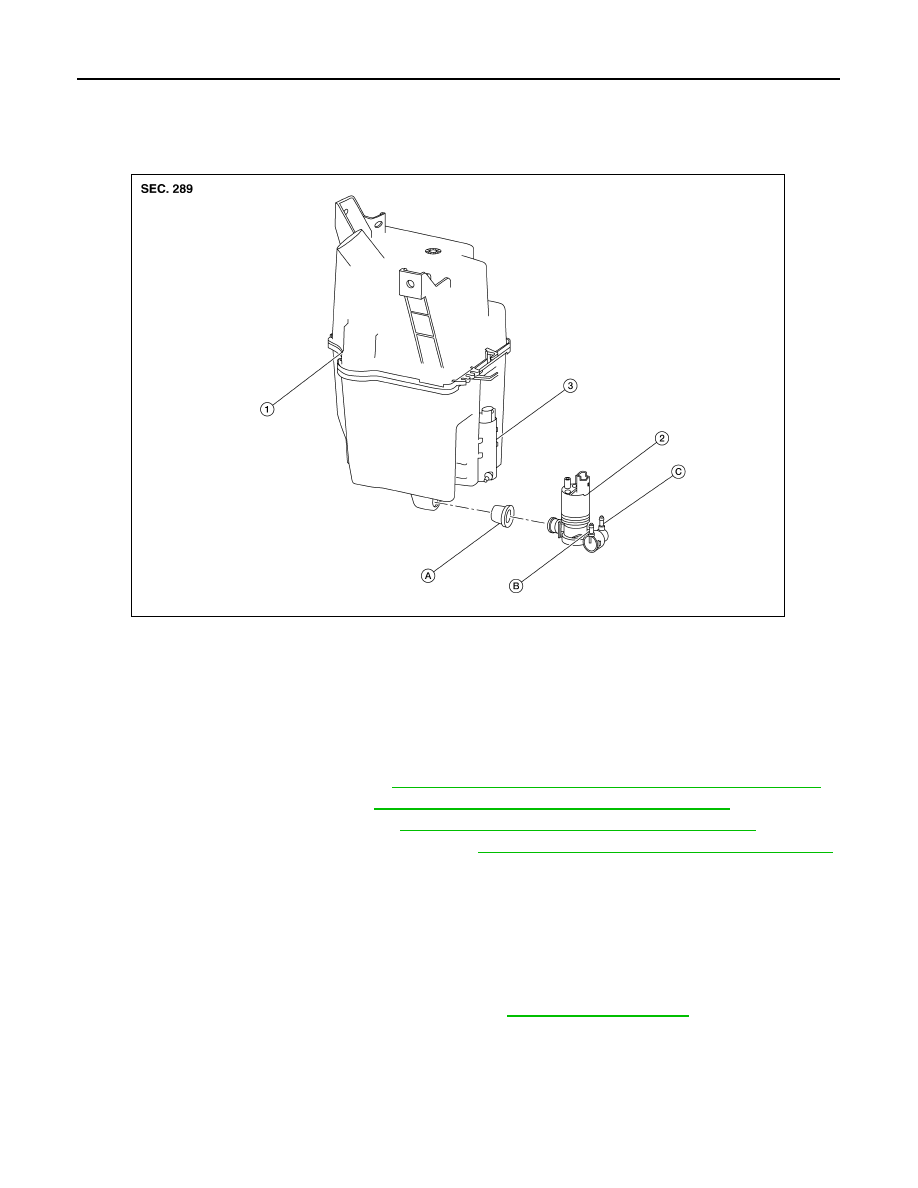

FRONT AND REAR WASHER MOTOR

FRONT AND REAR WASHER MOTOR

Exploded View

INFOID:0000000011280412

Removal and Installation

INFOID:0000000011280413

REMOVAL

1. Drain washer fluid.
2. Remove front over fender (RH). Refer to

EXT-30, "FRONT OVER FENDER : Removal and Installation"

.

3. Remove wind deflector (RH). Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

4. Remove engine side cover (RH). Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

5. Partially remove front fender protector (RH). Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

6. Disconnect harness connector from front and rear washer motor.
7. Disconnect front and rear washer outlet tubes.
8. Remove front and rear washer motor from washer tank.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Add water up to the top of washer tank inlet after installing. Check that no leaks exist.

• Fill washer tank with specified amount of fluid. Refer to

WW-78, "Specifications"

.

1.

Washer tank

2.

Front and rear washer motor

3.

Rear view camera washer motor (if equipped)

A.

Seal

B.

Rear washer outlet

C.

Front washer outlet

AWLIA2298ZZ

WASHER FLUID LEVEL SWITCH

WW-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER FLUID LEVEL SWITCH

Removal and Installation

INFOID:0000000011280414

The washer fluid level switch is serviced as a part of the washer tank. Refer to

WW-54, "Removal and Installa-

tion"

.

WW-58

< REMOVAL AND INSTALLATION >

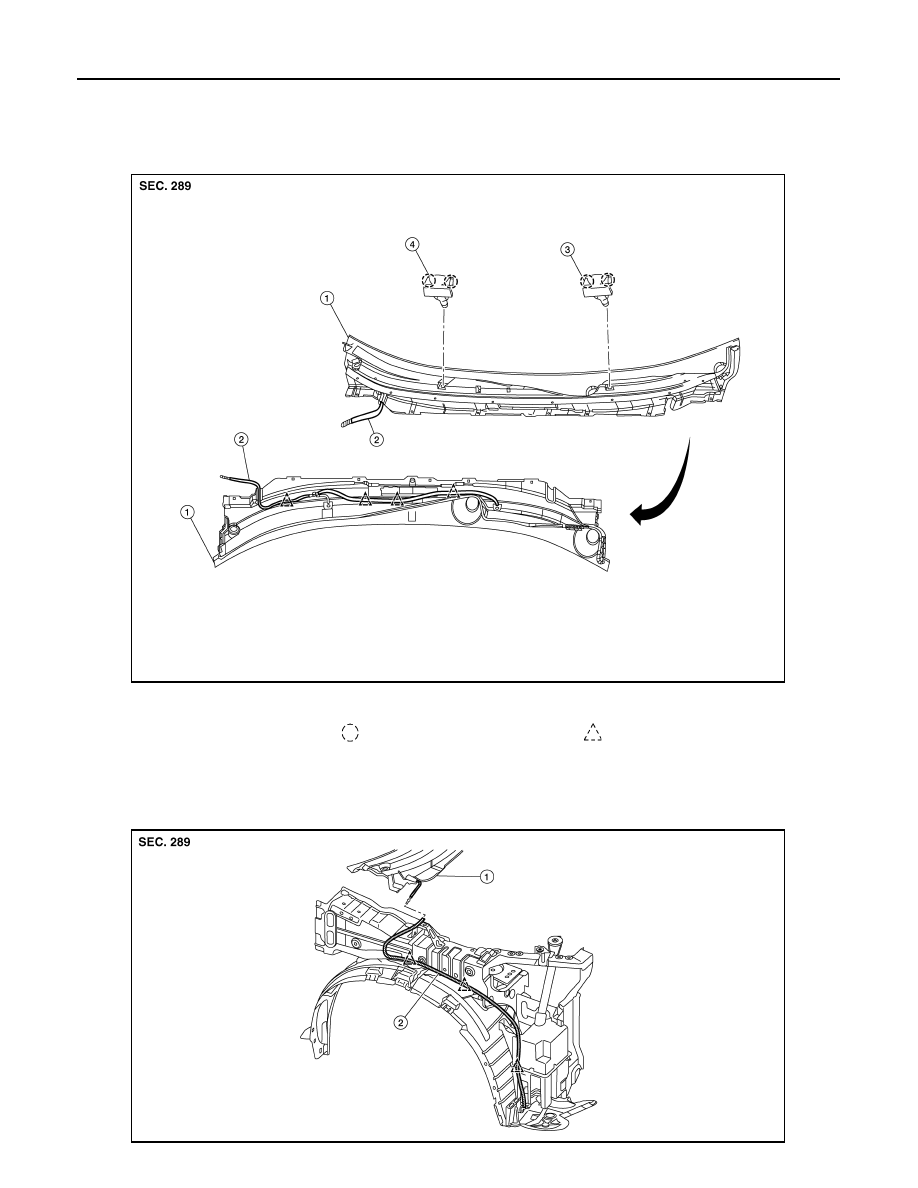

FRONT WASHER NOZZLE AND TUBE

FRONT WASHER NOZZLE AND TUBE

Exploded View

INFOID:0000000011280415

Exploded View

INFOID:0000000011280416

1.

Cowl top cover

2.

Front washer tube

3.

Front washer nozzle (LH)

4.

Front washer nozzle (RH)

Pawl

Clip

AWLIA2316ZZ

AWLIA2304ZZ
