Nissan Rogue. Manual - part 1208





TM-204

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

AIR BREATHER

AIR BREATHER

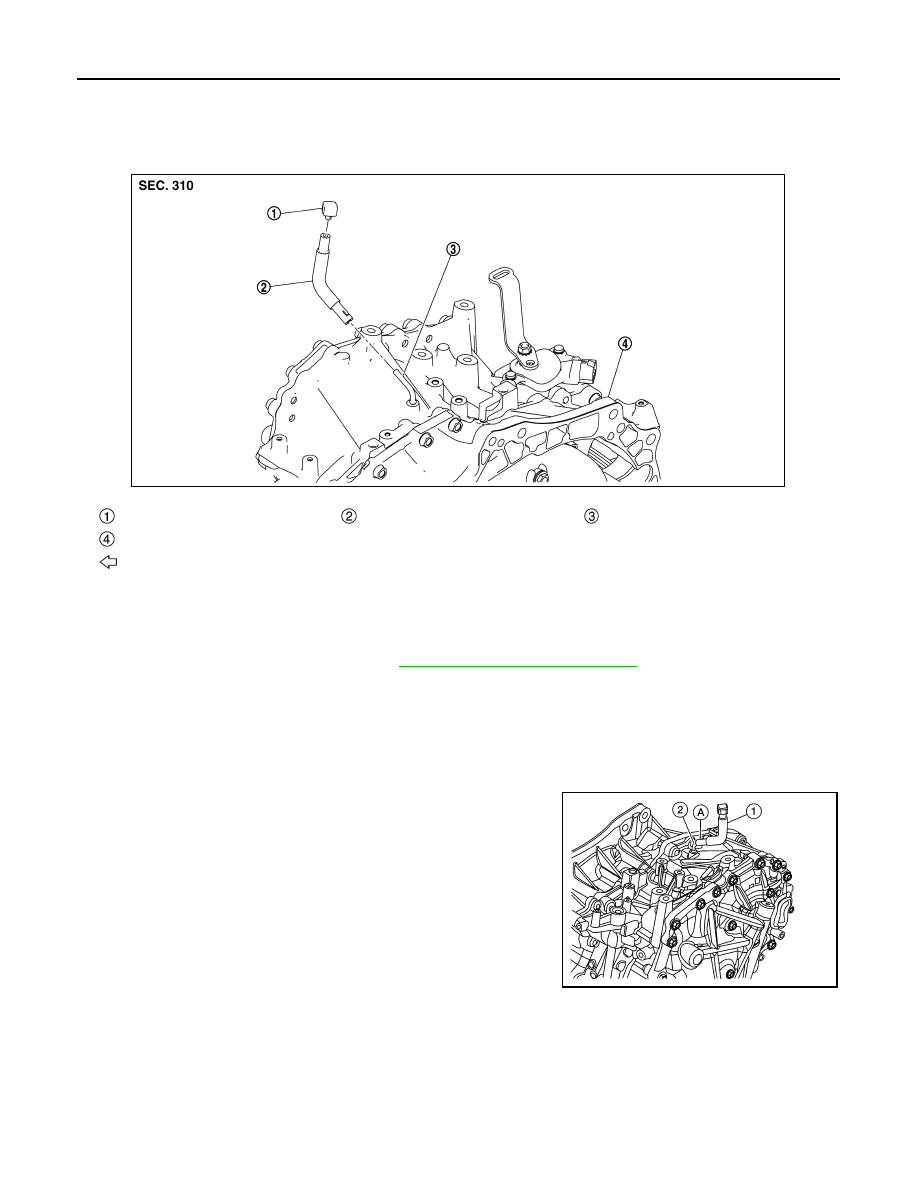

Exploded View

INFOID:0000000011279423

Removal and Installation

INFOID:0000000011279424

REMOVAL

1. Remove air cleaner and air duct. Refer to

EM-26, "Removal and Installation"

.

2. Remove air breather hose from transaxle assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not bend the air breather hose to prevent damage to the hose.

• Insert air breather hose to the end of air breather.

• Insert air breather hose (1) to air breather tube (2) all the way

to the curve of the tube.

• Insert air breather hose to air breather tube so that the paint

mark (A) is facing upward.

Air breather

Air breather hose

Air breather tube

Transaxle assembly

: Vehicle front

JSDIA5140ZZ

ALDIA0501ZZ

OIL PAN

TM-205

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

OIL PAN

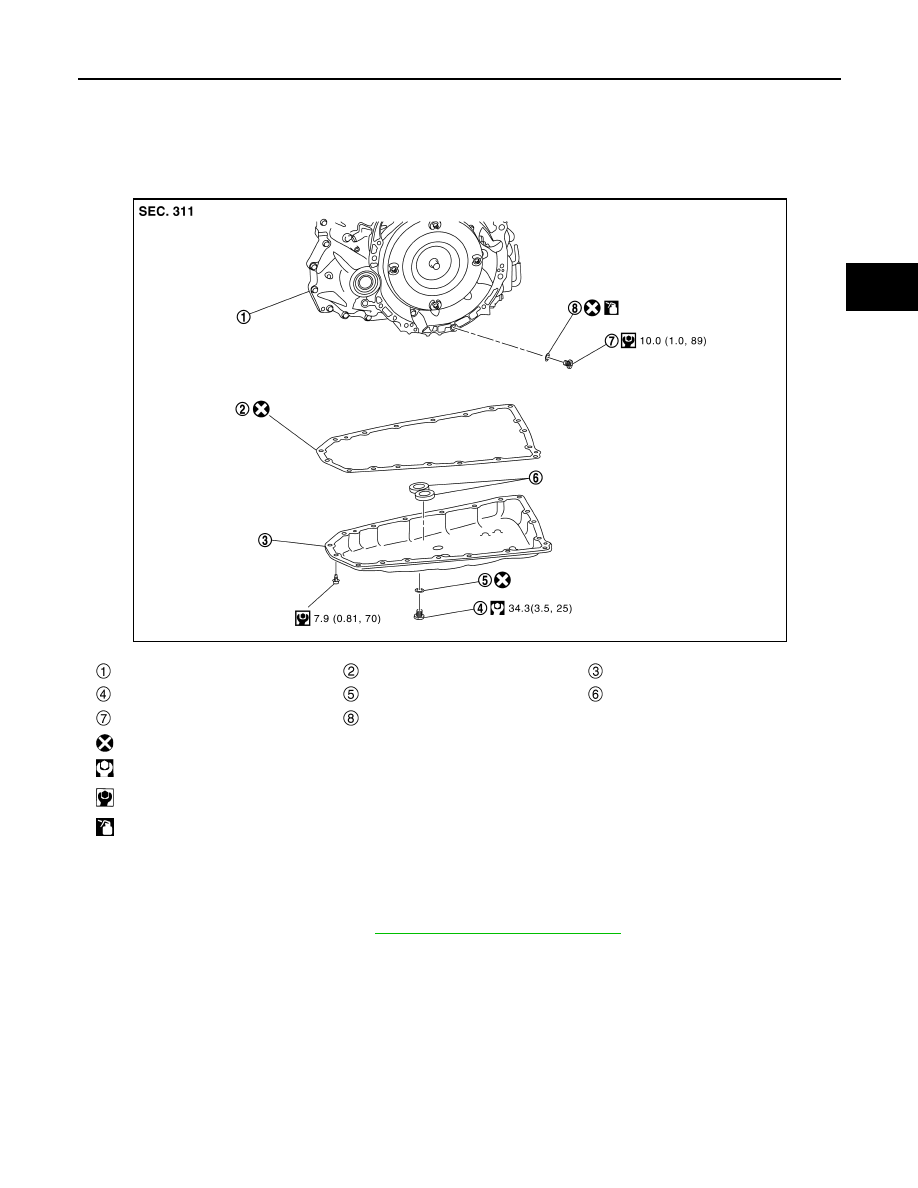

Exploded View

INFOID:0000000011279425

COMPONENT PARTS LOCATION

Removal and Installation

INFOID:0000000011279426

REMOVAL

1. Remove engine under cover. Refer to

TM-205, "Removal and Installation"

.

2. Remove drain plug from oil pan and then drain the CVT fluid.
3. Remove drain plug gasket.
4. Remove the oil pan bolts, and then remove the oil pan and oil pan gasket.
5. Remove the magnets from the oil pan.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse drain plug gasket.

• Do not reuse O-ring.

• Completely clean the iron powder from the magnet area of oil pan and the magnets.

Transaxle assembly

Oil pan gasket

Oil pan

Drain plug

Drain plug gasket

Magnet

Overflow plug

O-ring

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA4194GB

TM-206

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

OIL PAN

Install the oil pan to the transaxle case with the following procedure.

1. Install the oil pan gasket to the oil pan.

CAUTION:

• Completely wipe out any moisture, oil, and old gasket from the oil pan gasket surface and bolt

hole of oil pan and transaxle case.

• Do not reuse oil pan gasket.

2. Install the oil pan assembly to the transaxle case, and then temporarily tighten the oil pan bolts.

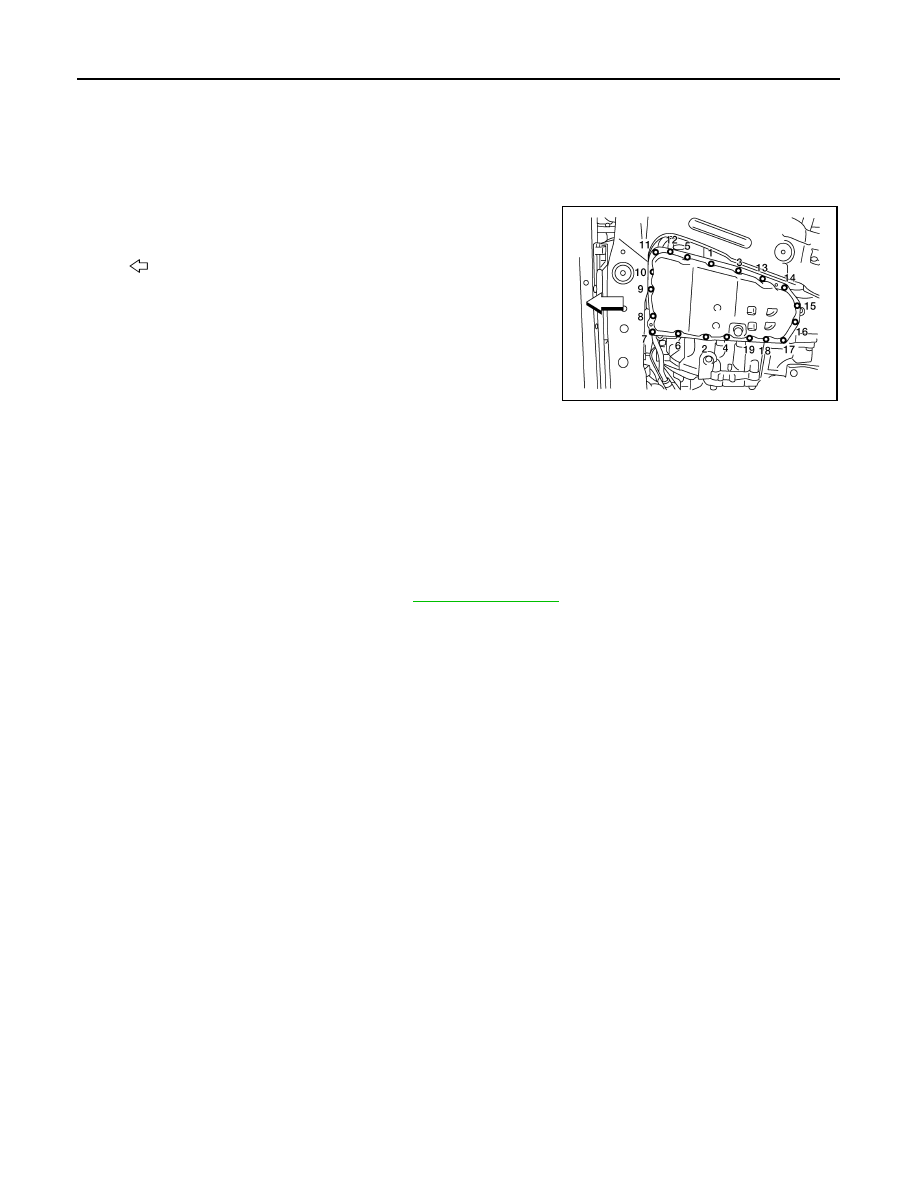

3. Tighten the oil pan bolts in the order shown to the specified

torque.

4. Tighten the oil pan bolts again clockwise from (1) shown to the

specified torque.

Inspection

INFOID:0000000011279427

INSPECTION AFTER REMOVAL

Check oil pan for foreign material.

• If a large amount of worn material is found, clutch plate may be worn.

• If iron powder is found, bearings, gears, or clutch plates may be worn.

• If aluminum powder is found, bushing may be worn, or chips or burrs of aluminum casting parts may enter.

Check points where wear is found in all cases.

INSPECTION AFTER INSTALLATION

Check the CVT fluid level and leakage. Refer to

TM-189, "Inspection"

.

: Front

AWDIA1136ZZ

INPUT SPEED SENSOR

TM-207

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

INPUT SPEED SENSOR

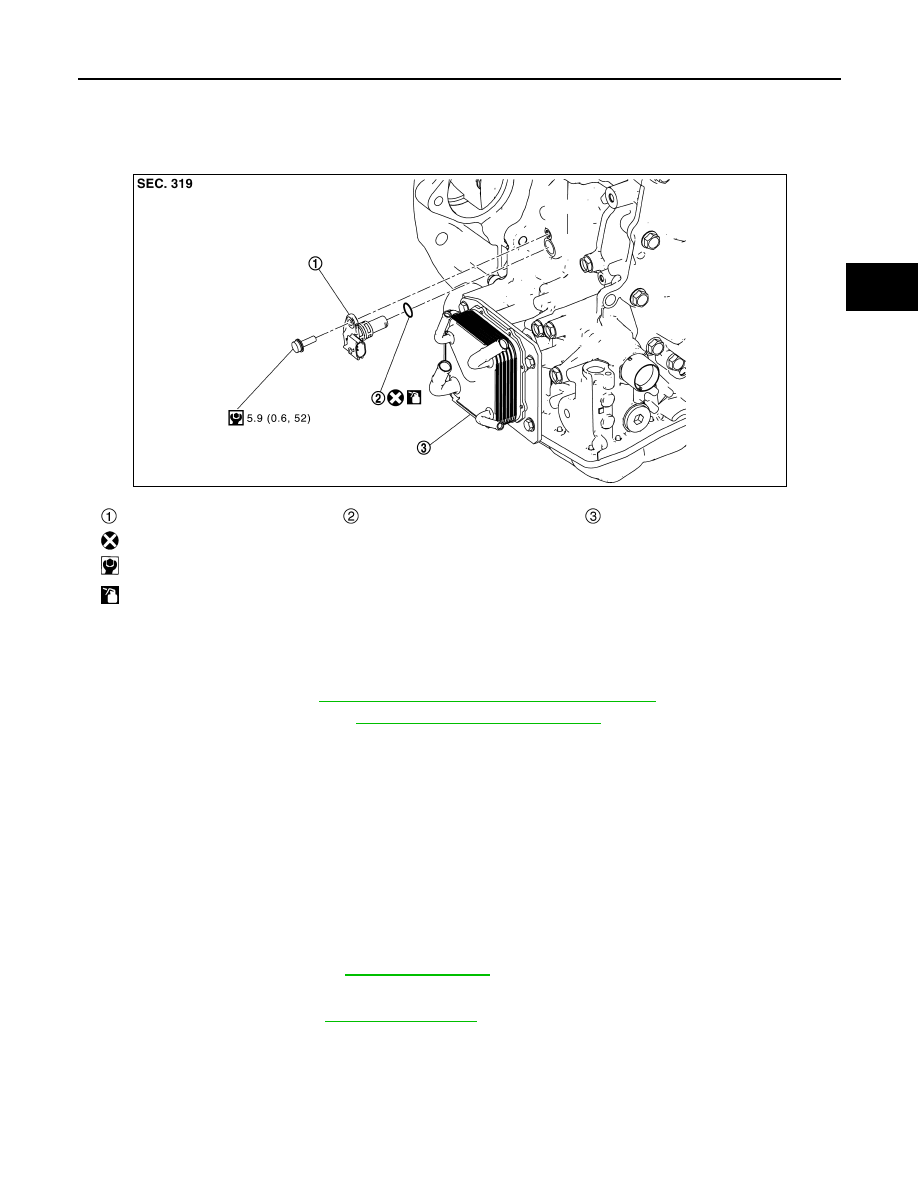

Exploded View

INFOID:0000000011279428

Removal and Installation

INFOID:0000000011279429

REMOVAL

1. Remove battery tray. Refer to

PG-79, "Removal and Installation (Battery Tray)"

.

2. Remove the starter motor. Refer to

STR-21, "Removal and Installation"

.

3. Disconnect the input speed sensor harness connector.
4. Remove the input speed sensor bolt and remove the input speed sensor.
5. Remove the O-ring from the input speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply CVT fluid to the O-ring.

Inspection and Adjustment

INFOID:0000000011279430

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to

TM-189, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-191, "Adjustment"

.

Input speed sensor

O-ring

Transaxle assembly

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA4131GB
