SECOND ROW SEAT

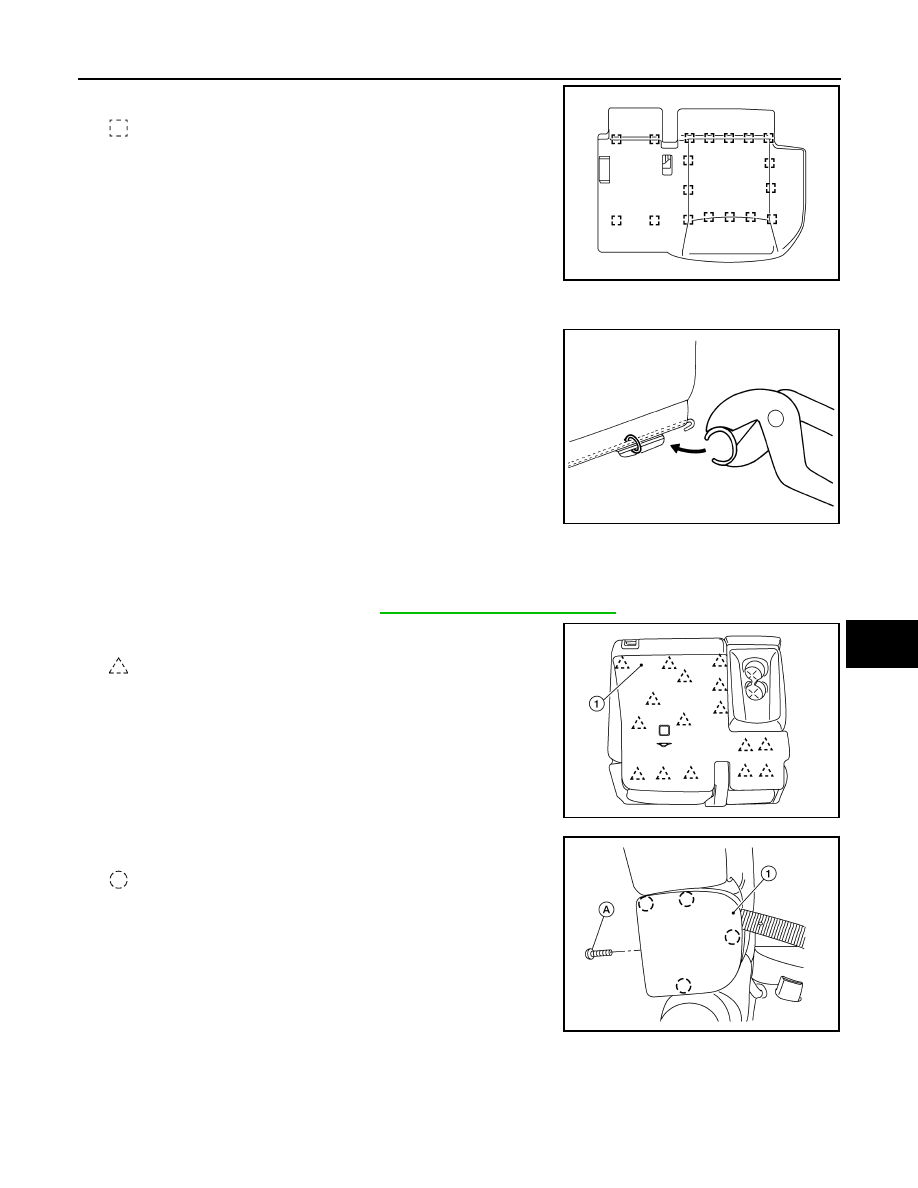

4. Remove screw (A), then using a suitable tool release clips and

pawls and remove seat cushion outside finisher (LH).

: Clip
: Pawl

5. Using a suitable tool, release clips and pawls, then remove seat

cushion outer finisher (RH)

: Clip
: Pawl

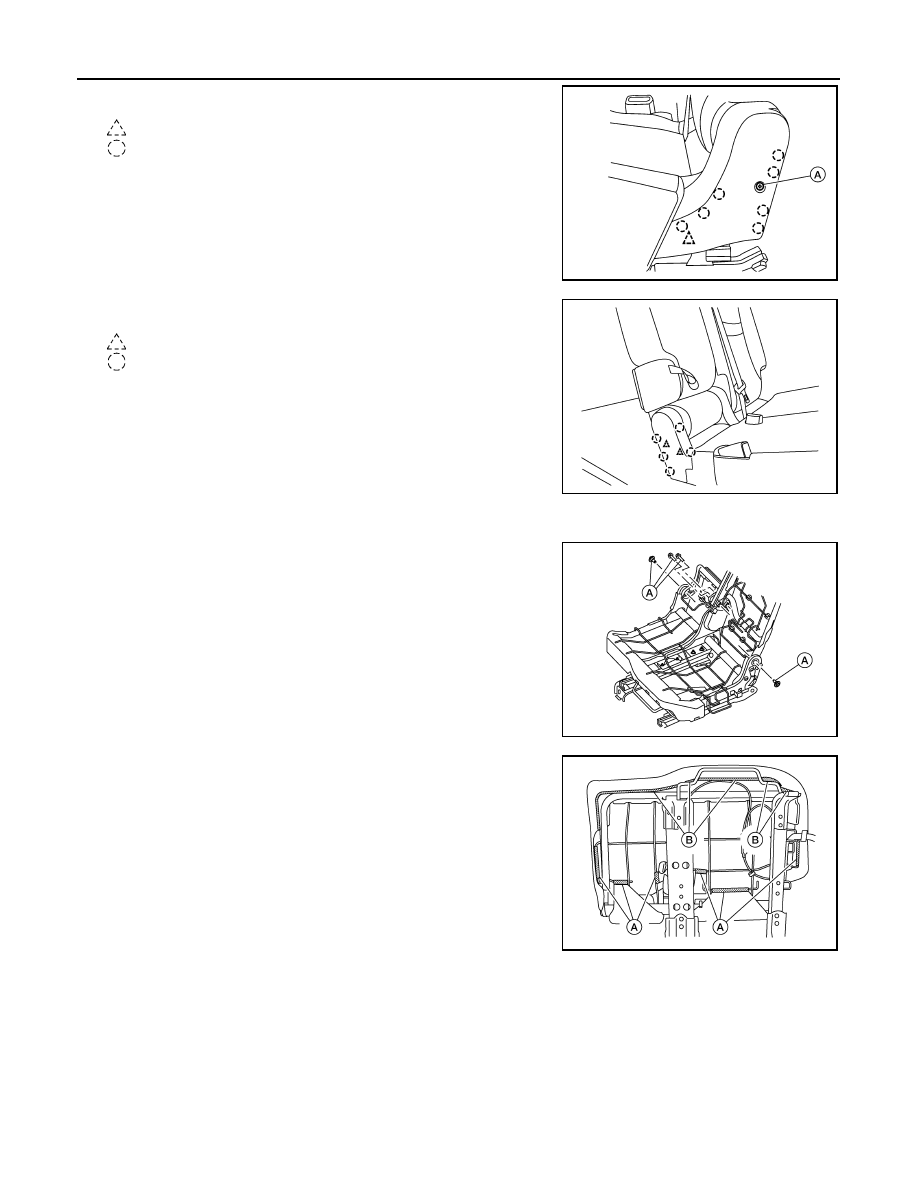

6. Remove bolts (A) and seatback frame.

NOTE:

Seatback pad and trim removed for clarity.

7. Release J-hooks (A) and fasteners (B), then route seatbelt

buckles through seat cushion and remove seat cushion pad and

seat cushion trim.

ALJIA1451ZZ

ALHIA0381ZZ

ALJIA1450ZZ

ALJIA1452ZZ

SECOND ROW SEAT

SE-71

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

8. Remove hog rings, then separate seat cushion trim from seat

cushion pad.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Install new hog rings on the seat cushion trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat

cushion trim and seat cushion pad wires.

• Use NISSAN standard hog rings and tools to assemble.

• Make sure hook fastener is pressed into place after seat cushion

trim is assembled.

• Smooth out all wrinkles during assembly.

LH SEAT : Armrest Assembly

INFOID:0000000011280473

DISASSEMBLY

1. Remove second row seat LH. Refer to

SE-39, "Removal and Installation"

.

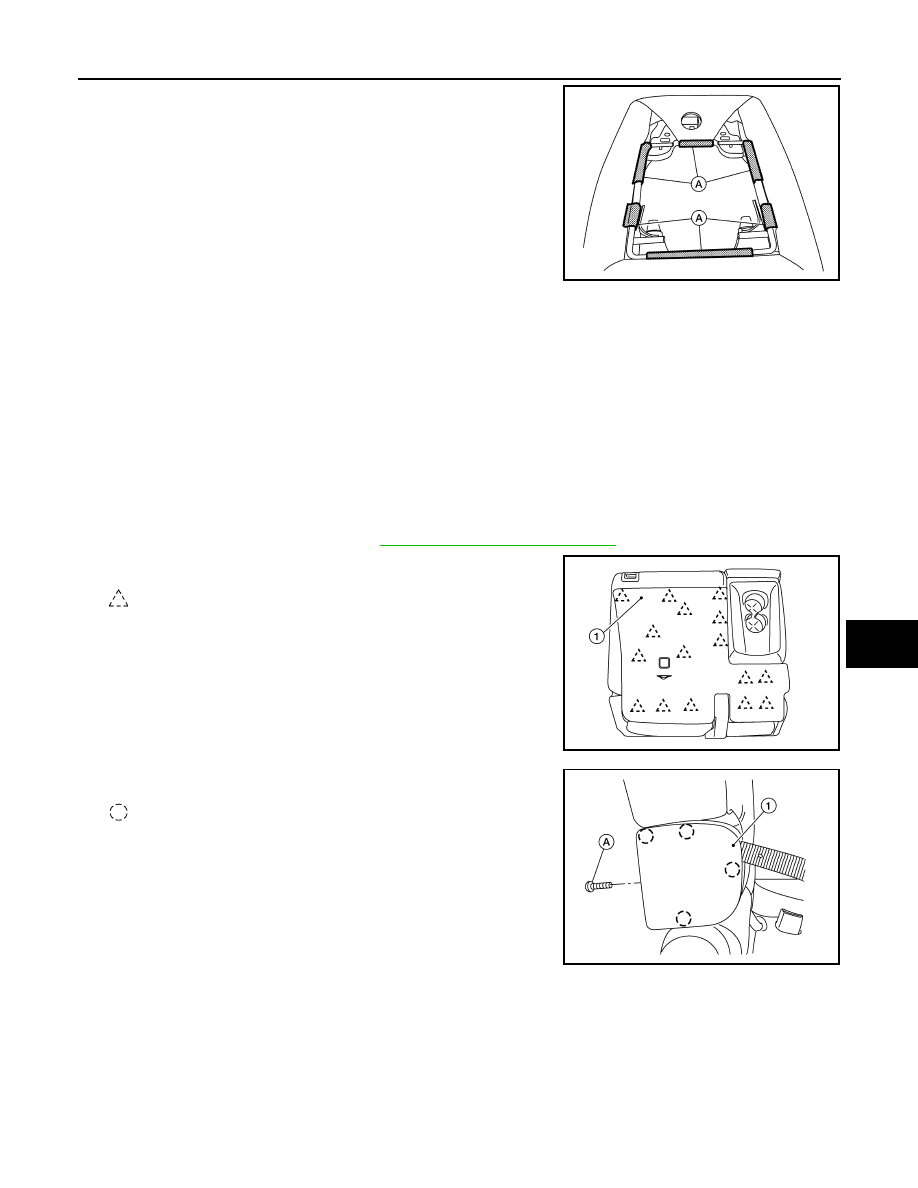

2. Using a suitable tool release clips and remove seatback board

(1).

: Clip

3. Remove screw (A), then release pawls and remove armrest fin-

isher (1).

: Pawl

ALJIA1453ZZ

PIIB3356J

ALJIA1413ZZ

ALJIA1411ZZ

SE-72

< UNIT DISASSEMBLY AND ASSEMBLY >

SECOND ROW SEAT

4. Remove bolts (A) and armrest.

5. Release J-Hooks (A) and fasteners (B), then remove seatback

center trim from seatback center pad.

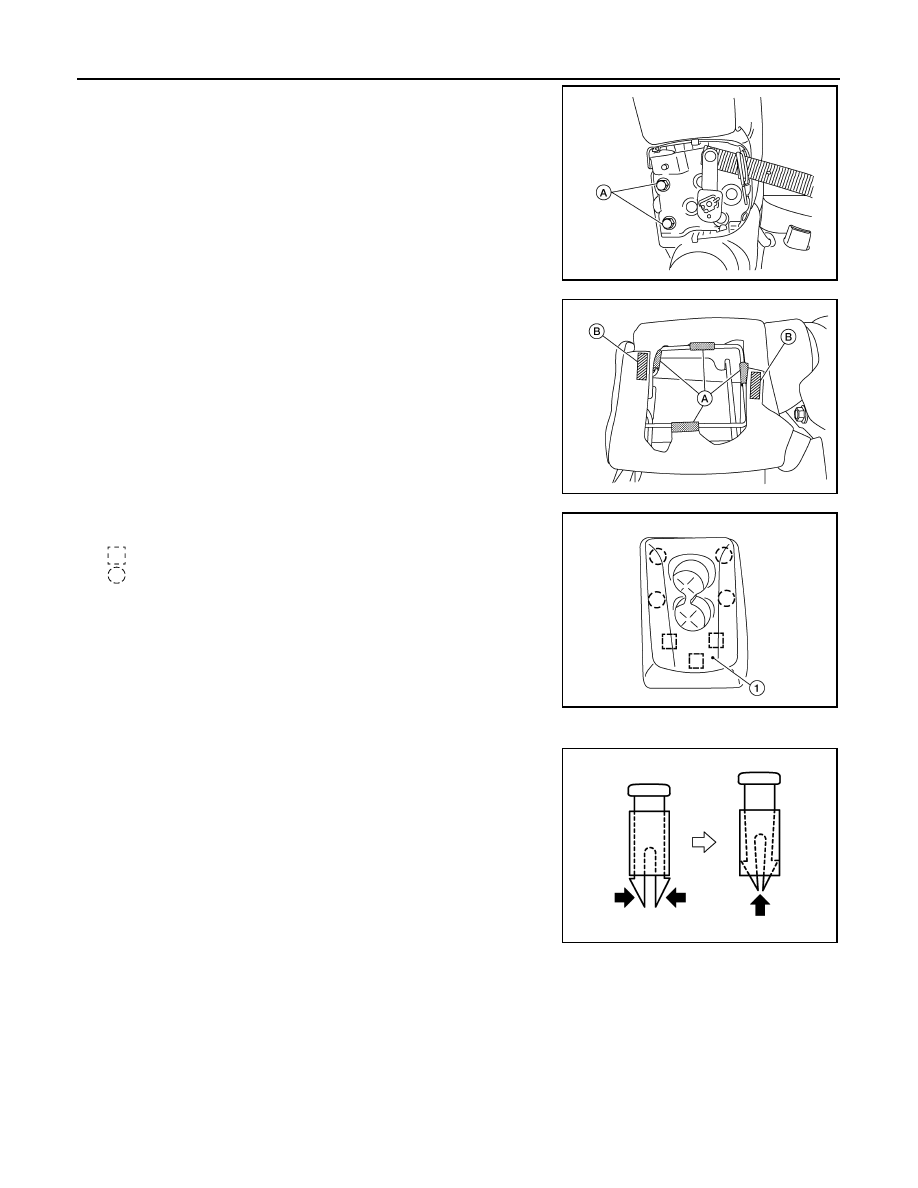

6. Using a suitable tool release metal clips and pawls and remove

cup holder (1).

: Metal clip
: Pawl

7. Press the headrest holder lock button, then lift headrest up and remove.
8. Reach up behind the armrest assembly, release the headrest

holder locks as shown and remove the headrest holders.

CAUTION:

Before removing/installing headrest holder, check its orien-

tation (front/rear and right/left).

ALJIA1412ZZ

ALJIA1454ZZ

ALJIA1444ZZ

PIIB4084J

SECOND ROW SEAT

SE-73

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

9. Release J-Hooks (A) from armrest frame and remove armrest

lower pad.

10. Remove armrest trim, then remove armrest pad.

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Make sure fastener is pressed into place after armrest trim is assembled.

• Smooth out all wrinkles during assembly.

LH SEAT : EZ Entry Cable

INFOID:0000000011280474

DISASSEMBLY

NOTE:

LH shown : RH similar
1. Remove second row seat LH. Refer to

SE-39, "Removal and Installation"

.

2. Using a suitable tool release clips and remove seatback board

(1).

: Clip

3. Remove screw (A), then using a suitable tool release pawls and

remove armrest finisher (1).

: Pawl

ALJIA1445ZZ

ALJIA1413ZZ

ALJIA1411ZZ
