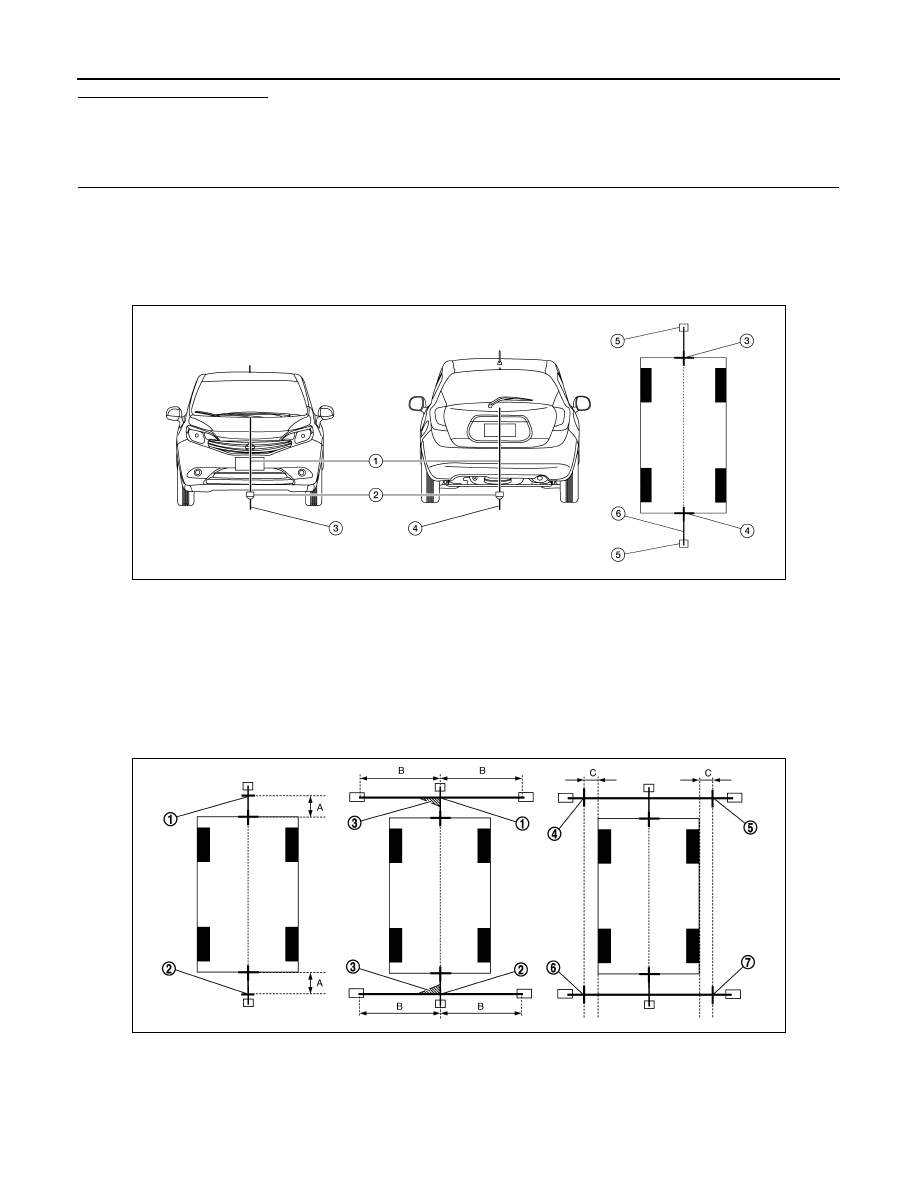

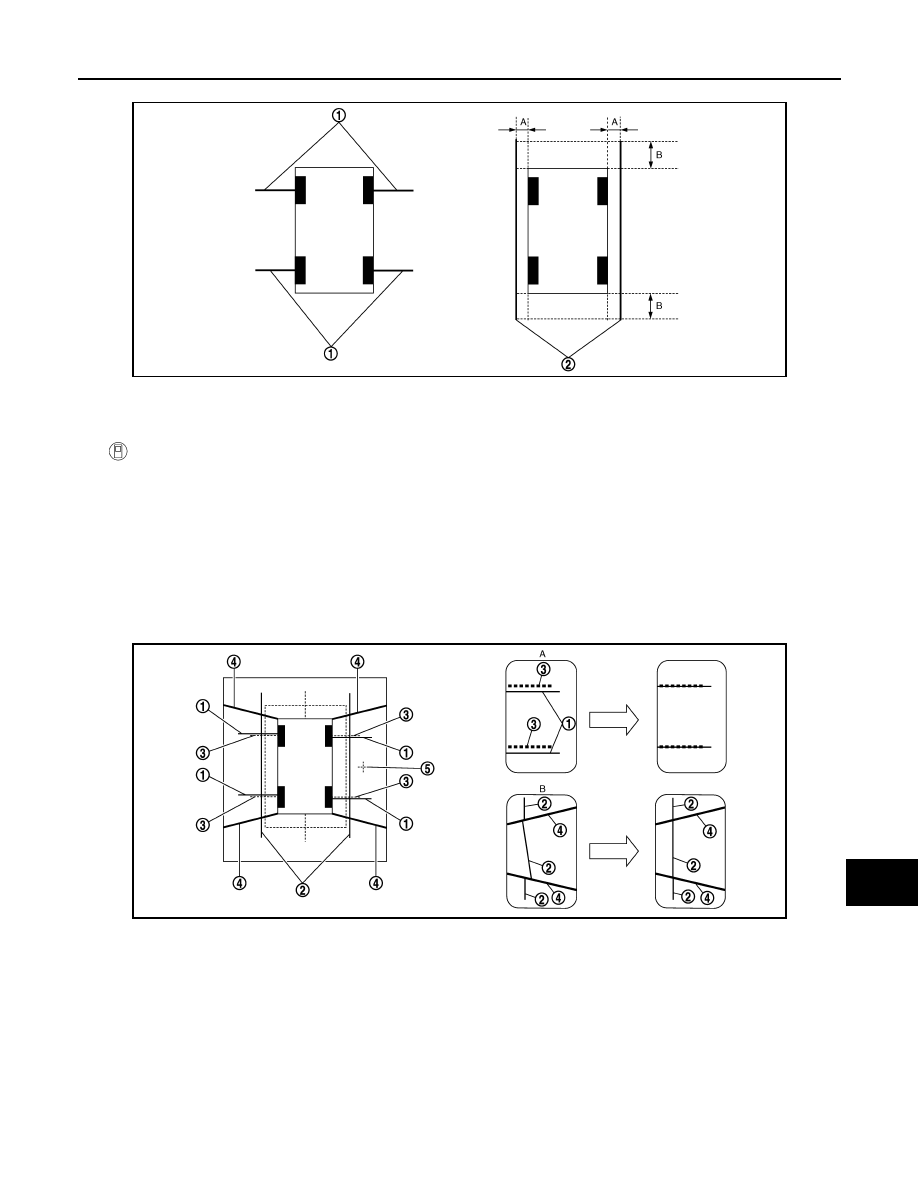

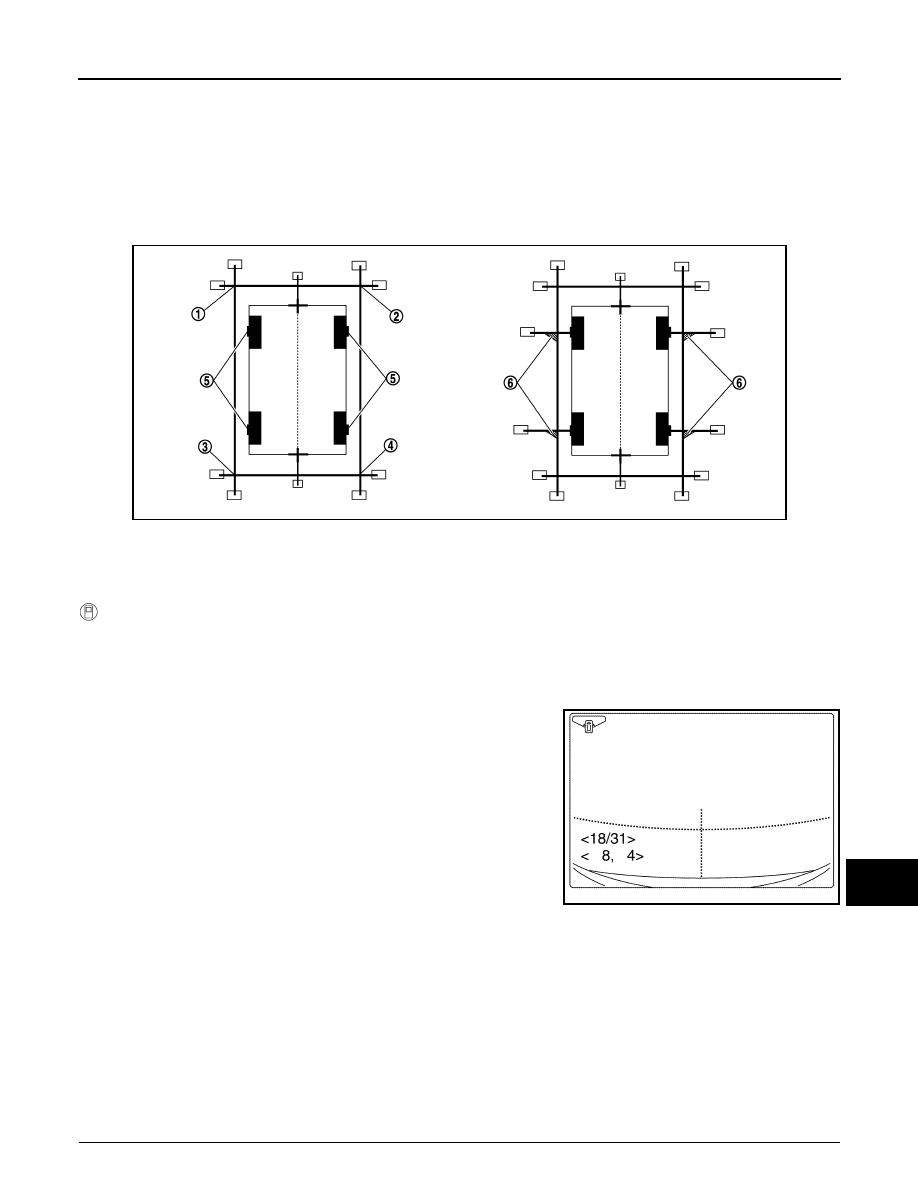

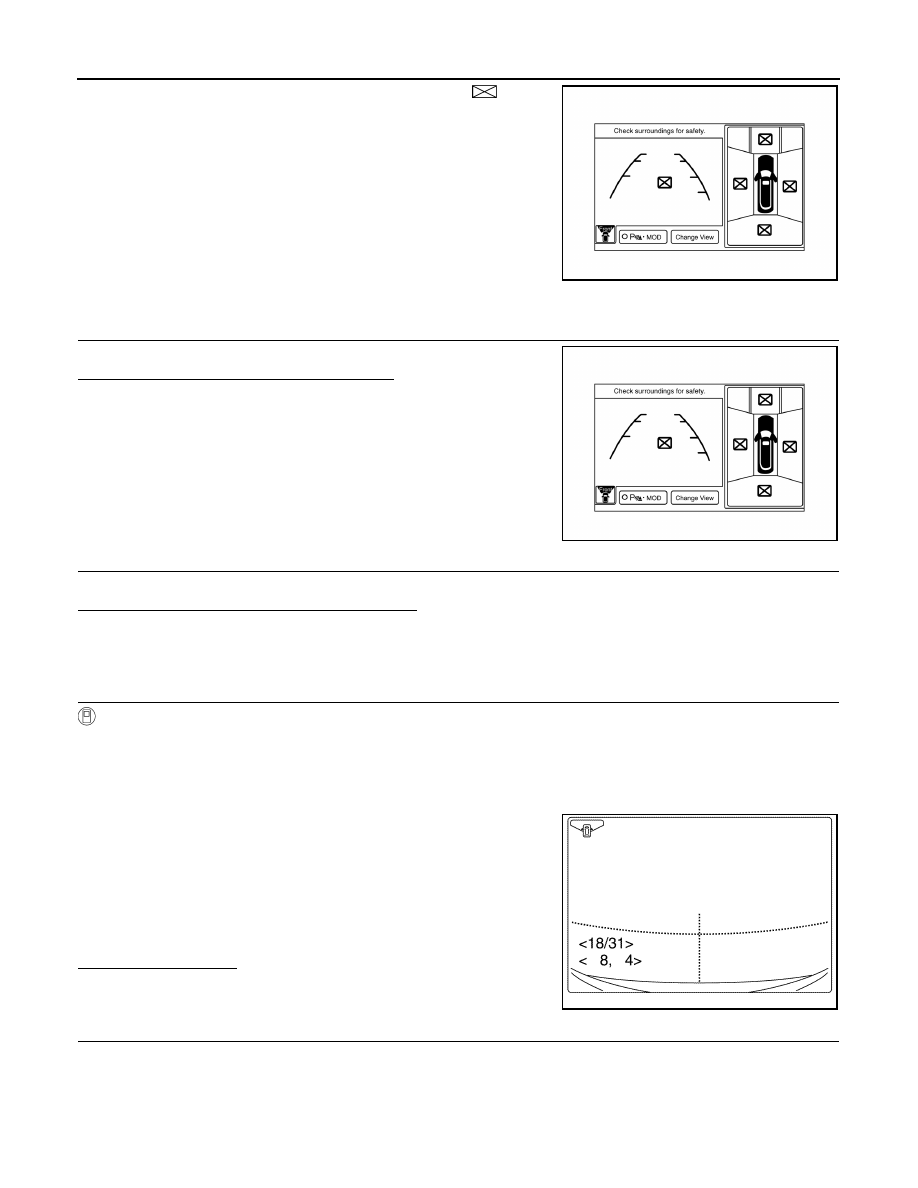

AV-136 < BASIC INSPECTION > [NAVIGATION WITHOUT BOSE] INSPECTION AND ADJUSTMENT View in the incomplete calibration state is indicated by “ ” on the around view monitor. CALIBRATION PROCEDURE 1. AROUND VIEW MONITOR SCREEN CONFIRMATION Check that there is no indication of “Incomplete calibration”. YES >> GO TO 2. NO >> GO TO 4. 2. CHECK THAT AROUND VIEW MONITOR CONTROL UNIT IS REPLACED Check that the around view monitor control unit is replaced. YES >> GO TO 3. NO >> GO TO 5. 3. CANCEL THE INDICATION OF INCOMPLETE CALIBRATION (PERFORM THIS ONLY AFTER REPLAC- ING AROUND VIEW MONITOR CONTROL UNIT.) CONSULT work support 1. On the CONSULT screen, touch “CALIBRATING CAMERA IMAGE (FRONT CAMERA)”, “CALIBRATING CAMERA IMAGE (PASS-SIDE CAMERA)”, “CALIBRATING CAMERA IMAGE (DR-SIDE CAMERA)”, or “CALIBRATING CAMERA IMAGE (REAR CAMERA)” to accept the selection. NOTE: To cancel the indication of Incomplete calibration, select items based on the target camera. 2. On the adjustment screen of each camera, touch “APPLY” but- ton. After this, touch “OK” button. CAUTION: • Never perform operations other than those mentioned above. • Never perform “Initialize Camera Image Calibration”. 3. Display the around view monitor screen to check that there is no errors, such as deviations among the camera images. Is there a malfunction? YES >> Calibration End. NO >> GO TO 1. 4. PERFORM SIMPLIFIED CONFIRMATION/ADJUSTMENT BY “FINE TUNING OF BIRDS-EYE VIEW” 1. Put target line 1 on the ground beside each axle using packing tape, etc. 2. Put target lines 2 equal to the vehicle total length + approximately 1.0 m (39.3 in) from the vehicle side (right and left) at approximately 30 cm (11.8 in) away from the vehicle (make the line as parallel with the vehicle as possible) AWNIA2590GB AWNIA2590GB JSNIA4212ZZ |
