SUNSHADE MOTOR ASSEMBLY

RF-121

< ECU DIAGNOSIS INFORMATION >

[WITH DUAL PANEL SUNROOF]

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNSHADE MOTOR ASSEMBLY

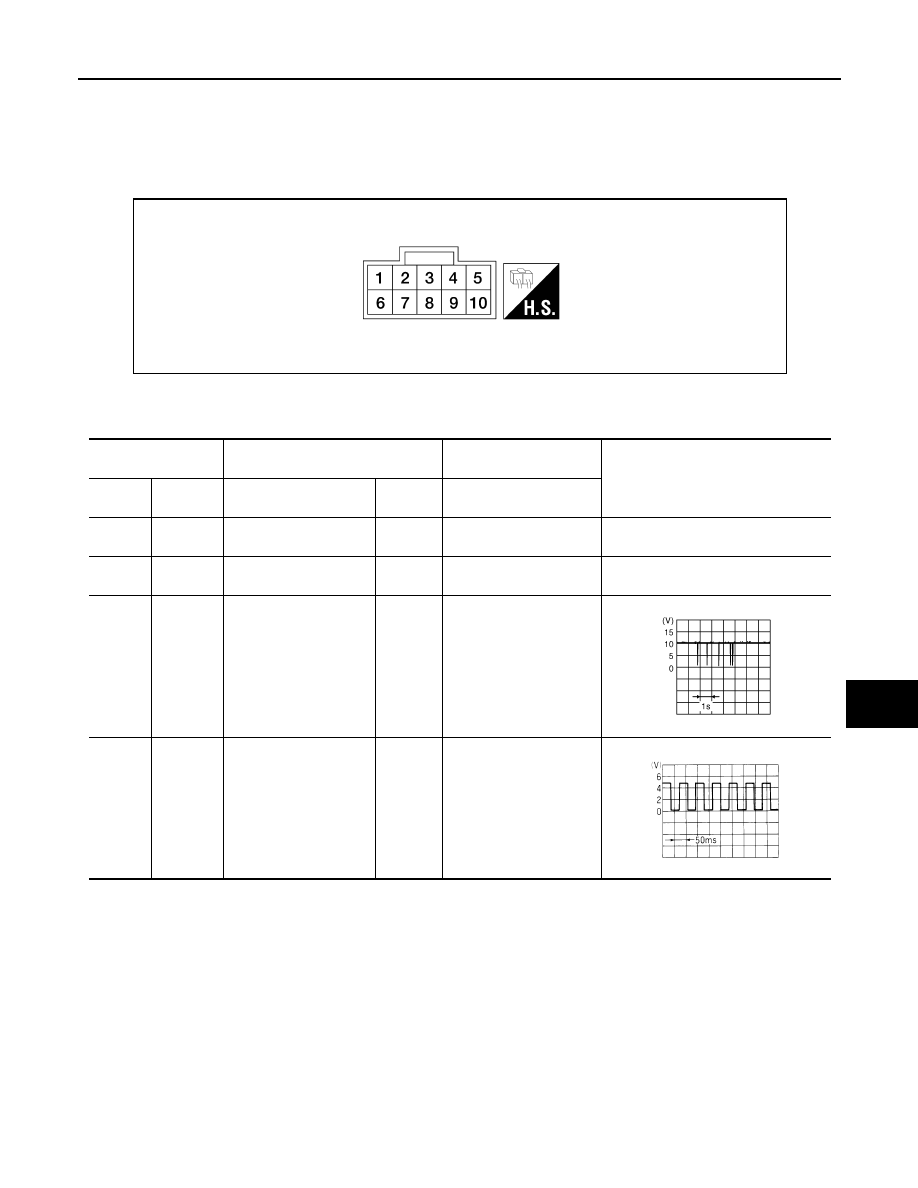

Reference Value

INFOID:0000000010049002

TERMINAL LAYOUT

PHYSICAL VALUES

WIIA1344E

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Output

1

(B)

Ground

Ground

—

—

0

6

(G)

Ground

Battery voltage

—

—

Battery voltage

7

(P)

Ground

Communication line

Input/

Output

Ignition switch ON

8

(BR)

Ground

Vehicle speed signal (2-
pulse)

Input

Speed meter operated
[When vehicle speed is
approx. 40km/h (25MPH)]

JMKIA1869ZZ

ELF1080D

RF-122

< WIRING DIAGRAM >

[WITH DUAL PANEL SUNROOF]

SUNROOF MOTOR ASSEMBLY

WIRING DIAGRAM

SUNROOF MOTOR ASSEMBLY

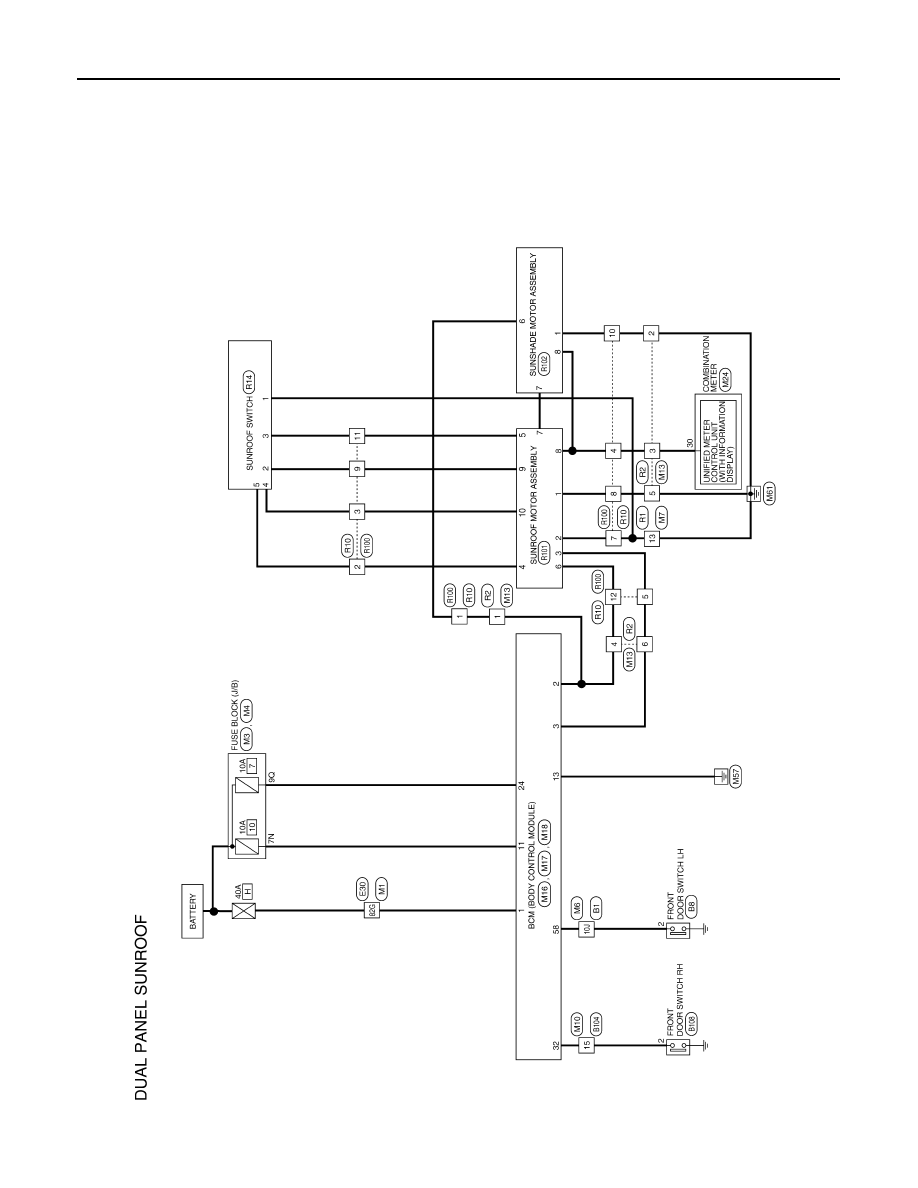

Wiring Diagram

INFOID:0000000010049003

ABKWA1561GB

SUNROOF MOTOR ASSEMBLY

RF-123

< WIRING DIAGRAM >

[WITH DUAL PANEL SUNROOF]

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

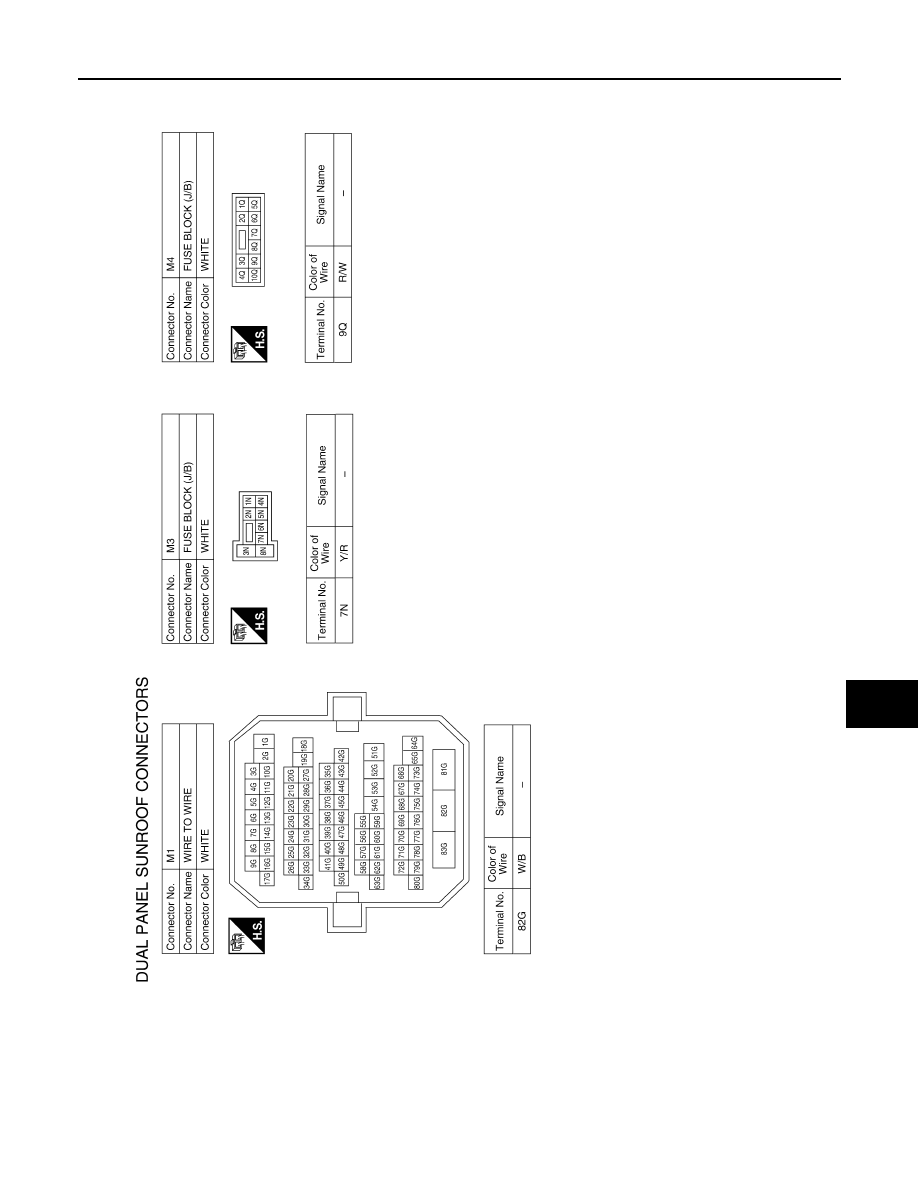

ABKIA2719GB

RF-124

< WIRING DIAGRAM >

[WITH DUAL PANEL SUNROOF]

SUNROOF MOTOR ASSEMBLY

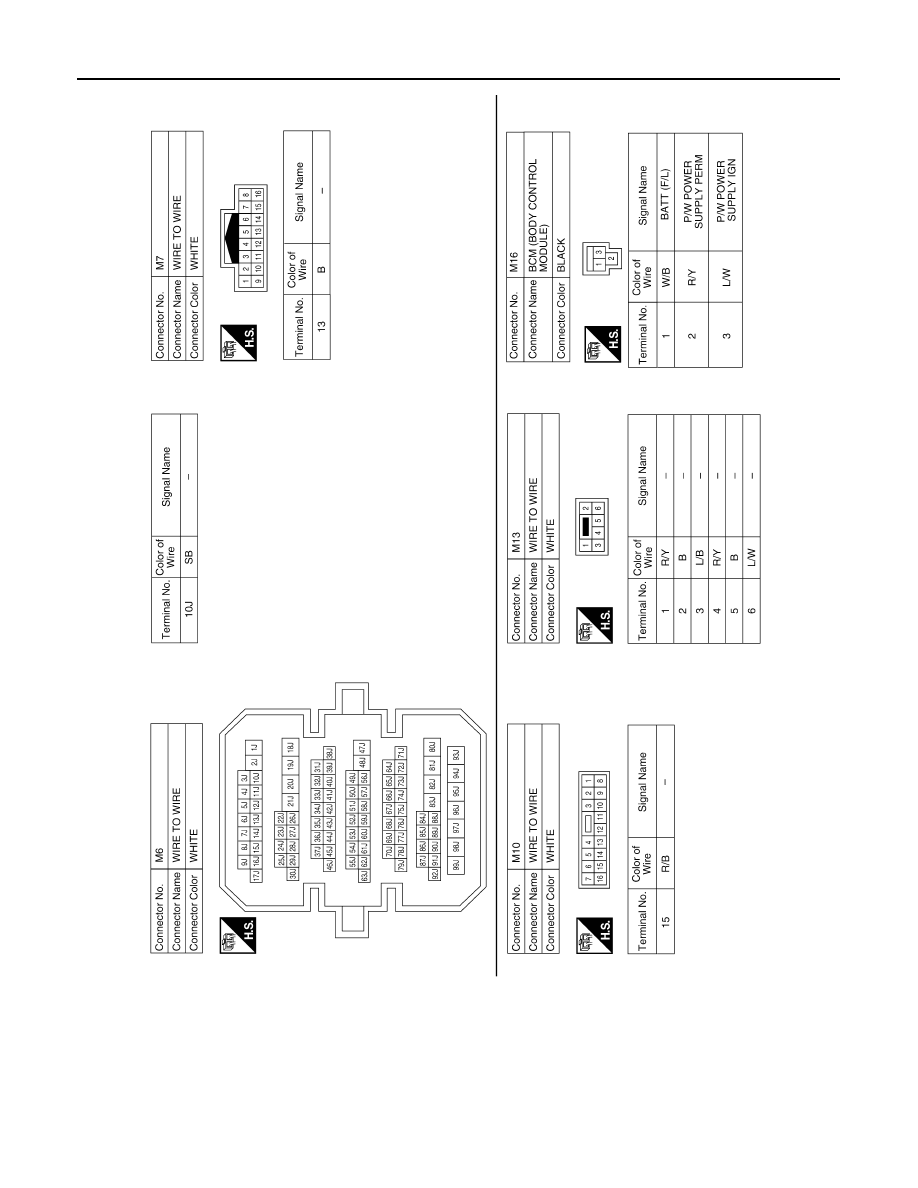

ABKIA2720GB
