THE FUEL GAUGE POINTER DOES NOT MOVE TO "F" WHEN REFUELING

MWI-111

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

THE FUEL GAUGE POINTER DOES NOT MOVE TO "F" WHEN REFUEL-
ING

Description

INFOID:0000000010049616

The fuel gauge needle will not move to “F” position when refueling.

Diagnosis Procedure

INFOID:0000000010049617

1.

OBSERVE FUEL GAUGE

Does it take a long time for the pointer to move to FULL position?
YES or NO

YES

>> GO TO 2

NO

>> GO TO 3

2.

IDENTIFY FUELING CONDITION

Was the vehicle fueled with the ignition switch ON?
YES or NO

YES

>> Be sure to fuel the vehicle with the ignition switch OFF. Otherwise, it will take a long time to move

to FULL position because of the characteristic of the fuel gauge.

NO

>> GO TO 3

3.

OBSERVE VEHICLE POSITION

Is the vehicle parked on an incline?
YES or NO

YES

>> Check the fuel level indication with vehicle on a level surface.

NO

>> GO TO 4

4.

OBSERVE FUEL GAUGE POINTER

During driving, does the fuel gauge pointer move gradually toward EMPTY position?
YES or NO

YES

>> Check the components. Refer to

MWI-41, "Component Inspection"

.

NO

>> The float arm may interfere or bind with the components in the fuel tank.

MWI-112

< SYMPTOM DIAGNOSIS >

THE OIL PRESSURE WARNING LAMP DOES NOT TURN ON

THE OIL PRESSURE WARNING LAMP DOES NOT TURN ON

Description

INFOID:0000000010049618

The oil pressure warning lamp stays off when the ignition switch is turned ON.

Diagnosis Procedure

INFOID:0000000010049619

1.

CHECK OIL PRESSURE WARNING LAMP

Perform IPDM E/R auto active test. Refer to

PCS-11, "Diagnosis Description"

.

Is oil pressure warning lamp illuminated?

YES

>> GO TO 2

NO

>> Replace combination meter. Refer to

MWI-122, "Removal and Installation"

.

2.

CHECK OIL PRESSURE SWITCH SIGNAL CIRCUIT

Check the oil pressure switch signal circuit. Refer to

MWI-42, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

CHECK OIL PRESSURE SWITCH UNIT

Perform a unit check for the oil pressure switch. Refer to

MWI-42, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-35, "Removal and Installation"

.

NO

>> Replace oil pressure switch.

MWI

THE OIL PRESSURE WARNING LAMP DOES NOT TURN OFF

MWI-113

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

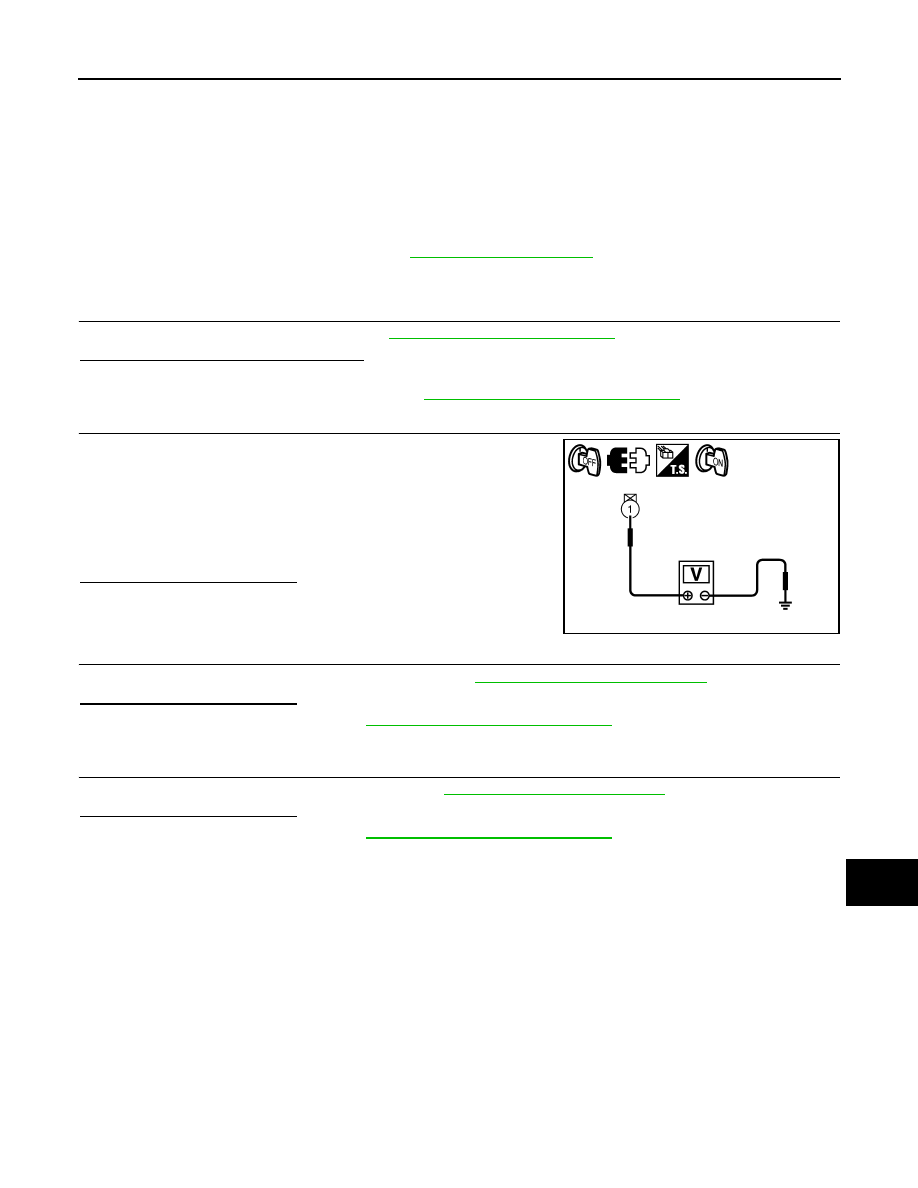

THE OIL PRESSURE WARNING LAMP DOES NOT TURN OFF

Description

INFOID:0000000010049620

The oil pressure warning lamp remains illuminated while the engine is running (normal oil pressure).

Diagnosis Procedure

INFOID:0000000010049621

Regarding Wiring Diagram information, refer to

MWI-87, "Wiring Diagram"

.

1.

CHECK OIL PRESSURE WARNING LAMP

Perform IPDM E/R auto active test. Refer to

PCS-11, "Diagnosis Description"

.

Is oil pressure warning lamp illuminated?

YES

>> GO TO 2

NO

>> Replace combination meter. Refer to

MWI-122, "Removal and Installation"

.

2.

CHECK IPDM E/R OUTPUT VOLTAGE

1. Turn ignition switch OFF.

2. Disconnect the oil pressure switch connector.

3. Turn ignition switch ON.

4. Check voltage between the oil pressure switch harness connec-

tor F41 terminal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> GO TO 4

3.

CHECK OIL PRESSURE SWITCH

Perform a unit check for the oil pressure switch. Refer to

MWI-42, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-35, "Removal and Installation"

.

NO

>> Replace oil pressure switch.

4.

CHECK OIL PRESSURE SWITCH SIGNAL CIRCUIT

Check the oil pressure switch signal circuit. Refer to

MWI-42, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-35, "Removal and Installation"

.

NO

>> Repair harness or connector.

1 – Ground

: Approx. 12V

PKIC1144E

MWI-114

< SYMPTOM DIAGNOSIS >

THE PARKING BRAKE RELEASE WARNING CONTINUES DISPLAYING, OR

DOES NOT DISPLAY

THE PARKING BRAKE RELEASE WARNING CONTINUES DISPLAYING,
OR DOES NOT DISPLAY

Description

INFOID:0000000010049622

• The parking brake warning is displayed while driving the vehicle even though the parking brake is released.

• The parking brake warning is not displayed even though driving the vehicle with the parking brake

depressed.

Diagnosis Procedure

INFOID:0000000010049623

1.

CHECK PARKING BRAKE WARNING LAMP OPERATION

1. Start engine.

2. Monitor “BRAKE” warning lamp while applying and releasing the parking brake.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-122, "Removal and Installation"

.

NO

>> GO TO 2

2.

CHECK PARKING BRAKE SWITCH SIGNAL CIRCUIT

1. Turn ignition switch OFF.

2. Check the parking brake switch signal circuit. Refer to

MWI-44, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3

NG

>> Repair harness or connector.

3.

CHECK PARKING BRAKE SWITCH UNIT

Perform a unit check for the parking brake switch. Refer to

MWI-44, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-122, "Removal and Installation"

.

NO

>> Replace parking brake switch.

BRAKE warning lamp
Parking brake depressed

: ON

Parking brake released

: OFF
