SPEEDOMETER : Component Description

INFOID:0000000010049534

TACHOMETER

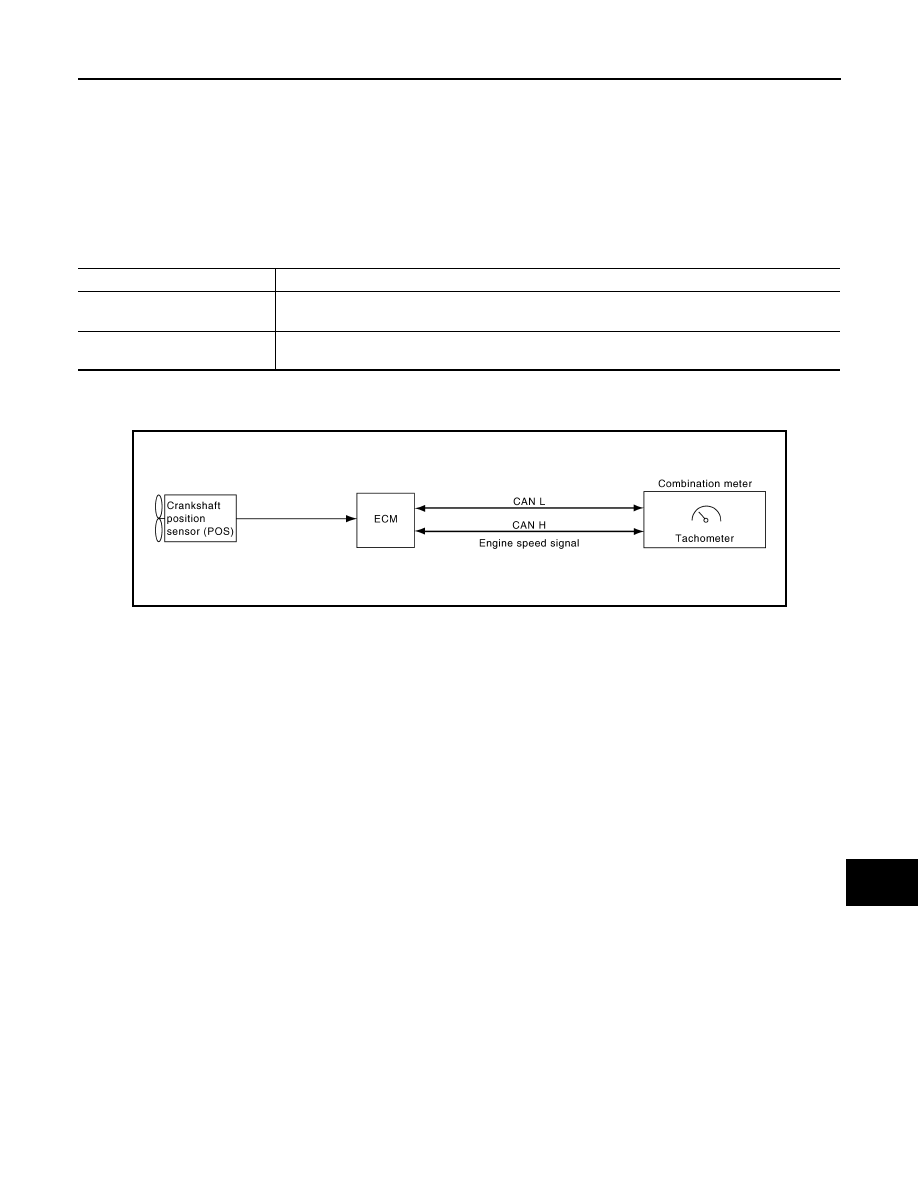

TACHOMETER : System Diagram

INFOID:0000000010049535

TACHOMETER : System Description

INFOID:0000000010049536

The tachometer indicates engine speed in revolutions per minute (RPM).

The ECM provides an engine speed signal to the combination meter via CAN communication lines.

4.

TCM F15

5.

BCM M18, M19, M20, M21 (view with
instrument panel removed)

6.

ABS actuator and electric unit (control
unit) E26

7.

Fuel level sensor unit and fuel pump
(fuel level sensor) B42 (view with rear
seat and inspection hole cover re-
moved)
⇐: Front

8.

Oil pressure switch F41 (view with en-
gine removed)

9.

Parking brake switch E35 (view with in-
strument lower cover LH removed)

Unit

Description

Combination meter

Indicates the vehicle speed according to the vehicle speed signal received from ABS actuator and
electric unit (control unit) via CAN communication.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter with CAN communication line.

SKIB6904E

MWI-12

< SYSTEM DESCRIPTION >

METER SYSTEM

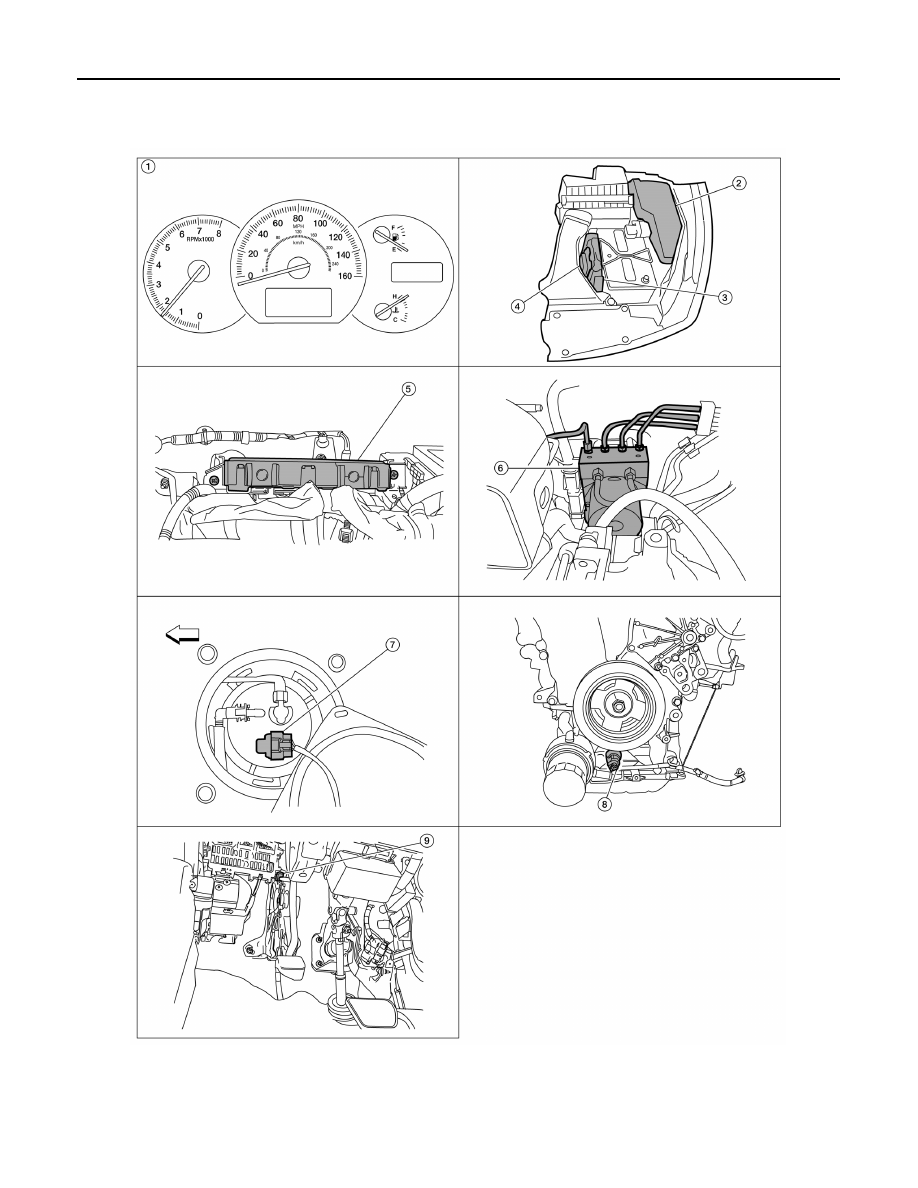

TACHOMETER : Component Parts Location

INFOID:0000000010049537

1.

Combination meter M23, M24

2.

IPDM E/R E17, E18, E201, F10

3.

ECM E10

AWNIA2477GB

MWI

METER SYSTEM

MWI-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TACHOMETER : Component Description

INFOID:0000000010049538

ENGINE COOLANT TEMPERATURE GAUGE

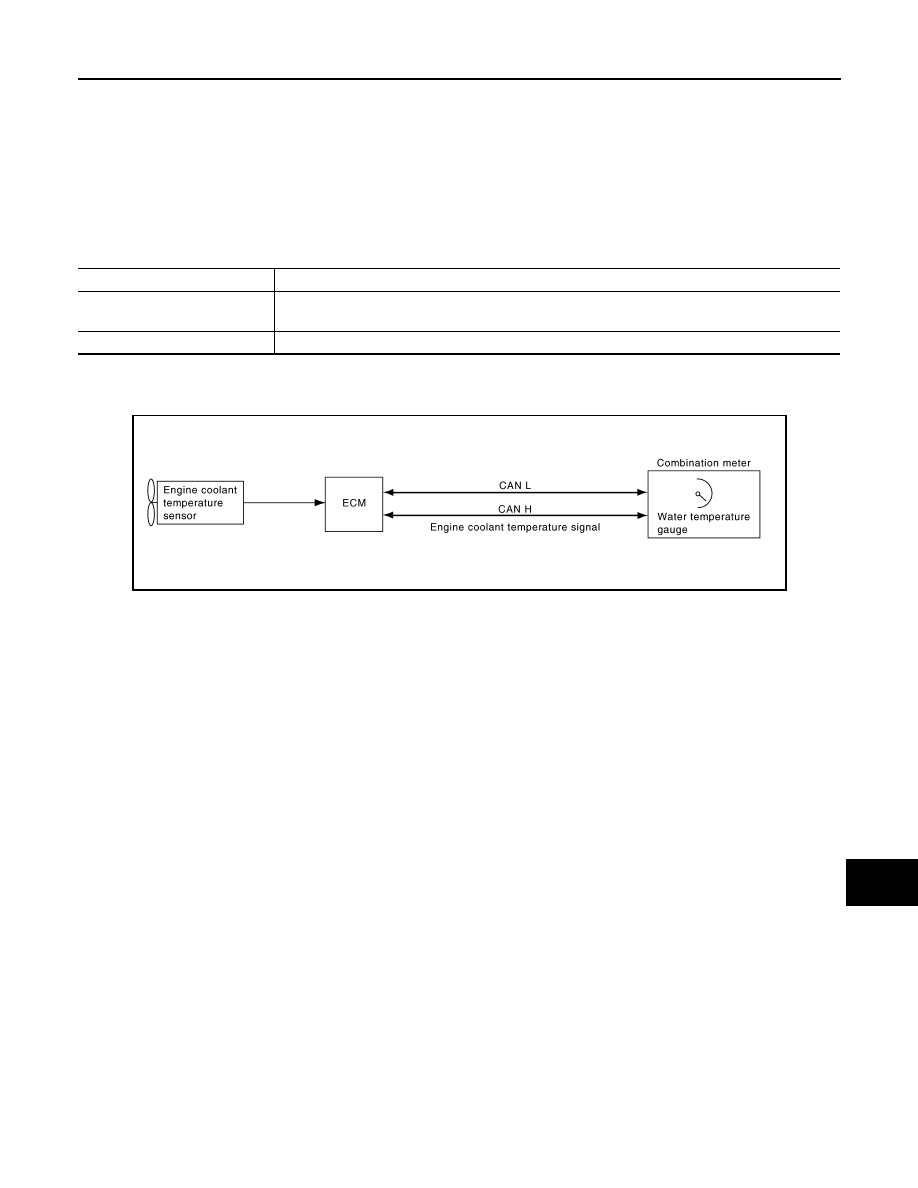

ENGINE COOLANT TEMPERATURE GAUGE : System Diagram

INFOID:0000000010049539

ENGINE COOLANT TEMPERATURE GAUGE : System Description

INFOID:0000000010049540

The water temperature gauge indicates the engine coolant temperature.

The ECM provides an engine coolant temperature signal to the combination meter via CAN communication

lines.

4.

TCM F15

5.

BCM M18, M19, M20, M21 (view with
instrument panel removed)

6.

ABS actuator and electric unit (control
unit) E26

7.

Fuel level sensor unit and fuel pump
(fuel level sensor) B42 (view with rear
seat and inspection hole cover re-
moved)
⇐: Front

8.

Oil pressure switch F41 (view with en-
gine removed)

9.

Parking brake switch E35 (view with in-
strument lower cover LH removed)

Unit

Description

Combination meter

Indicates the engine speed in RPM according to the engine speed signal received from ECM via
CAN communication.

ECM

Transmits the engine speed signal to the combination meter with CAN communication line.

SKIB6905E

MWI-14

< SYSTEM DESCRIPTION >

METER SYSTEM

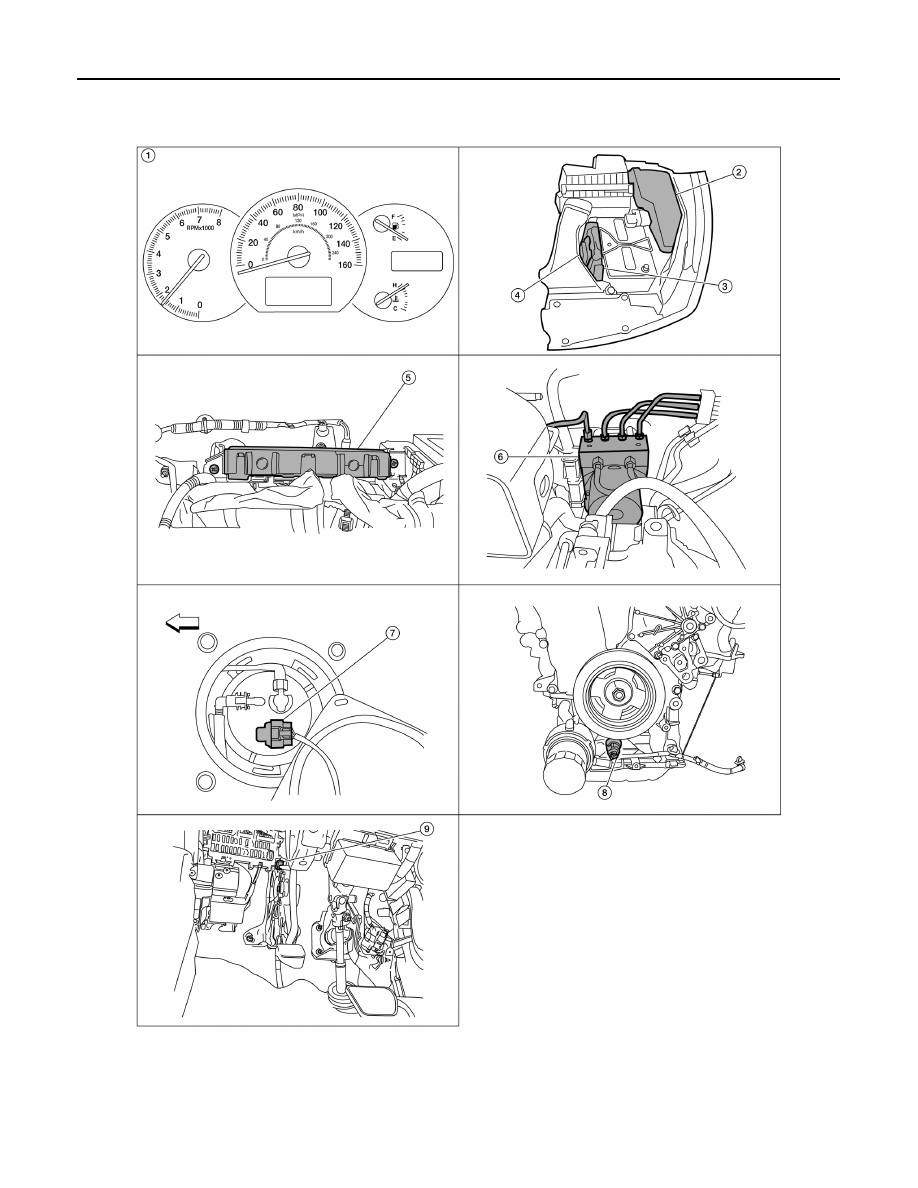

ENGINE COOLANT TEMPERATURE GAUGE : Component Parts Location

INFOID:0000000010049541

1.

Combination meter M23, M24

2.

IPDM E/R E17, E18, E201, F10

3.

ECM E10

AWNIA2477GB
