CLUSTER LID C

IP-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CLUSTER LID C

Removal and Installation

INFOID:0000000009465909

CLUSTER LID C

NOTE:

The cluster lid C lower finisher is only used in vehicles equipped with monochrome display unit.

Removal - With Monochrome Display

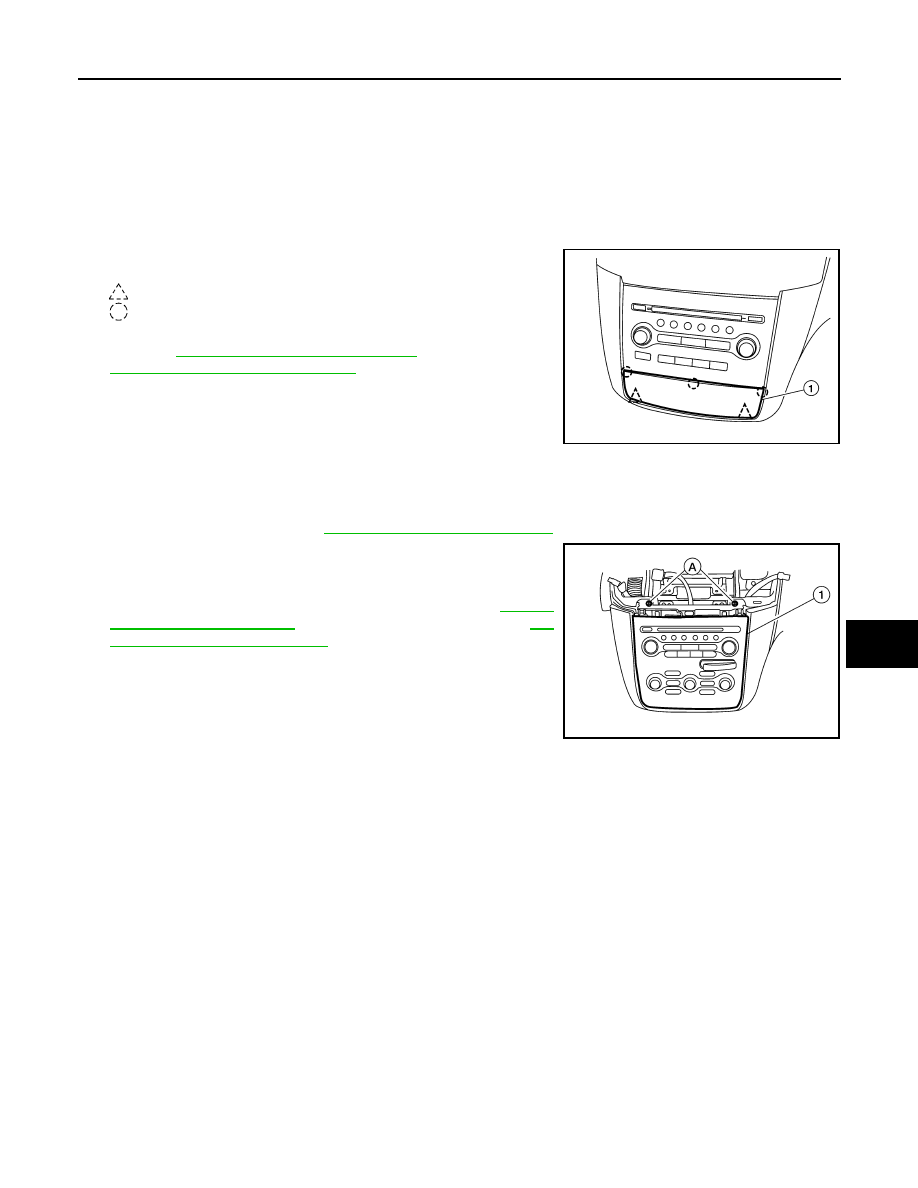

1. Release the clips and pawls and remove cluster lid C lower fin-

isher (1).

: Clip
: Pawl

2. Remove cluster lid C (base audio) with the base audio unit.

Refer to

AV-73, "Removal and Installation"

 (BASE AUDIO) or

AV-161, "Removal and Installation"

 (BOSE W/MONOCHROME

DISPLAY).

Installation

Installation is in the reverse order of removal.

Removal - With Color Display

1. Remove cluster lid D. Refer to

IP-18, "Removal and Installation"

.

2. Remove the screws (A) and reposition cluster lid C (1) to access

the harness connectors.

3. Disconnect the harness connectors and the remove cluster lid C

(Bose audio) with the Bose audio unit. Refer to

AV-481,

"Removal and Installation"

 (BOSE W/COLOR DISPLAY) or

AV-

655, "Removal and Installation"

 (BOSE W/COLOR DISPLAY W/

NAVI).

Installation

Installation is in the reverse order of removal.

ALNIA1152ZZ

ALJIA0340ZZ

IP-18

< REMOVAL AND INSTALLATION >

CLUSTER LID D

CLUSTER LID D

Removal and Installation

INFOID:0000000009465910

REMOVAL

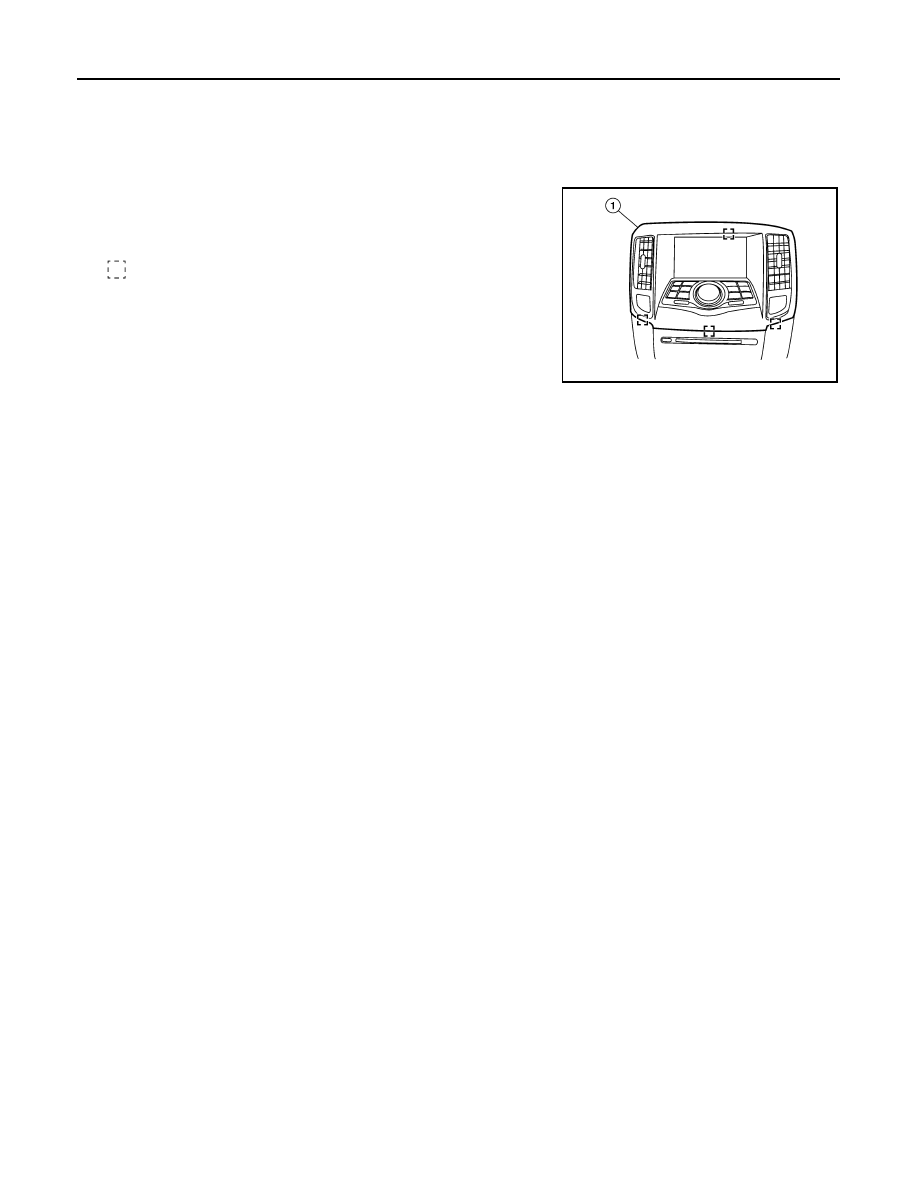

1. Release the metal clips using a suitable tool, then position clus-

ter lid D (1) aside.

2. Disconnect the harness connectors, then remove cluster lid D

(1).

: Metal clip

INSTALLATION

Installation is in the reverse order of removal.

AWJIA0548ZZ

INSTRUMENT LOWER PANEL LH

IP-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

INSTRUMENT LOWER PANEL LH

Removal and Installation

INFOID:0000000009465911

REMOVAL

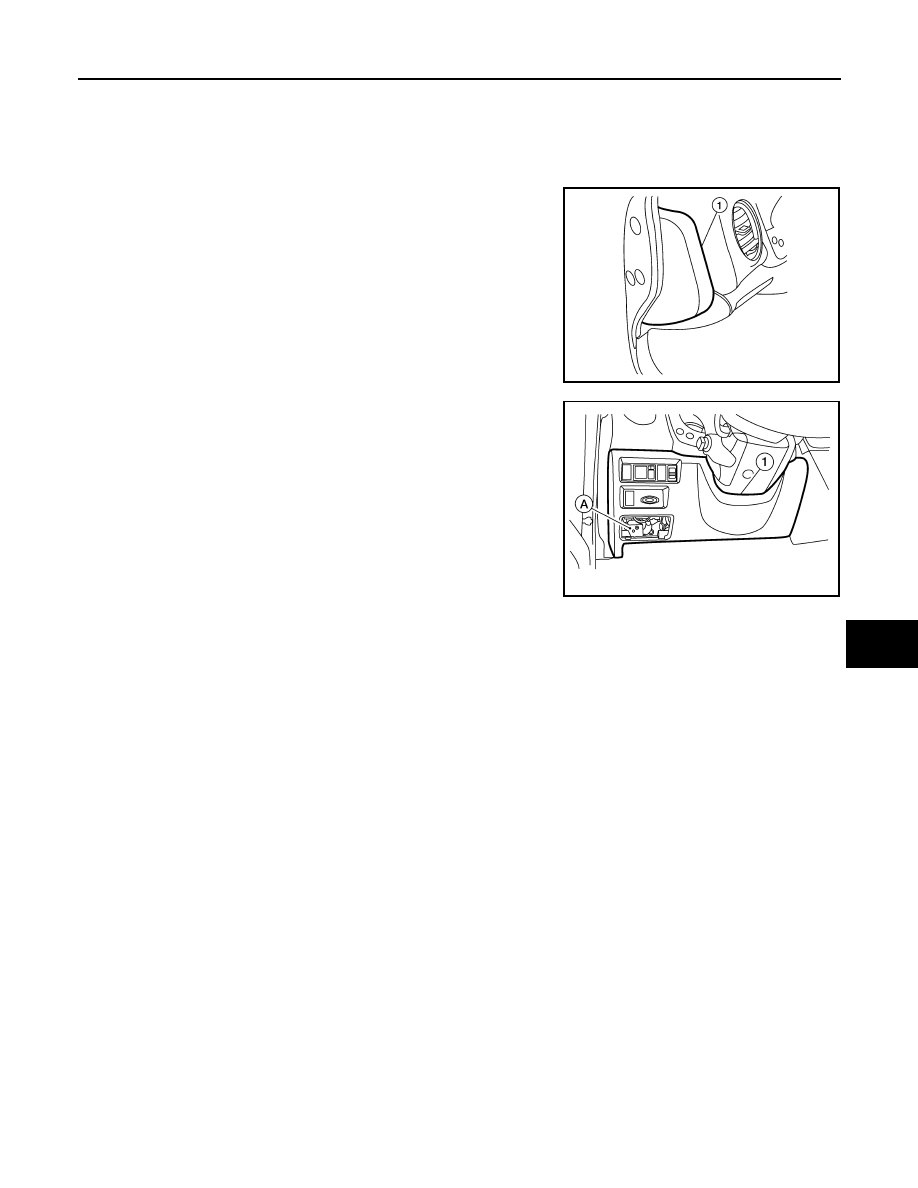

1. Using a suitable tool, gently remove the instrument side finisher

(LH) (1).

2. Remove the instrument lower panel (LH) (1).
a. Open the fuse block cover and remove the instrument lower

panel screw (A).

b. Disconnect the harness connectors and aspirator hose.
c. Remove the instrument lower panel (LH) (1).

INSTALLATION

Installation is in the reverse order of removal.

ALJIA0335ZZ

ALJIA0336ZZ

IP-20

< REMOVAL AND INSTALLATION >

GLOVE BOX ASSEMBLY

GLOVE BOX ASSEMBLY

Removal and Installation

INFOID:0000000009465912

REMOVAL

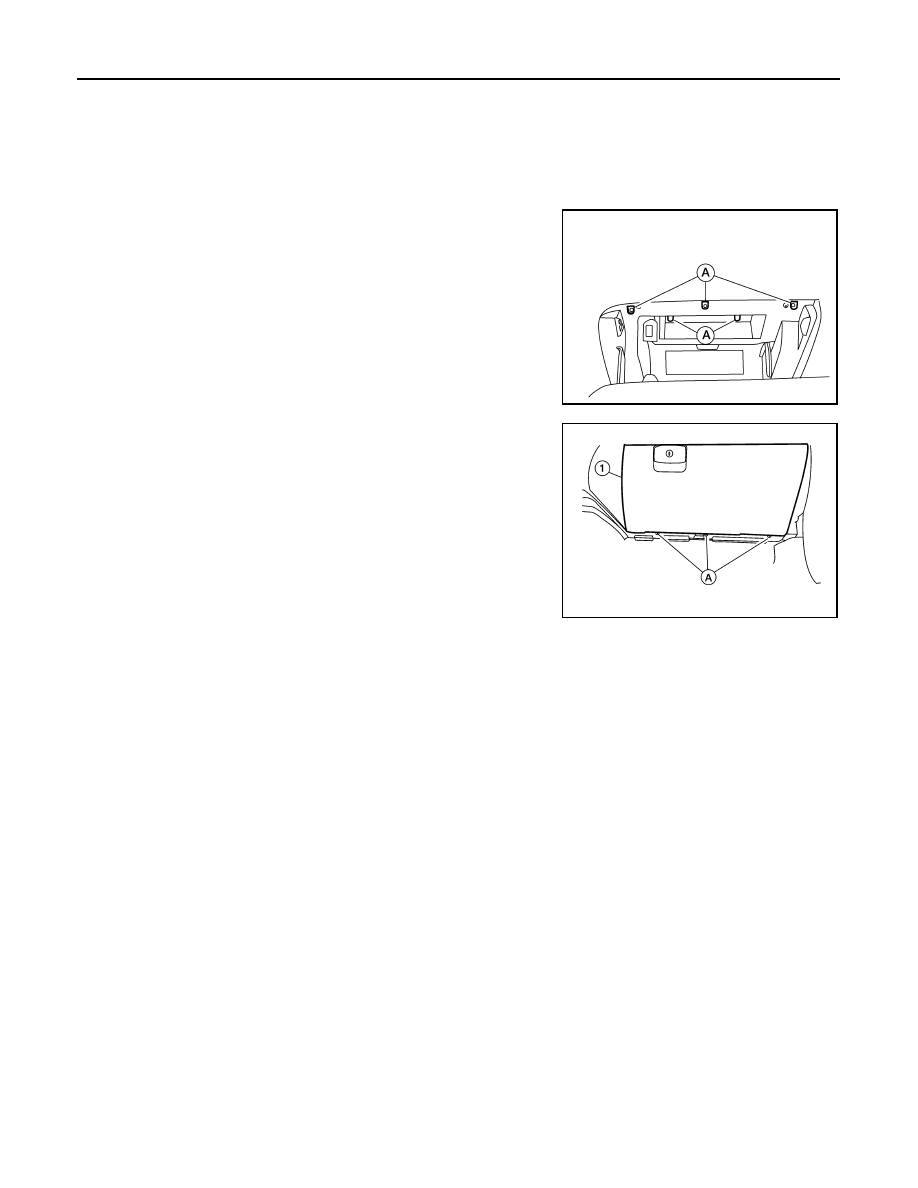

1. Using a suitable tool, gently remove the instrument panel side finisher (RH).
2. Open the glove box door and then remove the glove box assem-

bly screws (A).

3. Remove the glove box assembly lower screws (A).
4. Disconnect the harness connectors, then remove the glove box

assembly (1).

INSTALLATION

Installation is in the reverse order of removal.

ALJIA0337ZZ

ALJIA0338ZZ
