Nissan Maxima. Manual - part 760

HRN-6

< WIRING DIAGRAM >

HORN

ABLIA1731GB

HORN

HRN-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

REMOVAL AND INSTALLATION

HORN

Removal and Installation

INFOID:0000000009465503

REMOVAL

1. Remove the engine under cover. Refer to

EXT-16, "Removal and Installation"

.

2. Position aside the front fender protector (LH). Refer to

EXT-24, "Removal and Installation"

.

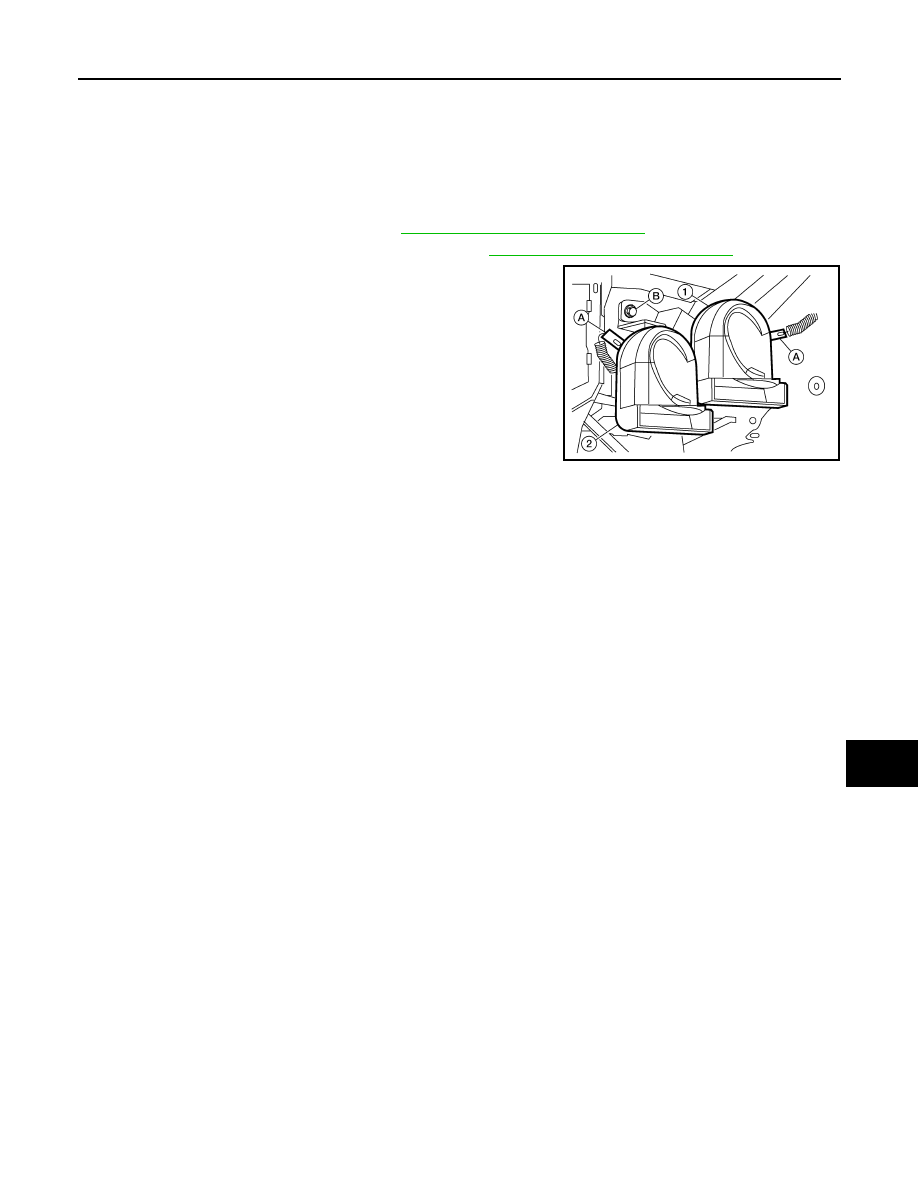

3. Disconnect the harness connectors (A) from the horns.
4. Remove the horn bracket bolt (B).
5. Remove horns (1 and 2).

INSTALLATION

Installation is in the reverse order of removal.

ALLIA0874ZZ
